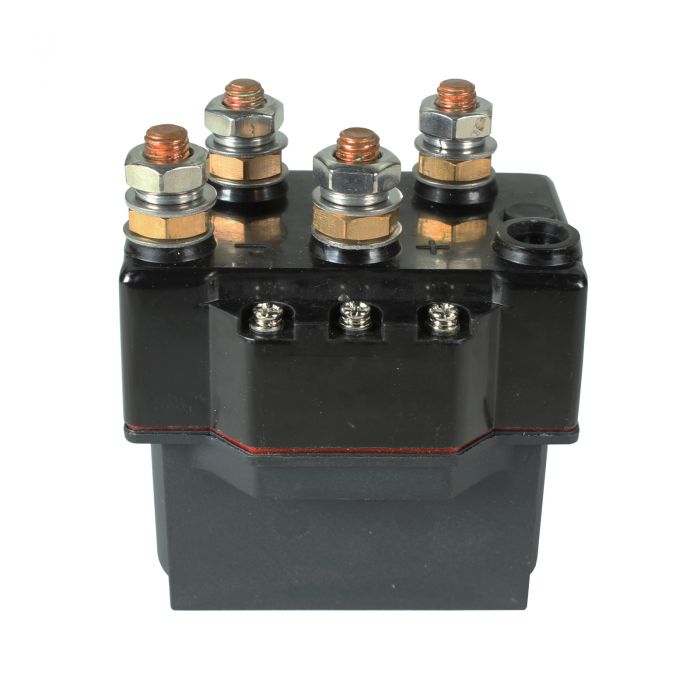

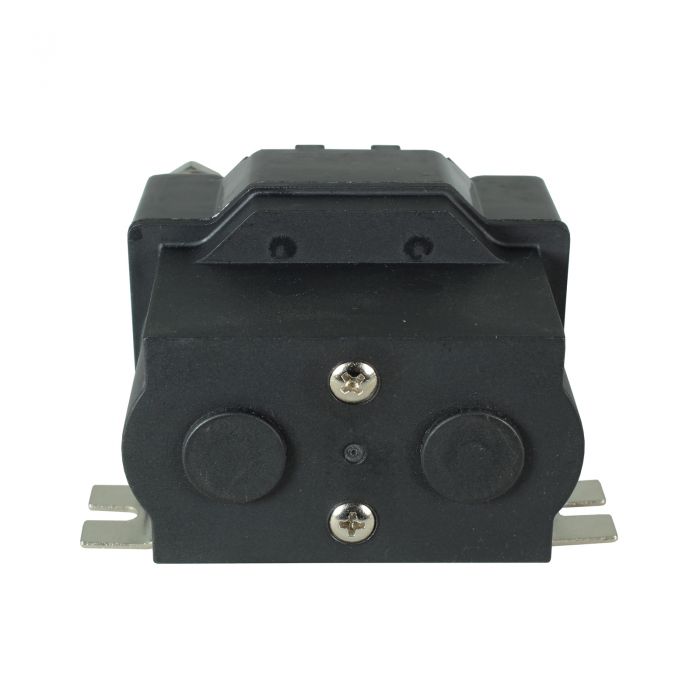

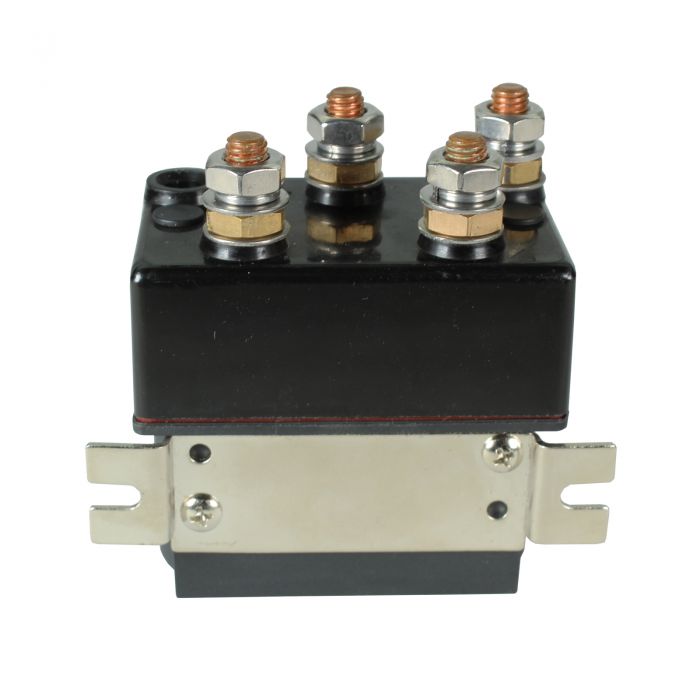

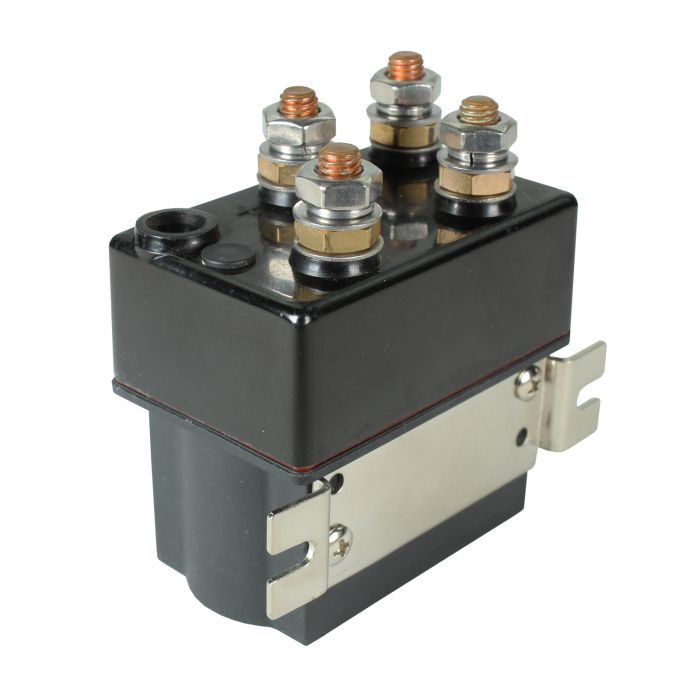

Premium 600 Amp Heavy Duty 24v Solenoid Block
These heavy duty Albright style sealed 600 amp 24v solenoid blocks are much more reliable than the old individual solenoids. These solenoids can be fitted to most solenoid operated winches that are on the market and can also be used as a direct replacement for Albright solenoids. These are wireless remote compatible and works with both series wound and permanent magnet motors.
Applications:
- Max Amps = 600 A
- Voltage = 24v
- Winches From 4500lb(2000kg) to 18,000lb(8100kg)
- Wireless Remote Compatible
- Series Wound and Permanent Magnet Motors
Dimensions:
- Overall Height = 95mm
- Main Body Height = 75mm
- Overall Width = 85mm
- Overall Depth = 60mm
- Terminal Height = 20mm
- Terminal Size = M10
