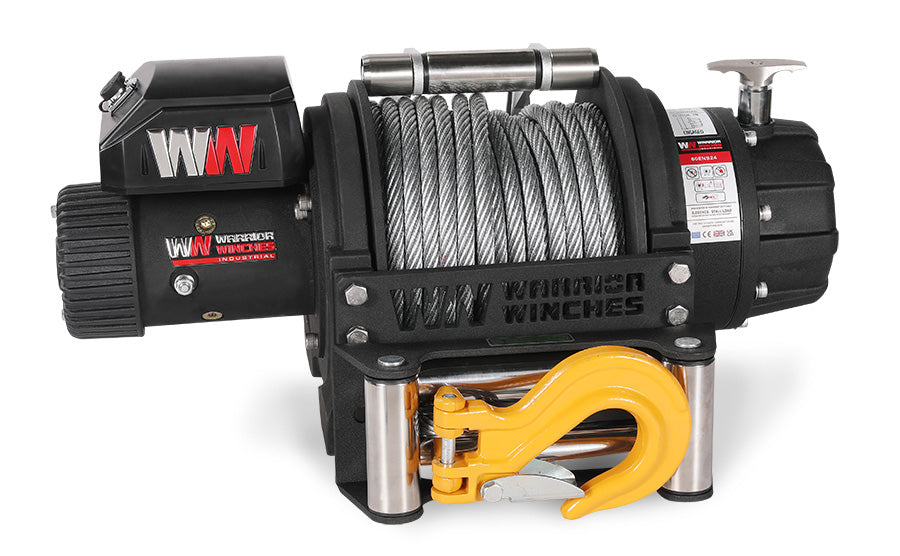

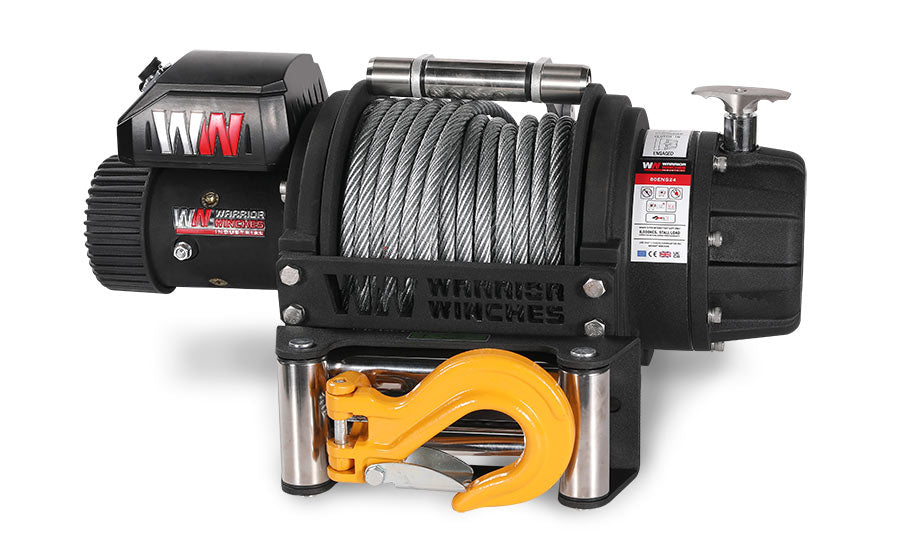

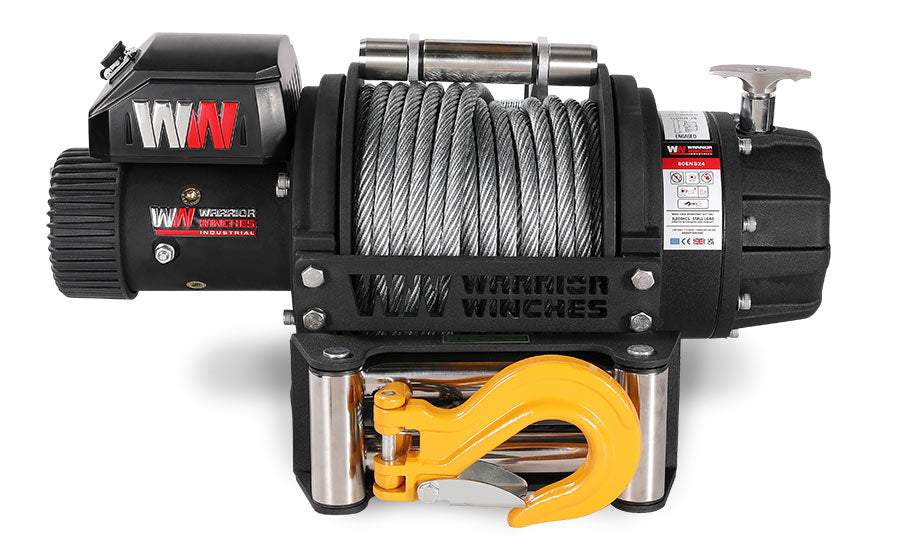

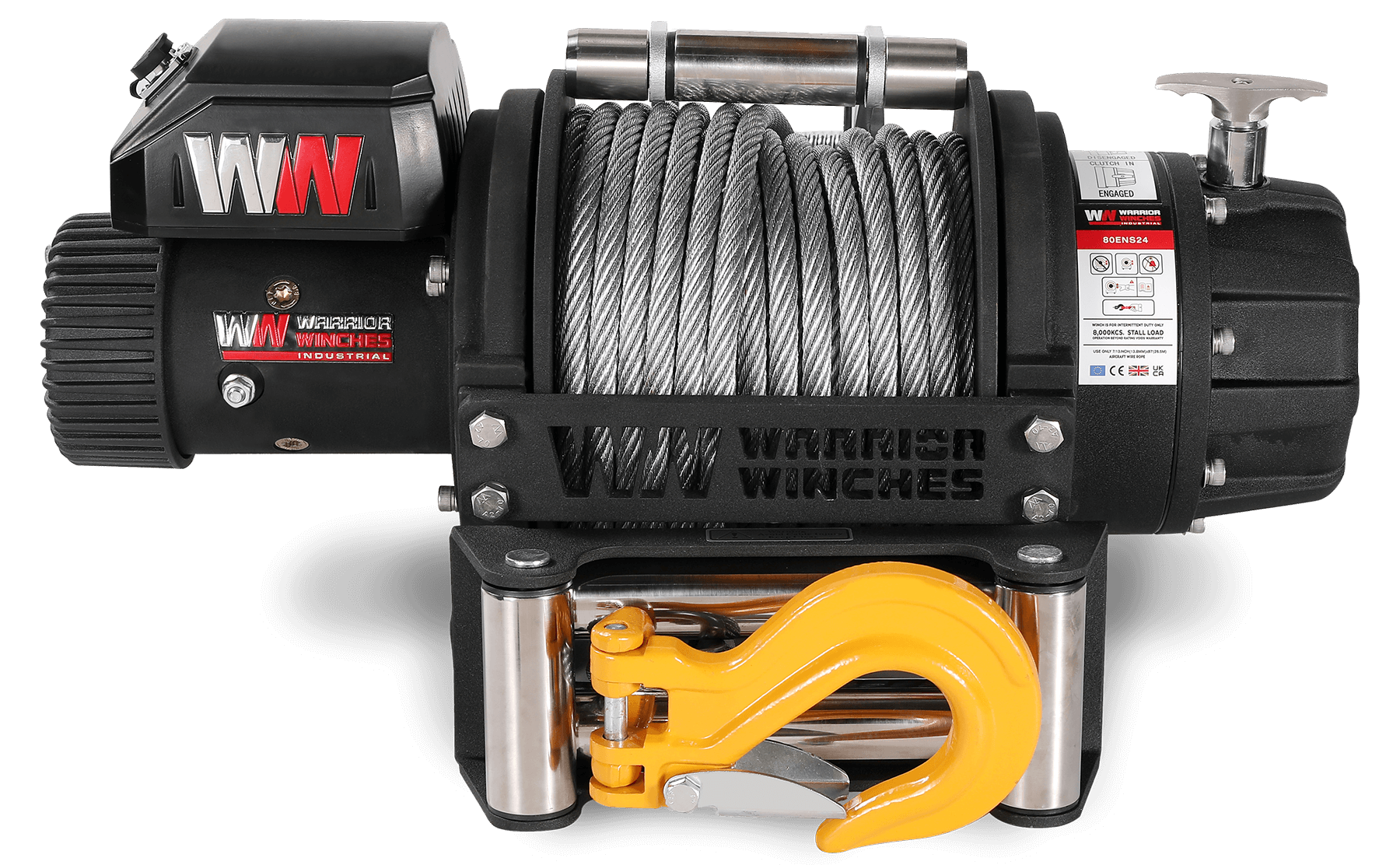

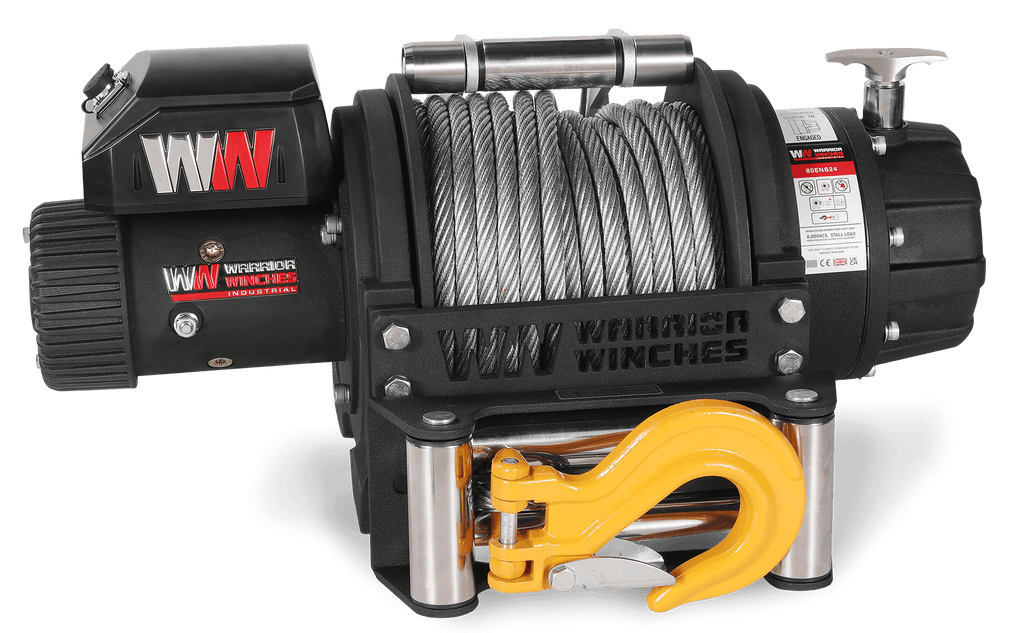

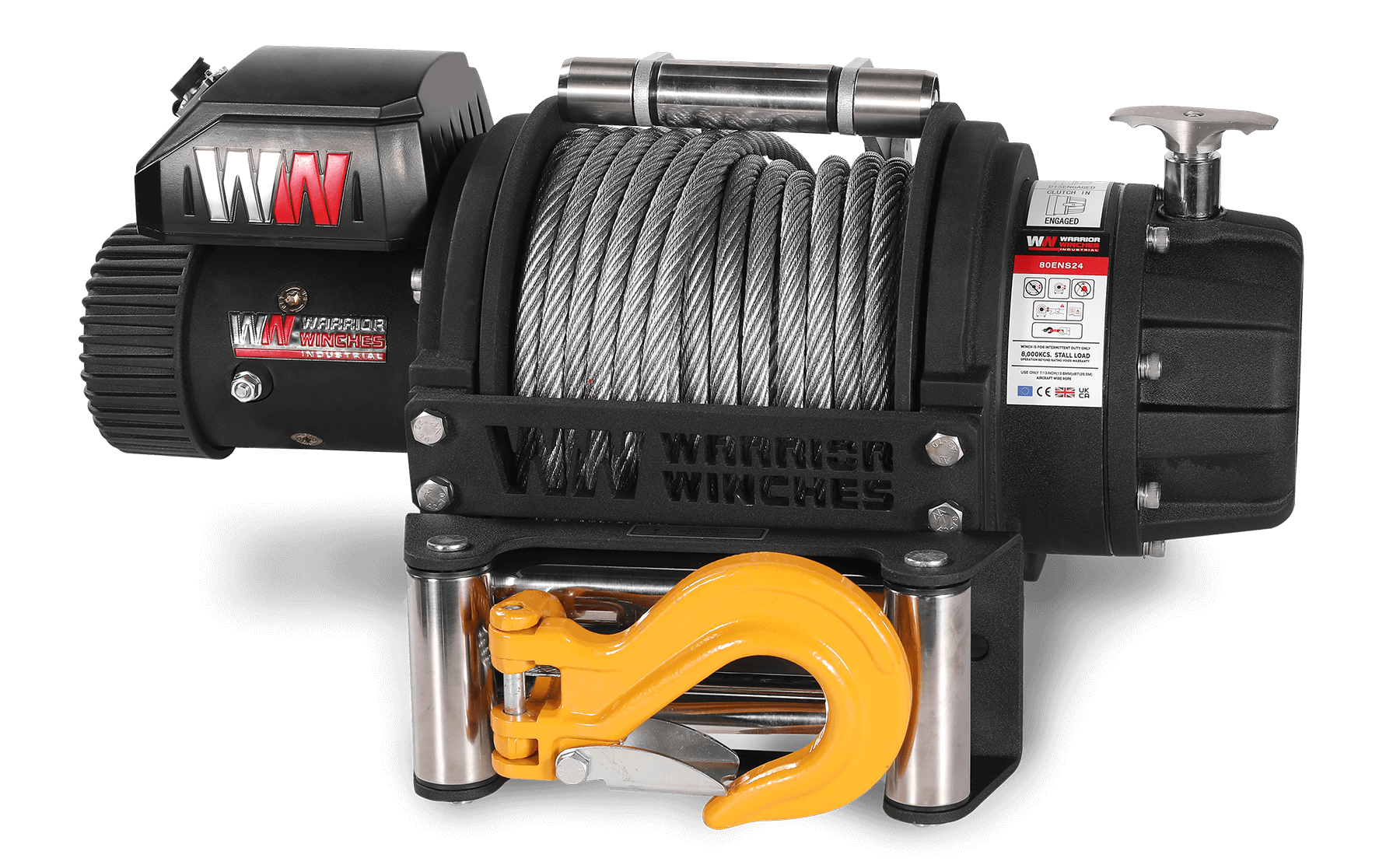

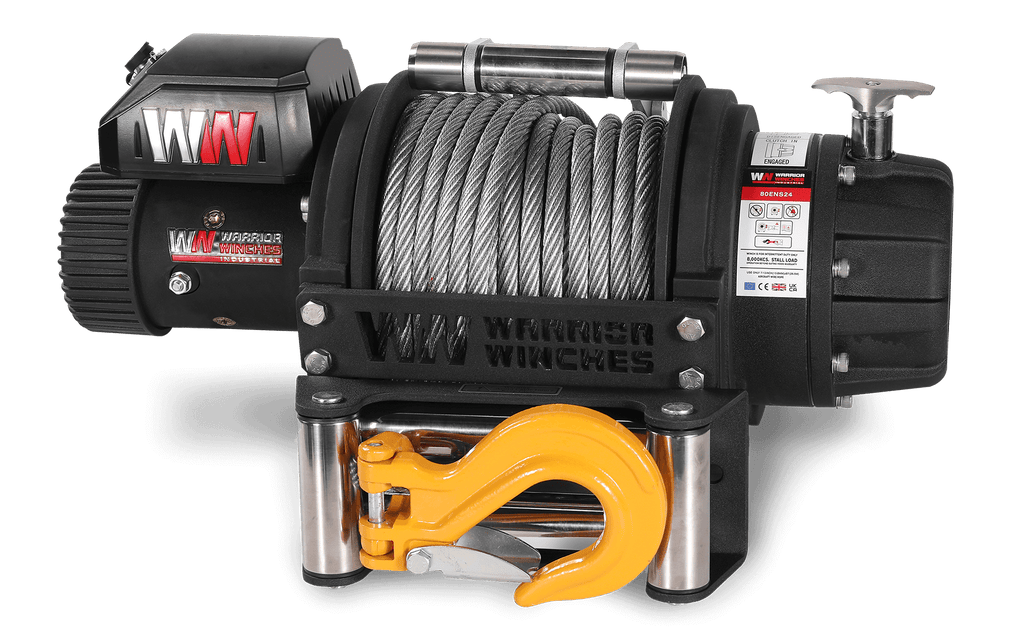

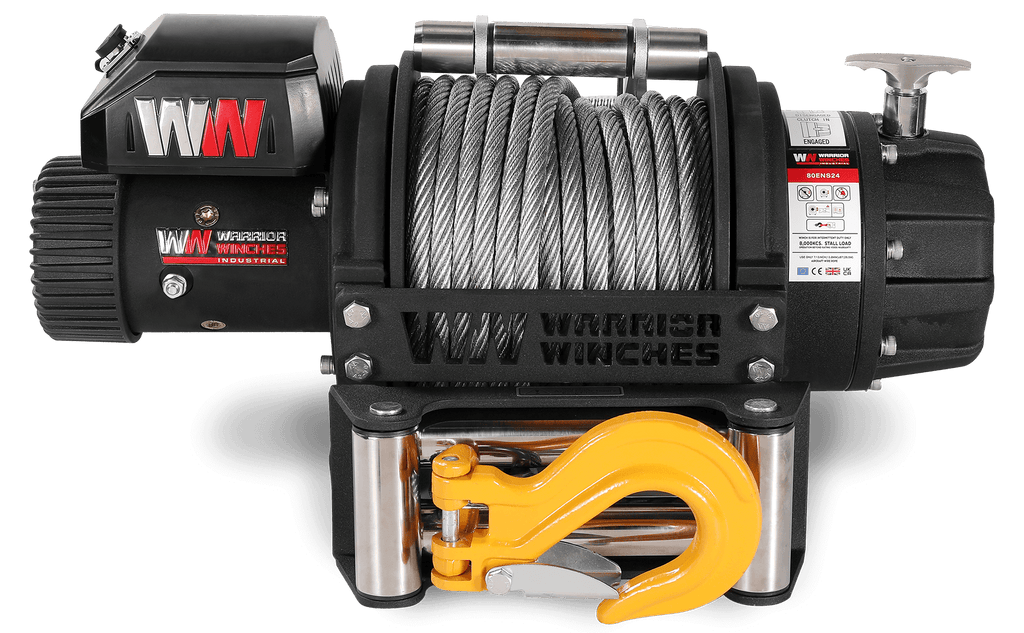

8000EN Extended Drum Winch

SKU EAN
80LDS24 5060423986645

Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

Features

  • Massive 8000 kg pulling power
  • Emergency stop remote handset
  • Two hole fixing in drum for rope
  • Isolation switch included
  • Overload Protection included
  • Conforms to part of BS EN 14492-1:2006+A1:2009
  • Extended drum for extra length rope

The latest Extended Drum edition to the Warrior EN range designed for commercial plant trailers, with a 40-meter rope (131 ft) which allows operators to double up the pulling capacity to a massive 16Tonne. (35,274lb), available in 24v with Steel Cable. Perfectly suited to Industrial & Commercial applications, this beast can handle whatever you throw at it.


8 Tonne Recovery Winch and with a suitable installation solution they can conform to part of BS EN 14492-1:2006+A1:2009

Rated Line Pull17637 lbs
Motor Type24V: Input: 8.2 HP / 6.1 kW ; Output: 4.2HP / 3.1kW
Rated Volt24
Gearing450:1
ClutchManual
Braking ActionExternal Brake

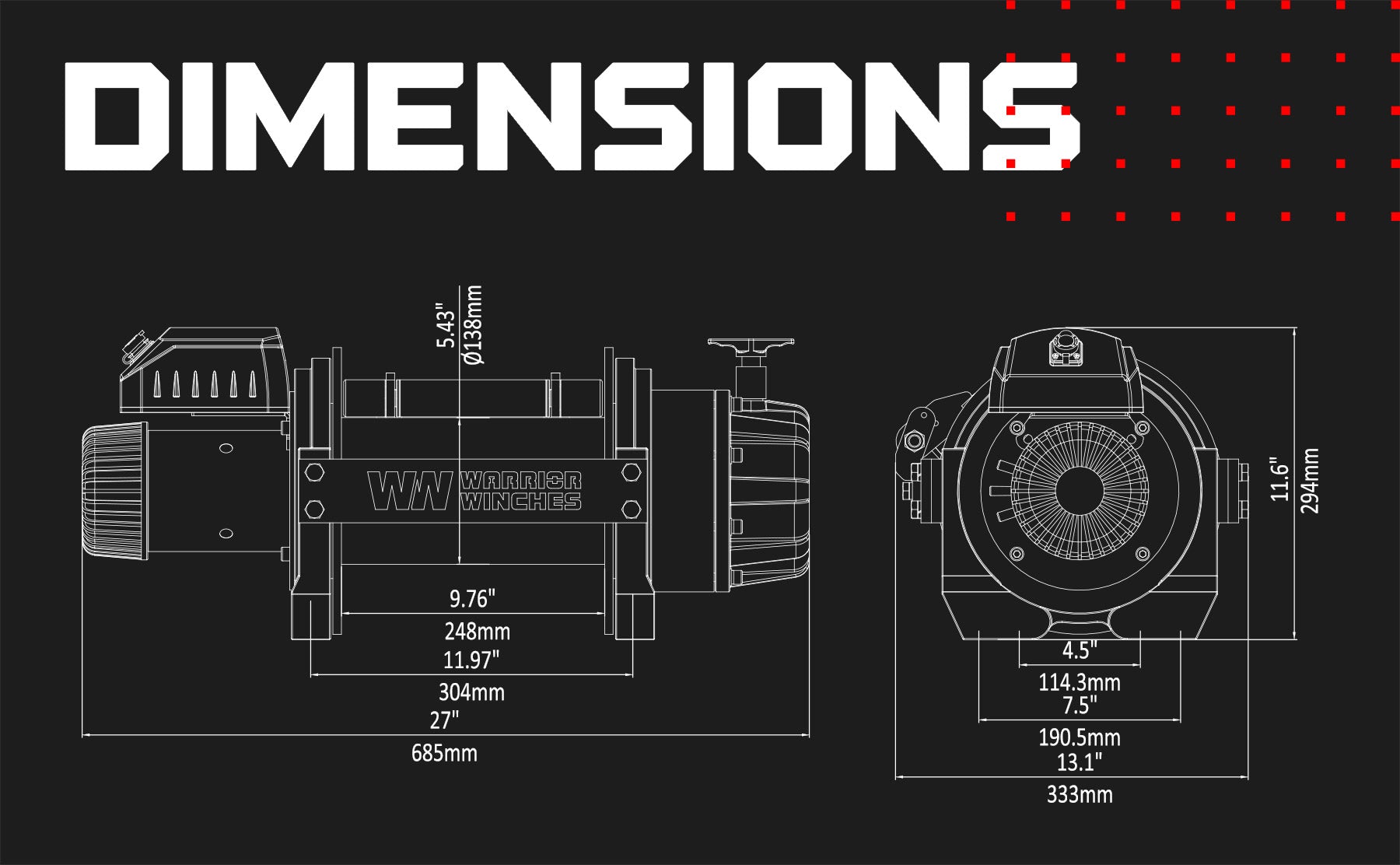

Drum Size (Dia x L)138 x 248 mm
Cable MaterialSteel
Mounting Pattern304mm×114.3 mm : 304mm×190.5mm mm
Dimensions685 x 333 x 294 mm
Weight100.0 kg
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 17637 (8000) 18.7 (5.7)
2 14923 (6769) 42.7 (13)
3 12932 (5866) 70.2 (21.4)
4 11408 (5175) 92 (28)
Line Pull
lbs (kgs)
Line Speed 24v
ft/min (m/min)
Amp Draw
24v
0 33.8 (10.3) 26
4409 (2000) 11.5 (3.5) 95
8818 (4000) 8.5 (2.6) 140
13228 (6000) 6.6 (2.0) 190
17637 (8000) 5.9 (1.8) 230

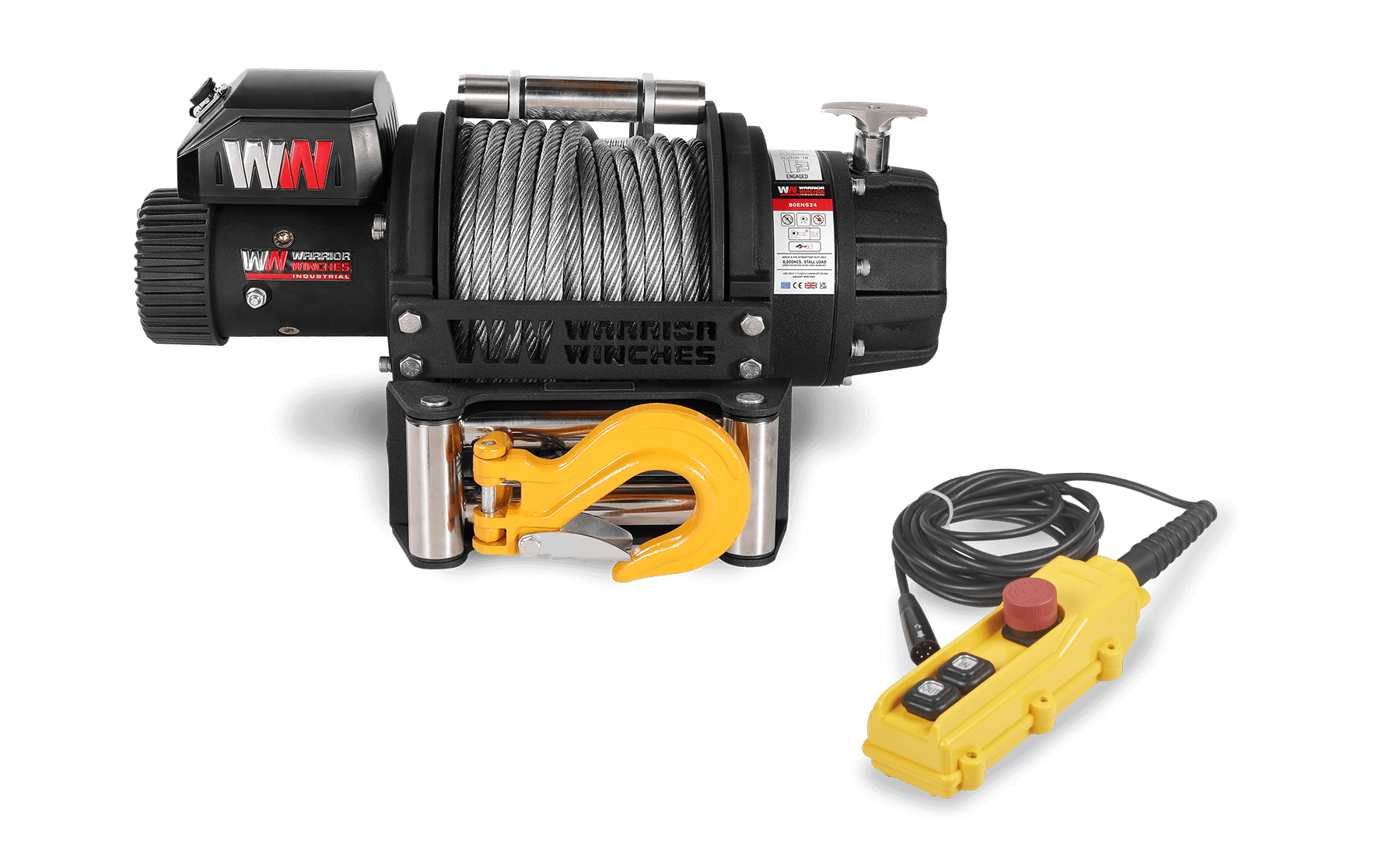

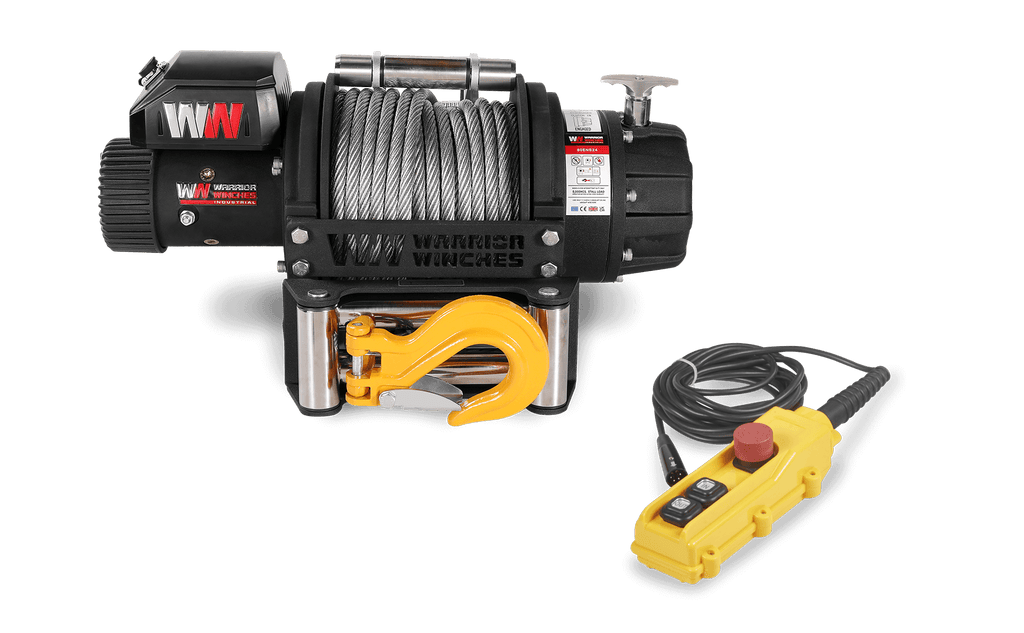

What's in the box:

  • 8000 EN Winch
  • Steel Winch Rope
  • Heavy Duty Hook
  • Heavy Duty Stainless Steel Roller Fairlead
  • Heavy Duty Battery Leads
  • 3.8m Remote Handset
  • Tensioner
  • Overload Protection
  • Stainless Steel Mounting hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
