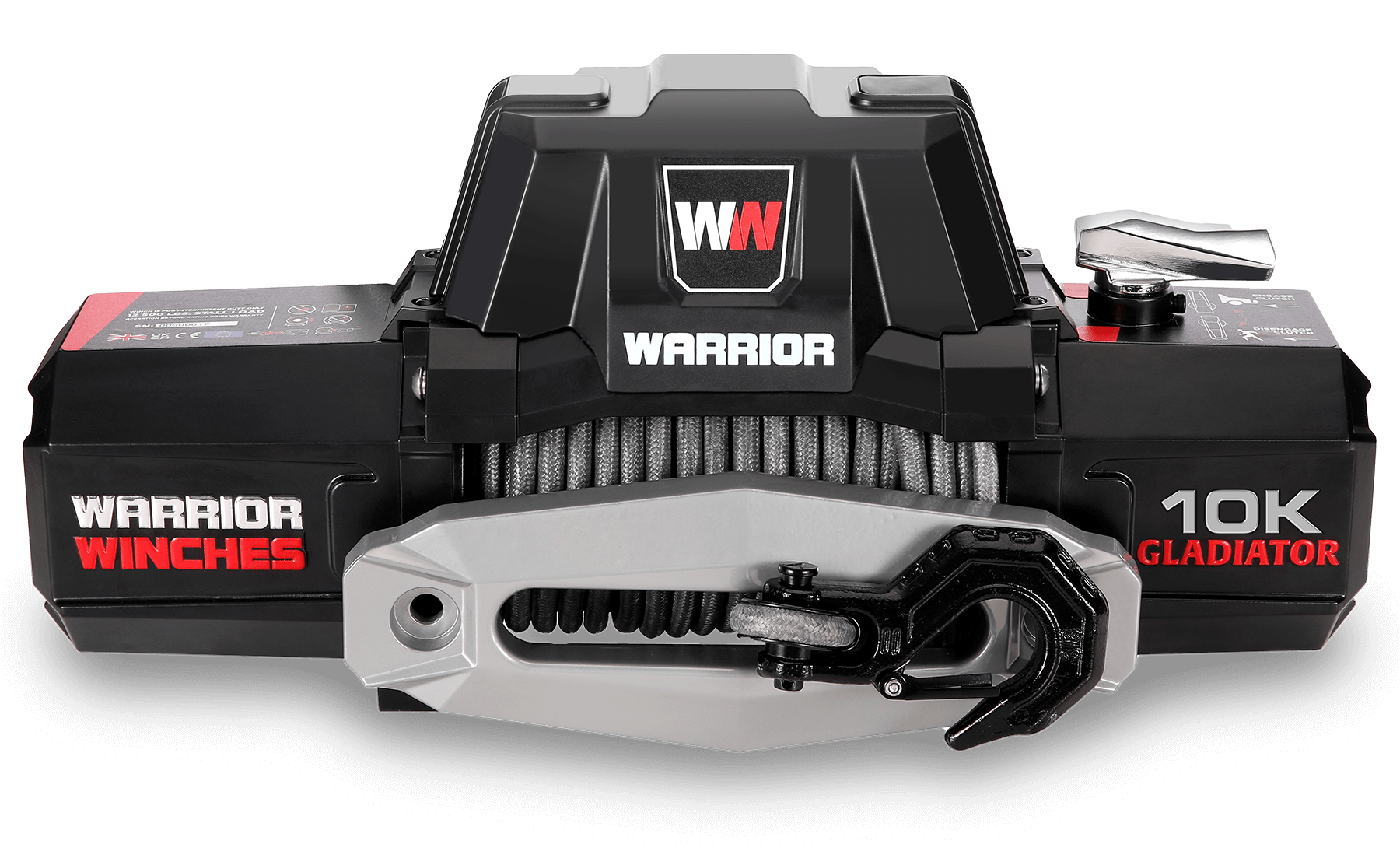

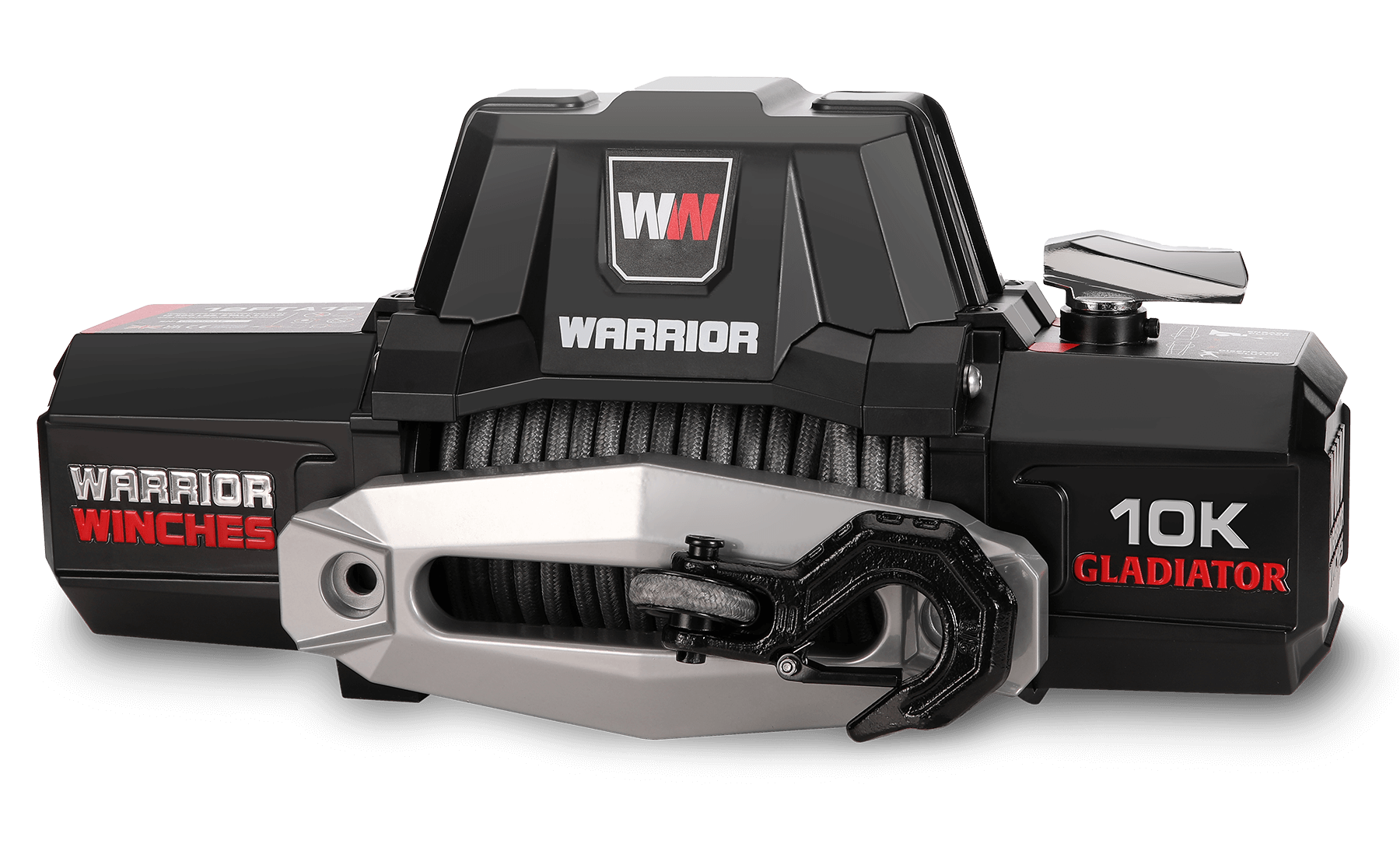

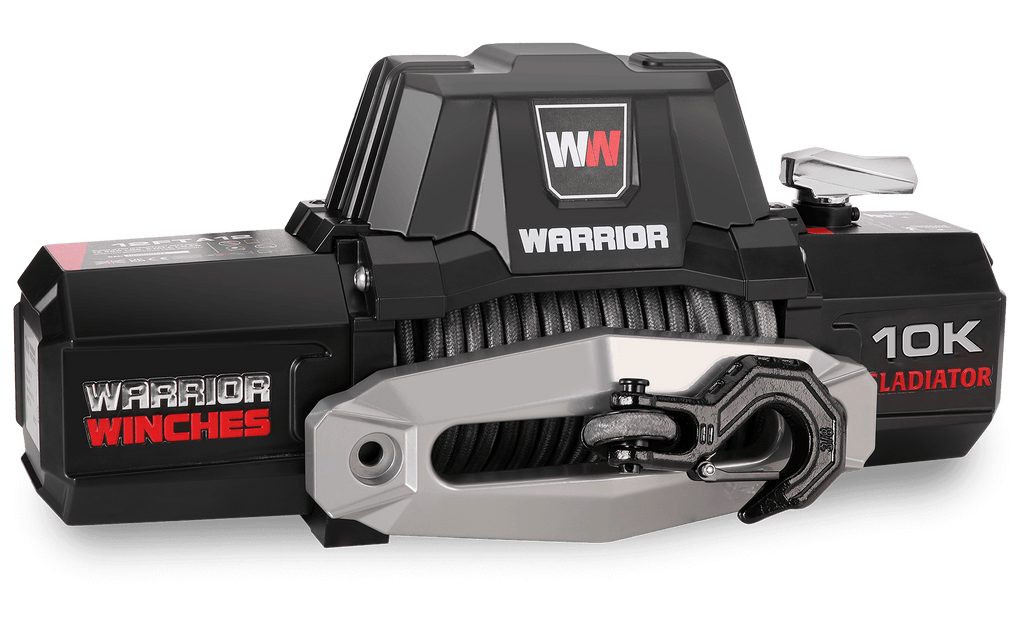

12v / Synthetic RopeSKU: 10FTA12
No reviews
Voltage: 12v
Rope: Synthetic Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior Stockists

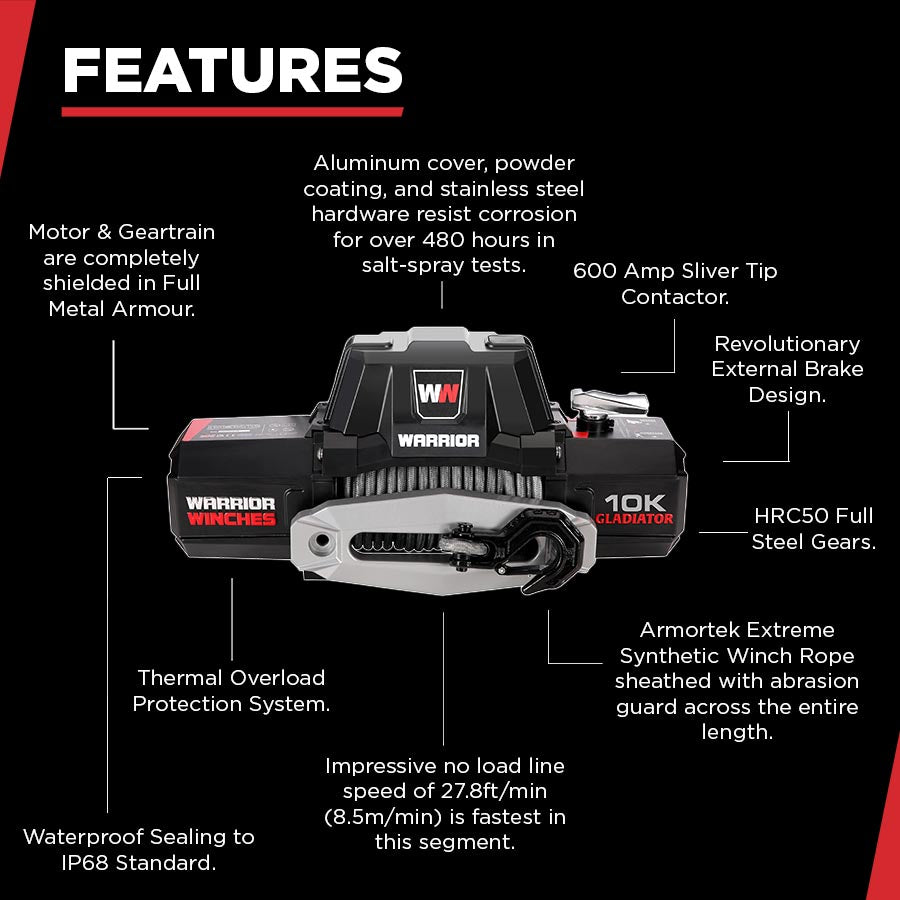

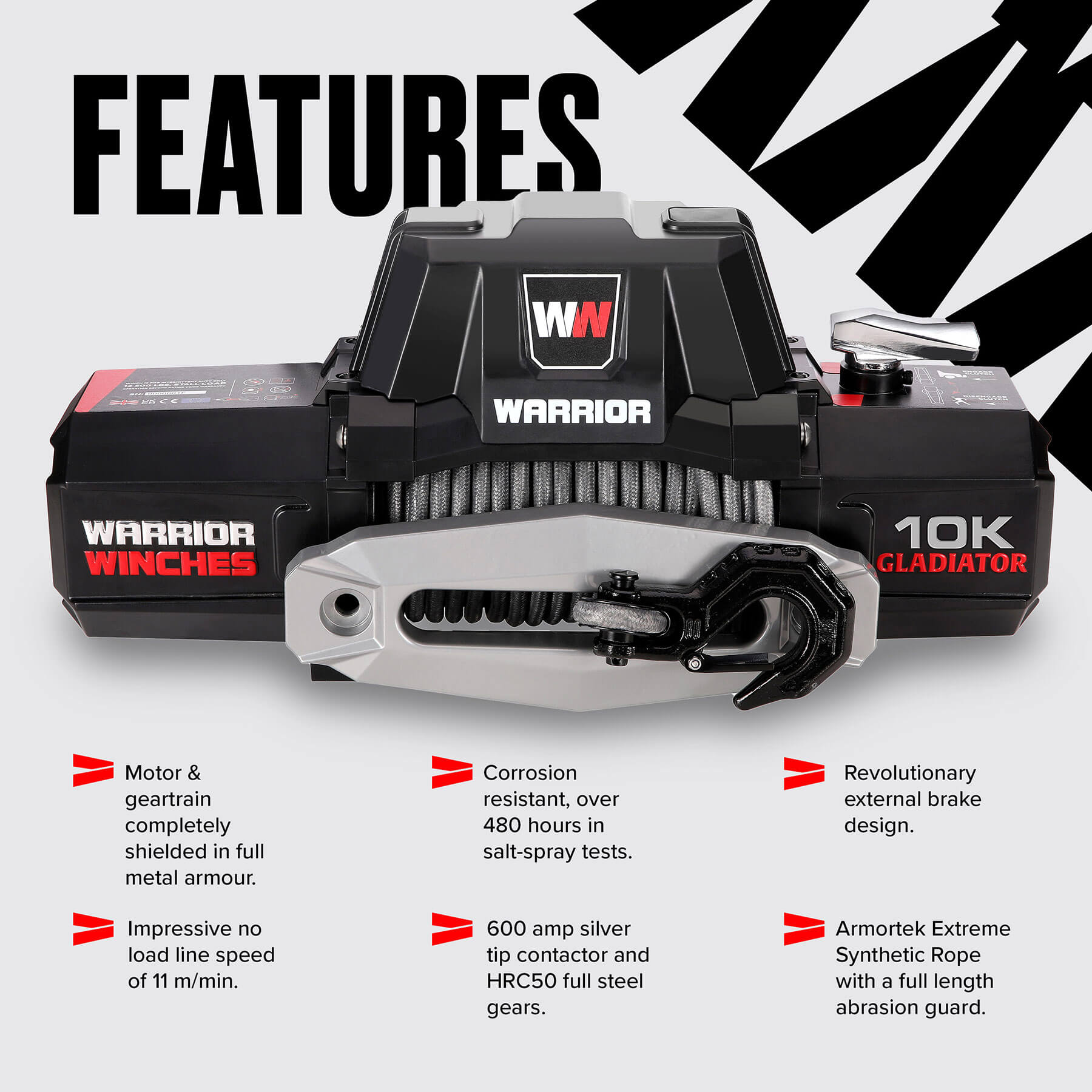

Features

  • The motor and geartrain are completely shielded in full metal armour and we have gone the extra step to cover the control pack in sturdy aluminium for maximum protection.
  • Durable aluminium cover, outdoor anti-corrosion powder coating and stainless steel mounting hardware provide an exceptional corrosion resistance of over 480 hours of salt-spray-testing.

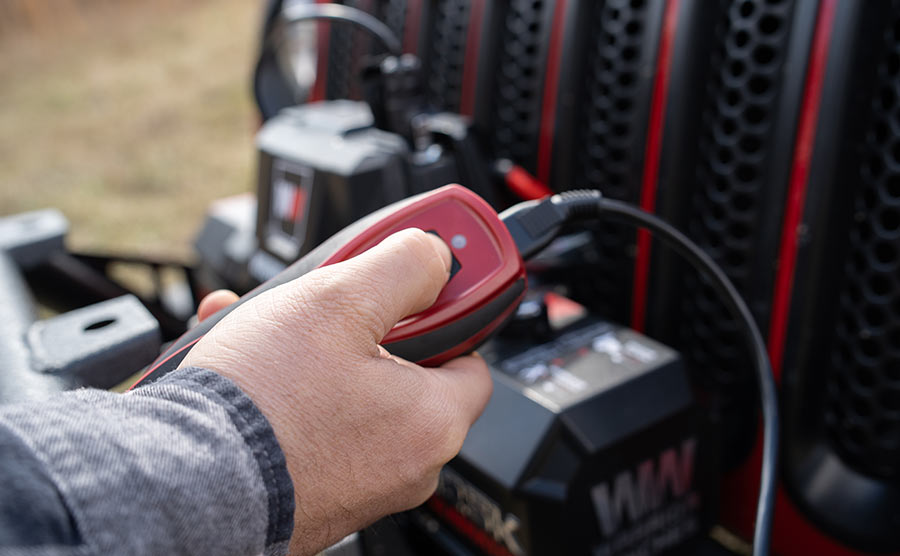

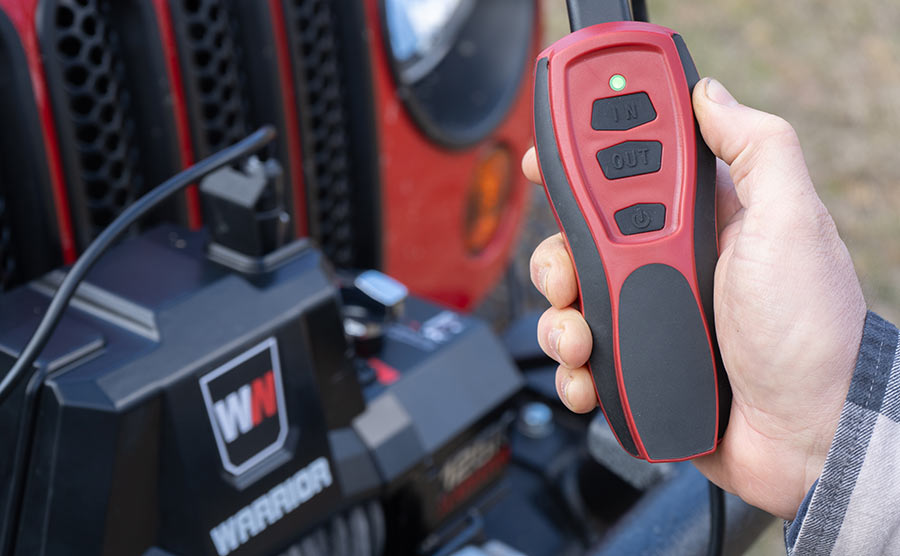

  • 2in1 Wired/Wireless Rechargeable Remote for ease of use in any situation. A USB charging cable means you can recharge the remote in your vehicle.
  • Thermal Overload Protection System prevents damage to the winch, giving you peace of mind that your winch is protected in extreme use cases
  • Warrior's high powered motor and geartrain delivers high performance and powerful pulling capacity whilst maintaining an ultra low amp draw so you don't drain your battery.

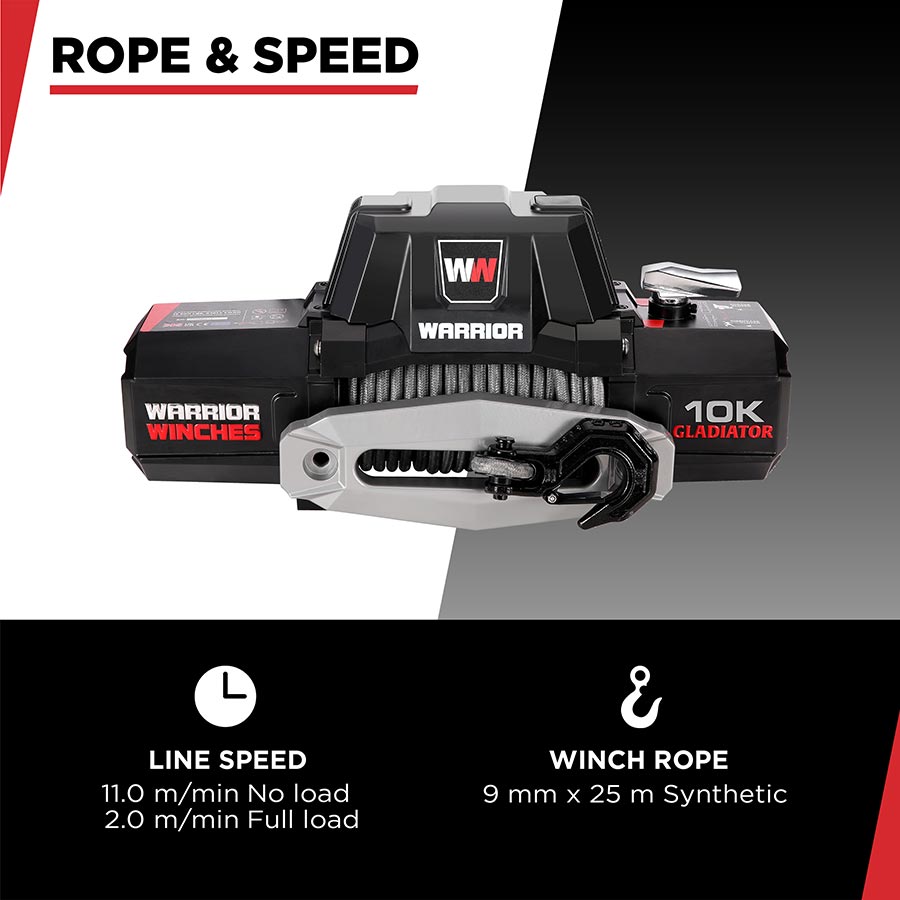

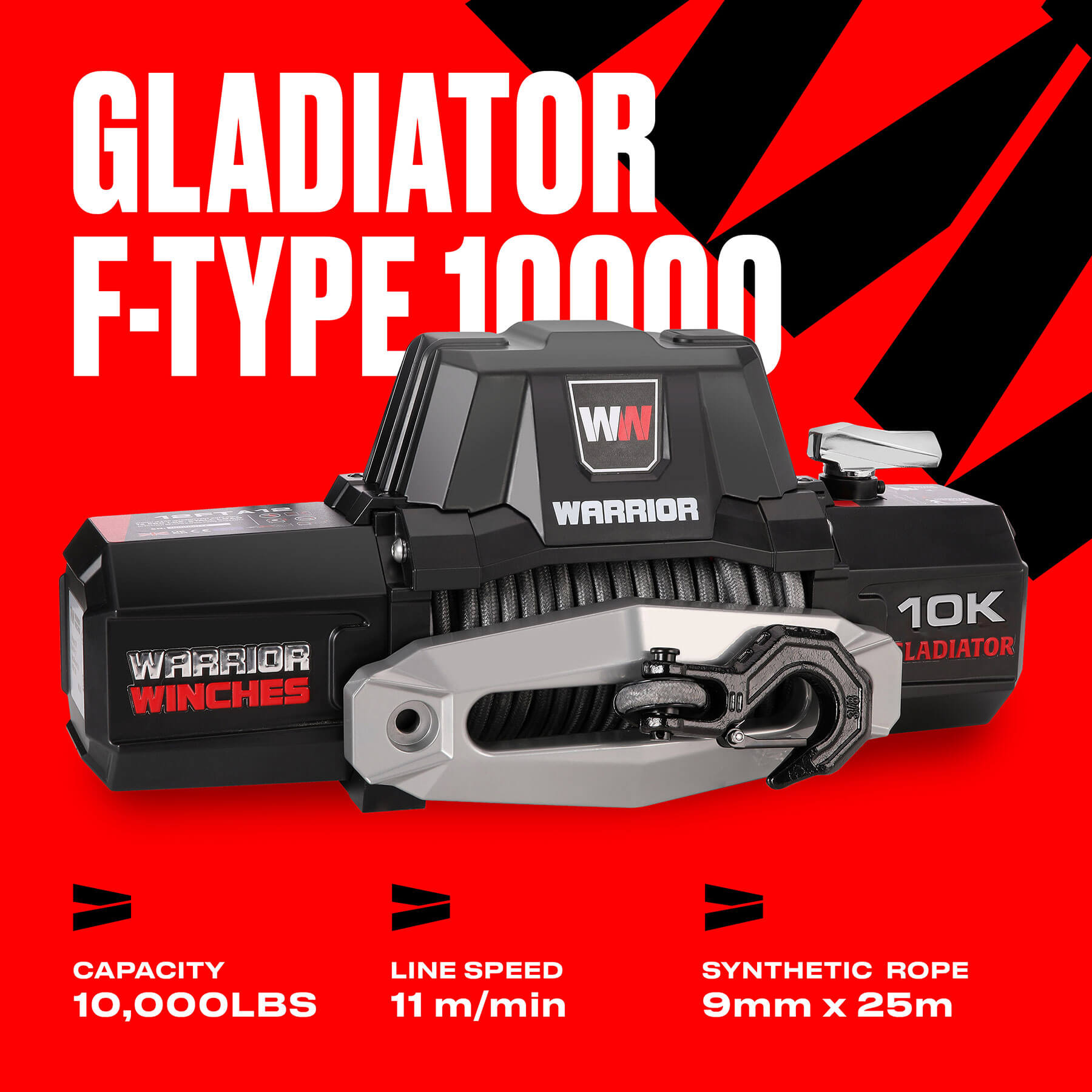

  • Impressive no load line speed of 27.8ft/min (8.5m/min) is fastest in this segment.
  • Comes with our Armortek Extreme Synthetic Winch Rope - the most advanced in the range, no other 4x4 winch range offers a comparable sheathed synthetic winch rope.
  • 600 amp Silver Tip Contactor provides greater electrical efficiency and withstands higher temperatures, whilst a low corrosive Silver Copper Motor with Copper Brush Holders ensures a longer motor life.
  • HRC50 Full Steel Gears provide superior durability and long life.
  • Extensive Waterproof Sealing to the IP68 Standard keeps water and the elements out.
  • Our Revolutionary External Brake Design means less heat and stress is transferred to your winch rope, prolonging it's life, giving you maximum return and value for money.
  • Included with your winch is a durable control pack mounting plate, so there's no need to buy an extra relocation kit.
  • Large Steel Winch Drum reduces wear and tear on the Armortek Extreme Synthetic Rope.
  • Stainless steel mounting hardware, extensive sealing and durable outdoor anti-corrosion powder coating provides superior corrosion resistance.

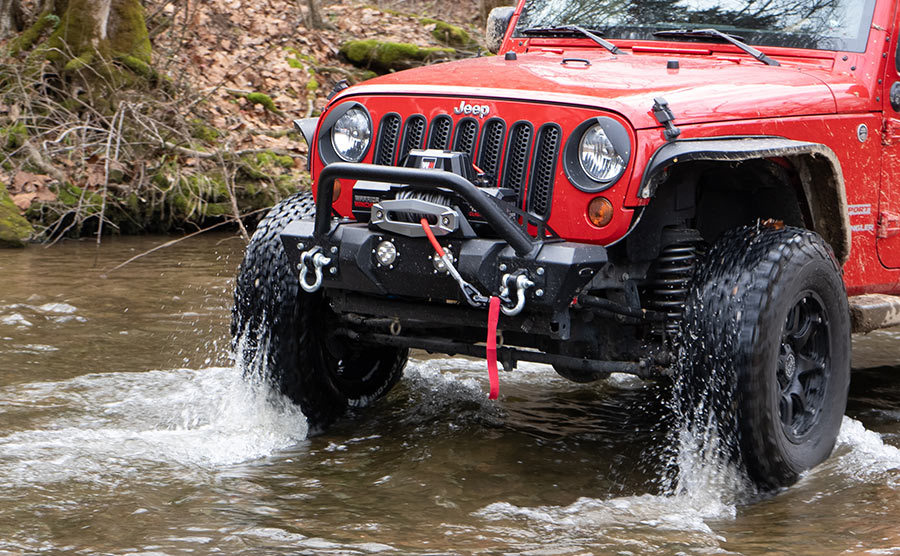

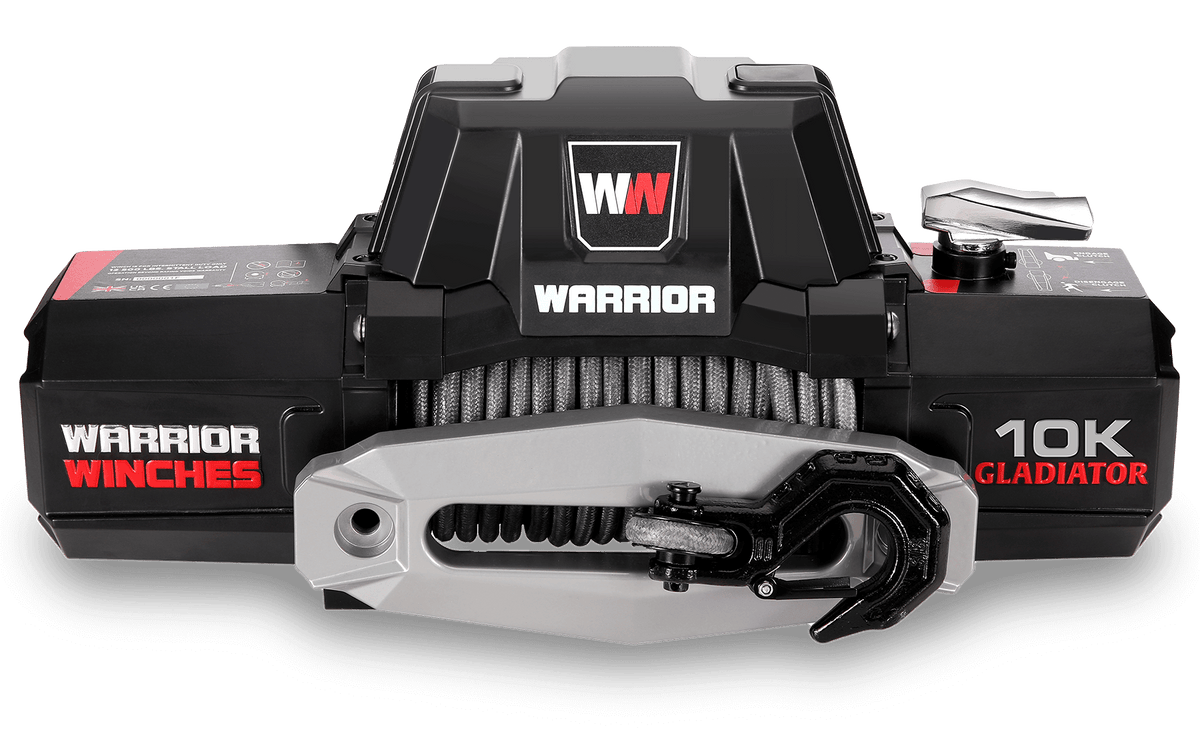

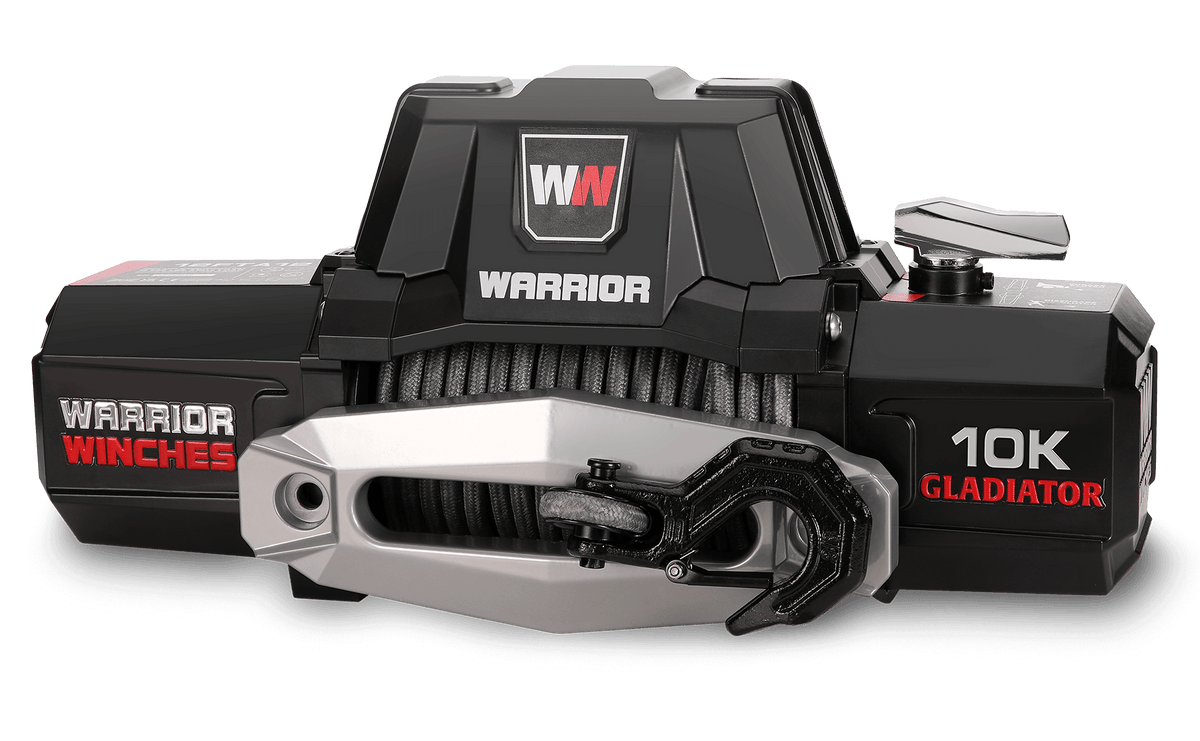

The Gladiator 12v 10000 lbs Electric winch is part of our New Premium Winch Range perfectly suited for offroad, trailers, trucks, Jeeps, SUVs, 4x4 and small recovery.

Warrior’s Gladiator winches continue to redefine winching with unmatched durability, performance, and style. A built in 2in1 wired/wireless rechargeable remote system makes winching easy from up to 50ft (15m) away. The Thermal Overload Protection System means no fear of overheating and damage when winching in extreme environments and during long, hard pulls.

Our Revolutionary External Brake Design keeps heat away from the drum, putting less strain and wear and tear on your winch rope whilst our HRC50 Full Steel Gears offer superior durability and high efficiency for sustained pulling power.

Extensive IP68 Waterproofing together with a Silver Copper Motor with Copper Brush Holders, plus the Durable Coating and Stainless-Steel Mounting Hardware provides superior corrosion resistance.

Couple that with our Limited Lifetime Warranty with 7 years on electrical components and nationwide support centers for ultimate peace of mind.

These winches are our top premium choice for a good reason and look as good as they perform.

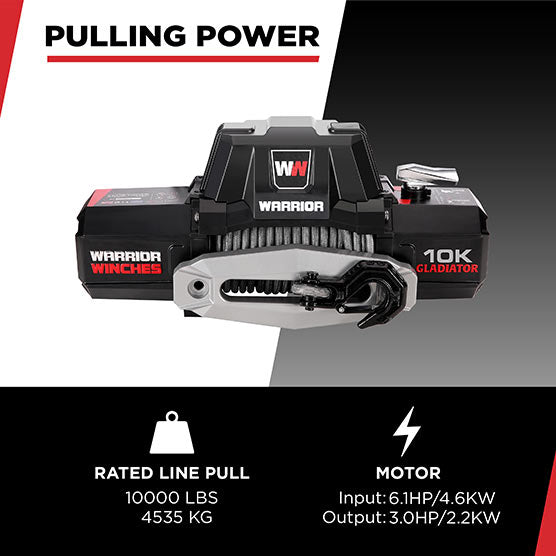

Rated Line Pull10000 lbs
Motor TypeElectric
Rated Volt12
Gearing196:1
ClutchManual Clutch
Braking ActionPatented ratchet
Drum Size (Dia x L)63 x 217 mm
Cable MaterialSteel or Synthetic
Cable – Dia x L9mm x 25m
Rating68

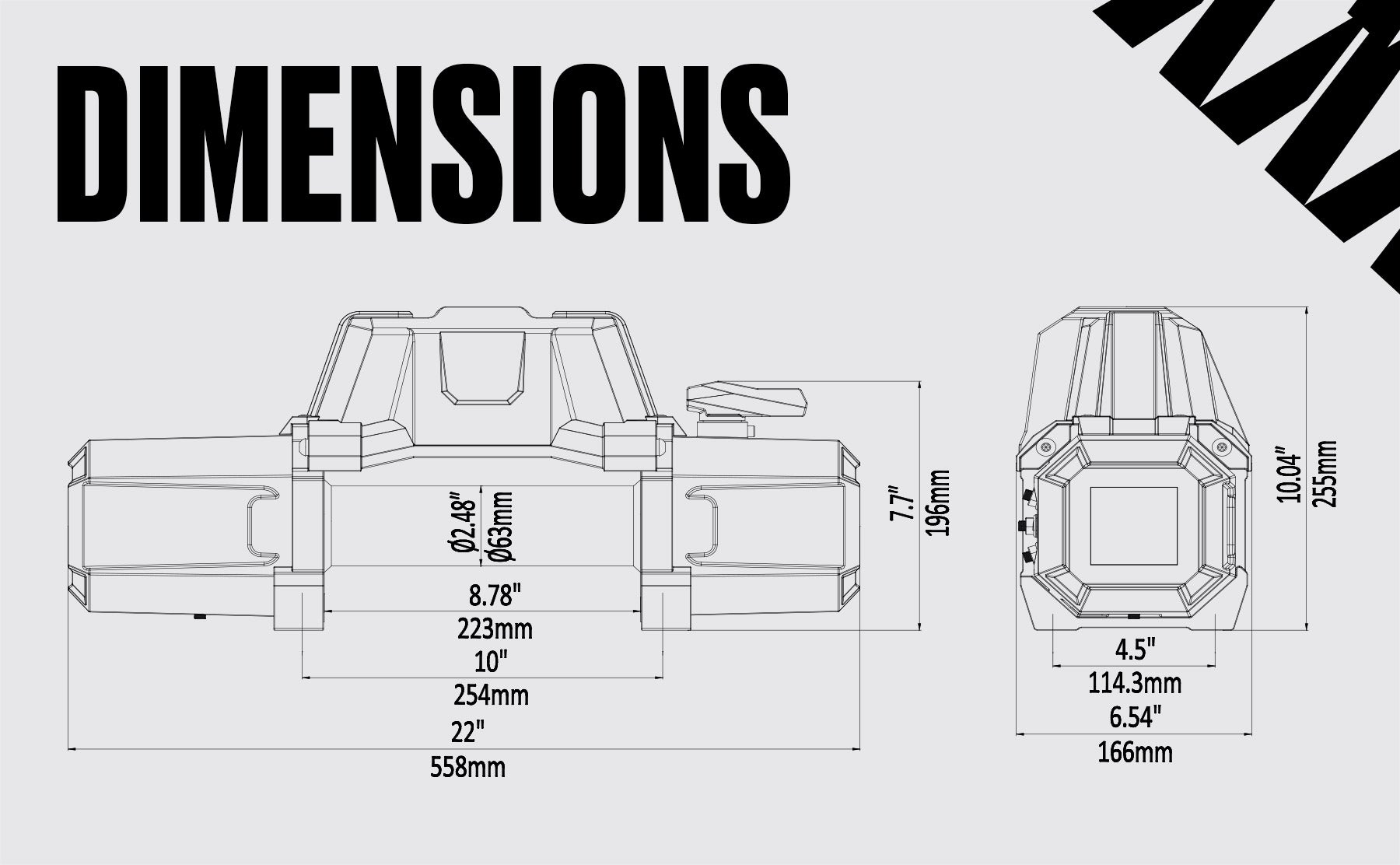

Mounting Pattern254mm x 114.3mm (10”x 4.5”) (4-M10) mm

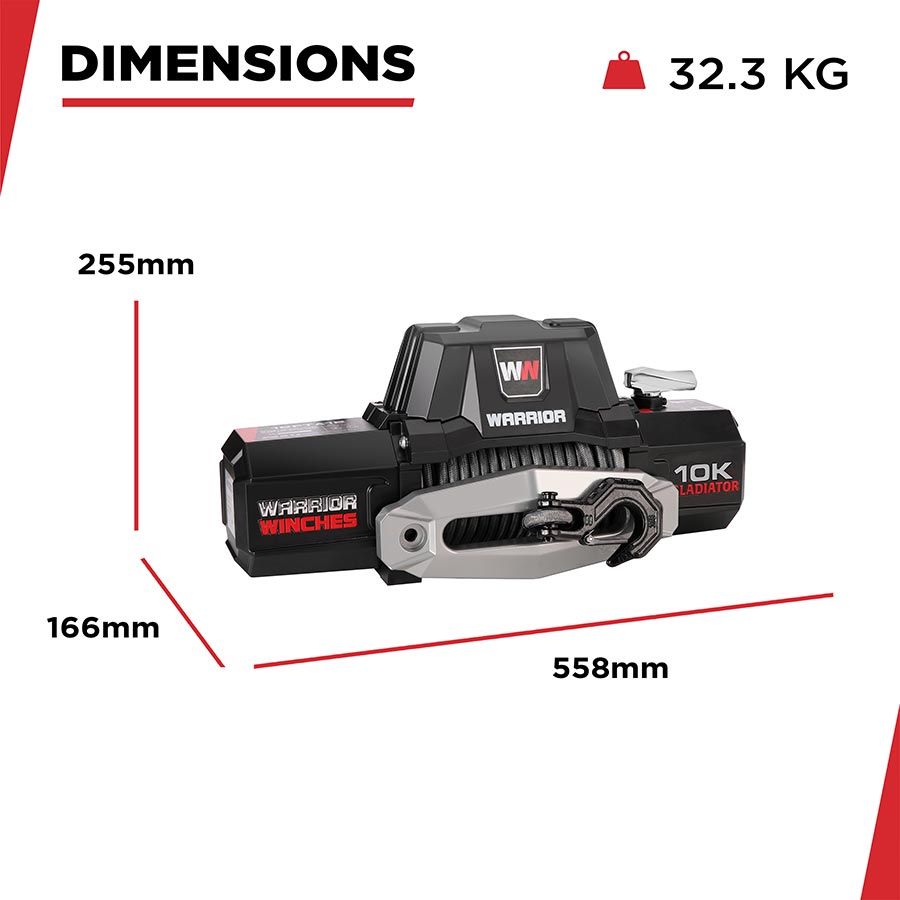

Dimensions558 x 166 x 255 mm
Weight32.3 kg
Warranty3 Years



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 10000 (4536)18 (5.5)
2 7900 (3583)39.4 (12)
3 6600 (2993)64 (19.5)
4 5600 (2540)82 (25)
Line Pull
lbs (kgs)		 Line Speed 12v
ft/min (m/min)		 Amp Draw
12v
0 36 (11.0) 50
3000 (1360) 15.4 (4.7) 150
6000 (2722) 10.5 (3.2) 260
8000 (3629) 8.2 (2.5) 300
10000 (4536) 6.5 (2.0) 355

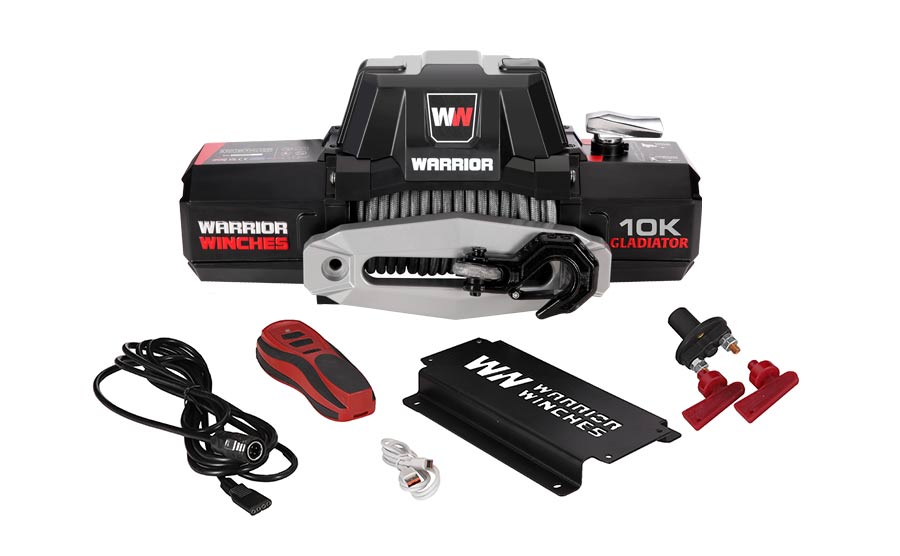

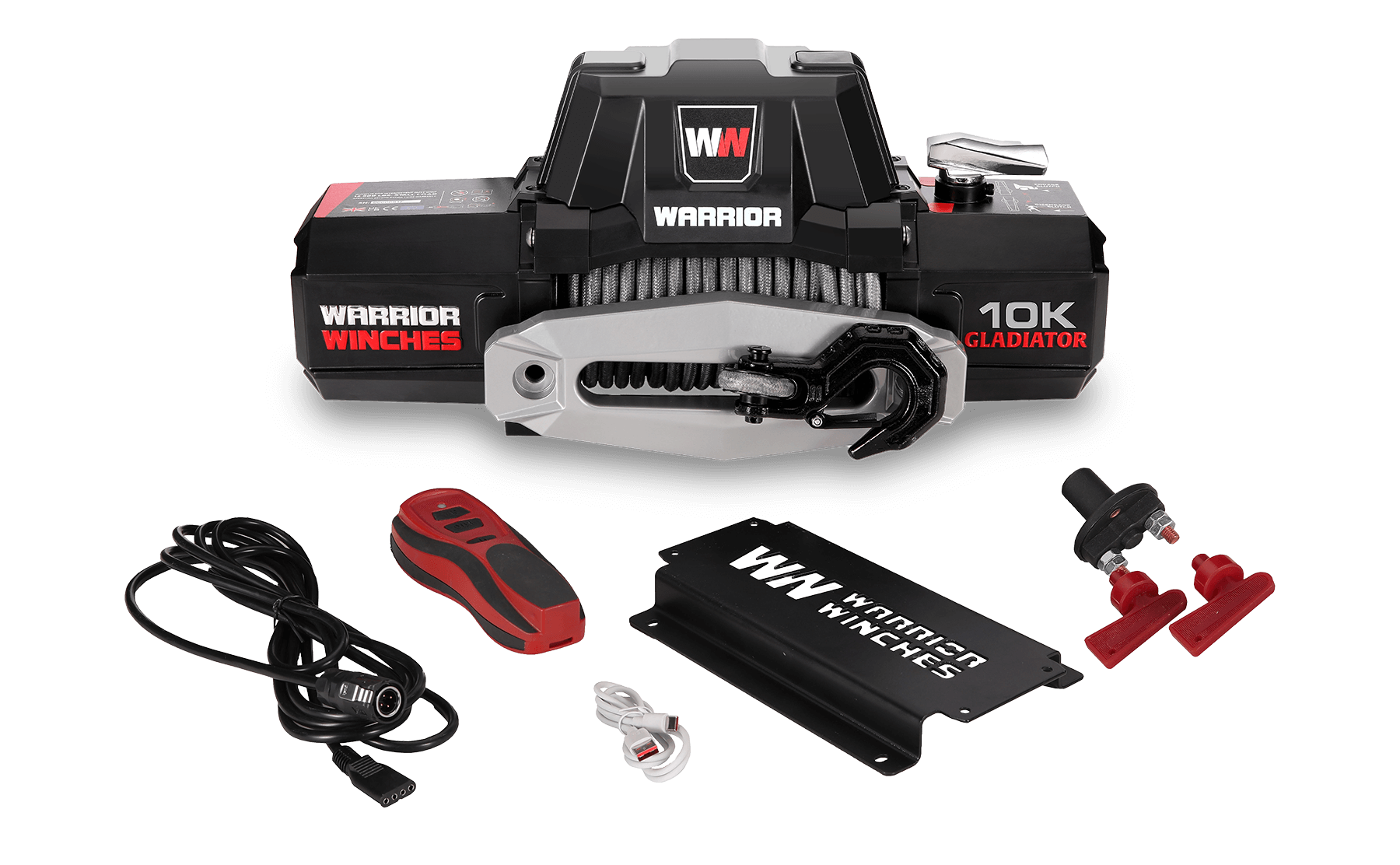

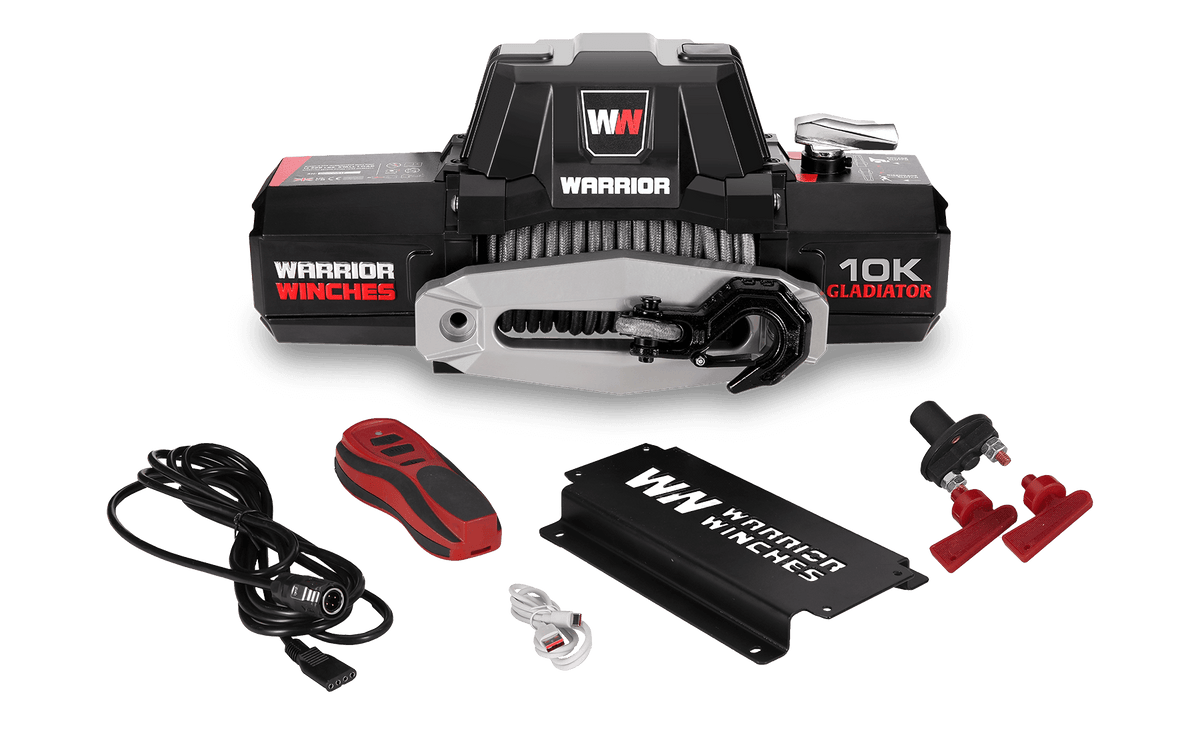

What's in the box:

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Aluminum Hawse Fairlead
  • Armortek Extreme Synthetic Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Control Box Relocation Plate
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Brochure Download
Parts List Download

Limited lifetime with 7 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (7) three years (84 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
