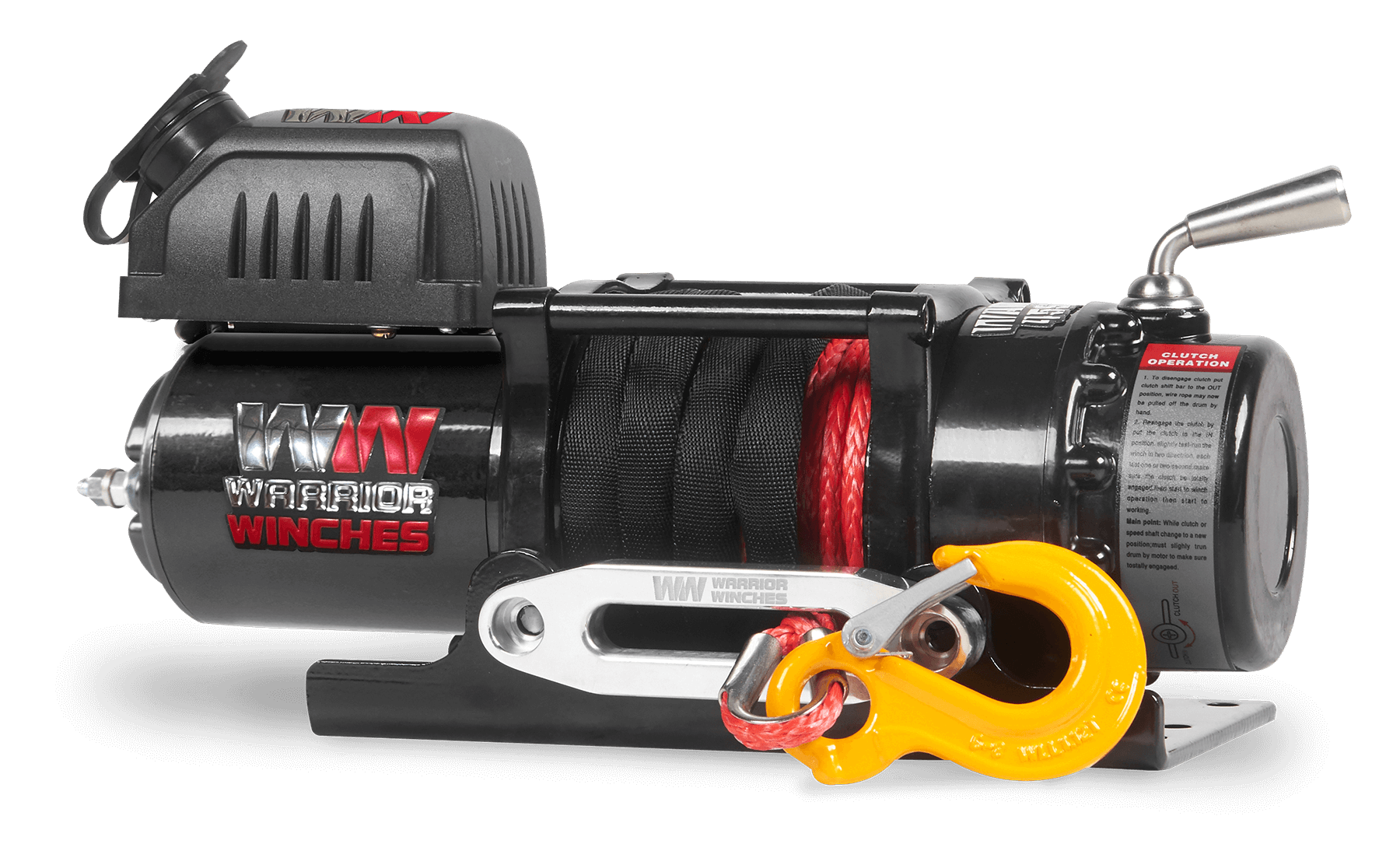

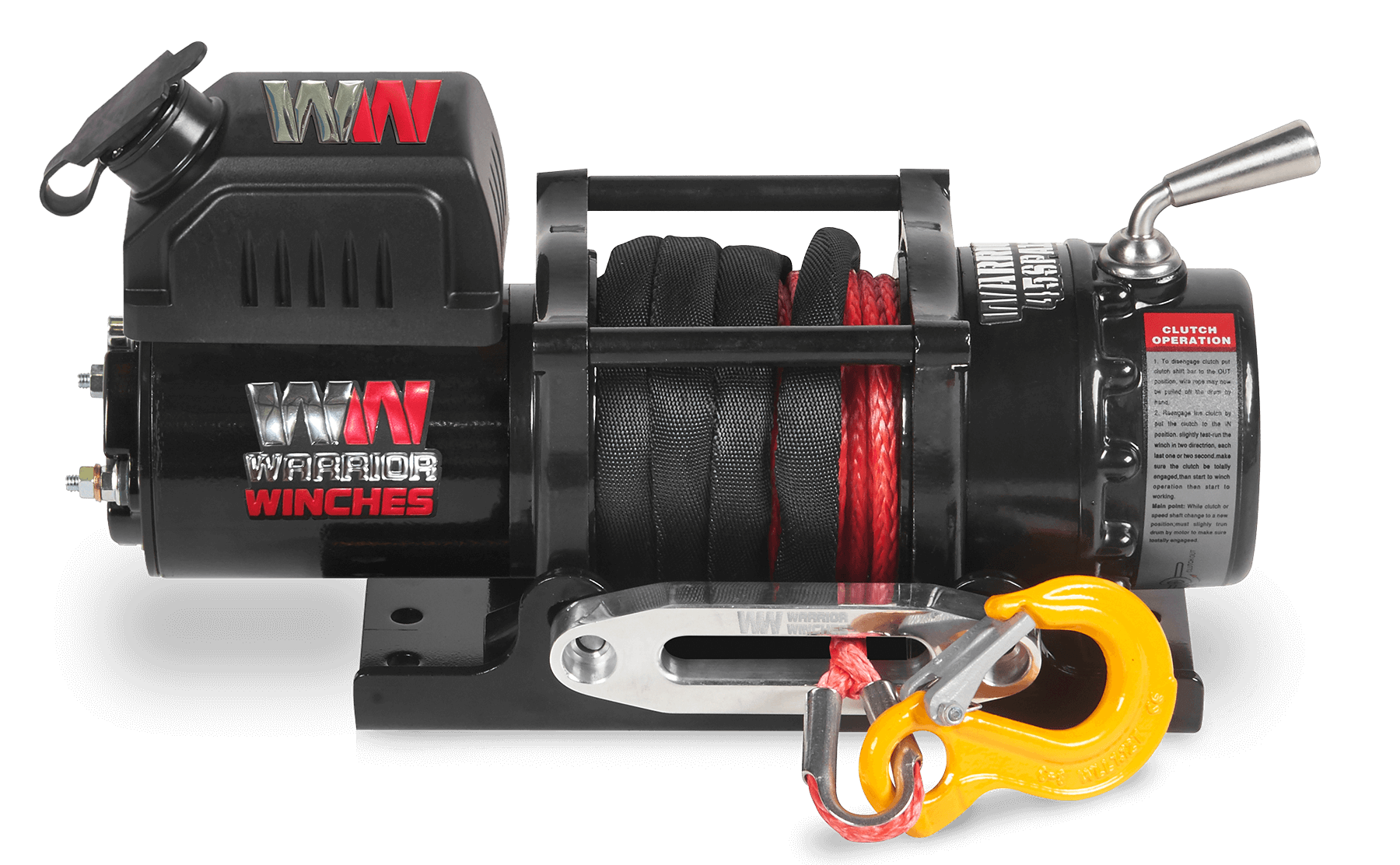

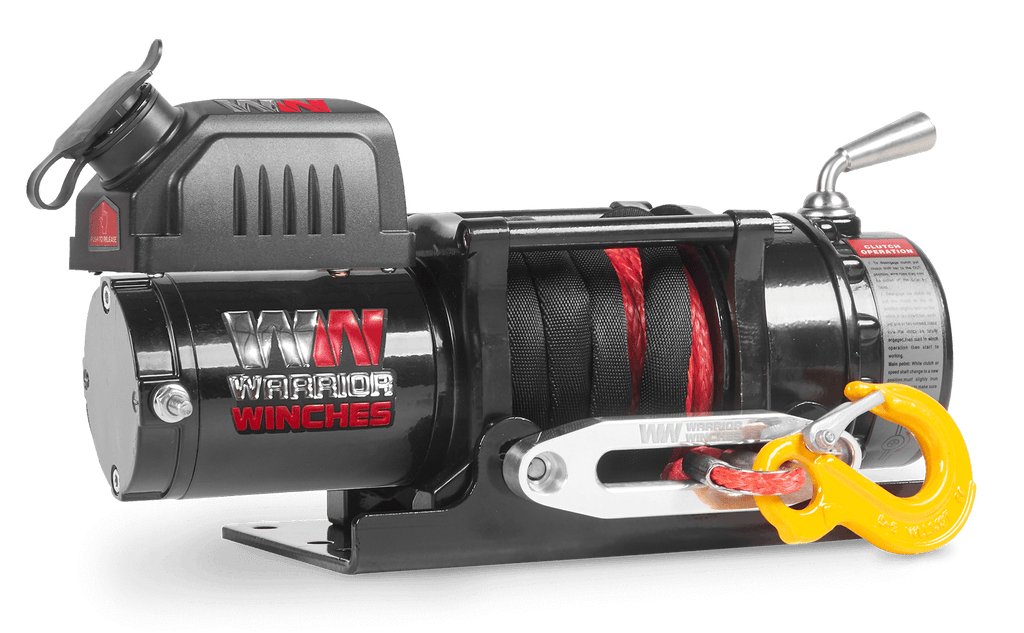

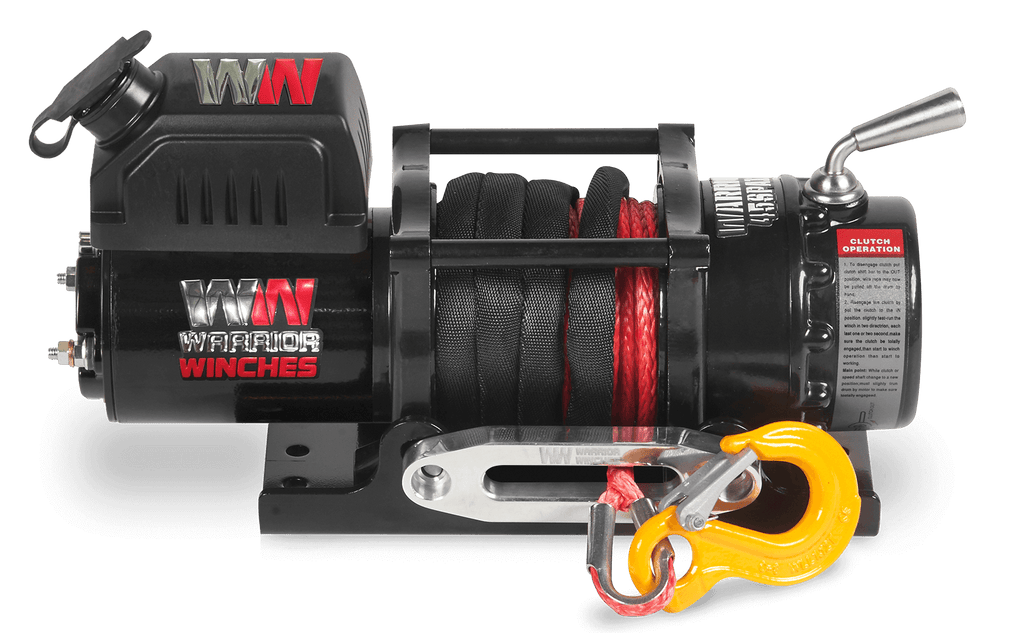

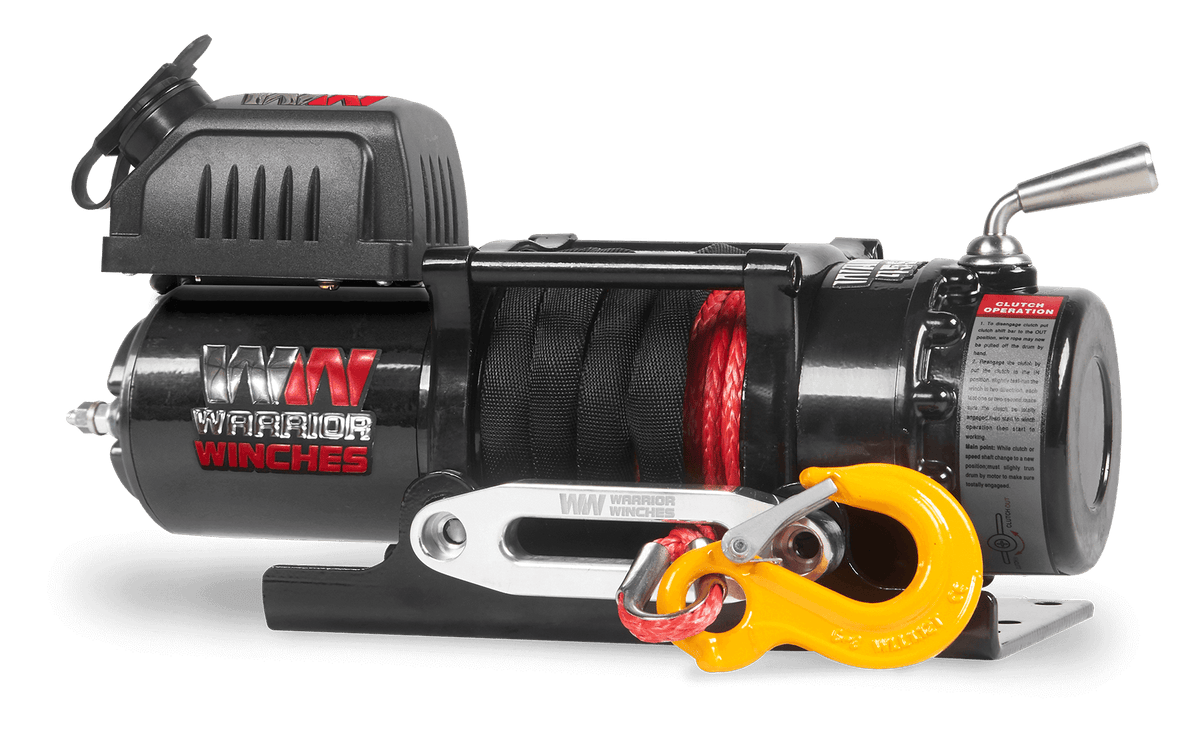

Ninja 4500 Electric Winch - 12v Synthetic Rope

45SPA12

Ninja 4500 Electric Winch - 12v Synthetic Rope

Name: Ninja 4500 Electric Winch - 12v Synthetic Rope
Brand: Warrior Winches
SKU: 45SPA12
Price: 285.99 GBP
Availability: InStock
Rating: 4.83 (12 reviews)

Warranty: 3 Years

£285.99

Variant

Buy now, pay later options available at checkout

British owned, Wigan based. UK dispatch and expert support when you need it.

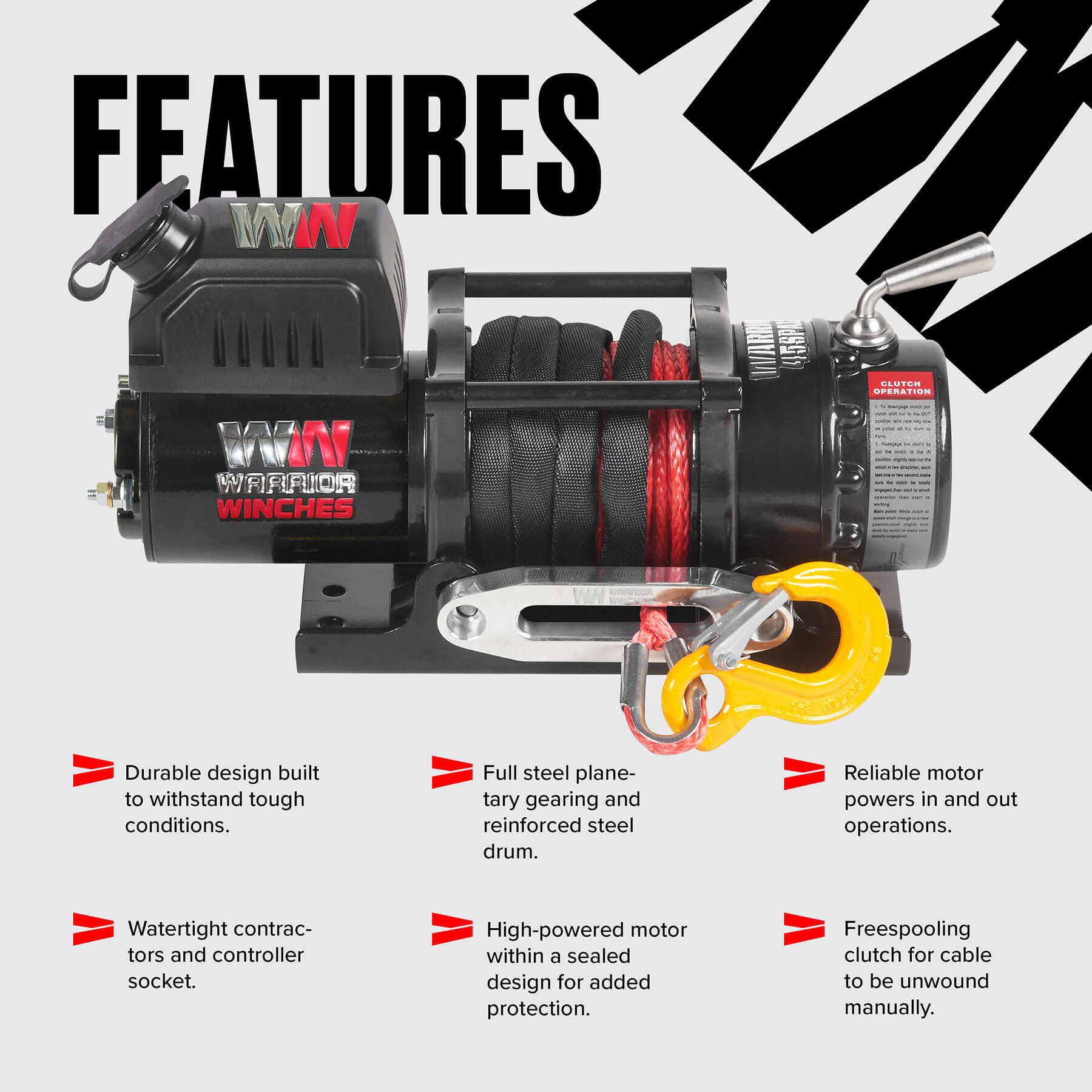

Features

Extra Muscle When Traction Runs Out - The high-torque motor delivers the pulling force needed to recover heavier quad bikes and side-by-sides from mud, steep ground and other demanding terrain.
Ready for Whatever the Trail Throws at You - Heavy-duty waterproof contactors help protect the electrical system from water and debris, supporting reliable operation when conditions become wet, muddy or unpredictable.
Complete Control from Pull to Release - Power in and power out gives you dependable winching in both directions, helping you position the line, manage the vehicle and stay in control throughout the recovery.
Built to Take the Load - Full steel planetary gearing provides the strength and durability needed for repeated heavy-duty pulls, helping the Ninja perform reliably when the recovery gets serious.
Secure Load Control When It Matters - The full-load holding brake helps keep the vehicle and recovery line under control while winching, providing greater confidence when working with heavy loads or challenging terrain.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Winches Ninja Range is our performance-focused range of electric winches designed specifically for trailers, quad bikes (ATV) and side-by-side (UTV) recovery. Compact, responsive and built around proven Warrior engineering, Ninja winches deliver the pulling power and control needed to keep recreational and off-road vehicles moving when the terrain gets challenging.

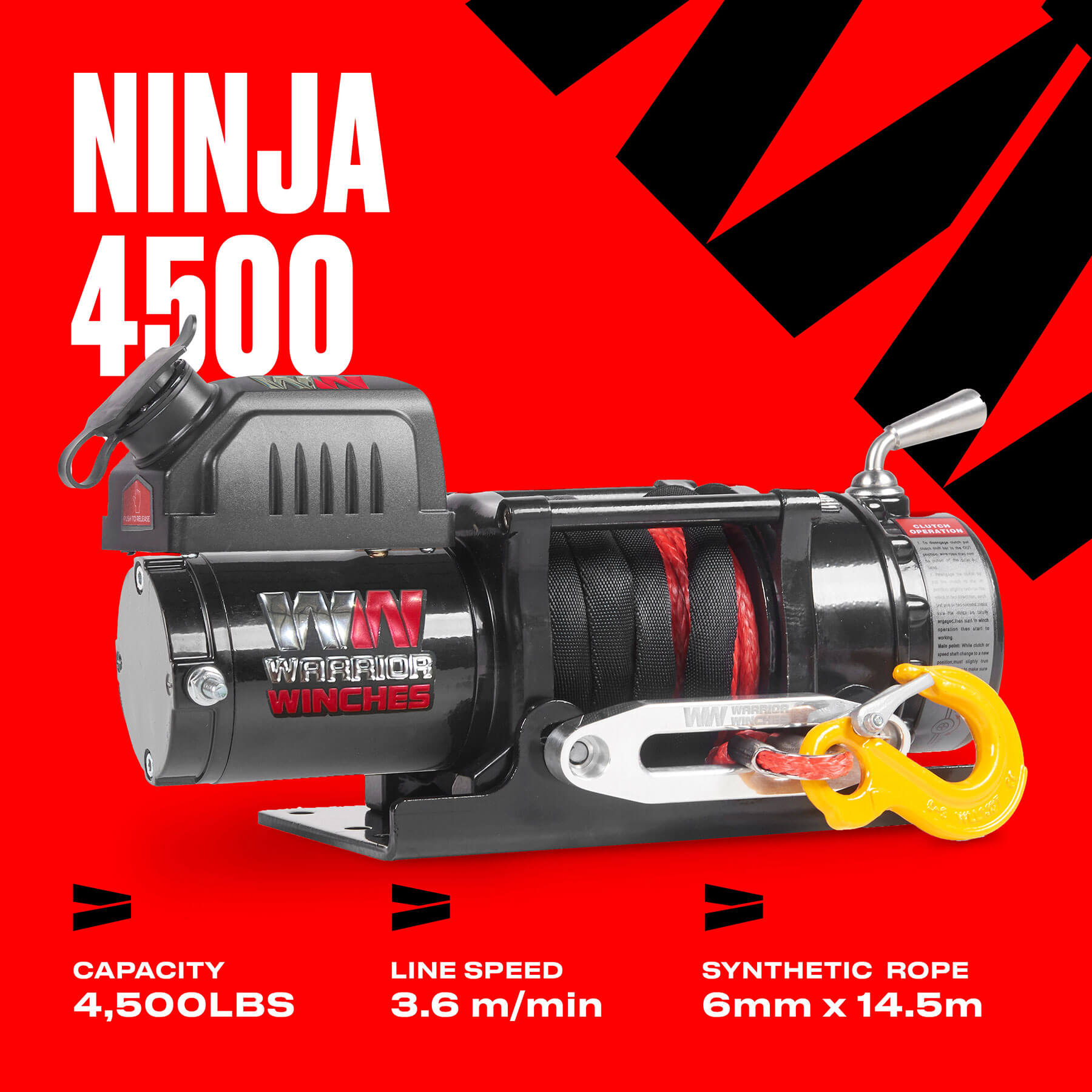

The Ninja 4,500lb 12V electric winch with synthetic rope delivers 4,500lb (2,041kg) of rated line pull, giving you serious recovery capability in a compact package. Powered by a 3.2hp motor and 172:1 planetary gearing, it combines dependable pulling performance with the easier handling and reduced weight of synthetic rope.

4,500lb of Serious Recovery Performance. With 4,500lb (2,041kg) of rated line pull, the Ninja 4,500lb provides the extra pulling capacity needed when the recovery gets tougher. It is built for ATV, quad bike and side-by-side users who need more capability when dealing with difficult terrain, heavy loads or limited traction.

Synthetic Rope. Easier Handling. The 6mm x 15m synthetic rope provides plenty of usable line while being lighter and easier to handle than traditional steel rope. The reduced weight helps keep the overall winch package down to just 10.5kg, making it a practical choice where weight matters.

Power That Works Under Load. The 3.2hp (2.4kW) 12V motor delivers 1.3hp (1.0kW) of output power, giving the Ninja 4,500lb the muscle needed for demanding recoveries. Combined with 172:1 full steel planetary gearing, it provides controlled pulling performance when the load starts to build.

Smooth Rope Deployment and Recovery. The manual clutch allows you to disengage the gearing and pull the synthetic rope out by hand, making it quicker to position your line before a recovery. Once engaged, the automatic in-drum braking system helps maintain control of the load throughout the recovery.

Built for Tough Off-Road Conditions. A sealed high-power motor, heavy-duty watertight contactors and full steel planetary gearing help the Ninja stand up to demanding off-road use. The full-load holding brake provides additional control, while the robust internal construction is designed for reliable performance when conditions get difficult.

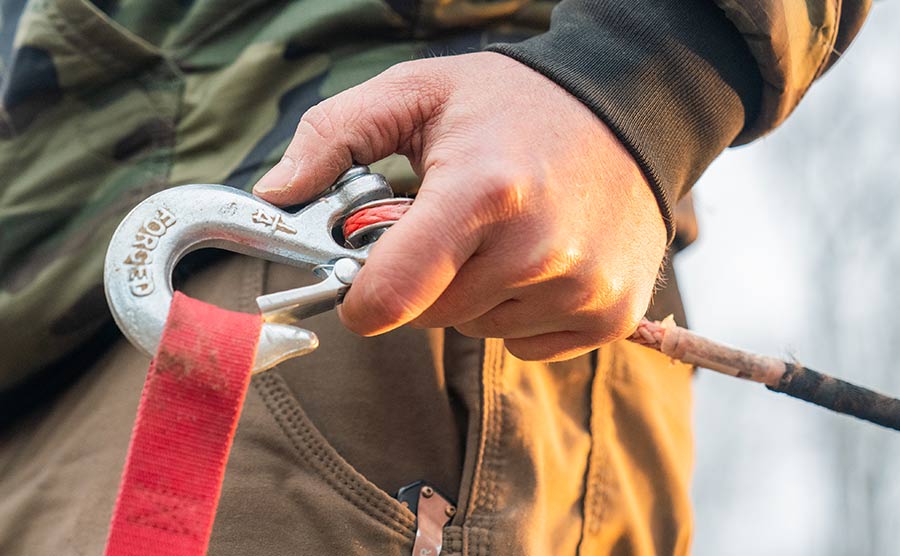

Hawse Fairlead for Synthetic Rope. The included hawse fairlead provides a smooth guide for the synthetic rope as it enters and exits the drum. Paired with the supplied 1/4 hook, it gives you a practical setup for positioning and connecting the winch during recovery.

Stay in Control from the Right Position. The 3.8m wired remote handset lets you operate the winch from a practical position around the vehicle rather than directly beside the drum. This gives you useful flexibility when managing the recovery and monitoring the vehicle.

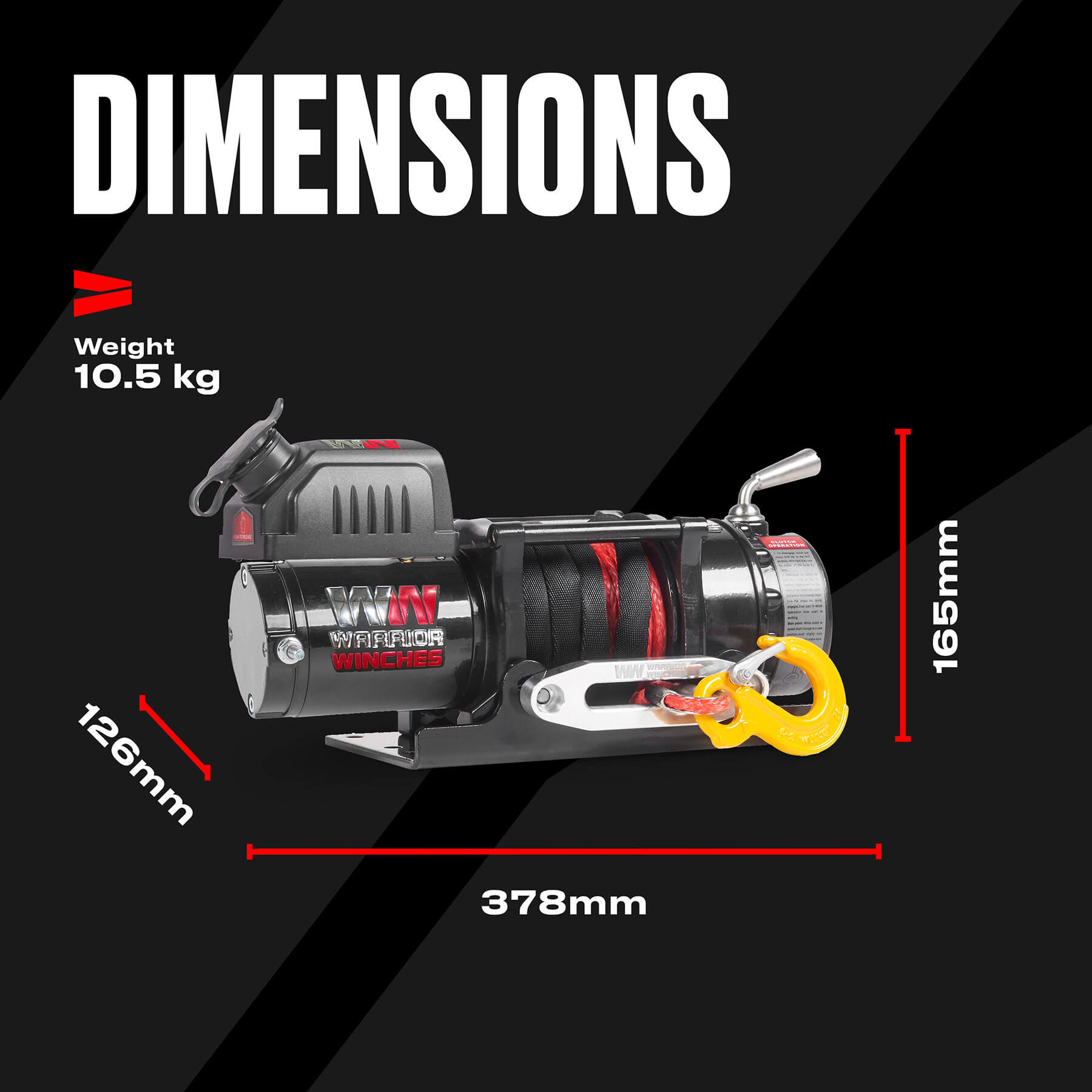

Compact Performance. Ready to Work. Measuring 378 x 126 x 200mm, the Ninja 4,500lb remains compact enough for ATV, quad bike and side-by-side installations while delivering 4,500lb of pulling power. Supplied with heavy-duty battery leads, synthetic rope, hawse fairlead, wired remote, mounting plate, mounting hardware and hook, it provides the key components needed to get your recovery setup ready.

The Warrior Winches Ninja 4,500lb 12V Synthetic Rope Winch is backed by a 3-year warranty, giving you added confidence when putting its performance to work in demanding recreational and off-road recovery situations.

Sku	45SPA12
EAN	5060423980612
Rated Line Pull	4500 lbs
Motor Type	12V: Input: 3.2hp / 2.4kW; Output: 1.3hp / 1.0kW
Rated Volt	12
Clutch	Manual
Gearing	172:1
Gearing System	Planetary
Braking Action	Auto in the drum
Drum Size (Diameter x Length)	45.0 x 93.0 mm
Controls	Wired Remote
Cable Material	Synthetic
Cable Size (Diameter x Length)	6.0 mm x 15.0 m Find replacement Armortek Synthetic Rope
Fairlead	Hawse
Mounting Pattern	129mm × 96mm mm

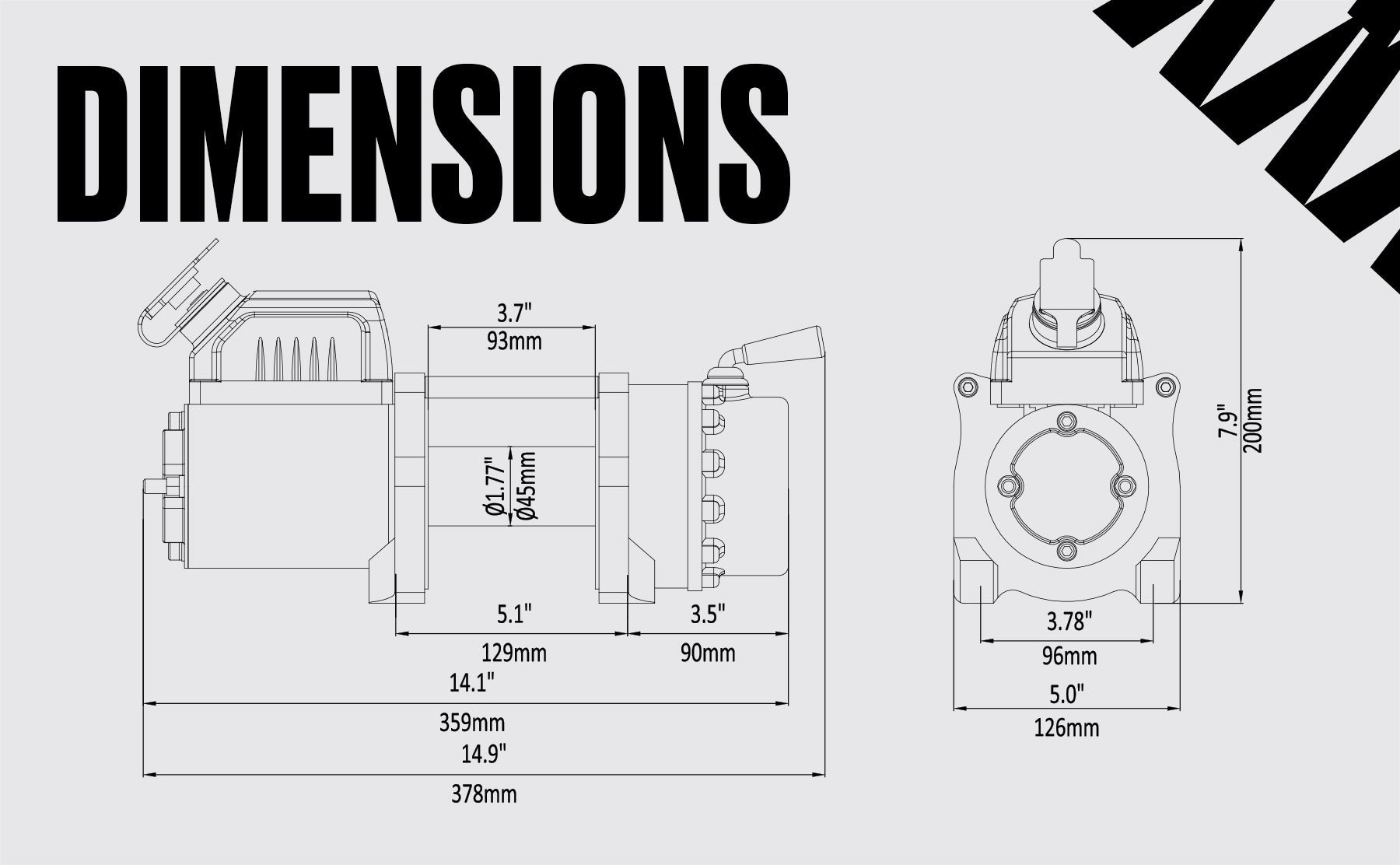

Dimensions	378 x 126 x 200 mm
Weight	10.5 kg
Warranty	3 Year
Certification	CE

Layer of Rope/Cable	Line Pull: lbs(kgs)
1	4500 (2041)
2	3642 (1652)
3	3060 (1388)
4	2638 (1196)

Line Pull lbs (kgs)	Line Speed 12v ft/min (m/min)	Amp Draw 12v	Amp Draw 24v
0	11.6 (3.6)	20	15
1500 (680)	9.2 (2.8)	70	40
2500 (1134)	7.8 (2.4)	100	65
3500 (1587)	6.6 (2.0)	140	80
4500 (2041)	4.9 (1.5)	200	130

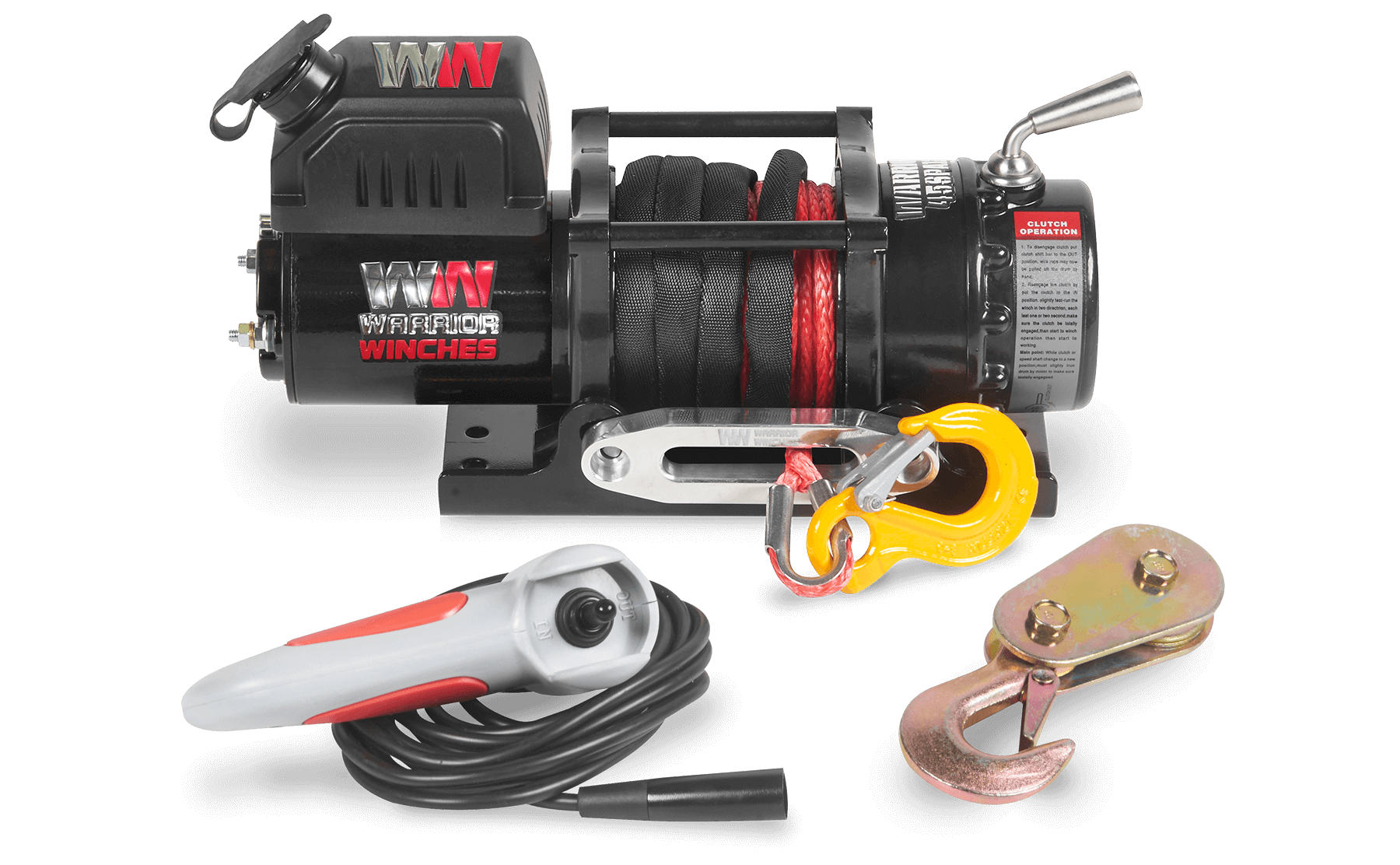

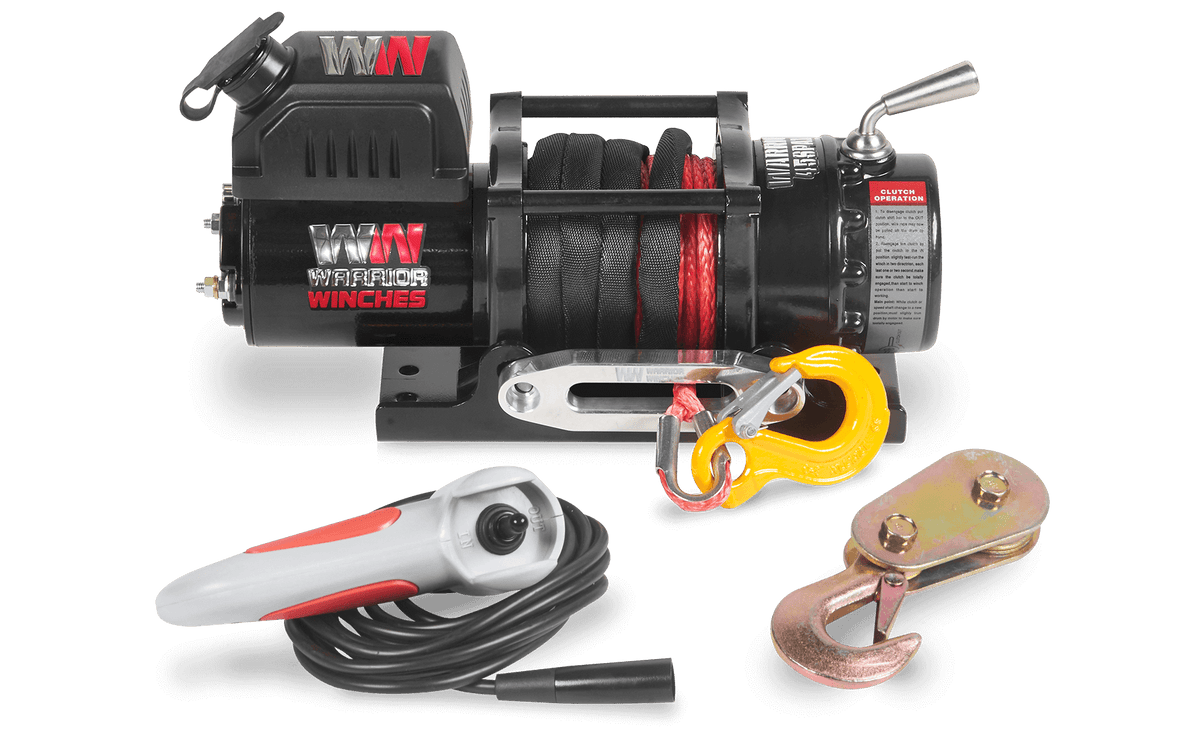

Ninja Winch
Fairlead
Synthetic Rope
Heavy Duty Battery Leads
3.8m Wired Remote handset
1/4 Hook
Mounting Plate
Mounting Hardware

User Manual	Download
Technical Drawing	Download
Specifications Sheet	Download

Load Test

This winch has a 3 Year Warranty

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty.
- Titan winches are given a 5 year warranty.
- EH Hoists are given a 3 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.

- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force majeure events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

5 stars: 10 (83%)
4 stars: 2 (17%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

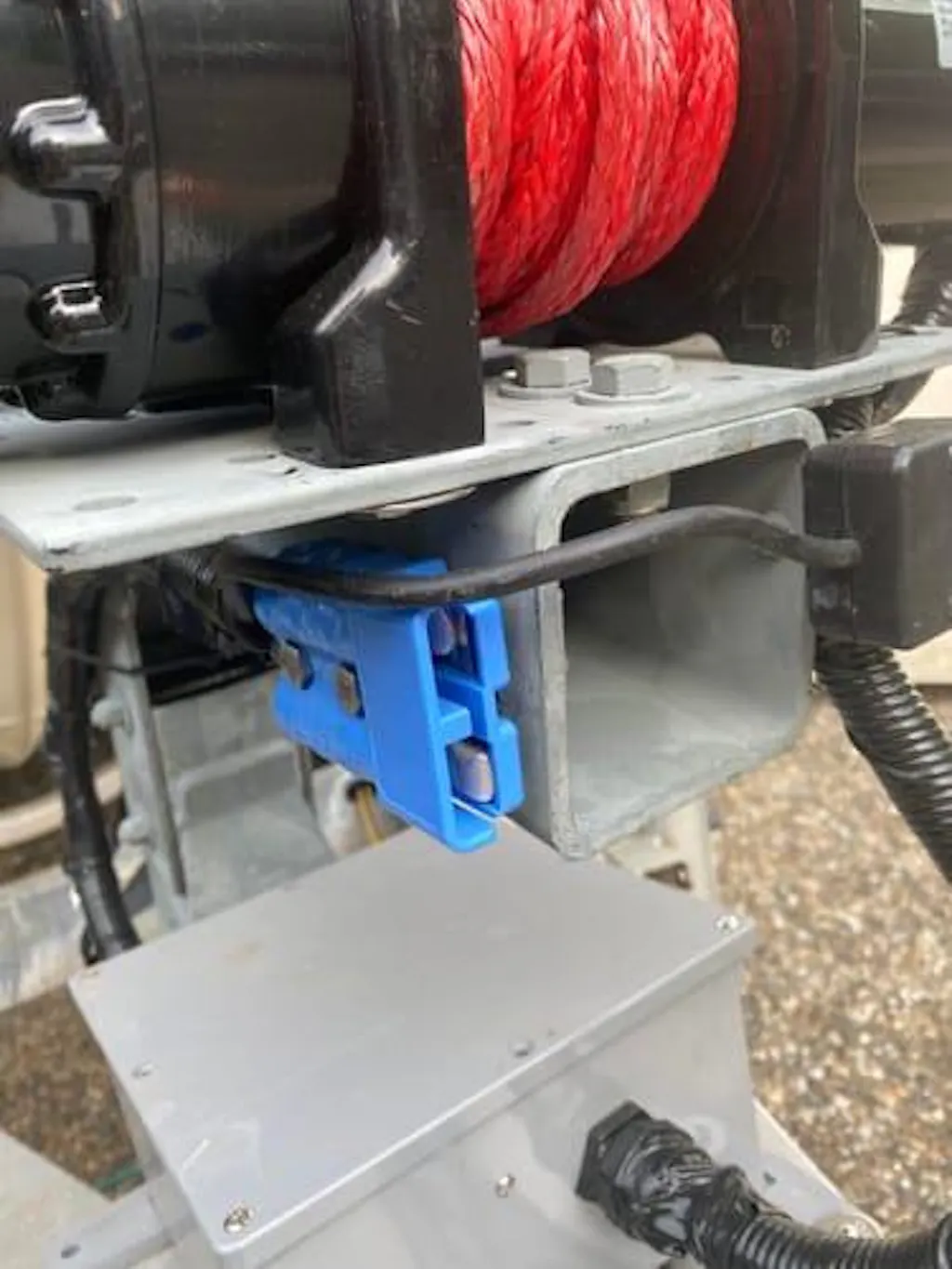

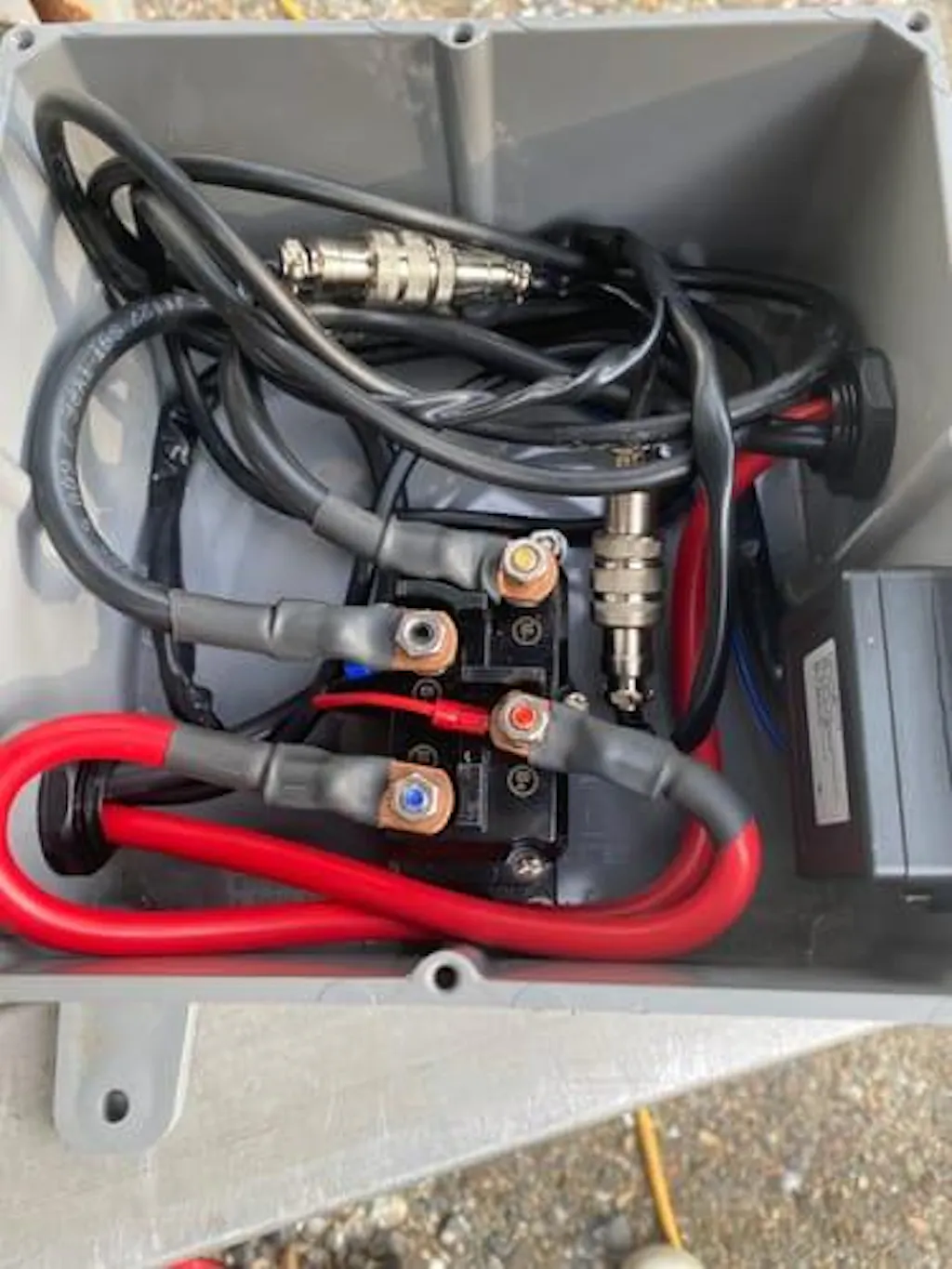

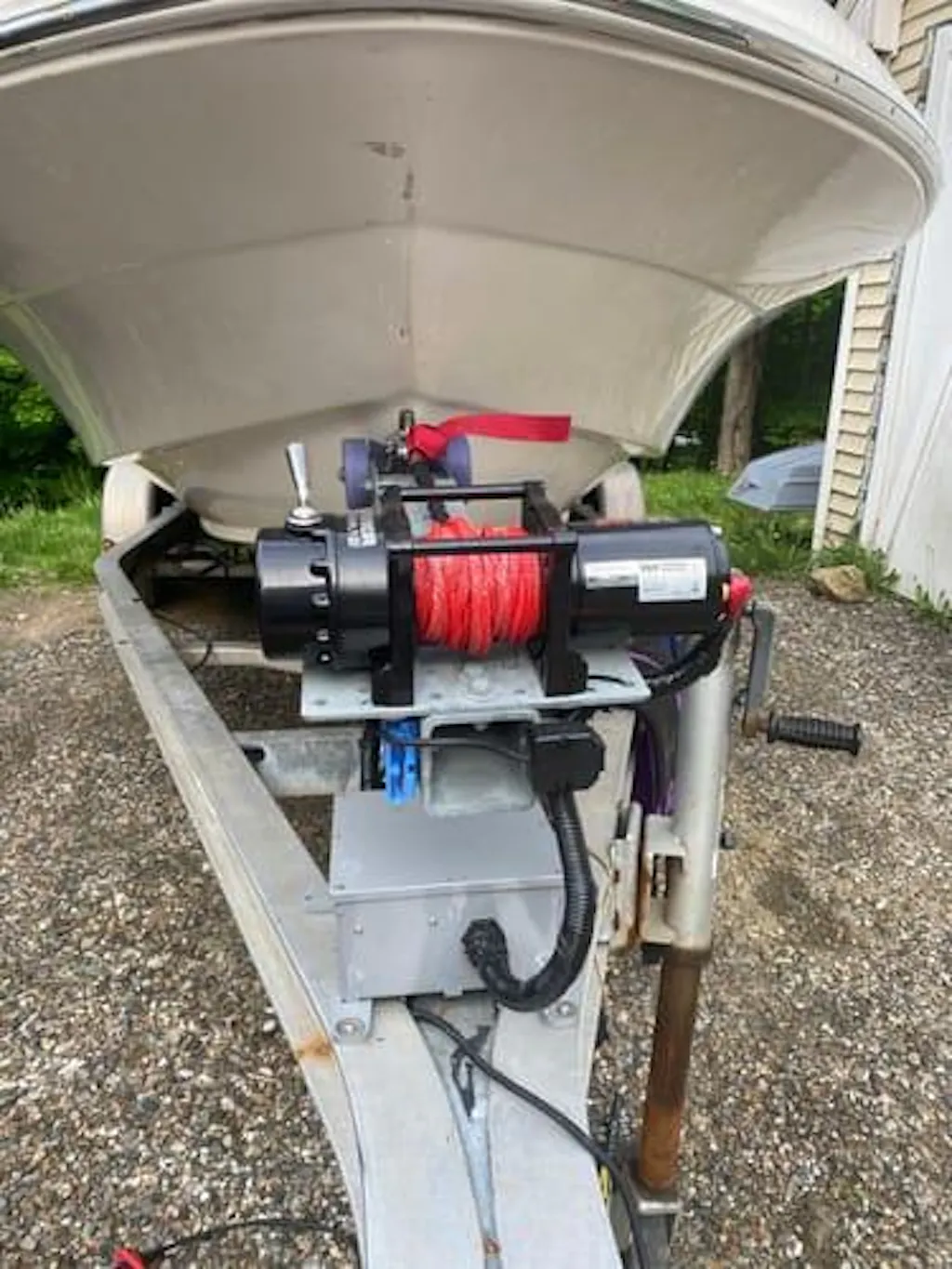

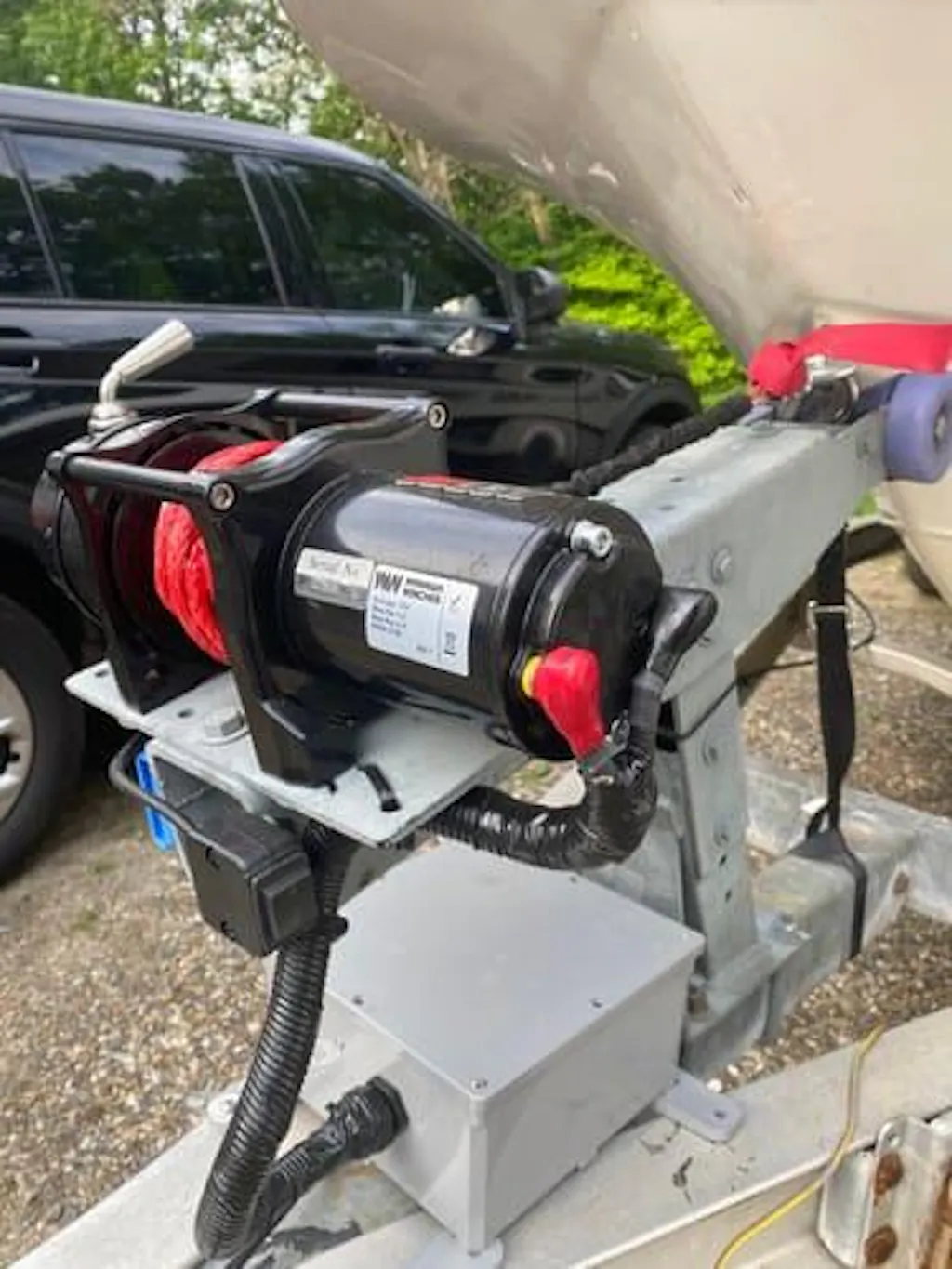

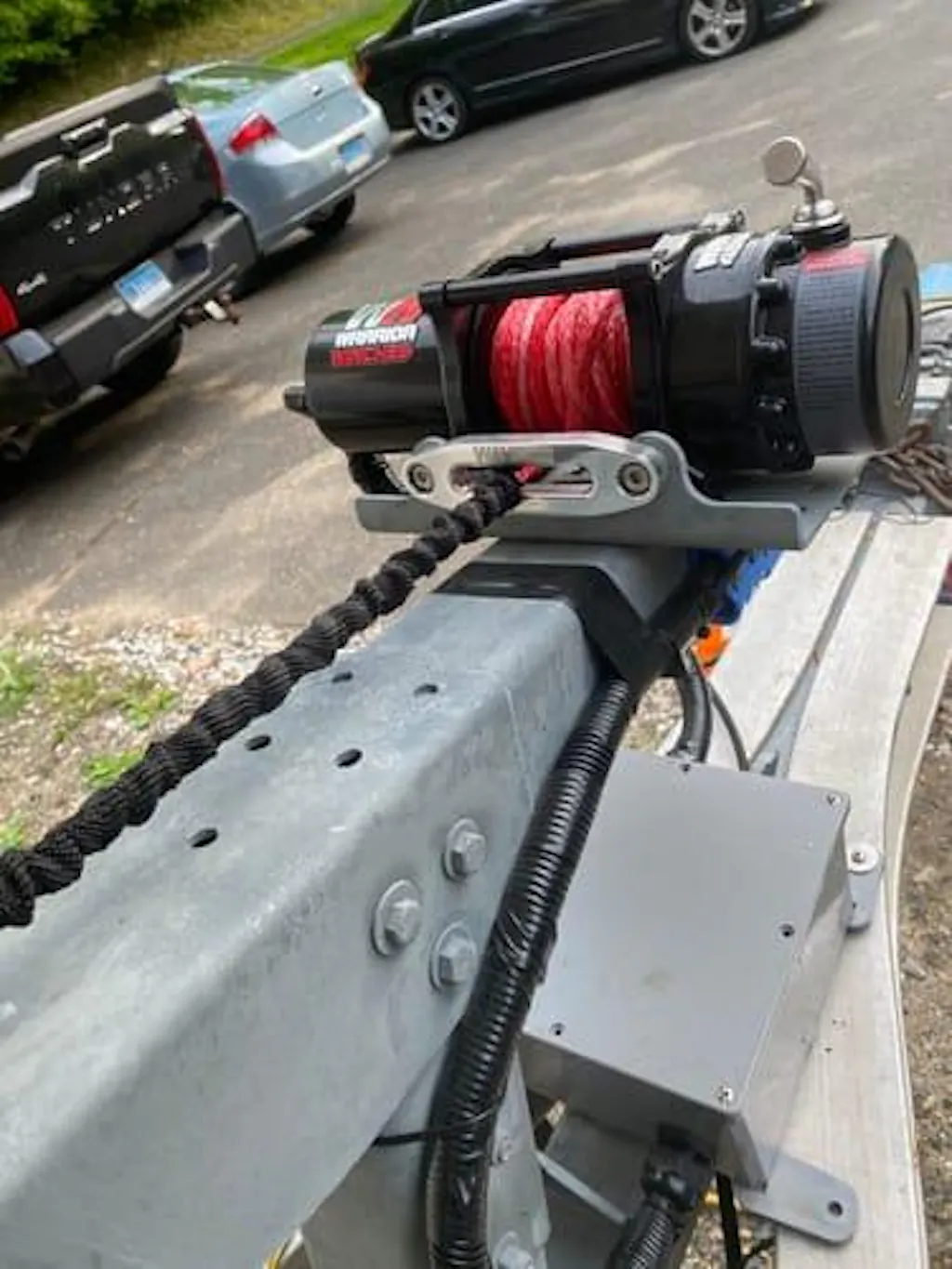

Winch works great. Pulls up my 18 ft 2800 lbs boat up my bunk trailer without a problem. The only thing i may change is the pull cord that came with it to a little better one, but the factory one works OK. I power it using the blue female connector shown attached to a 6 foot cord ( male connector) I made up connected to a battery that sits in a heavy duty locking top storage container. I fastened a solar trickle charger attached to the lid to keep the battery charged which sits in the back if my pickup bed Works great.

Thanks for your reply and congratulations on a really professional set up for your winch. Have you considered a wireless remote control for your winch to make your winching experience the safest and most versitile it can be?
To finish your set us you need a Warrior Winch cover if dont already have one! It would be a shame to leave the winch exposed to the elements when not in use

Looks awesome and stronger than my previous winch.. Im impressed by the build and quality of the winch..

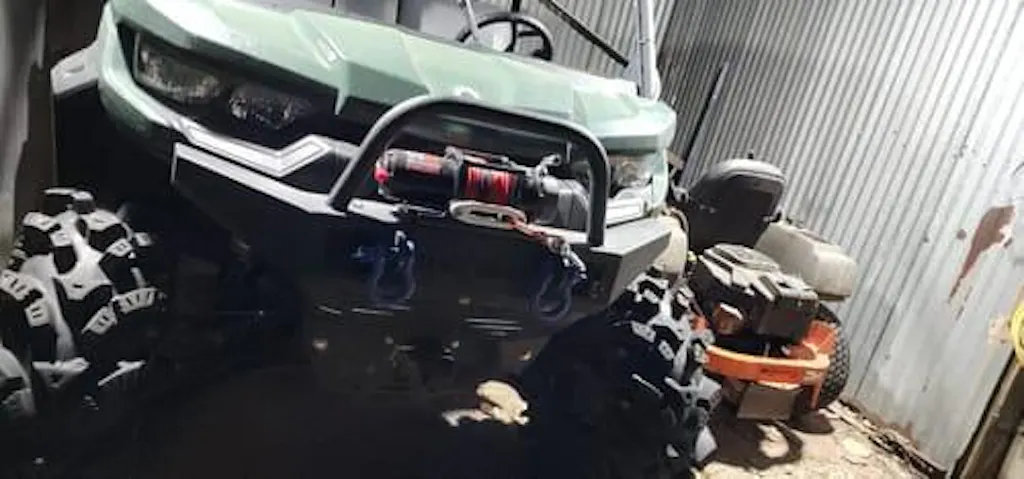

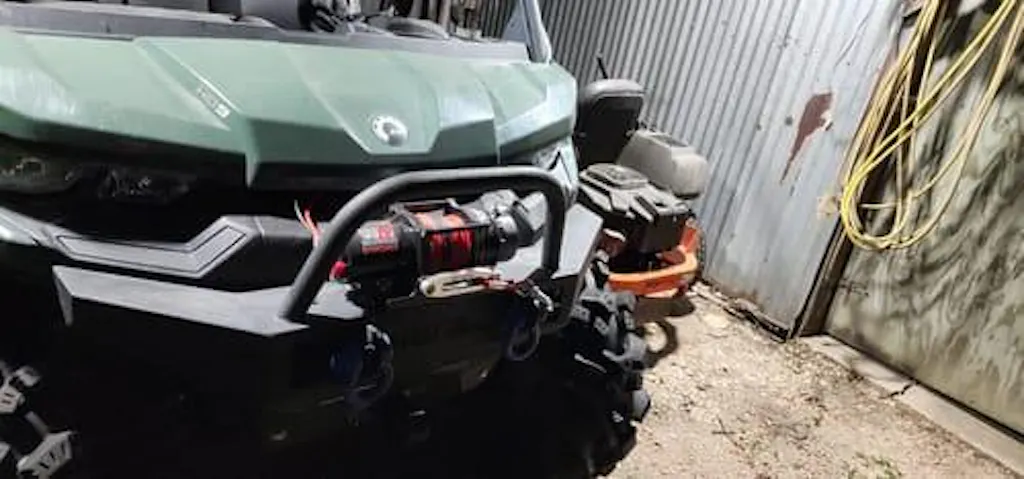

Fit perfect on my side by side. Just what I wanted. Thanks

Thanks for your review it is great to hear we have been able to meet your expectations on our product. The Ninja is a great range of winches that have stood the test of time.
Have you considered a winch cover to protect the winch from the elements when not in use?

Winch appears to be good quality. I mounted it in my enclosed car trailer. I have tested it with the remote but haven't used it to pull my car yet I have several friends that use them and have had no issues.

Worked great

Perfect size. The winch rope is much better for me than a metal cable!
Easy installation. In my enclosed car hauler. First pull was 4000 pound antique car. Smooth and steady pull

Very good winch , fitted in my van to with up my mg midget racing car , dose it with ease, easy to use and fit , lplenty of power

Good product, quickly delivered =:D

It works well

Works perfectly on my boat trailer. Pulls a heavy boat out of the water with no problems. Very happy with it.

Quite operation, no problem at all to load our 1300kg boat on the trailer.

Best boat winch ever. fast strong quiet
