The Warrior Winches Samurai Range is our performance-focused range of electric winches engineered for serious recovery. Built around high-output motors, heavy-duty gearing and advanced braking technology, Samurai winches deliver the pulling power, control and durability needed when recovery conditions become demanding.

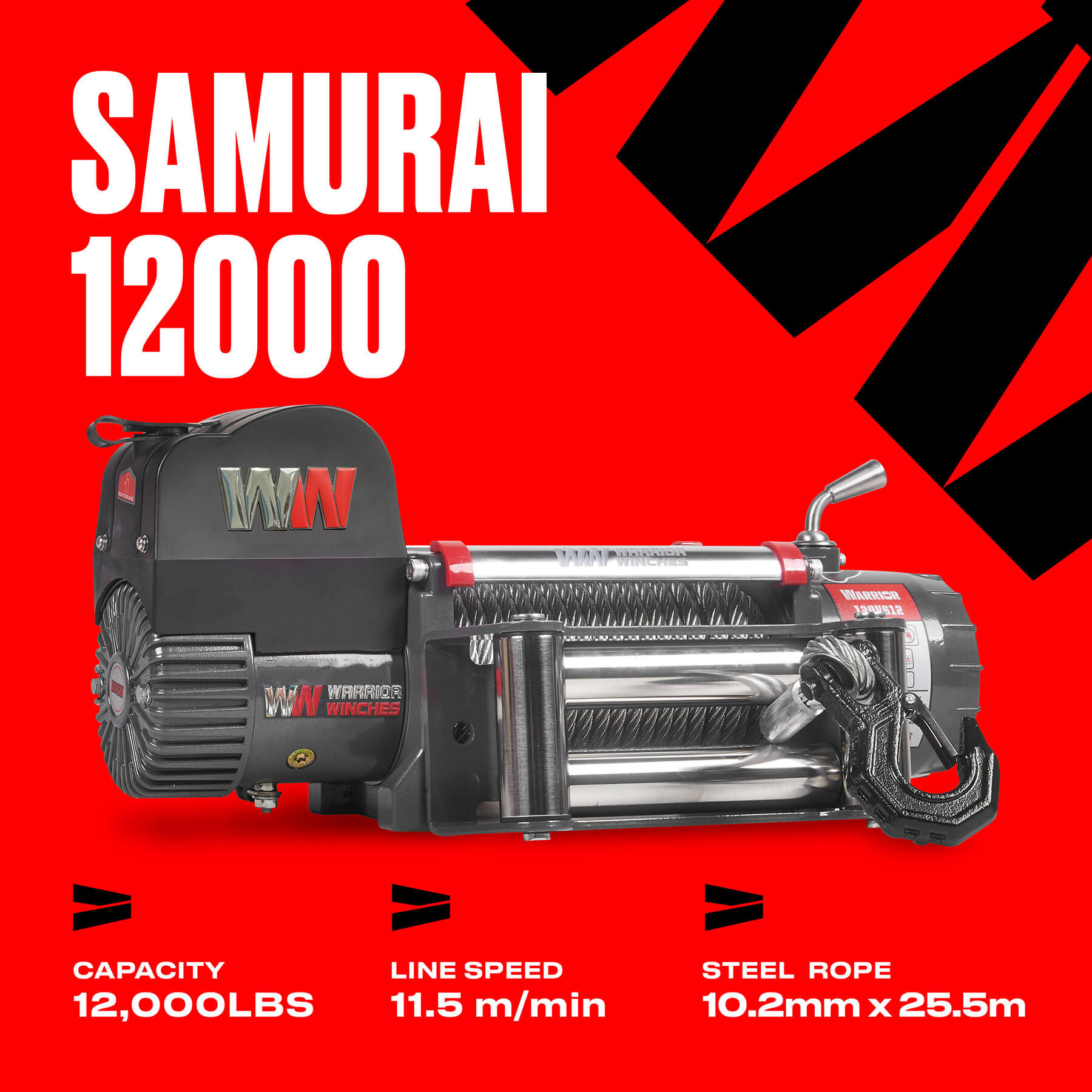

The Samurai 12,000lb 24V Steel Rope Winch delivers an impressive 12,000lb (5,443kg) of rated line pull, combining a high-output 24V motor with 253:1 planetary gearing and a durable 10.2mm x 25.5m steel rope. Designed for serious 4x4 recovery, the 24V system delivers strong performance under load while the external brake helps maintain controlled, dependable operation.
12,000lb of Serious Recovery Power. With a rated line pull of 12,000lb (5,443kg), the Samurai 12,000lb is built for demanding recoveries where substantial pulling power is essential. It gives serious 4x4 users the capability to tackle heavy vehicles, difficult terrain and challenging recovery situations.
24V Power for Faster Loaded Line Speeds. The high-output 24V motor produces 6.0kW of input power and delivers faster line speeds than the 12V configuration, including 5.2m/min at the full 12,000lb rated load. This helps reduce recovery time when every second counts.
External Braking for Controlled Recovery. The Samurai's external brake moves braking heat away from the winch drum, helping maintain controlled operation during demanding pulls. It also provides reliable load holding when the winch is under pressure.

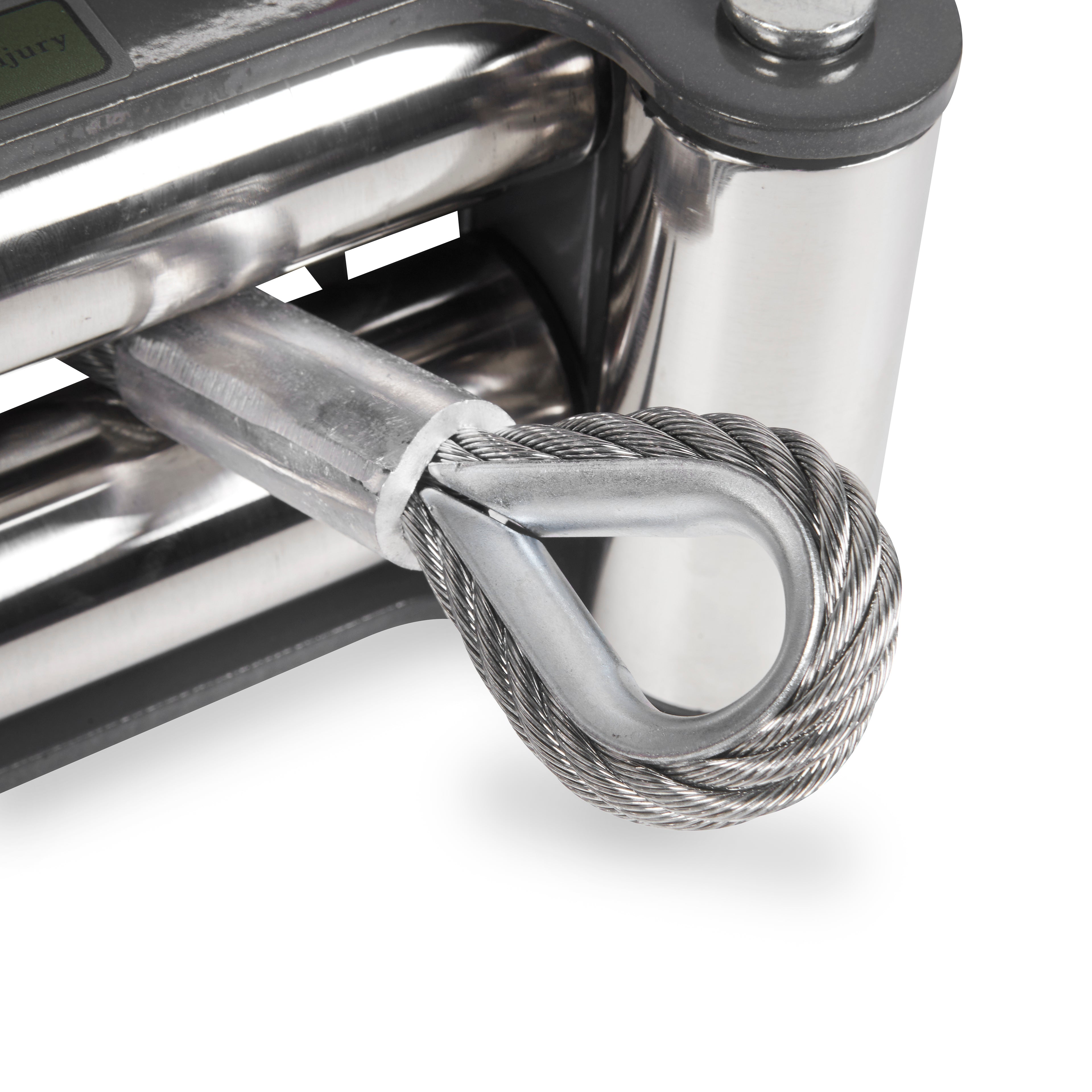

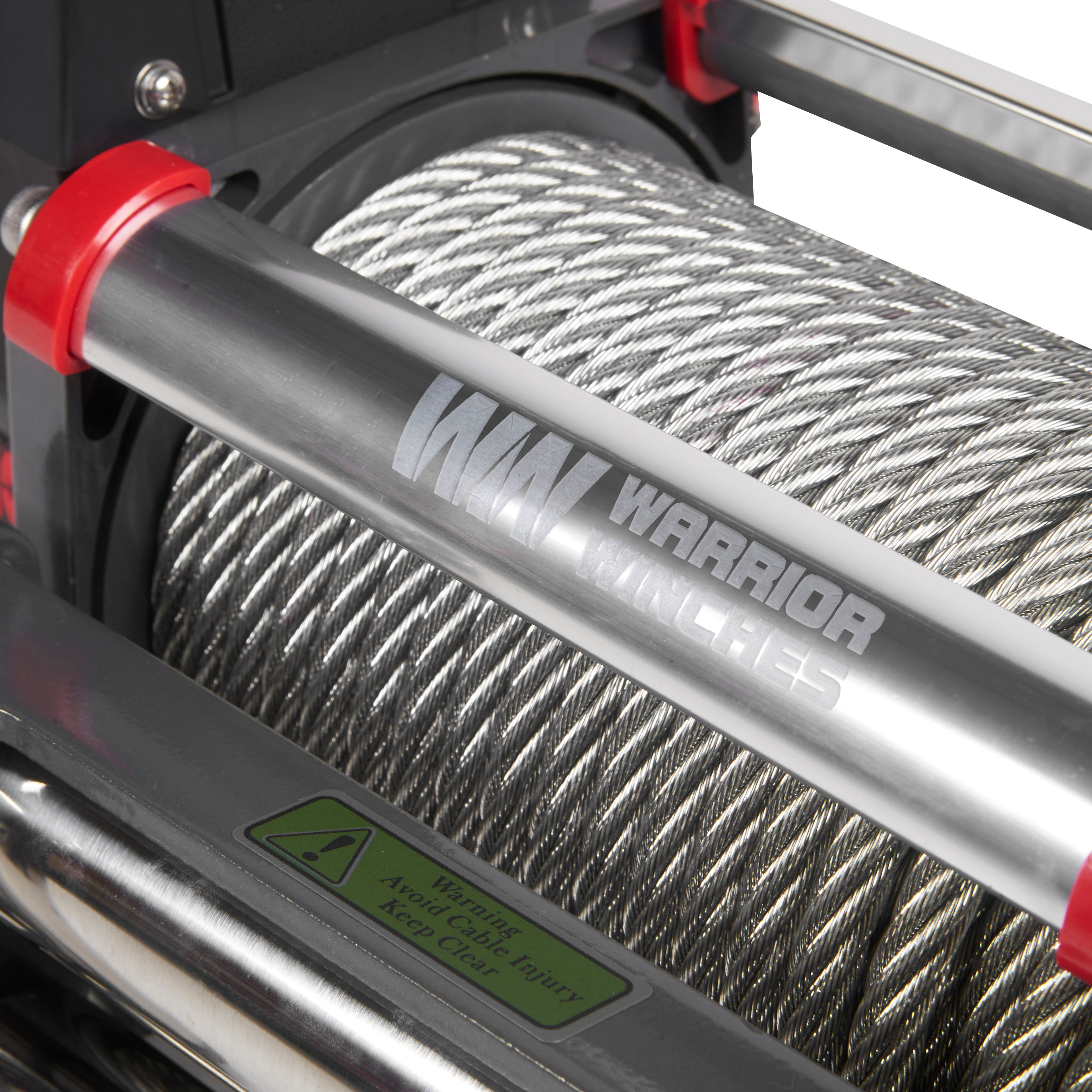

Heavy-Duty Steel Rope for Serious Work. The 10.2mm x 25.5m steel rope provides substantial reach and durability for demanding 4x4 recovery applications. Combined with the heavy-duty roller fairlead, it is built to handle the rigours of regular off-road use.
253:1 Planetary Gearing for Reliable Pulling Power. Heavy-duty 253:1 planetary gearing provides the mechanical advantage needed to turn the motor's output into controlled pulling power. Full-steel gearing is designed for durability when the recovery gets serious.
Built to Handle Tough Conditions. IP67 waterproof sealing helps protect the winch against dust and water ingress, making it better suited to the dirt, mud and wet conditions commonly encountered during off-road recovery.

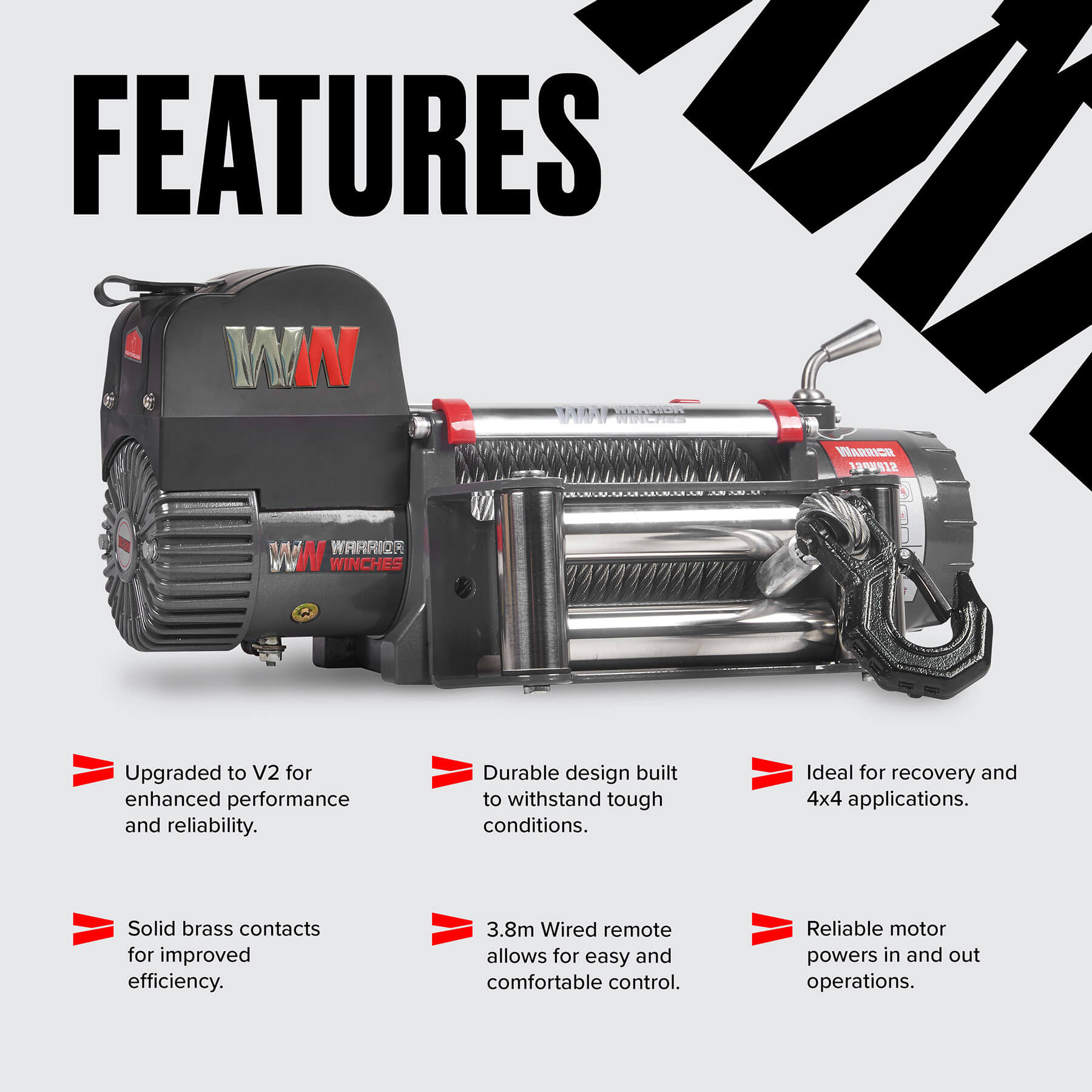

High-Performance Electrical Components. A 600A Silver Tip Contactor works alongside the high-output motor to provide dependable electrical performance. The Silver Copper Motor with Copper Brush Holders is designed to improve durability and efficiency during demanding winching operations.
Control from Where You Need It. The Samurai 12,000lb includes a 3.8m wired remote handset, giving you the ability to operate the winch while maintaining a practical distance from the recovery point. An isolation switch is also included for convenient electrical control.
Built for Heavy-Duty 4x4 Recovery. With its 12,000lb capacity, 24V power system, steel rope and heavy-duty construction, the Samurai 12,000lb is designed for serious 4x4 applications where dependable recovery performance matters.

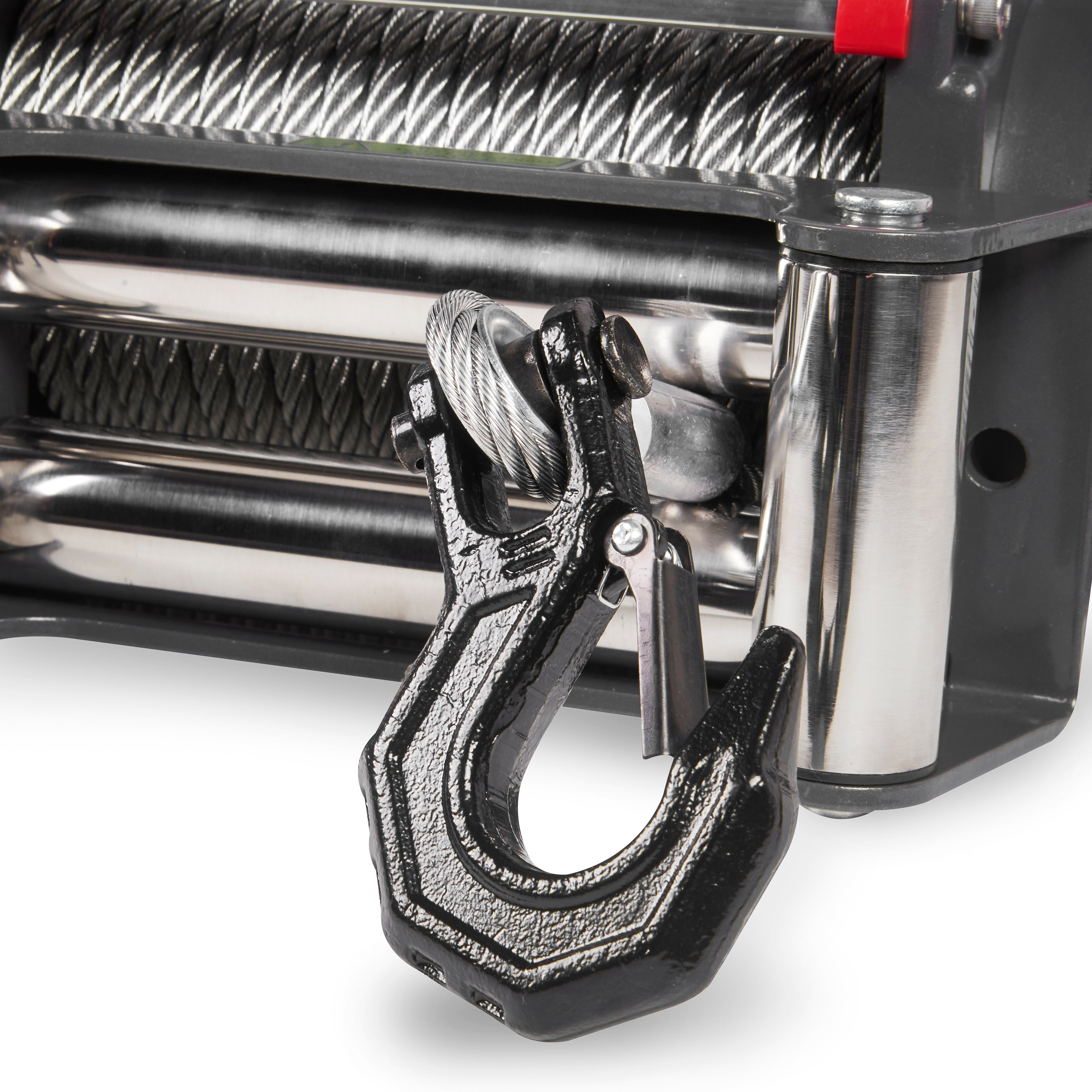

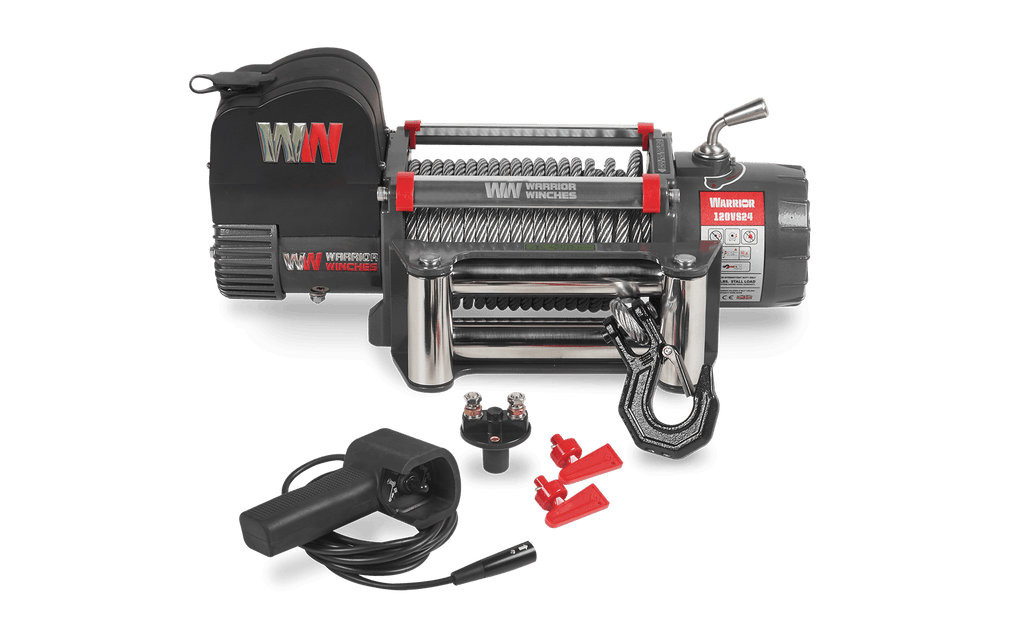

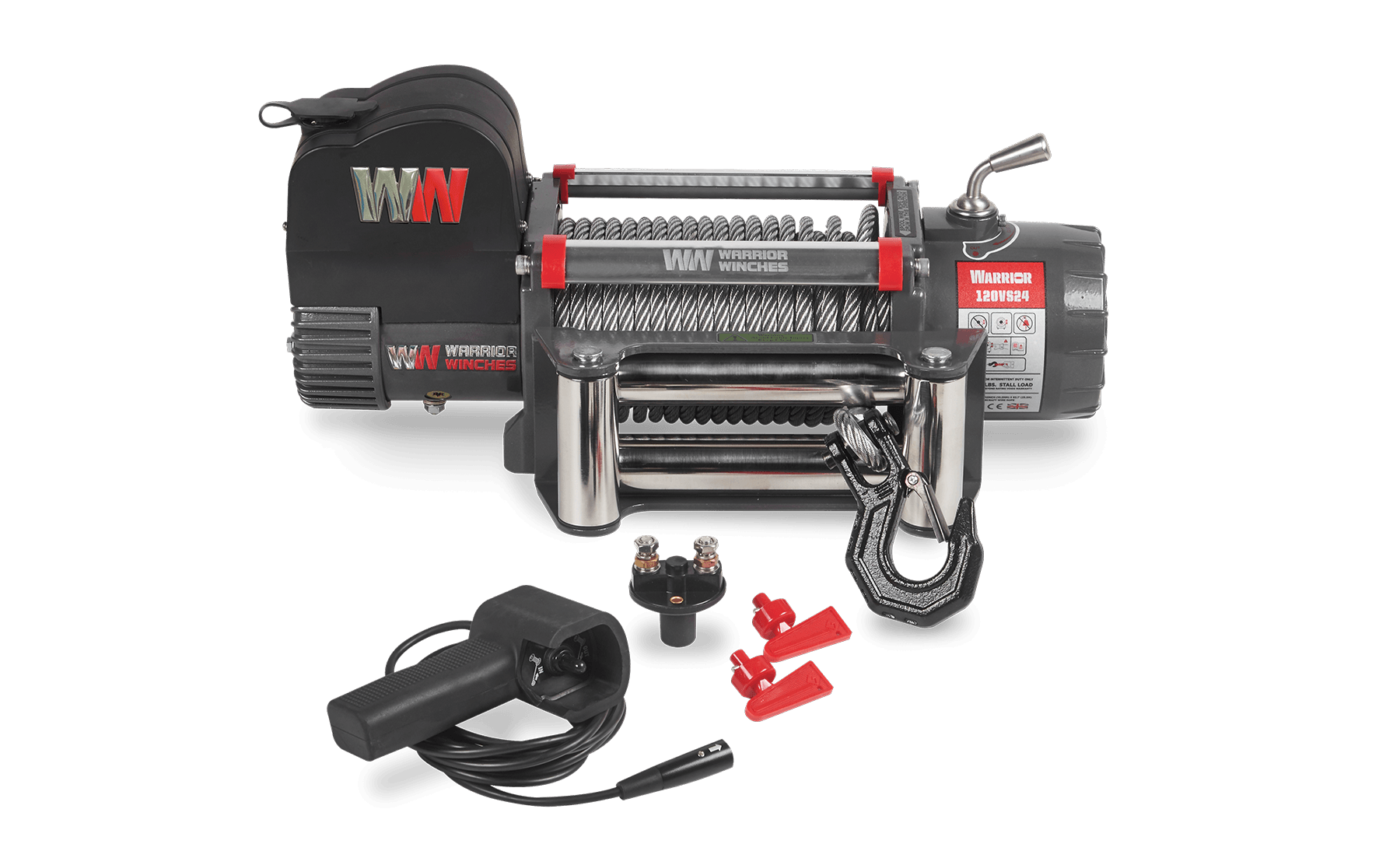

Ready for Demanding Recovery Work. Supplied with the Samurai winch, heavy-duty stainless steel roller fairlead, 25.5m steel rope, heavy-duty battery leads, wired remote, removable heavy-duty hook, isolation switch and stainless steel mounting hardware, this is a complete recovery winch package ready for installation.
The Warrior Winches Samurai 12,000lb 24V Steel Rope Winch combines 12,000lb pulling power, 24V performance, external braking, heavy-duty planetary gearing and 25.5m of steel rope into a serious recovery solution. It is backed by a 5-year Warrior Winches warranty for complete peace of mind.
