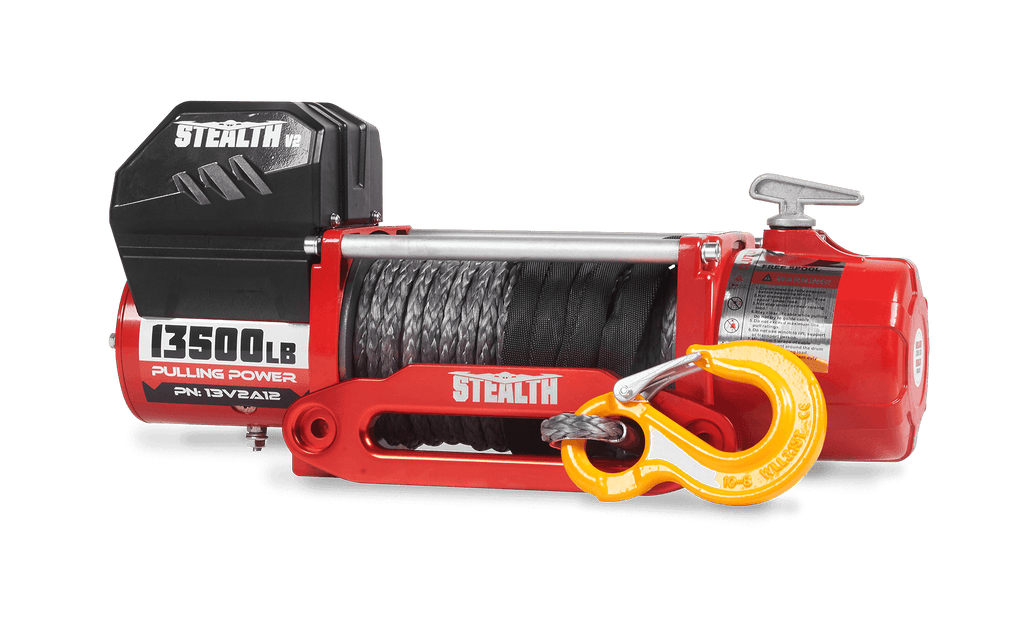

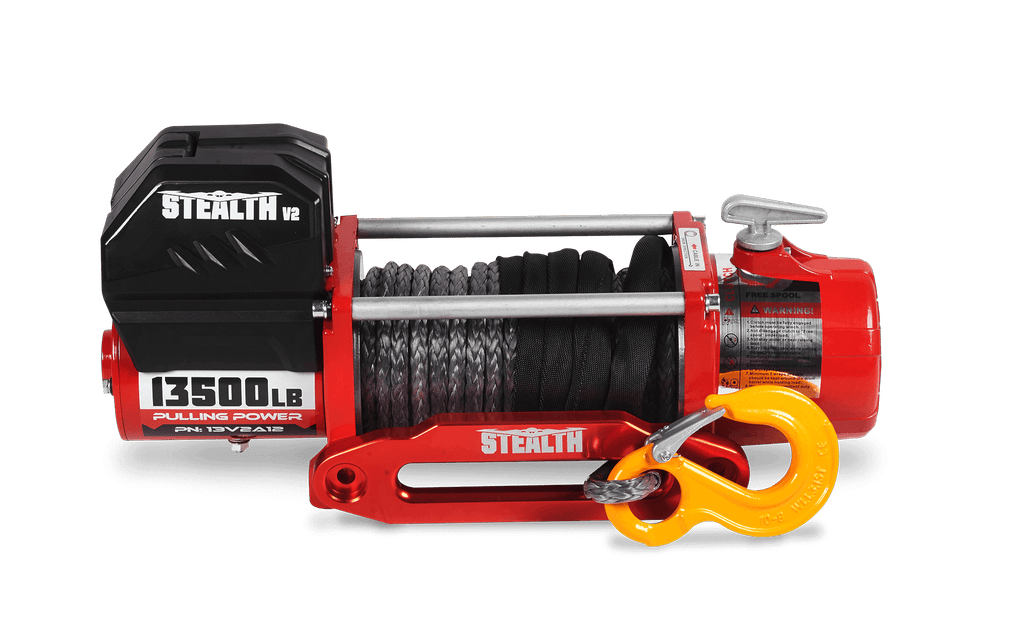

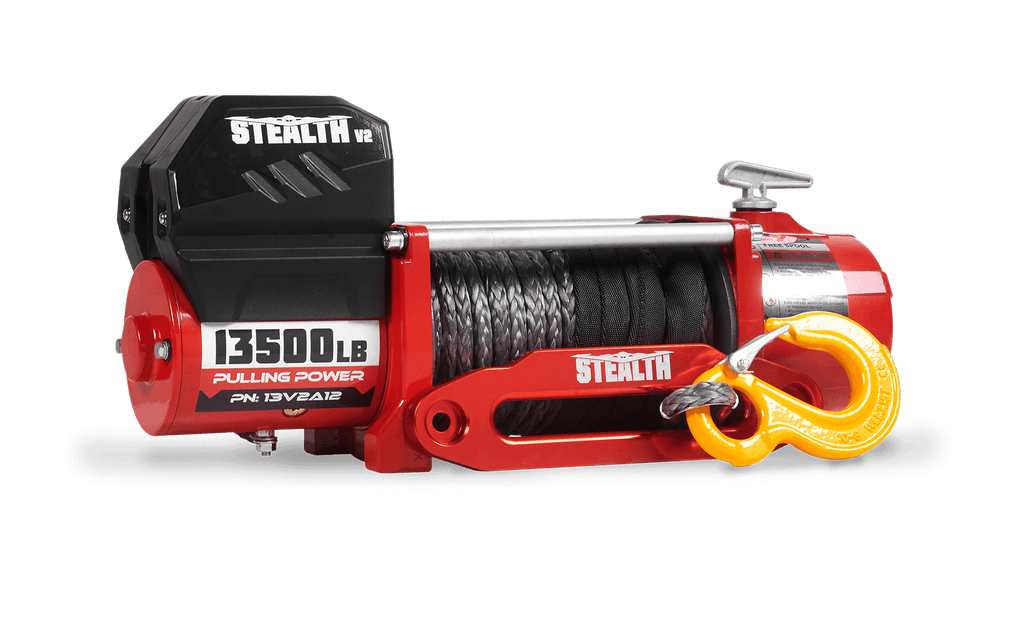

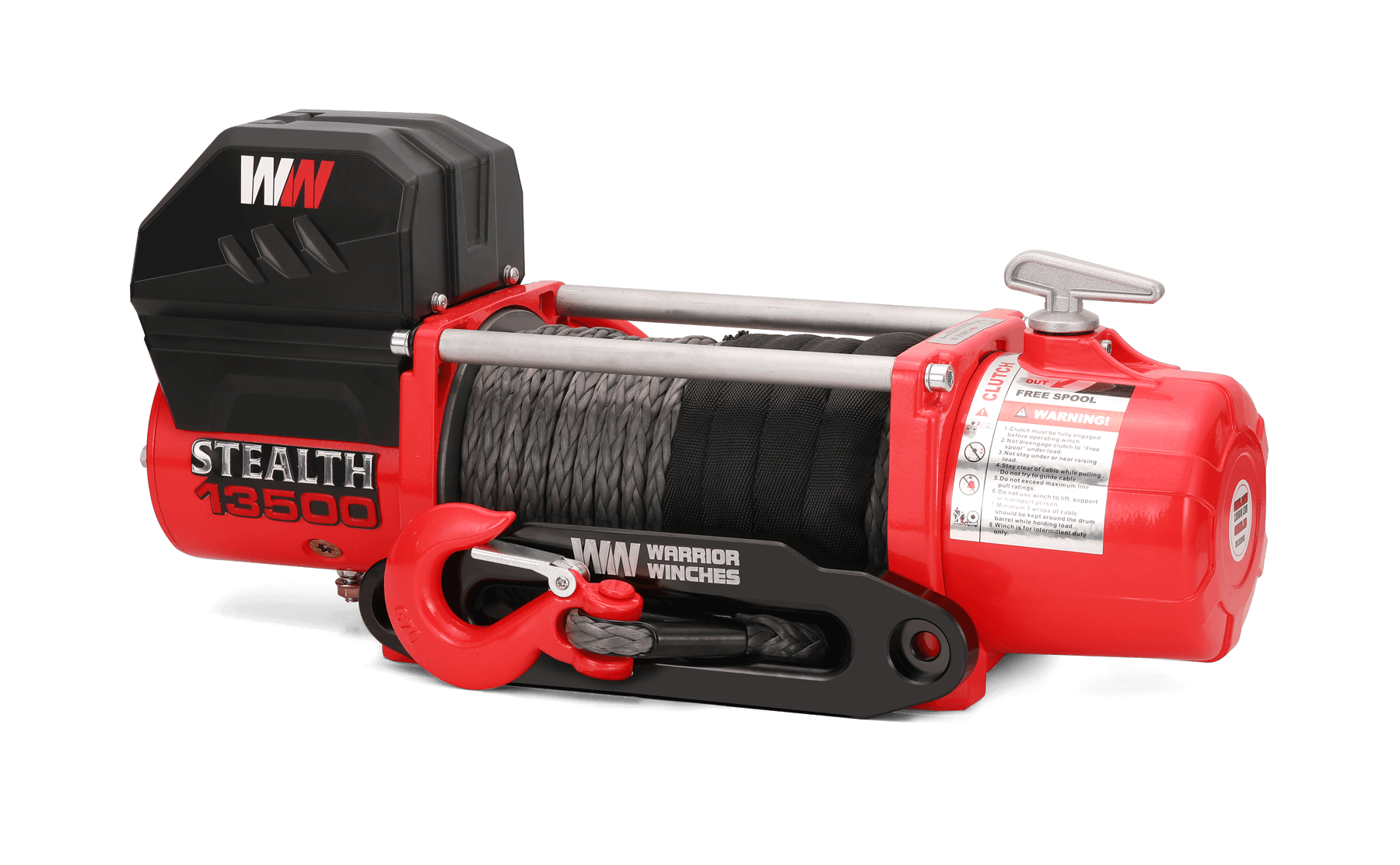

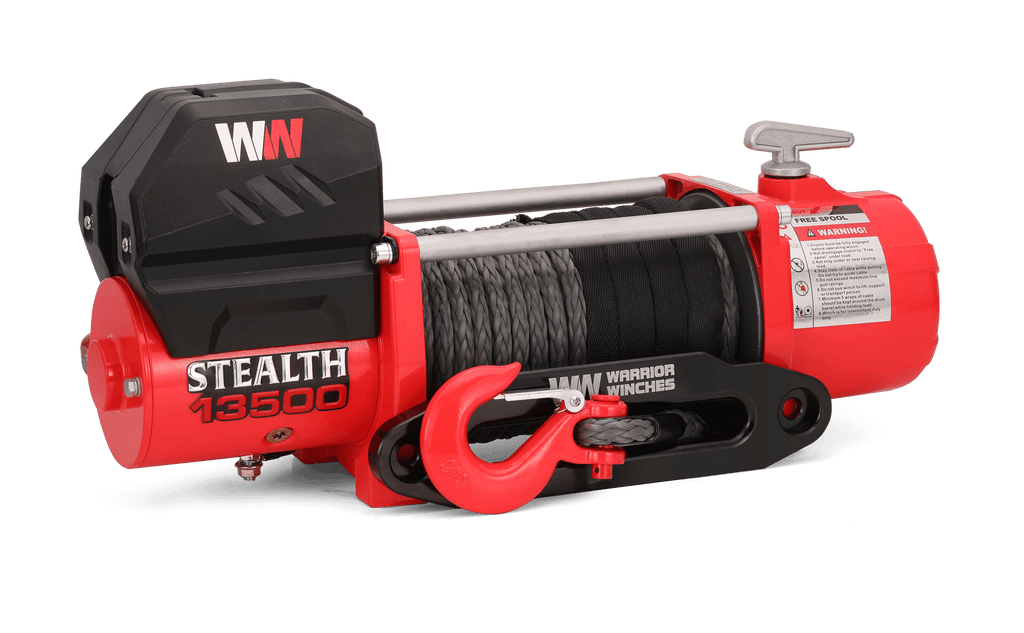

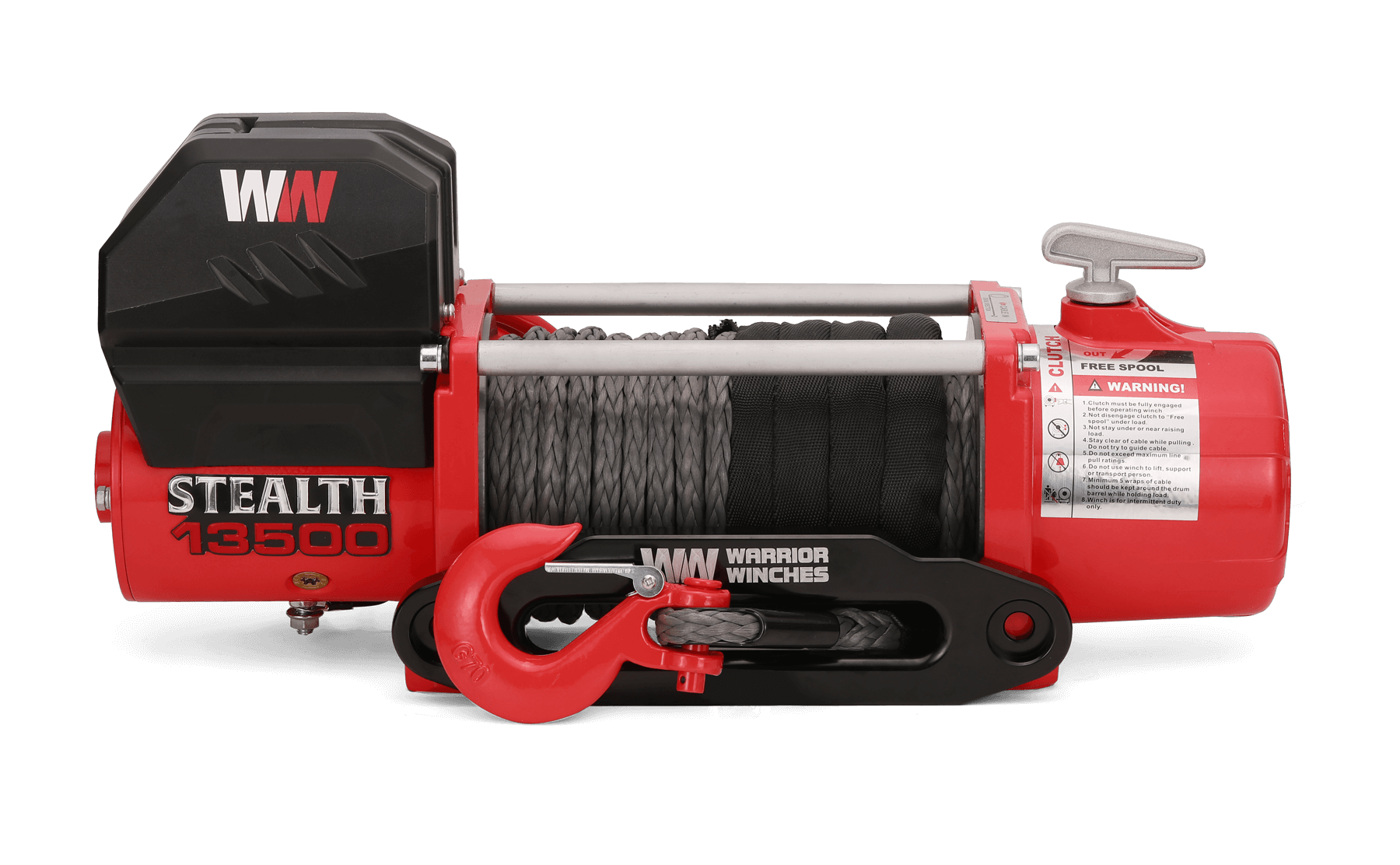

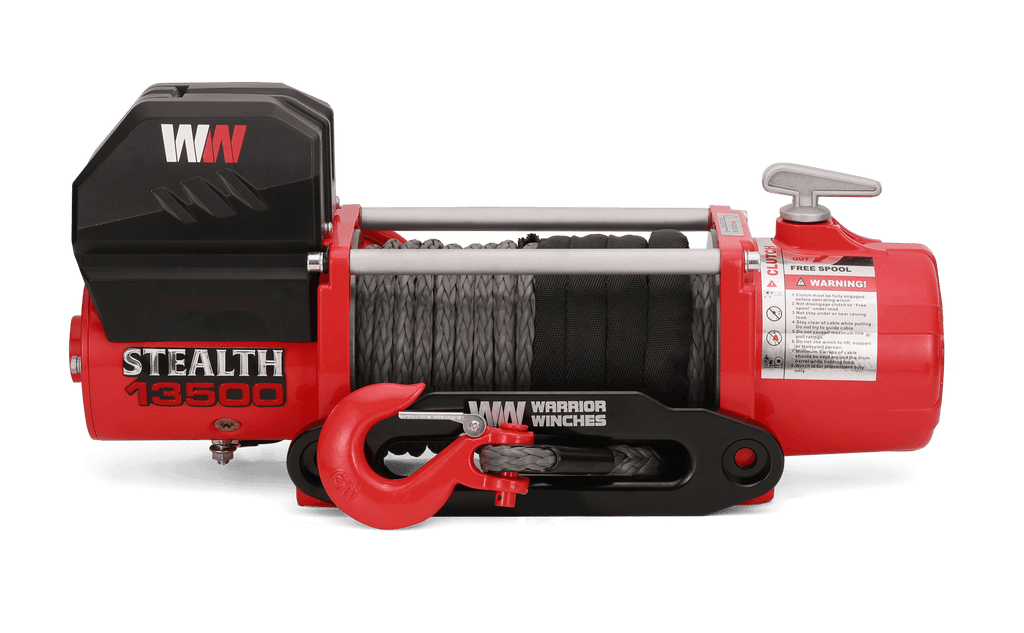

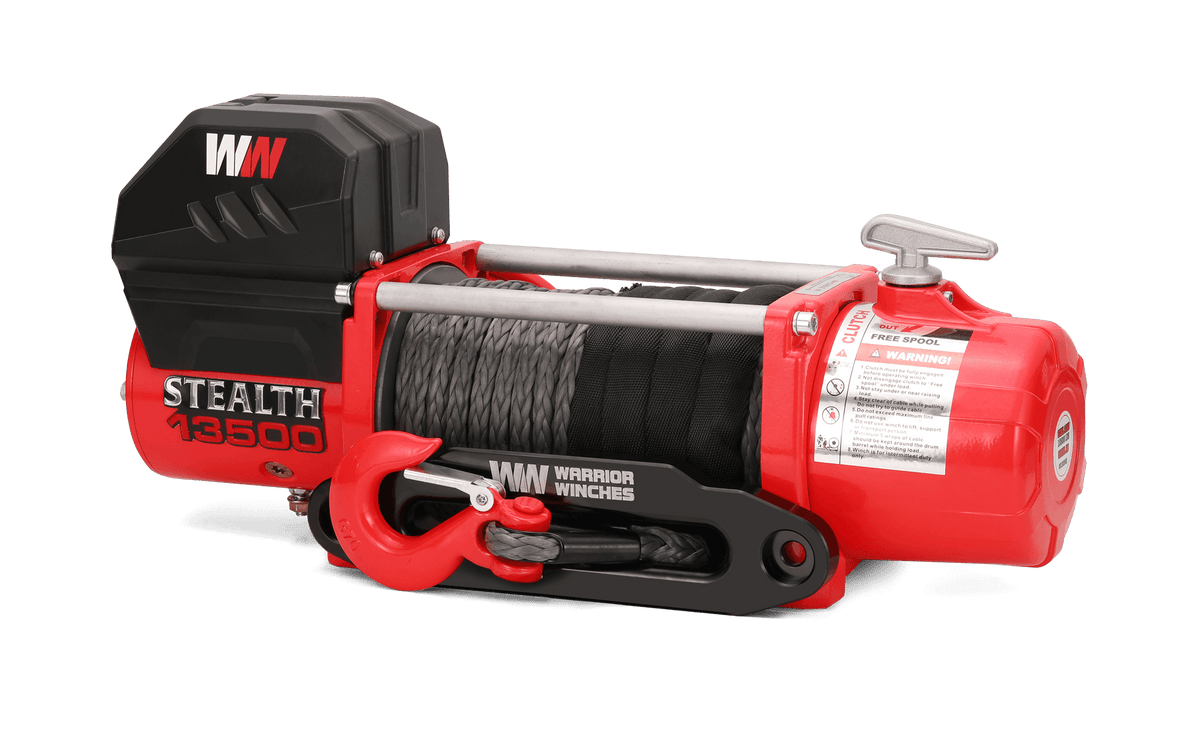

Stealth 13500lb Winch - 12v Synthetic Rope

13V2A12

Stealth 13500lb Winch - 12v Synthetic Rope

Name: Stealth 13500lb Winch - 12v Synthetic Rope
Brand: Warrior Winches
SKU: 13V2A12
Price: 379.99 GBP
Availability: OutOfStock
Rating: 4.86 (22 reviews)

Warranty: 3 Years

£379.99

Sold out

Variant

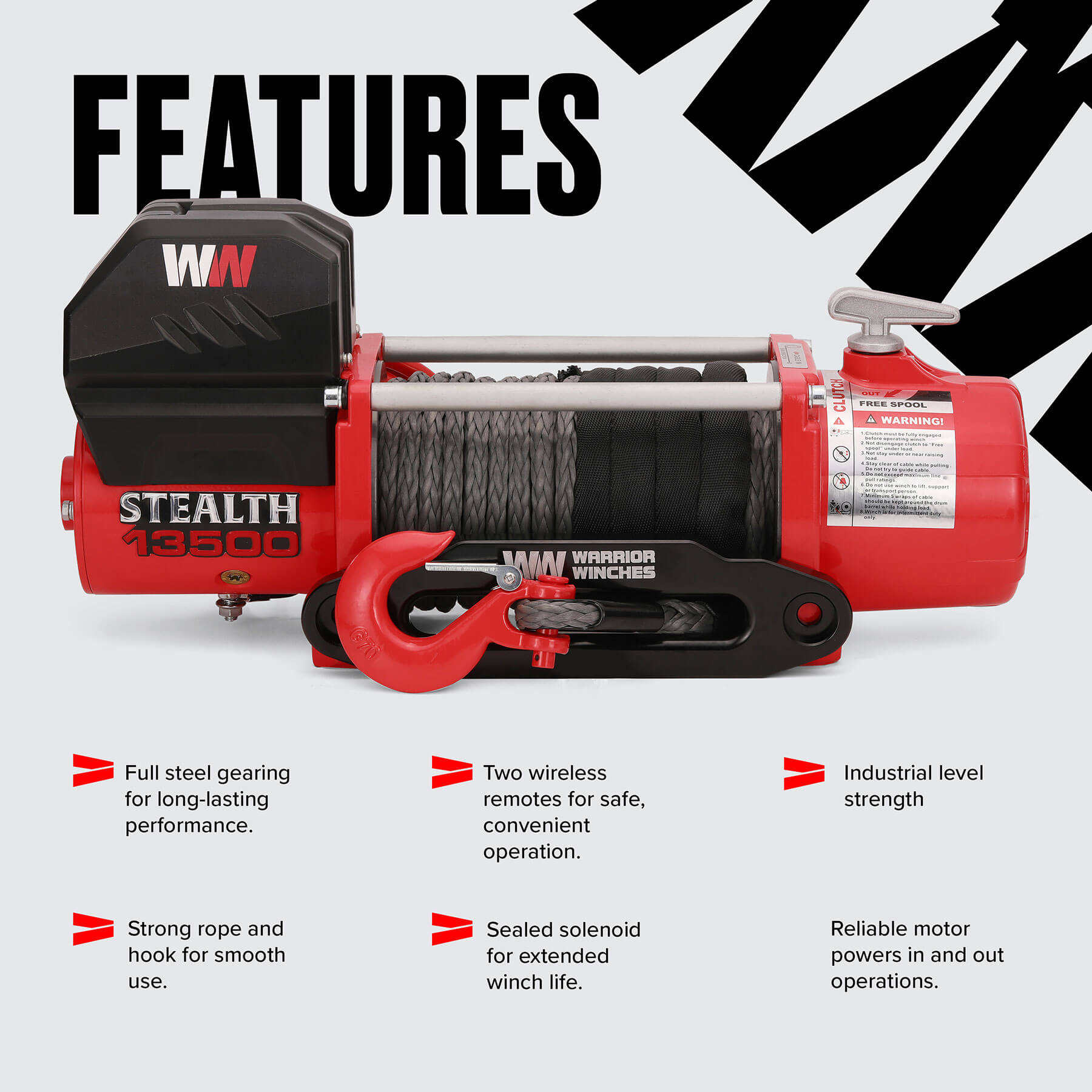

Features

13,500lb for Serious Recoveries - The powerful 6.1hp 12V motor delivers up to 13,500lb of rated line pull, giving you the capacity to tackle heavier vehicles and demanding off-road recoveries.
Synthetic Strength Without the Extra Weight - The 20m x 10mm synthetic rope provides substantial recovery capability while remaining easier to handle than steel rope. The hawse fairlead helps guide the rope smoothly during use.
Built Around Reliable Pulling Power - The reversible motor and 265:1 planetary gearing provide dependable power in both directions, giving you the control and pulling capability required when the terrain gets difficult.
Take Control of Rope Deployment - The manual freespooling clutch lets you disengage the gearbox and pull the rope out by hand, making it easier to position a long recovery line before engaging the winch.
Stay in Control from the Best Position - A wired controller and two wireless handsets give you multiple ways to operate the winch, allowing you to step away from the vehicle and maintain a clearer view of the recovery.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

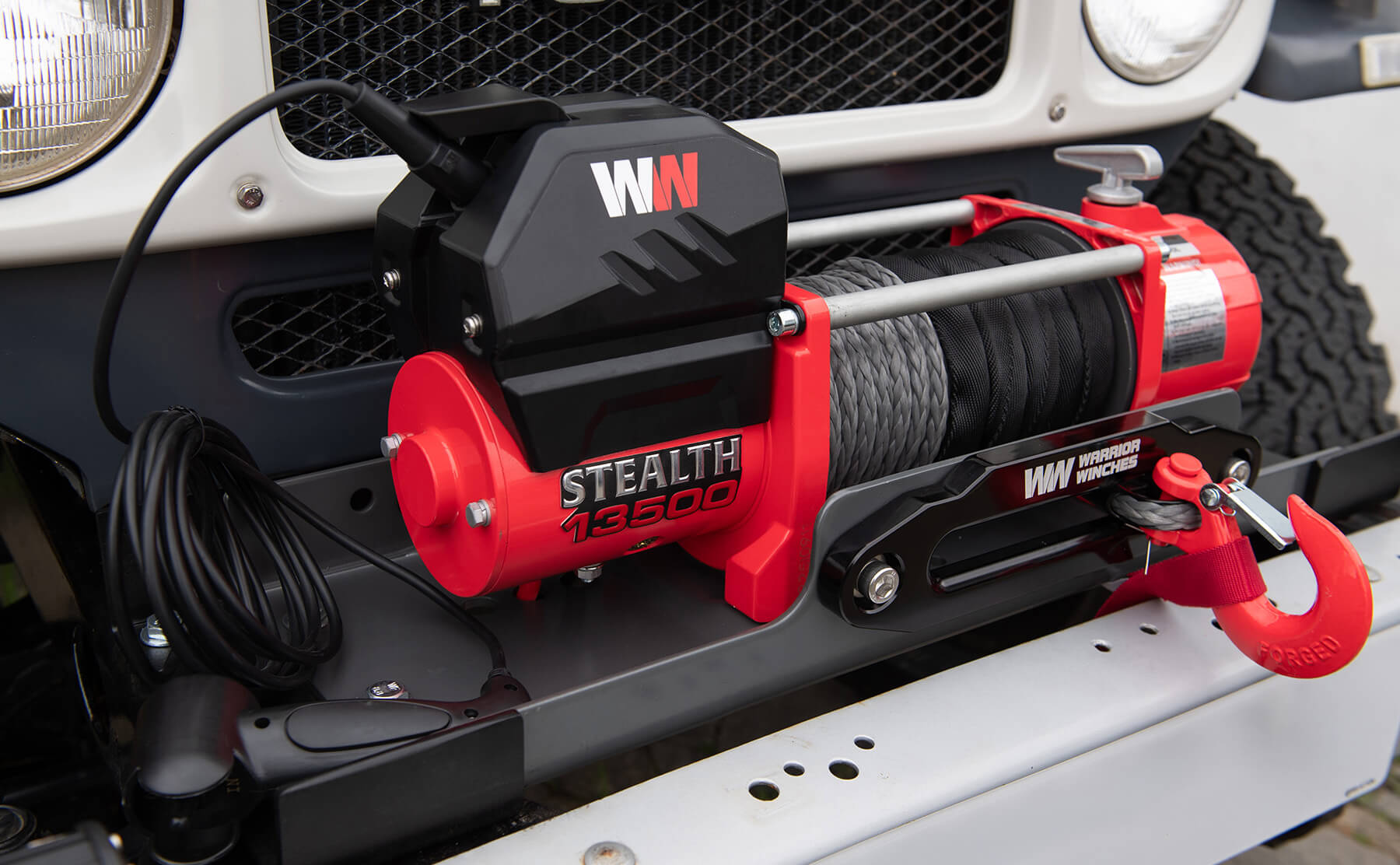

The Warrior Winches Stealth Range is built for 4x4 owners and off-road drivers who want dependable recovery performance without paying for features they don't need. Combining proven engineering, reliable motors, durable gearing and practical recovery features, Stealth winches deliver serious capability at an accessible price.

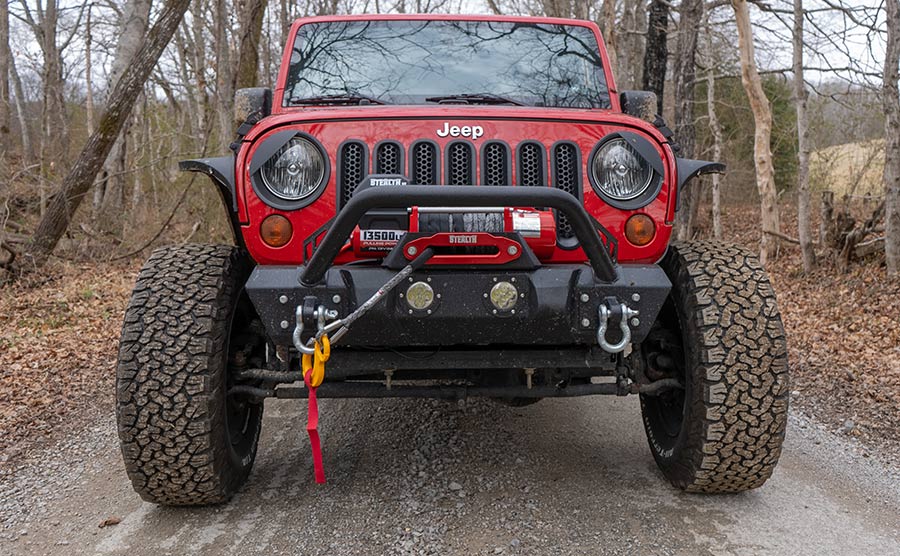

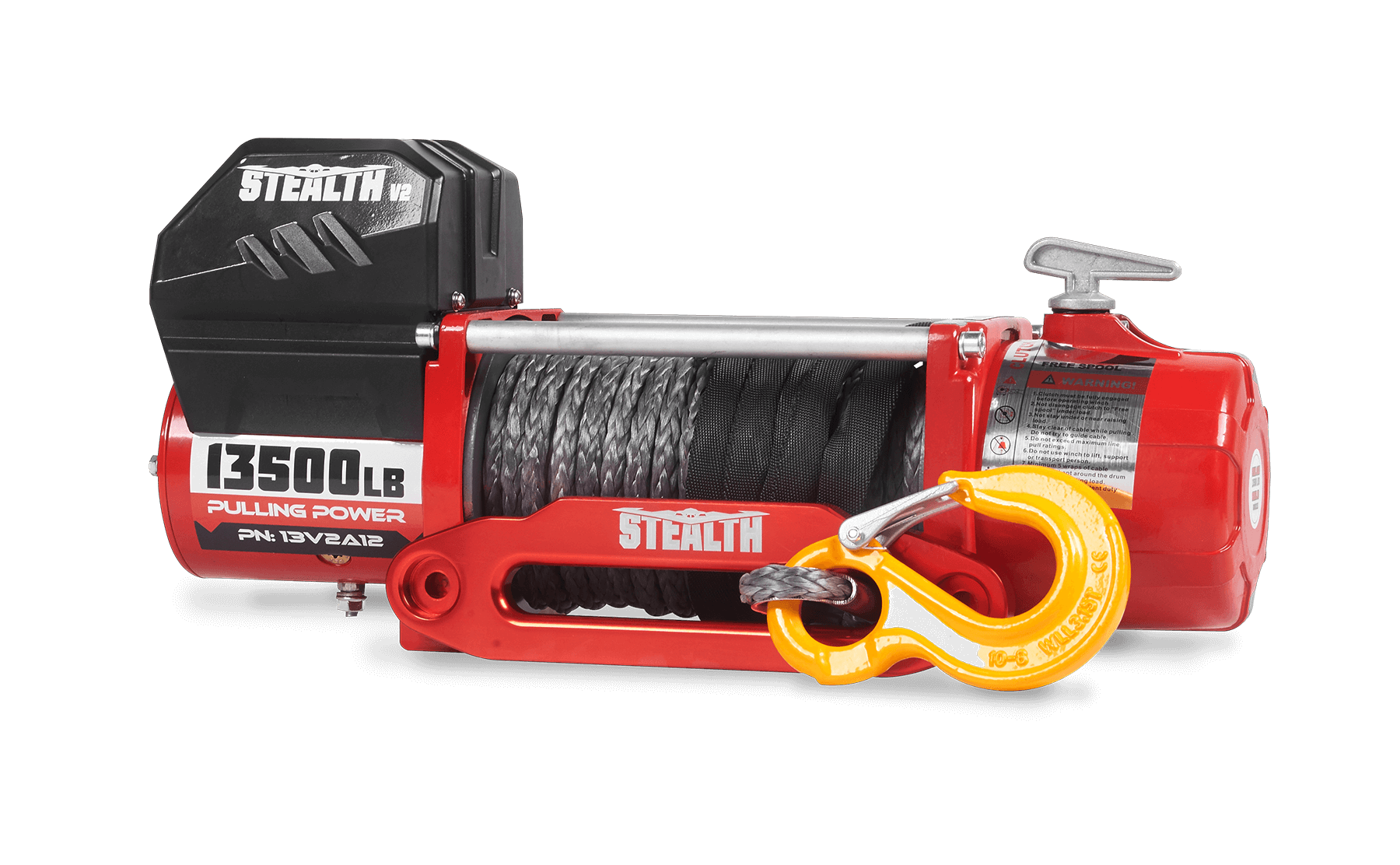

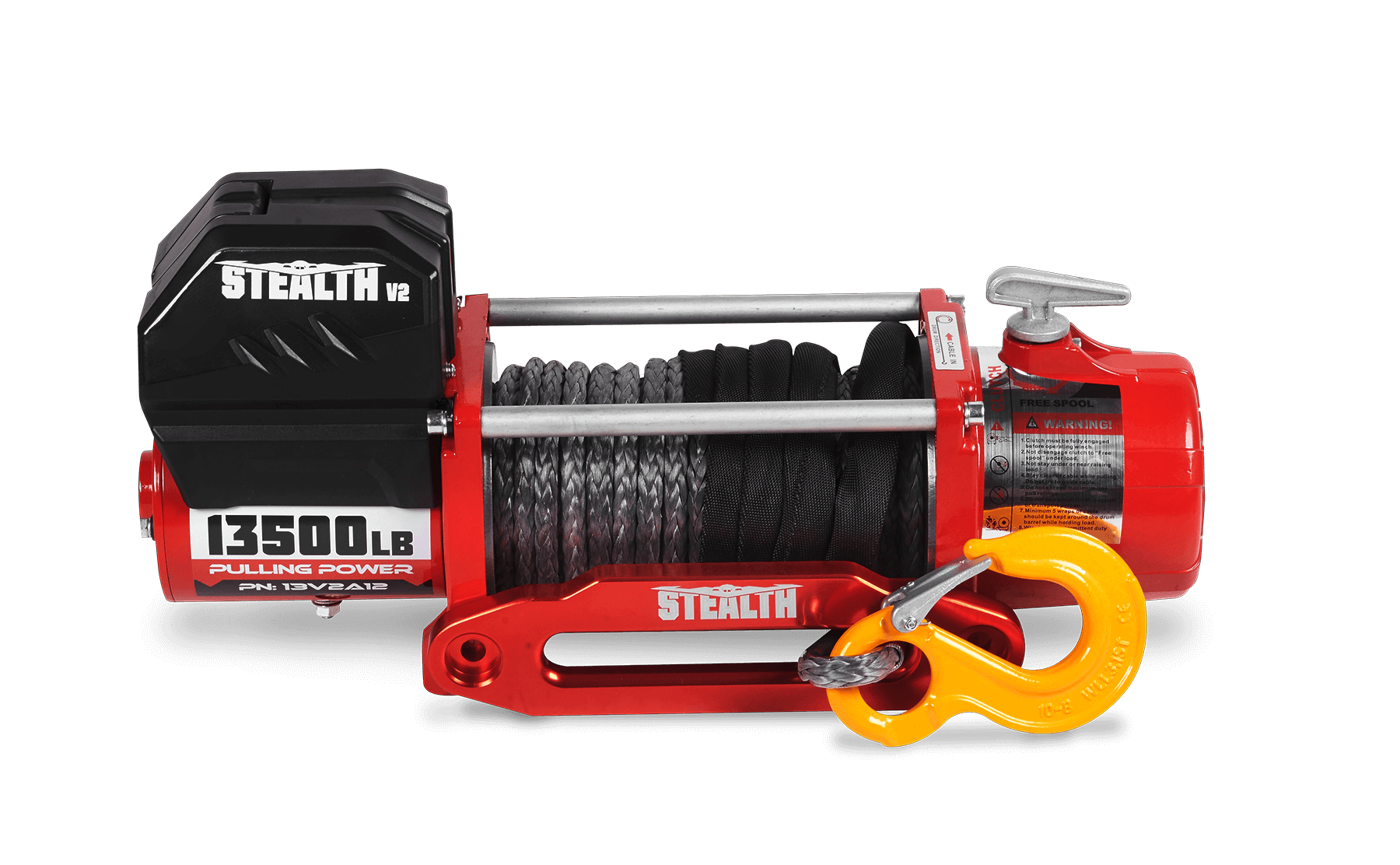

The Stealth 13,500lb 12V electric winch with synthetic rope delivers serious pulling power for demanding 4x4 recoveries, off-road vehicles, trailers and heavy recreational applications. With a 13,500lb (6,123kg) rated line pull, powerful 6.1hp motor and lightweight synthetic rope, it gives you the capability to tackle challenging recoveries while keeping the value-focused Stealth approach.

13,500lb of serious pulling power. The 6.1hp (4.6kW) 12V permanent magnet motor delivers up to 13,500lb (6,123kg) of rated line pull through a 265:1 planetary gearing system. Whether you're tackling difficult off-road terrain or recovering a heavy vehicle, the Stealth 13,500lb provides the pulling capacity needed when a smaller winch isn't enough.

Lightweight rope. Easier handling. The 20m x 10mm synthetic rope provides the strength you need while being significantly easier to handle than steel rope. The lightweight line makes manual deployment more manageable and is paired with a hawse fairlead for smooth rope movement during recovery. A clevis hook and handsaver strap are also included.

Built to work hard. The reversible motor provides reliable power in both directions, while the automatic in-drum braking system helps maintain control of the load during winching. Combined with full steel gearing and a durable planetary gear system, the Stealth 13,500lb is built to provide dependable performance when the recovery gets demanding.

Get the rope out quickly. The manual freespooling clutch allows you to disengage the gearbox and pull the synthetic rope out by hand, making it quicker and easier to position the winch line before starting the recovery. This gives you greater control over setup and helps minimise unnecessary winching time.

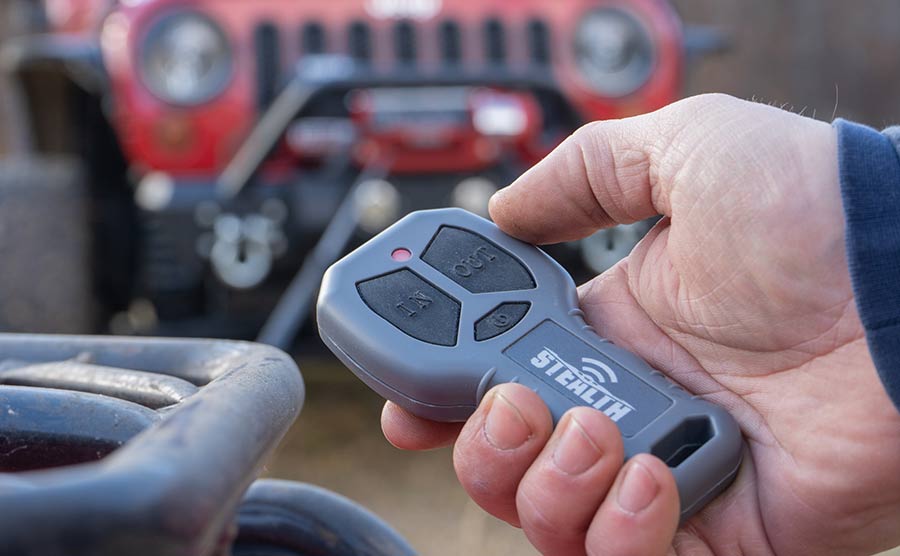

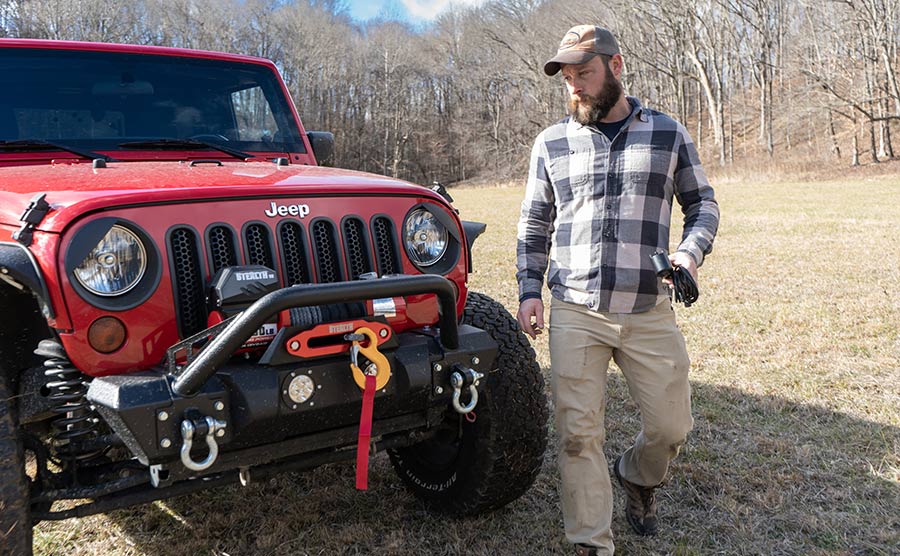

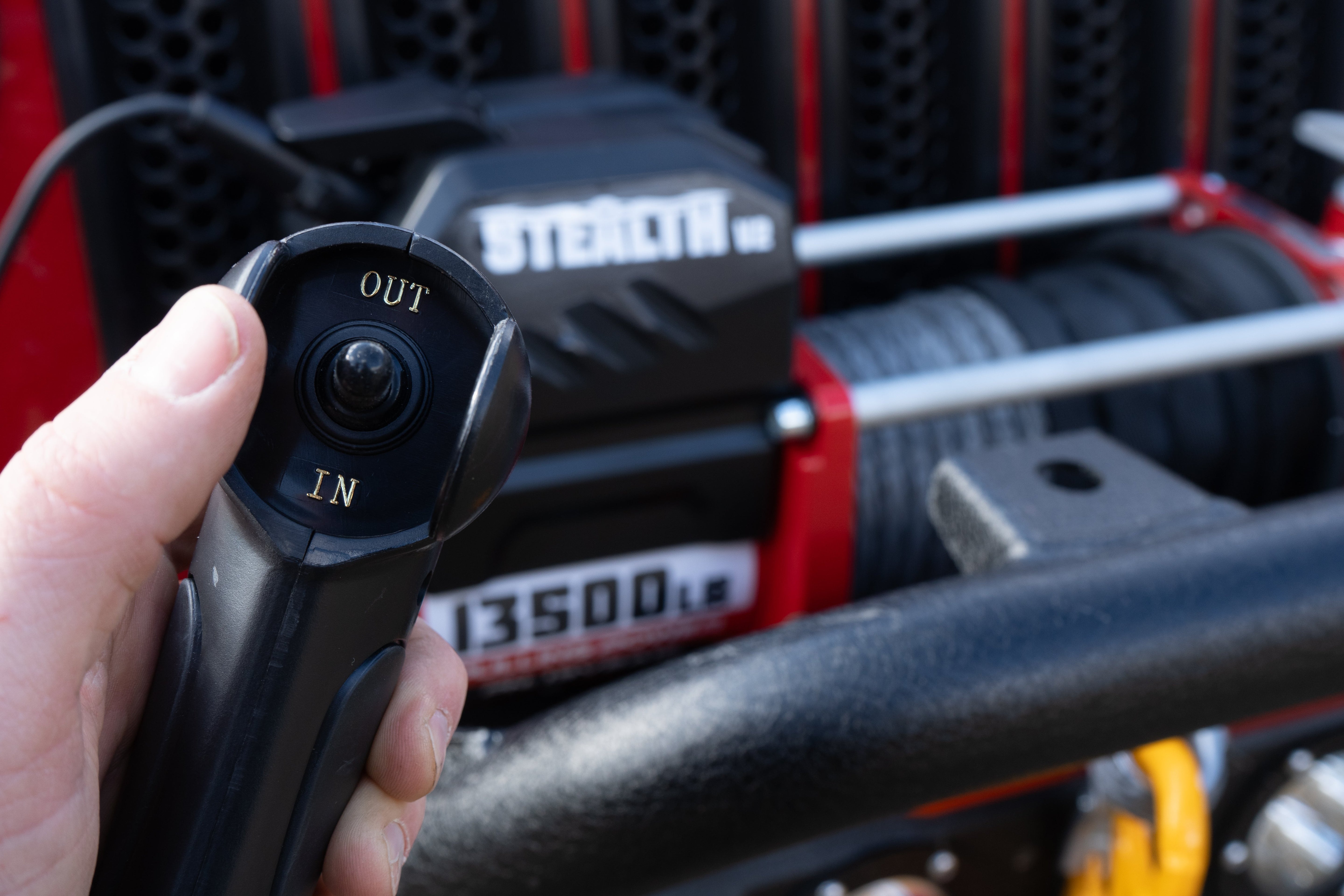

Three ways to stay in control. The Stealth 13,500lb comes supplied with a wired hand control and two wireless handsets, giving you flexibility over how you operate the winch. Wireless operation lets you step away from the vehicle for a better view of the recovery, while the wired control provides a direct alternative when required.

Big capability without the premium price. Despite its 13,500lb capacity, the Stealth remains focused on practical value. Measuring 542 x 160 x 245mm and weighing 28kg, it combines substantial pulling power with a straightforward design and the essential features needed for serious recovery work.

The Stealth 13,500lb 12V electric winch with synthetic rope delivers the pulling power, rope handling and control needed for demanding recoveries without the premium price tag. Backed by a 3-year warranty, it's a practical choice for enthusiasts and regular off-road users who want serious capability and dependable Warrior Winches performance.

Sku	13V2A12
EAN	5060423982203

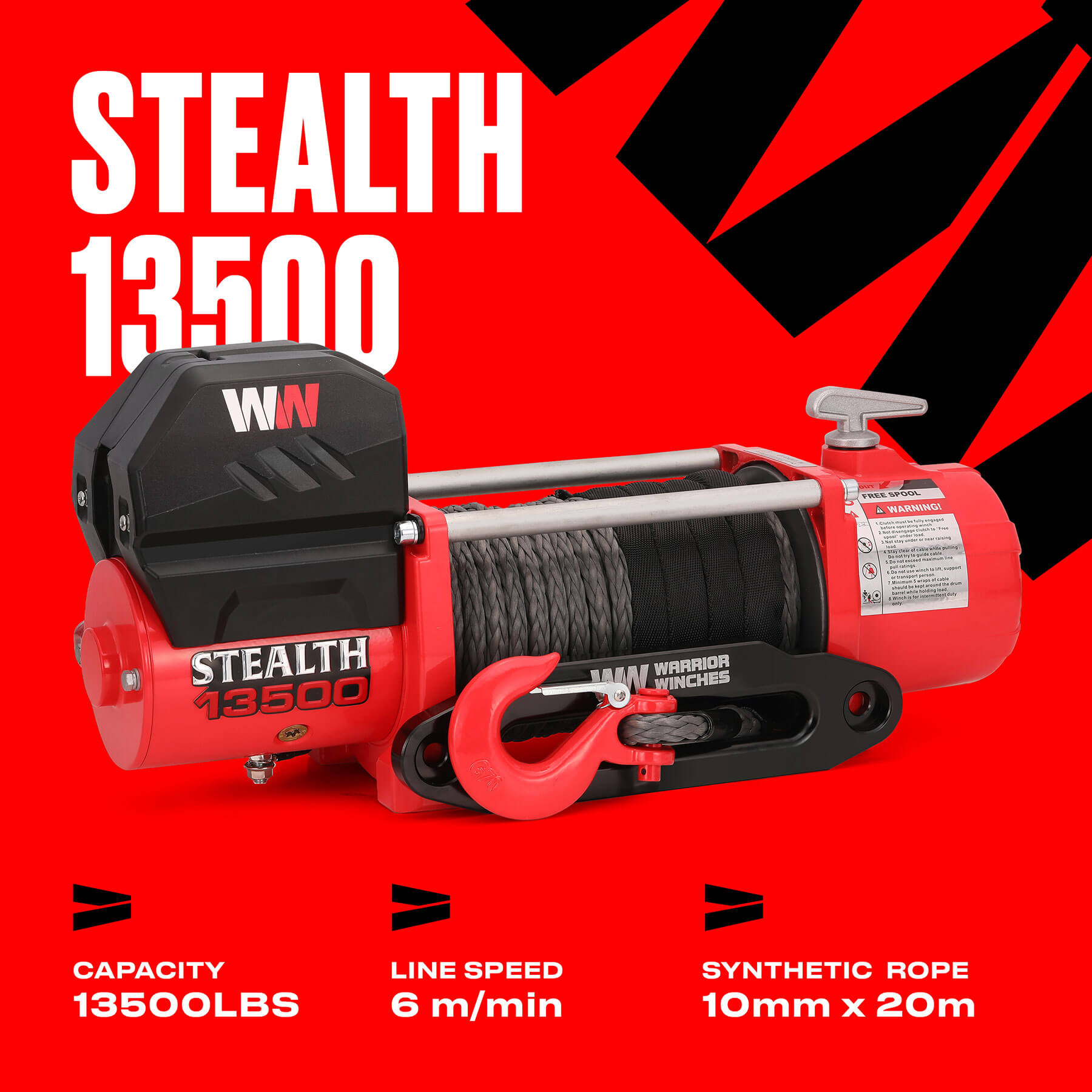

Rated Line Pull	13500 lbs
Motor Type	12V: Input: 6.1hp / 4.6 kW; Output: 2.8hp / 2.1 kW
Rated Volt	12
Clutch	Manual
Gearing	265:1
Braking Action	Auto in the drum
Drum Size (Diameter x Length)	63.0 x 223.0 mm
Controls	2x Wireless Remotes Wired Remote
Cable Material	Synthetic
Cable Size (Diameter x Length)	10.0 mm x 20.0 m Find replacement Armortek Synthetic Rope

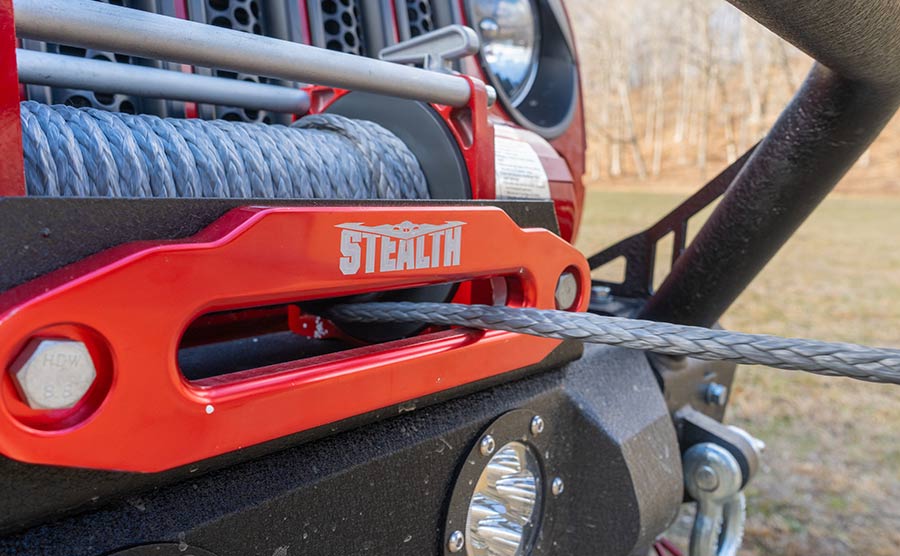

Fairlead	Hawse
Mounting Pattern	254mm x 114mm mm

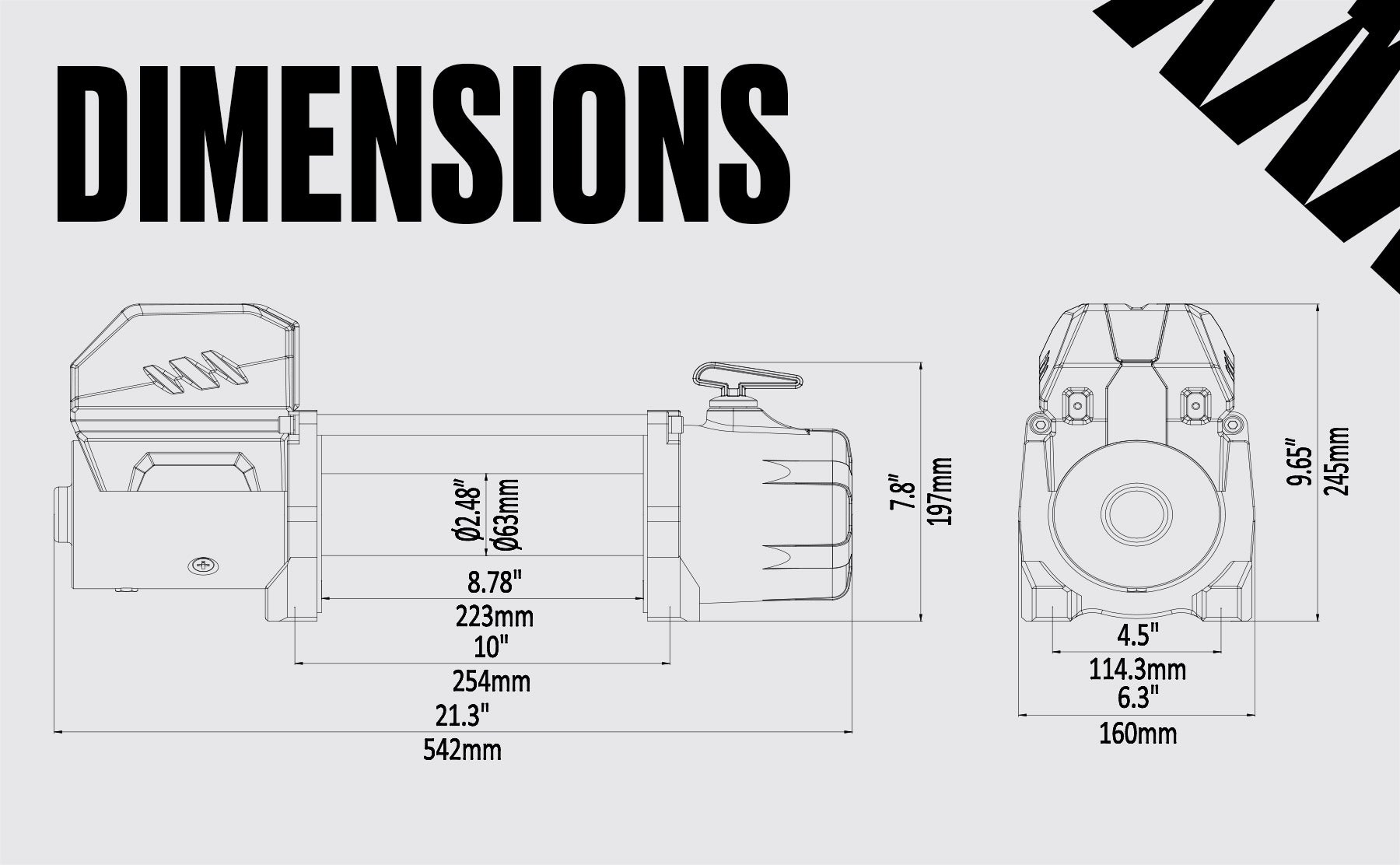

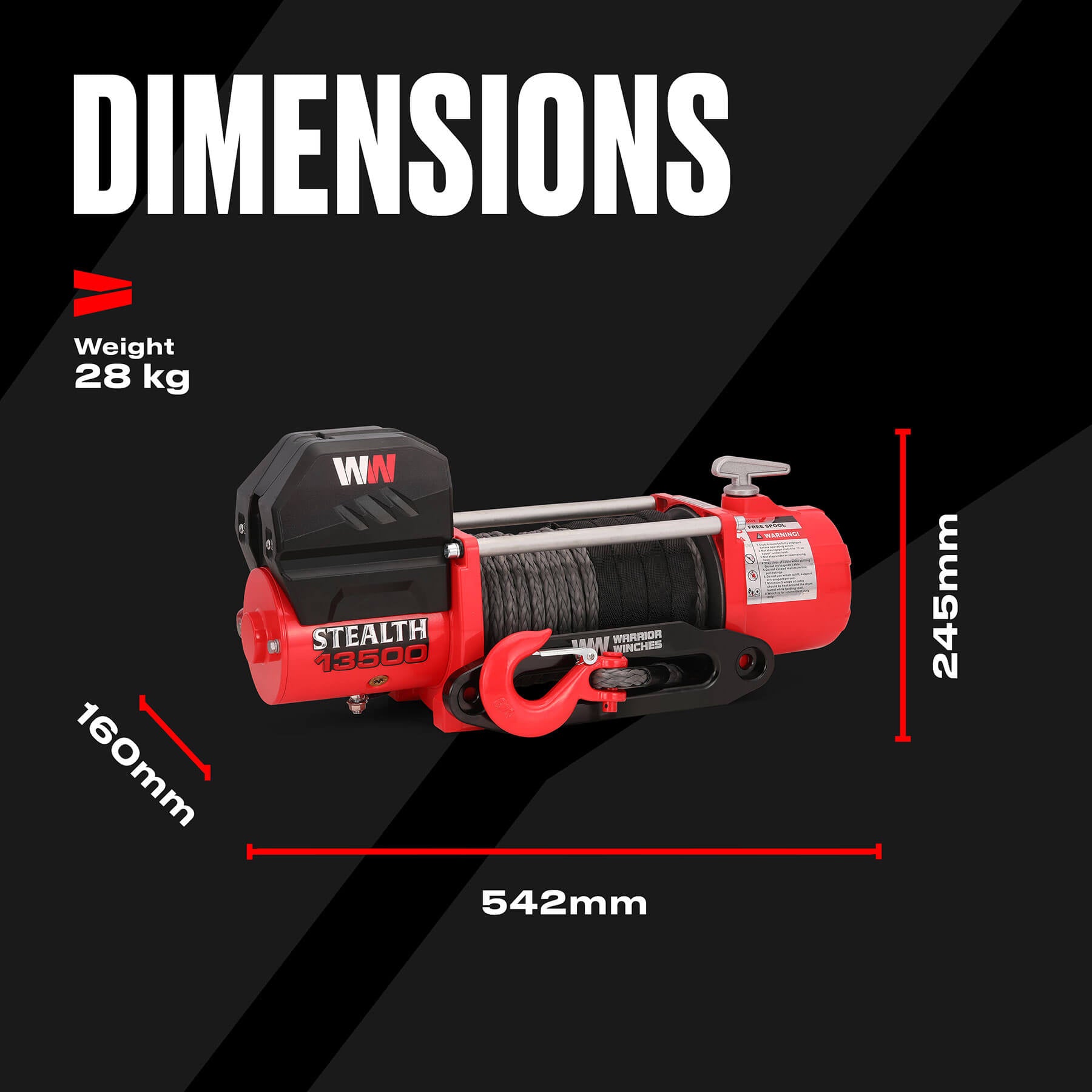

Dimensions	542 x 160 x 245 mm
Weight	28.0 kg
Warranty	3 Year
Certification	CE

Layer of Rope/Cable	Line Pull: lbs(kgs)	Rope on drum ft(m)
1	13 500 (6 123)	16.1 (4.9)
2	10 596 (4 806)	36.4 (11.1)
3	8 720 (3 955)	60.0 (18.3)
4	7 408 (3 360)	65.6 (20.0)

Line Pull lbs (kgs)	Line Speed 12v ft/min (m/min)	Line Speed 24v ft/min (m/min)	Amp Draw 12v	Amp Draw 24v
0	19.7 (6.0)	20.6 (6.3)	72	50
4000 (1818)	10.5 (3.2)	11.5 (3.5)	180	120
8000 (3629)	7.5 (2.3)	8.9 (2.7)	265	180
12000 (5443)	5.2 (1.6)	6.9 (2.1)	360	240
13500 (6123)	3.9 (1.2)	5.2 (1.6)	390	270

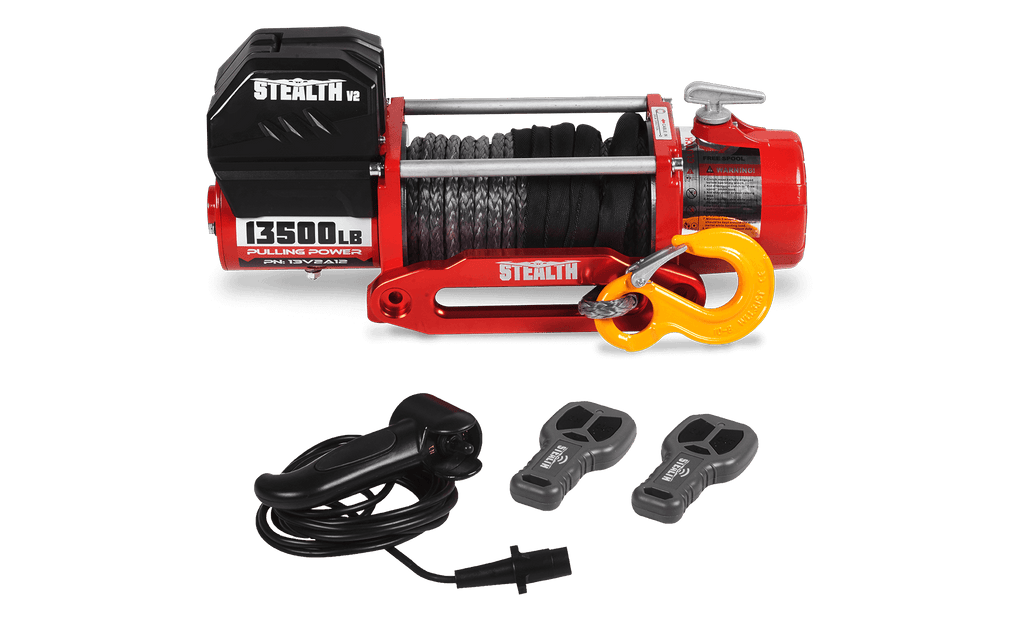

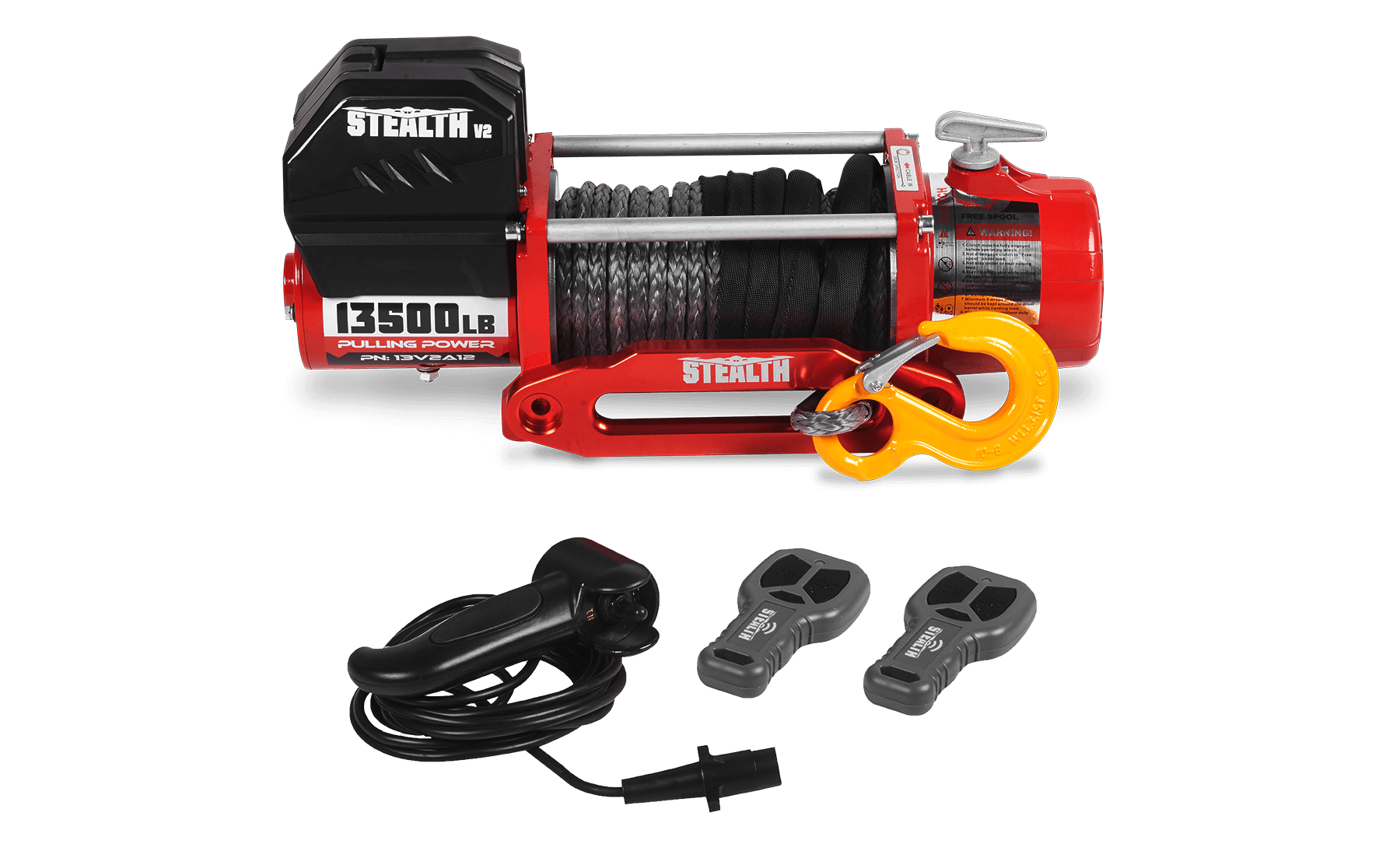

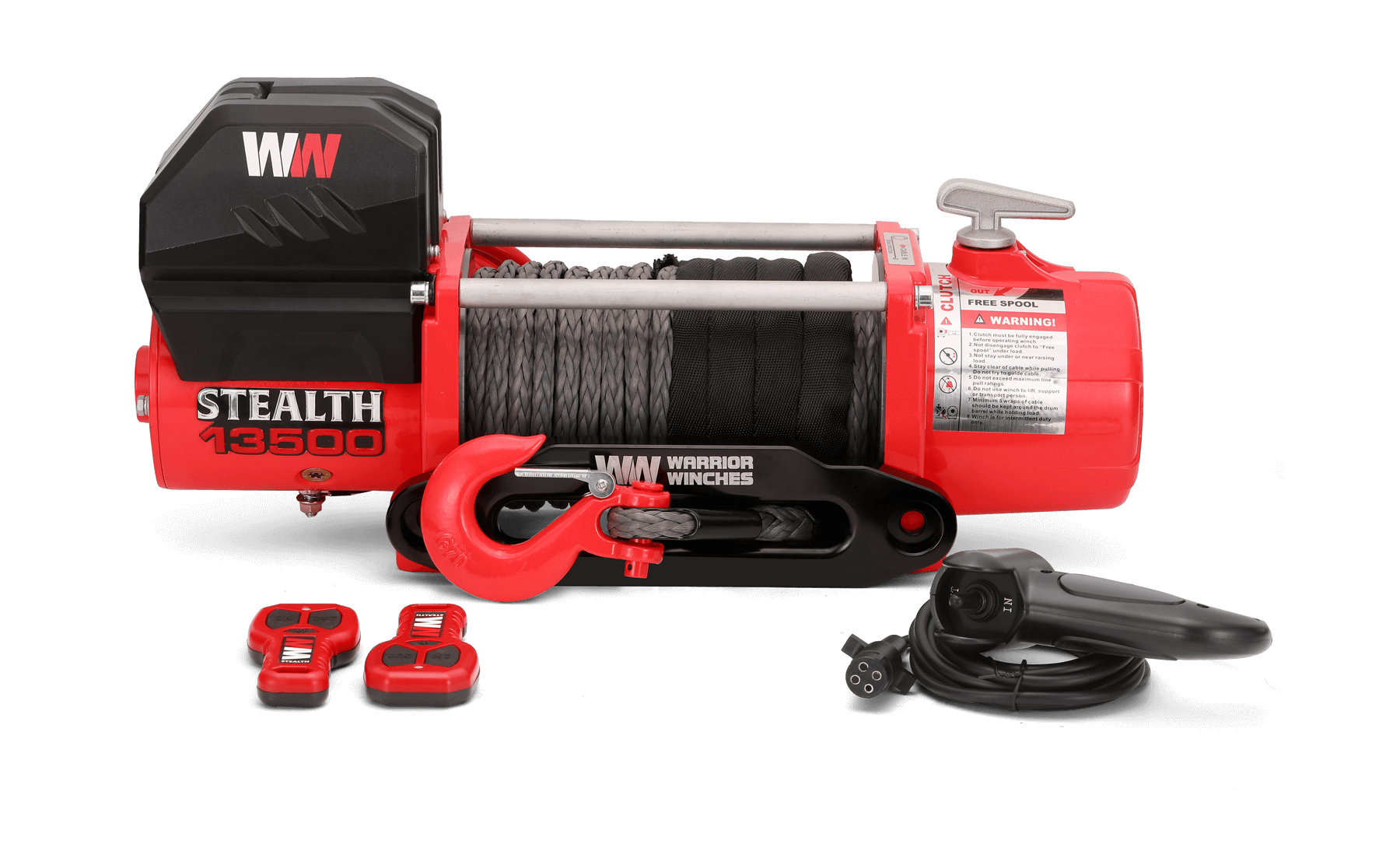

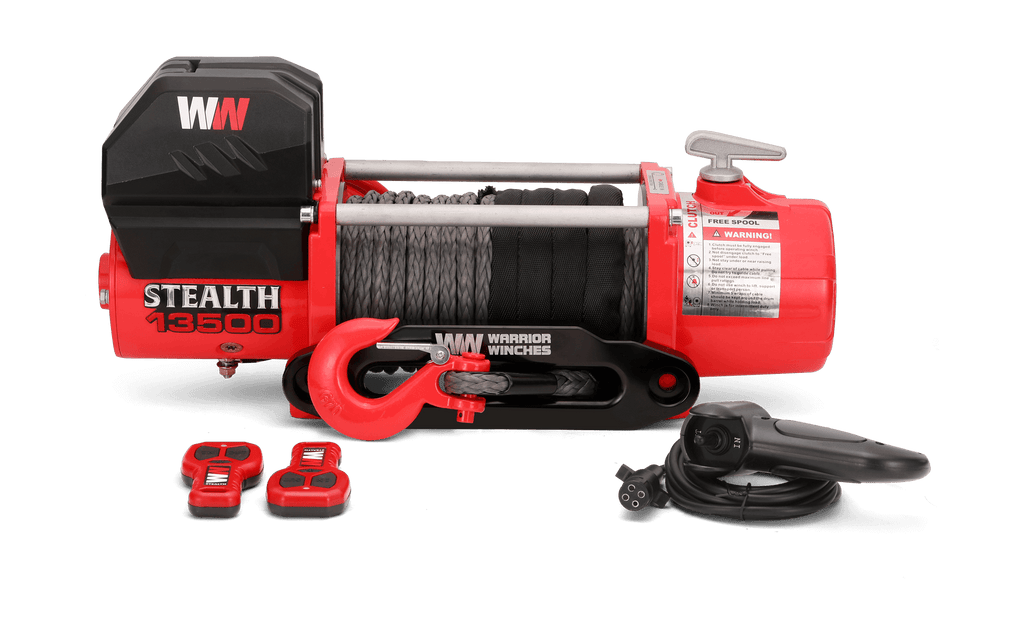

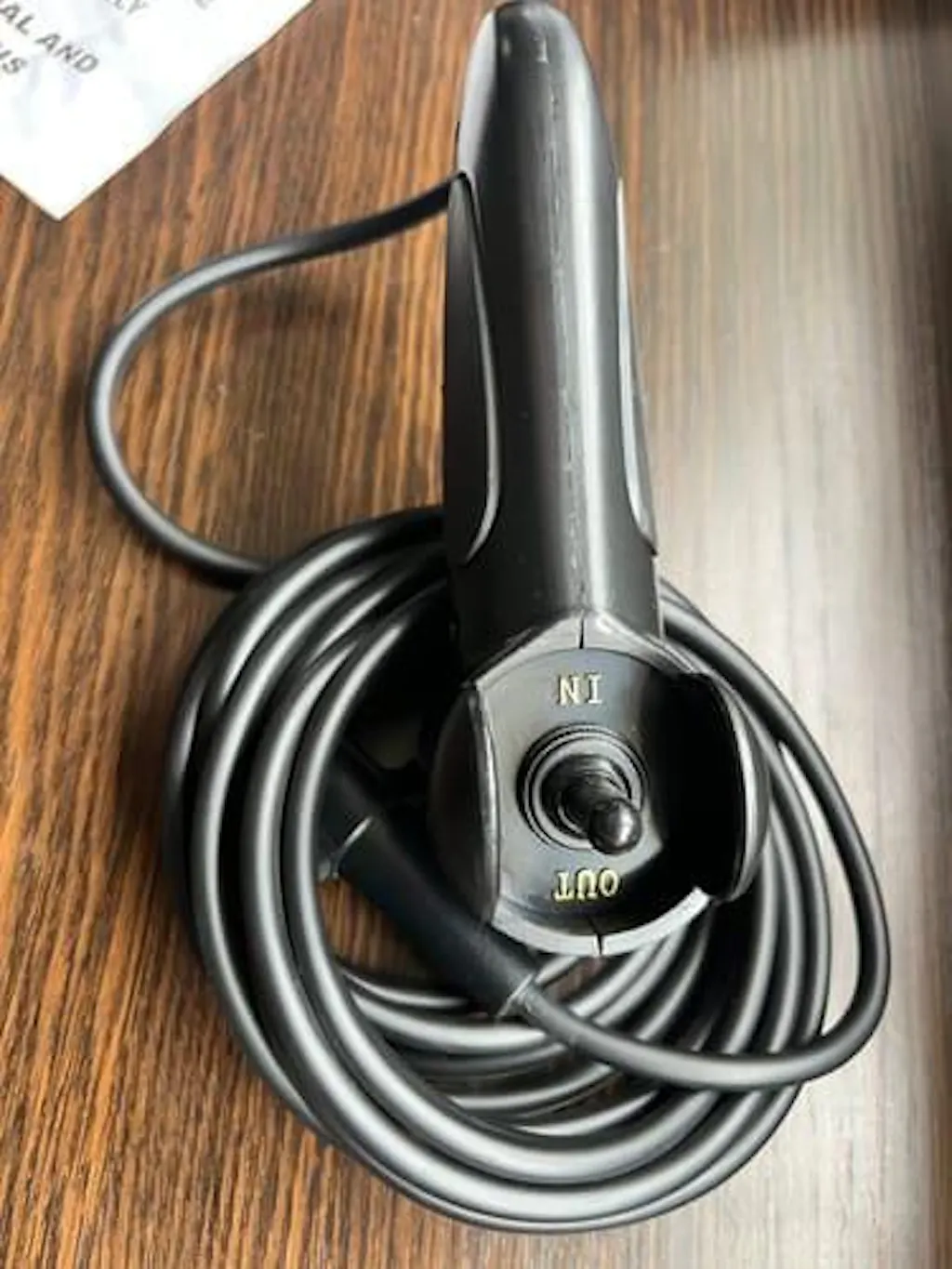

Wired Hand Control: 3.9m Wired Hand Control

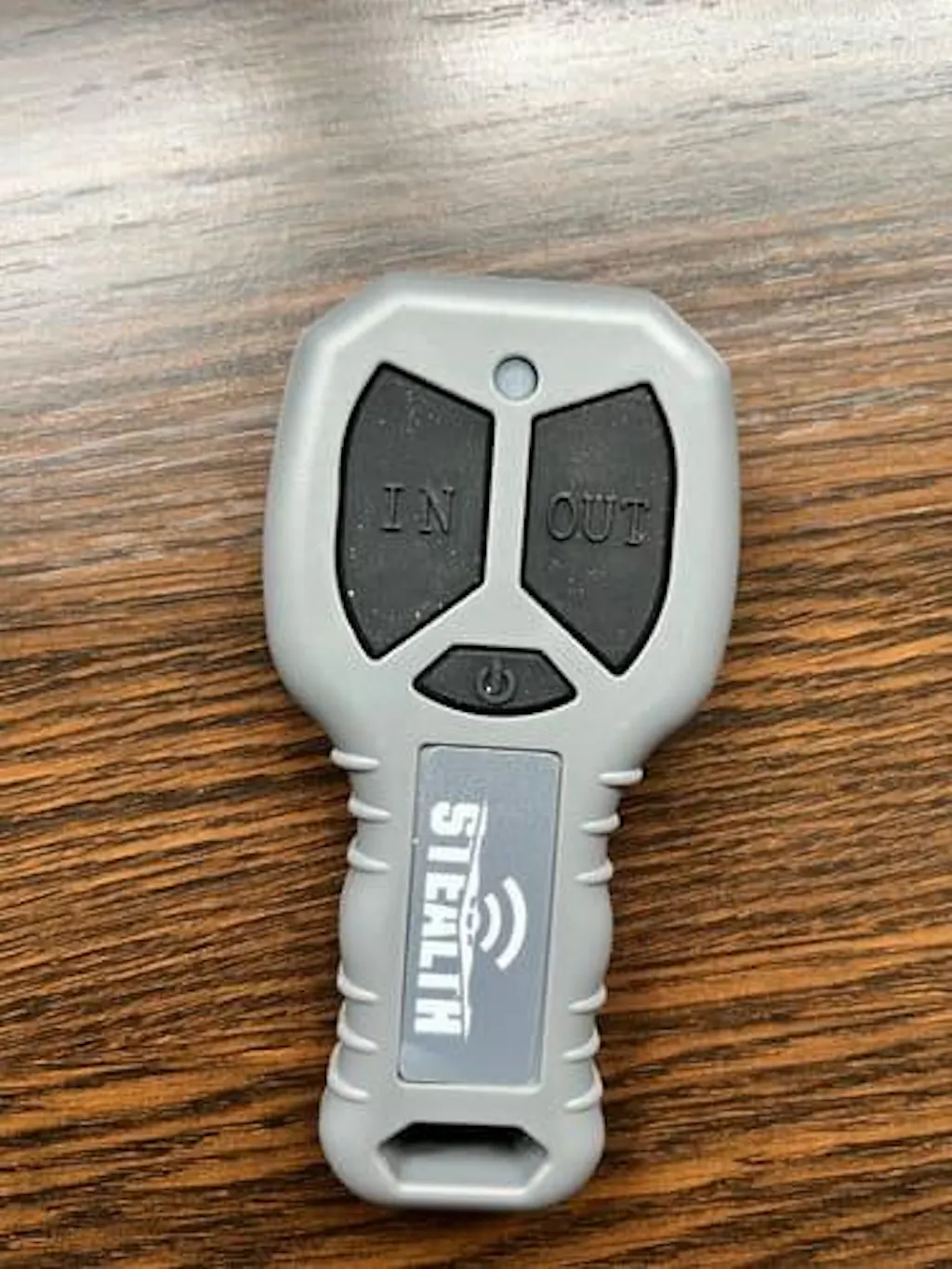

Wireless Control: Includes Two Wireless Controls*
Hawse Fairlead
Mounting Bolts: Included for Standard installations
Battery Cables (May need extending dependant on application)
Hand Saver
Instruction Manual

User Manual	Download
Specifications Sheet	Download

Video

Load Test

This winch has a 3 Year Warranty

BPE Holdings Ltd are the sole distributors of WARRIOR WINCHES.

We at Warrior understand the importance of warranty for service & repair, we offer a minimum 5-year warranty on all of our Industrial grade winches defined below; An Industrial winch is deemed as such:

- Any winch regardless of capacity that is used in a commercial setting for the purposes of receiving monetary compensation or earnings
- Any winch regardless of capacity that is fastened to a commercial trailer or towing
- Winch Range Warranties: Gladiator Range 7 years / JR Range 5 years / JP Range 5 years / Terminator range 5 years / Samauri range 5 years / NH range 5 years / YP Range 5 years / RV Range 5 years
- For the avoidance of doubt our Trojan, Stealth and Ninja ranges are defined as non-industrial, therefore have a 3 year warranty.
- Titan winches are given a 5 year warranty.
- EH Hoists are given a 3 year warranty.

WARRANTY FOR WARRIOR WINCHES

Warrior Winches warrants to the original retail buyer for Commercial & Industrial use only that any mechanical or electrical component of a genuine WARRIOR WINCH is free of defects for a period of minimum 5 years (winch dependent as per above)

The Warranty DOES NOT cover the cost of transportation / shipping charges to our repair center, labor, replacement or installation of defective parts. If a product is deemed unusable and needs to be replaced, we do not offer a new winch for old policy and the item will be replaced with a similar specification & age to the one that was submitted for repair.

Any product we determine to be defective will be repaired or replaced at our sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. The Seller or its Authorized Agent may make reasonable charges for parts and for labor for repairs not covered by this 3-year warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral, written, expressed or implied.

WARRANTY EXCLUSIONS

This warranty excludes:

- Cosmetic defects such as paint, decals, ,
- Worn parts due to improper use.
- Steel ropes
- Armortek Ropes outside of 6 months / Armortek Extreme Ropes outside of 12 months.

- Any Accessory part including roller fairleads, hooks and mounting plates.
- Failures due to acts of God and other force majeure events beyond the manufacturer’s control
- Problems caused by parts that are not original WARRIOR WINCH parts
- Alteration or modification(s) made by any party other than the
- Remotes, Solenoids and Contactors and isolations switches outside of 12 months.
- Any third party equipment
- Batteries

Warrior Winches shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

- To obtain service under this warranty, the Buyer must follow the warranty claim process which requires such details as; (1) a photograph(s)/video of the issue with the winch (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt. Please see warranty process for more details. Prior approval must be obtained before the winch is returned; a unique reference will be given for each return. Any returns outside of this process may not be processed.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the Product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) alteration or modification by any parties other than the Seller, (4) misuse, abuse, neglect, accidents, Acts of God, terrorism or (5) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

Warrior Winches reserves the right to replace any part or whole unit with a newer design of the same function.

Any purchase bought prior to the revision of this document will hold its current warranty length from the time it was purchased.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

5 stars: 19 (86%)
4 stars: 3 (14%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Great piece of kit.

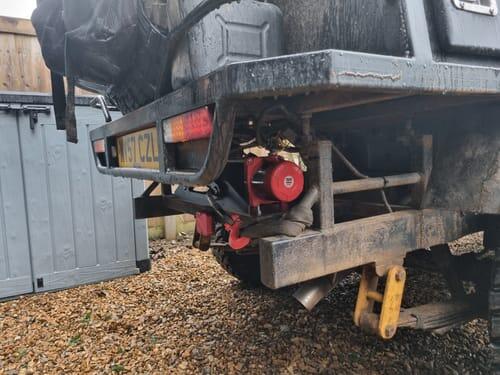

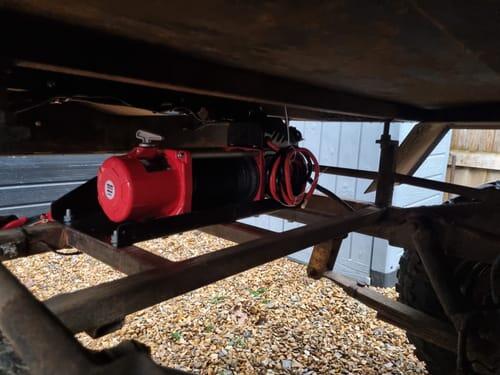

Great winch and perfect fit under my truck for the rear.

I don't have much experience with these winches. This is my first winch. It looks nice with this red colour. I've tried it three times already, it pulls well. It seems a little noisy to me. The maximum I've seen you do so far is 6000 pounds, it's doing well. I will complain about the remote controls. The option to pull back on the rope or reverse option stopped working from the remote controllers. Also, for me, they are not very comfortable to hold and operate, the buttons themselves are too soft and uncomfortable to press, especially the small one for on/off. The hand controller is also not comfortable for me. It seems to be made of very cheap materials. The switch itself is also not very high quality and comfortable. The handle is okay, but it could be better as a grip. Also the hand controller was slightly defective regarding the cable grip but I fixed it. That was not a problem.

Thank you for your review. The Stealth range of winches are from our entry level range and is a great starter for a first winch. We do have a range of wireless remote controls that can be wired to the solenoid that may be a bit more practical and comfortable for you.
Please go to the website to make your choice. https://www.bimsonpower.com/collections/remote-controls
We are here to make sure we can support you in getting the best out of your winching experience, please drop us an email if you need any further assistance

Warrior 13500 winch a strong and powerful a great winch

Works great

Great winch pulled me out of many ditches in the old jimny

Great!

Great service fast delivery
And delivered to islands of scotland
Will be buying more products

Excellent product and excellent service, thanks

Not mounted yet.

Thanks for your review, the Stealth range is a great range for the price. Let us know what you think when you have fitted your winch. Have you considered a winch cover to protect your winch from the elements when not in use

Love the look and quality. Haven't used it yet.

Thanks for your review. The Stealth is a great winch for the price! Have you considered a winch cover to protect the winch from the elements when not in use?

Shipping was very quick Easy to install Have used thewinch a couple of times and was easy to use and worked well

Thanks for your review, the Stealth winches are a great range of winches for the price. Have you considered a winch cover to protect your winch from the elements when not in use

Awesome

Thanks for your review. The Stealth range are a great range of winches for the price. Have you considered a winch cover to protect your winch from the elements when not in use?

Kind of easy install. The hardest part of install was getting the hook and fairlead thru the slot the bumper. Other than tat was a super easy install. Winch works excellent

Thanks for your review, the Stealth range is a great range of winches for the price. Have you considered a winch cover to protect your winch from the elements

Skip

Fast shipping great product works much better than my old winch it is more compact but has more power the 3 remotes are great I will be buying more for my atvs and utvs

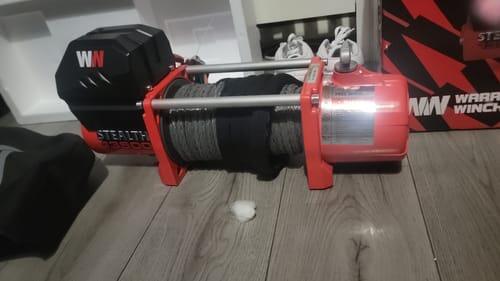

can not share any photo's of winch being used due to fact I have not installed it yet. I do love the winch and it appears to be an excellent item.

Seem great so far.
The synthetic rope and wireless remotes make working on the hills so much more enjoyable

Replacement for identical winch can't complain

Very happy with this product, easy to fit to the back of the truck. easy to use, and very good quality.

Could not believe how fast this arrived less than 48hours, very well packed and no damage, the winch looks great and have seen the recovery truck version in action works very well so I hope this does too fitting this weekend. Fingers crossed.

Fab
