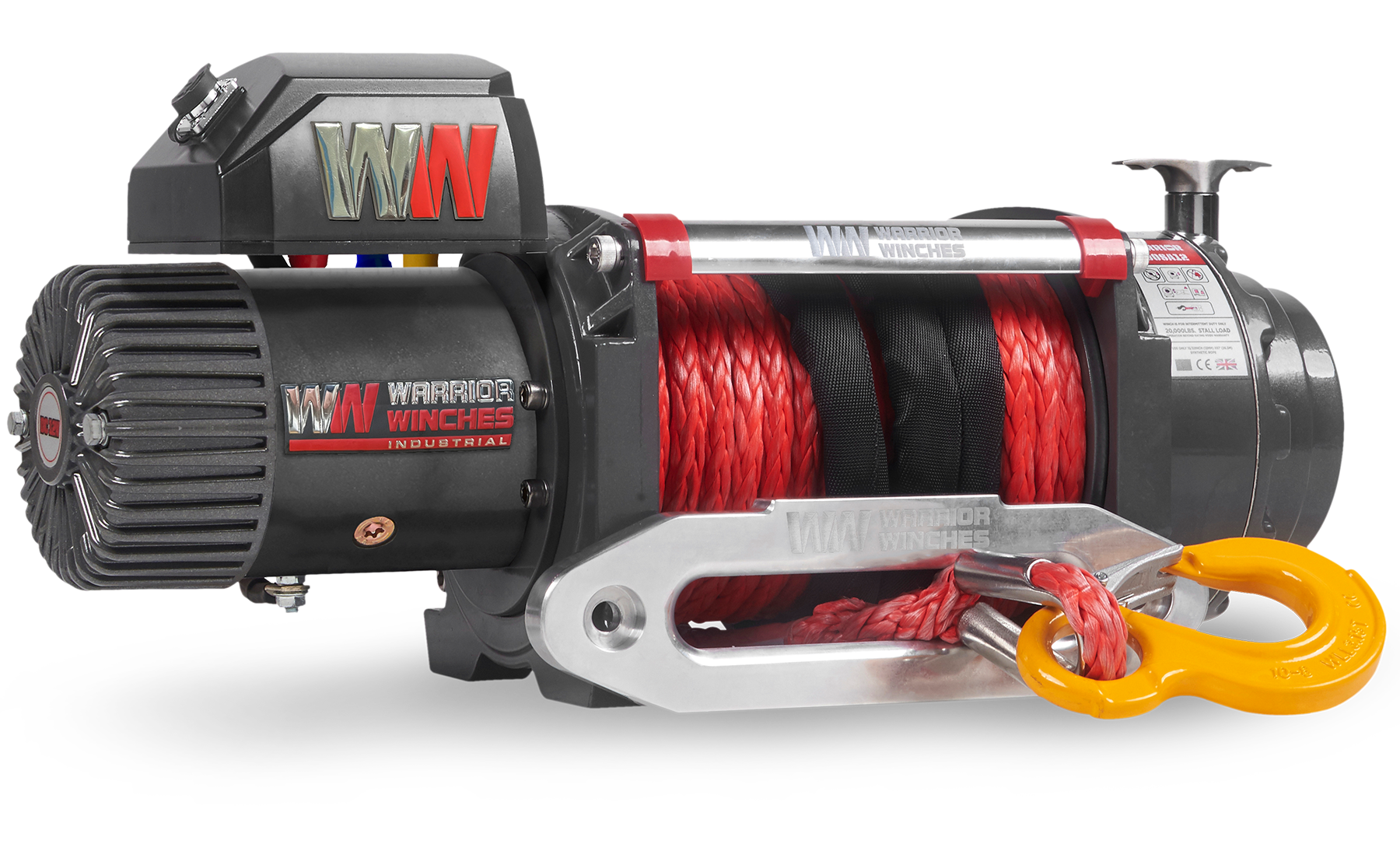

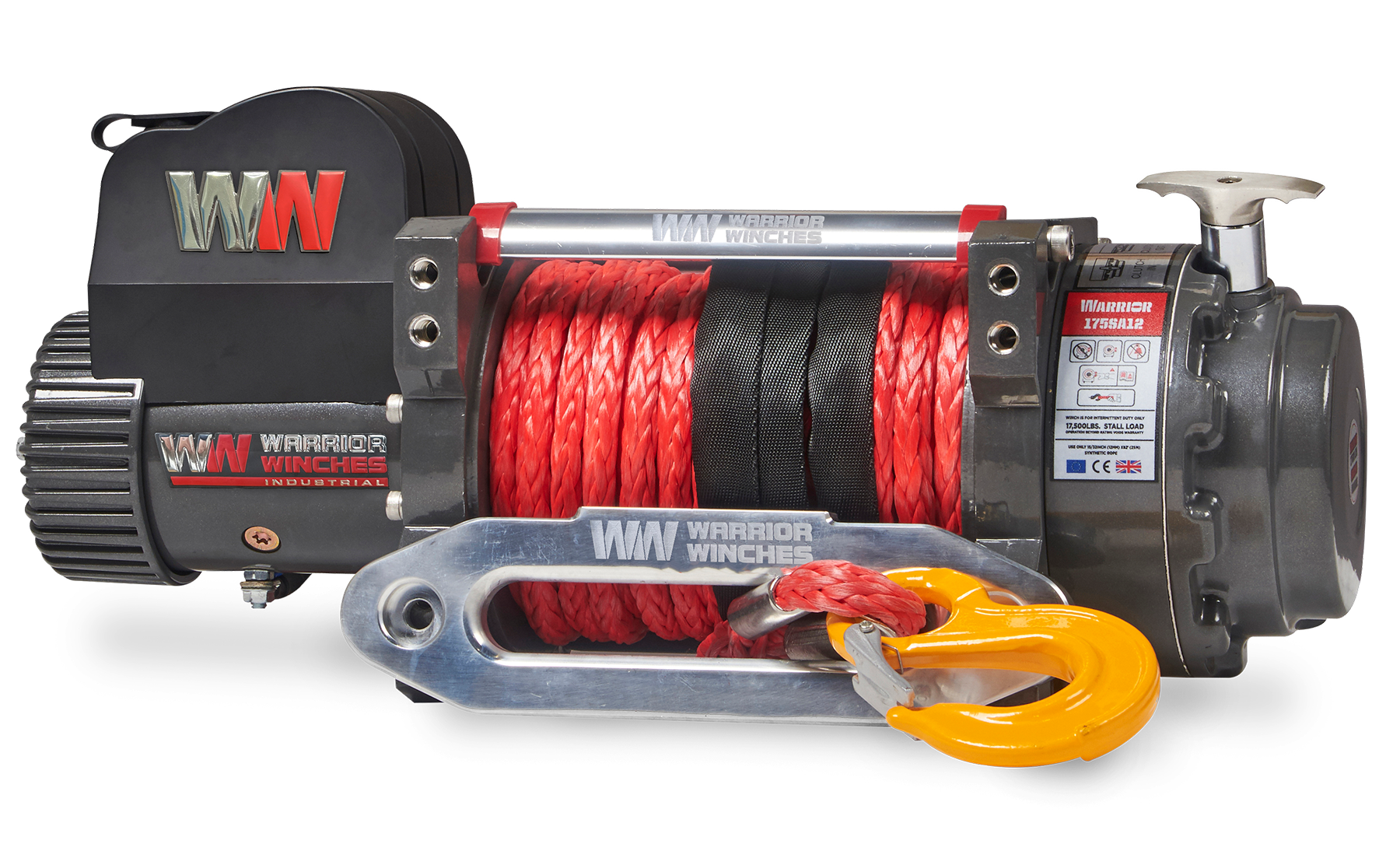

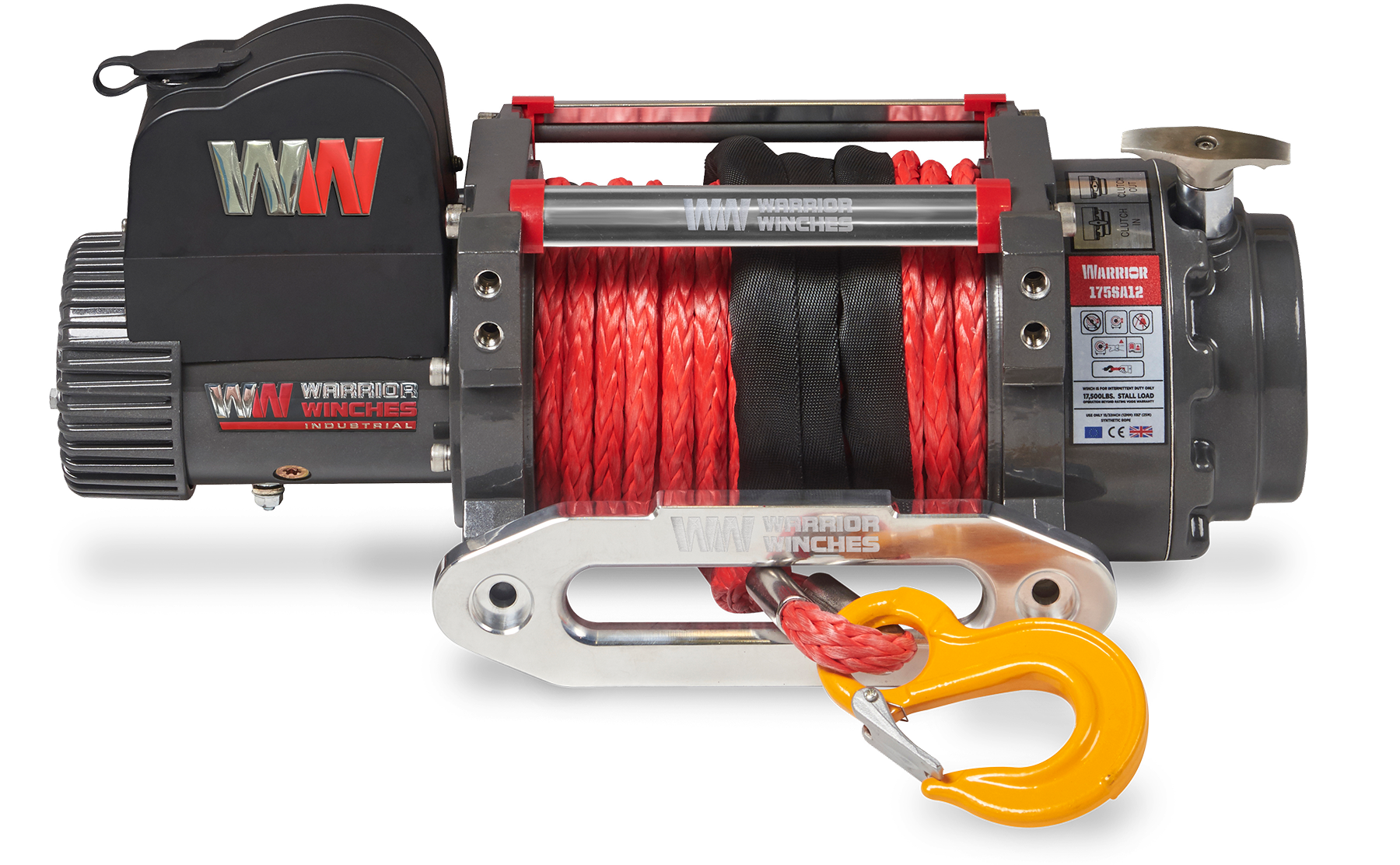

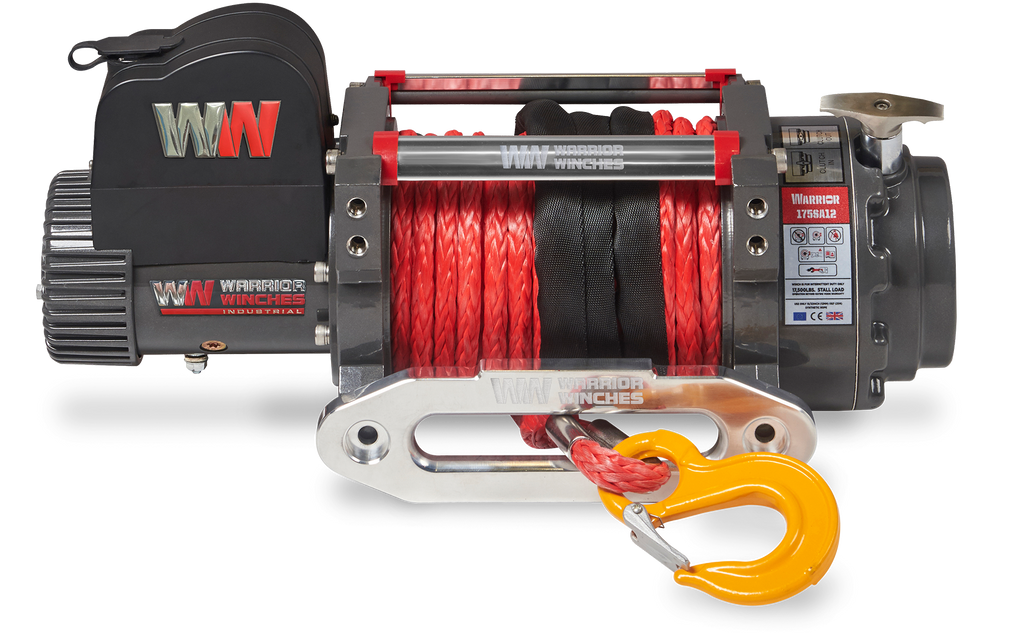

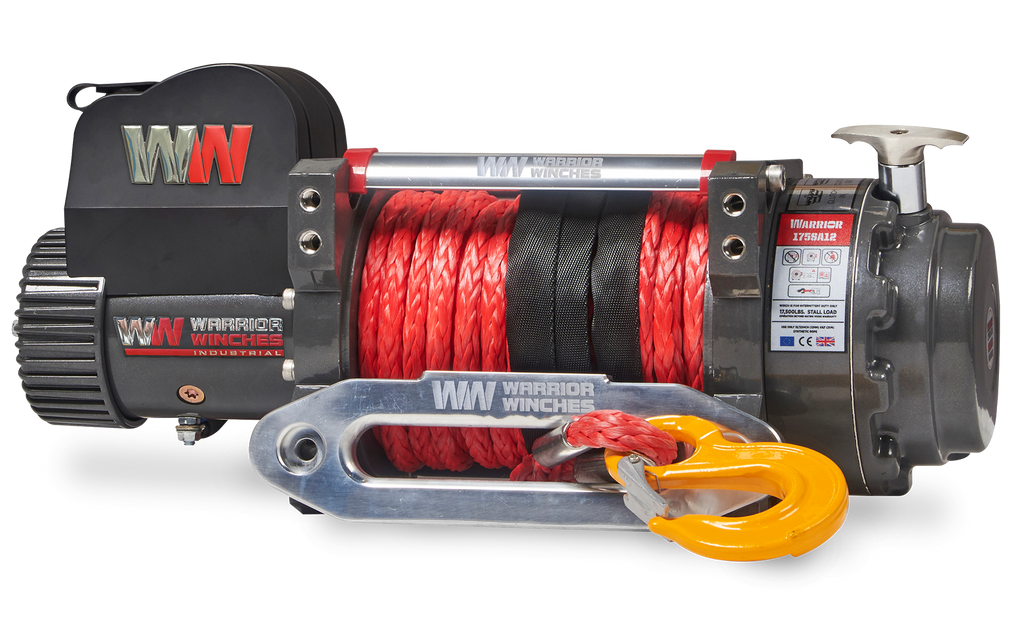

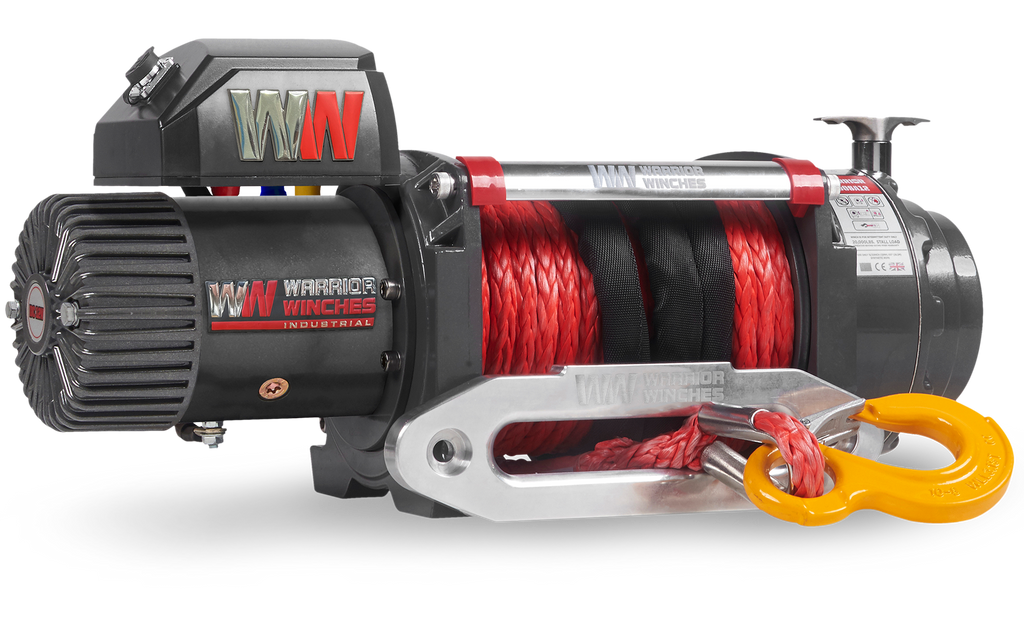

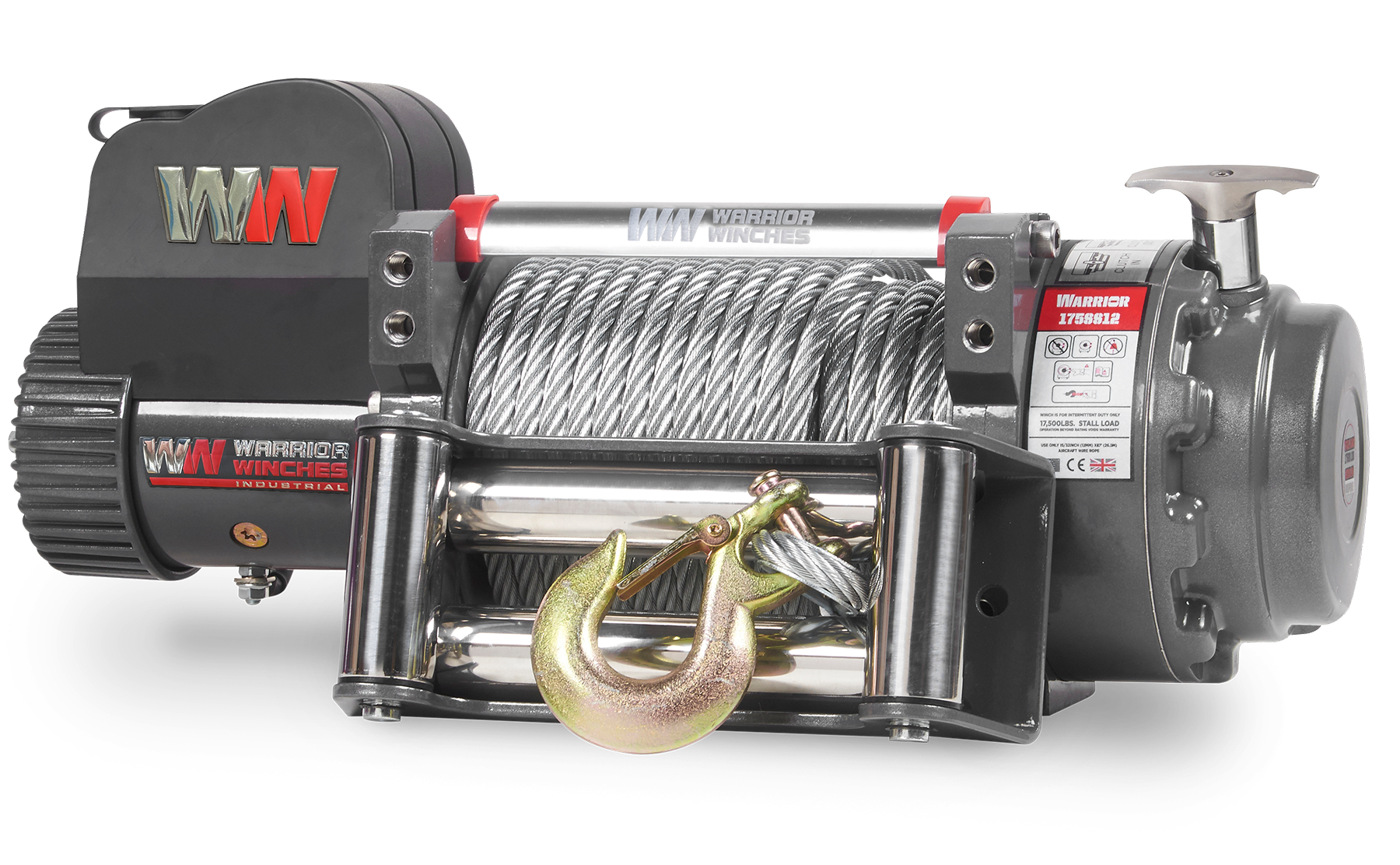

Samurai 17500 Electric Winch

24v / Synthetic Rope* 175SA24 5060423980780
12v / Synthetic Rope 175SA12 5060423981251
24v / Steel Rope 175SS24 5060423980735
12v / Steel Rope 175SS12 5060423980728
*This variation has been discontinued

Voltage: 12v
Rope: Steel Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists


  • All Brass (no corrosion) Series Wound Motor
  • Double Sealed Motor
  • Sealed Waterproof Contactor
  • Sealed 3 Stage Planetary Gears
  • Contactor Cover for Added Protection

The best lb for lb winch on the market. Outstanding features includes Huge 7.0 hp high quality double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, fully sealed efficient full steel planetary gearing. Stainless steel roller fairleads and fittings as standard.

PLEASE NOTE: This winch can only be front mounted using the appropriate IST640 mounting plate.
Rated Line Pull17500 lbs
Motor Type12V: Input: 7.2hp / 5.4 kW; Output: 3.9hp / 2.9 kW
24V: Input: 8.0hp / 6.0 kW; Output: 4.1hp / 3.1 kW
Braking ActionAuto in the drum
Drum Size (Dia x L)89 x 217 mm
Cable MaterialSteel or Synthetic
Cable – Dia x LSteel: 12mm x 26.5m
Synth: 12mm x 25m
Mounting Pattern254 x 114.3 mm;254 x 165.1 mm mm
Dimensions620 x 214 x 282 mm
Weight67.0 kg
Warranty3 Years
CertificationCE, UKCA


Layer of Rope/Cable Line Pull: lbs(kgs)
1 17500 (7938)
2 14000 (6364)
3 12500 (5682
4 10000 (4545)
5 6000 (2728)
Line Pull
lbs (kgs)

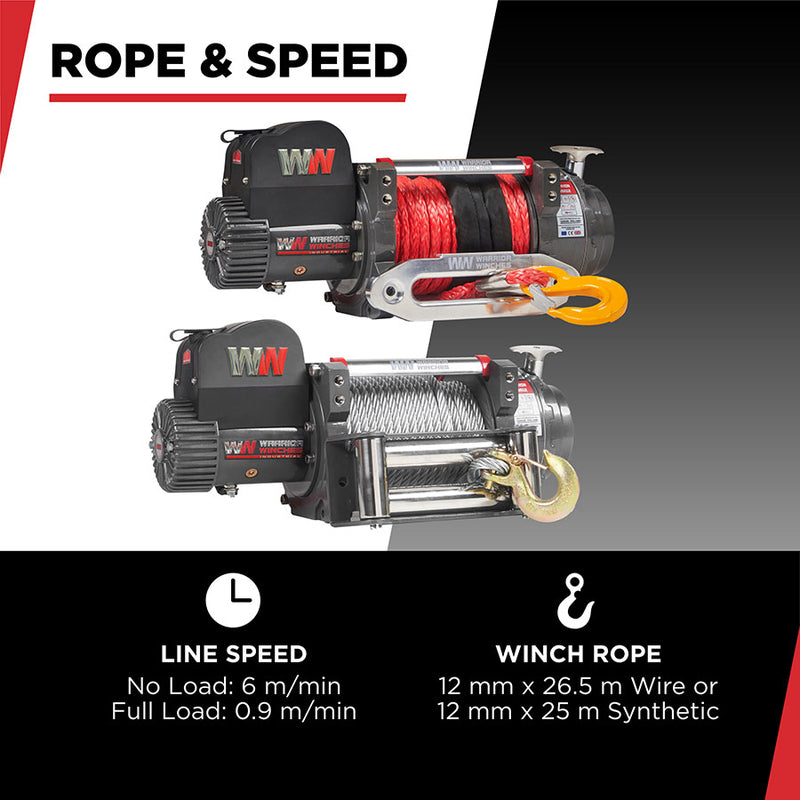

Line Speed 12v
ft/min (m/min)
Amp Draw
Amp Draw
0 22.3 (6.8) 100 60
6000 (2728) 9.84 (3.0) 220 130
10000 (4545) 9.8 (2.0) 320 170
12500 (5682) 5.8 (1.7) 350 220
17500 (7938) 3.9 (1.2) 450 290

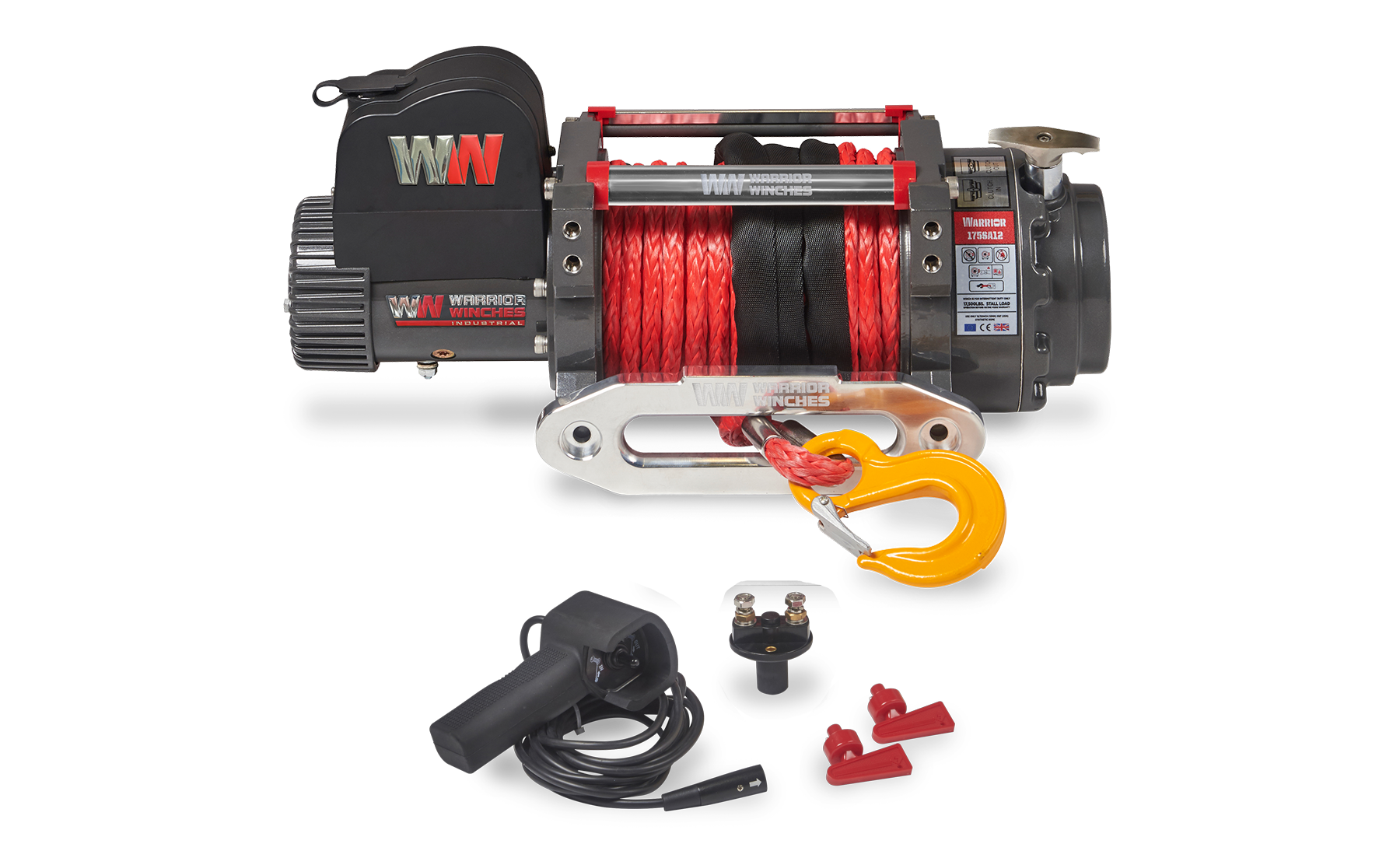

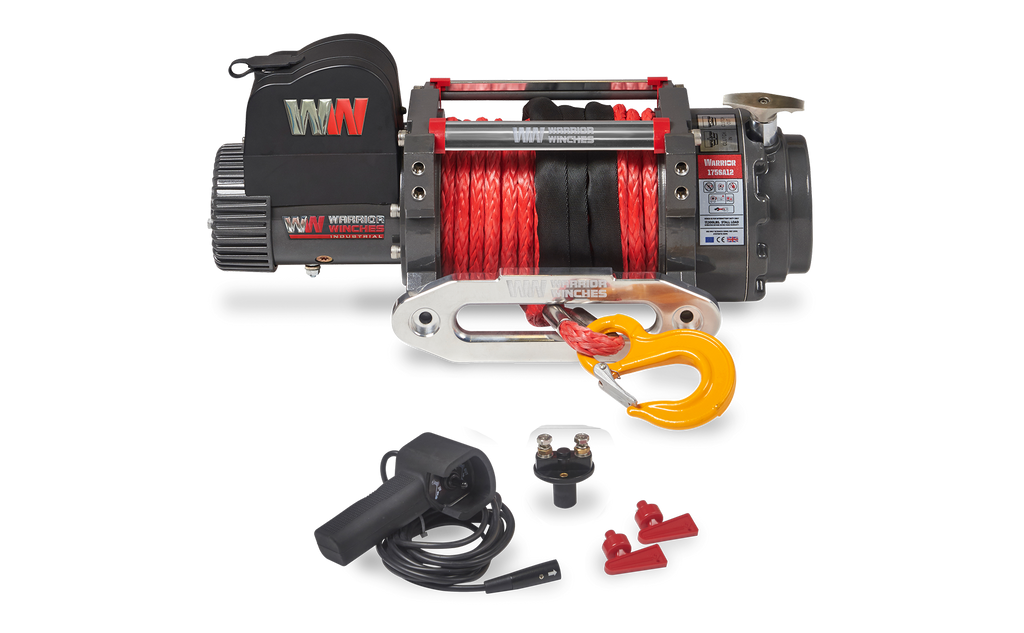

What's in the box:

  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead OR Aluminium Hawse Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 3/8 Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A

  • if I have a Warrior Samurai 17500lb Winch with a steel cable can I replace the steel cable with a synthetic rope?


    Thank you for the question!

    Yes, the steel rope can be replaced by a synthetic at a later date.

    Remember, you would need to change the roller fairlead to one of the Hawse fairleads at the same time.

    Hope this helps.
