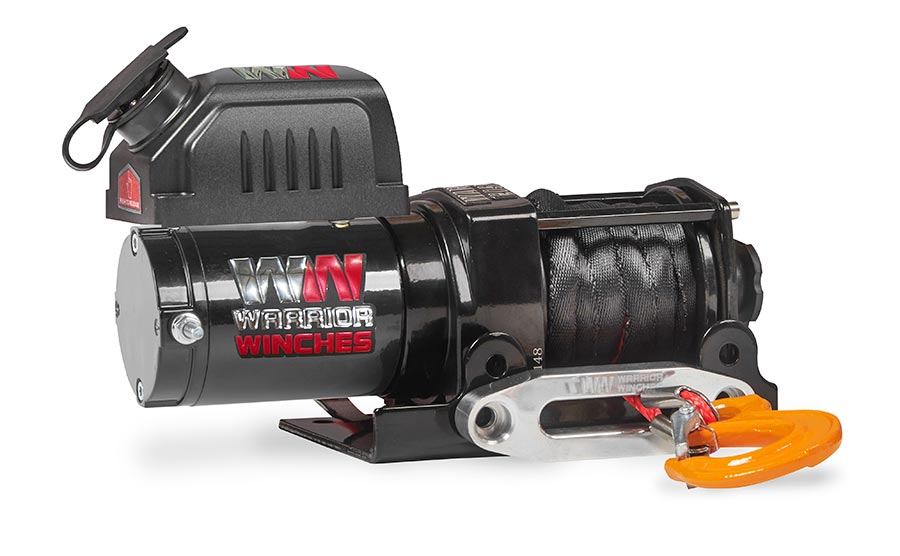

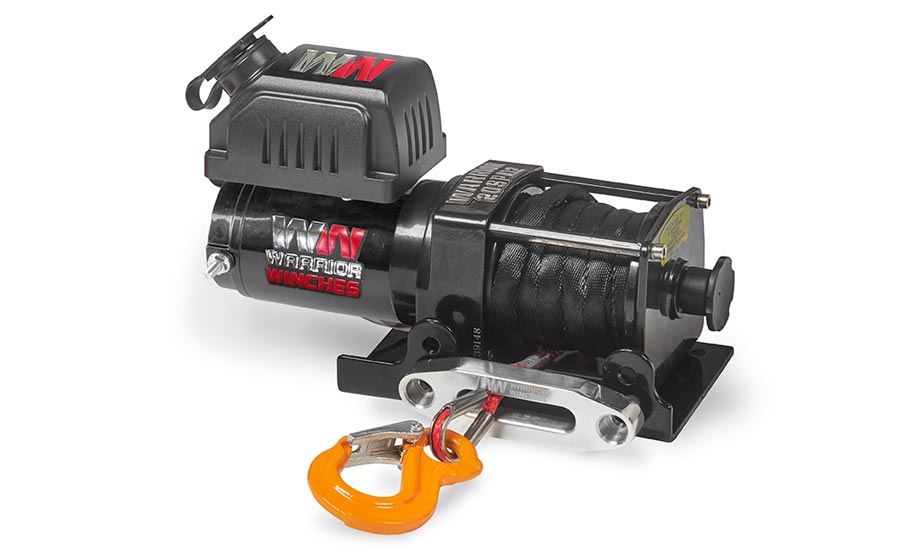

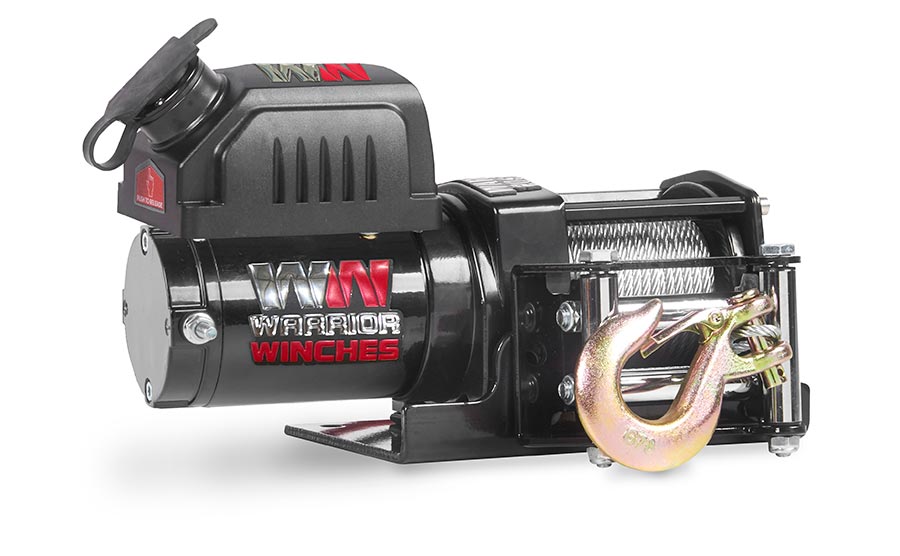

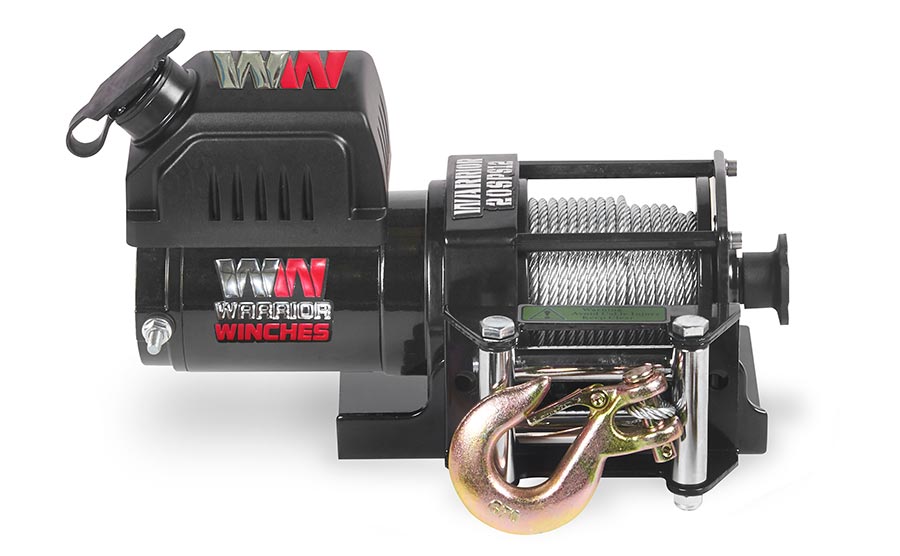

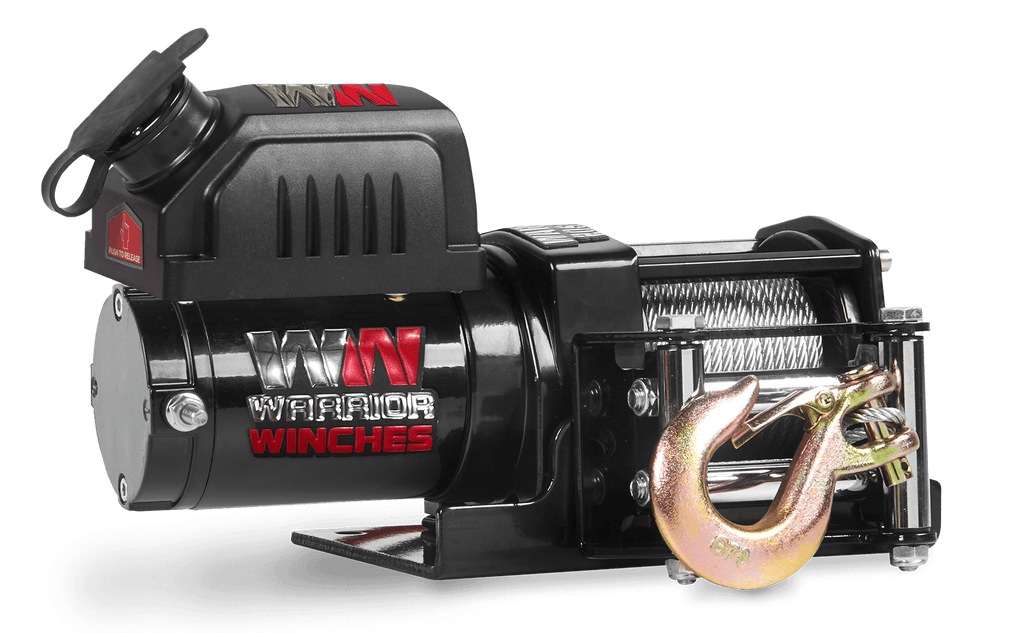

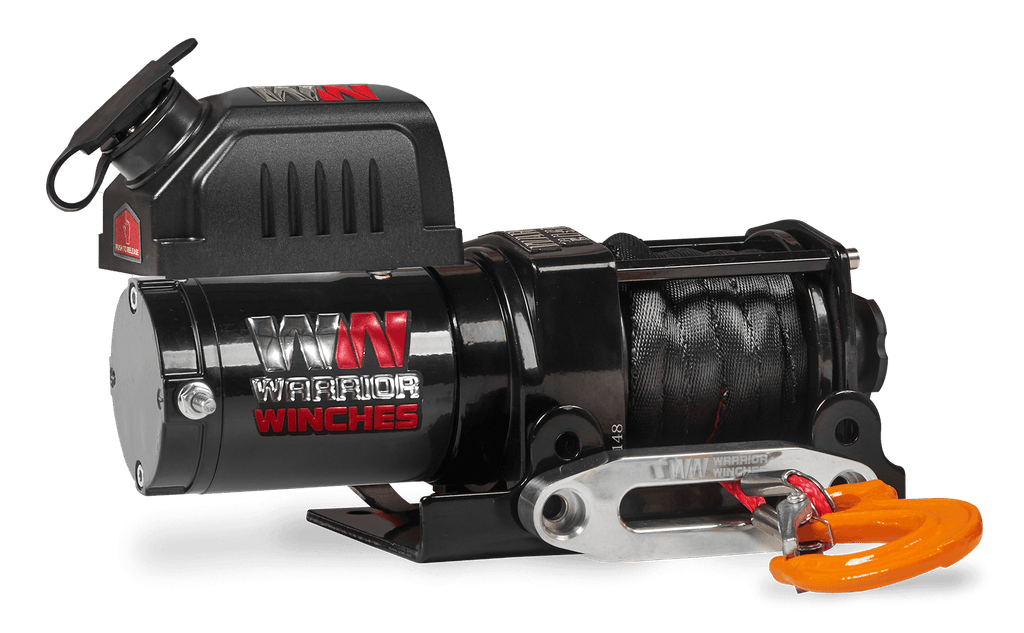

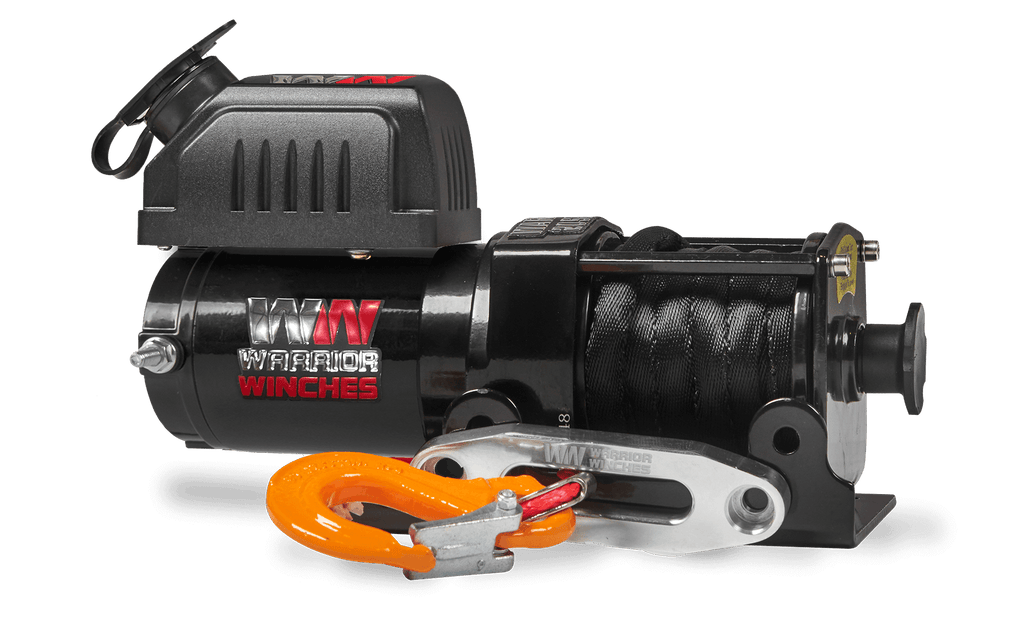

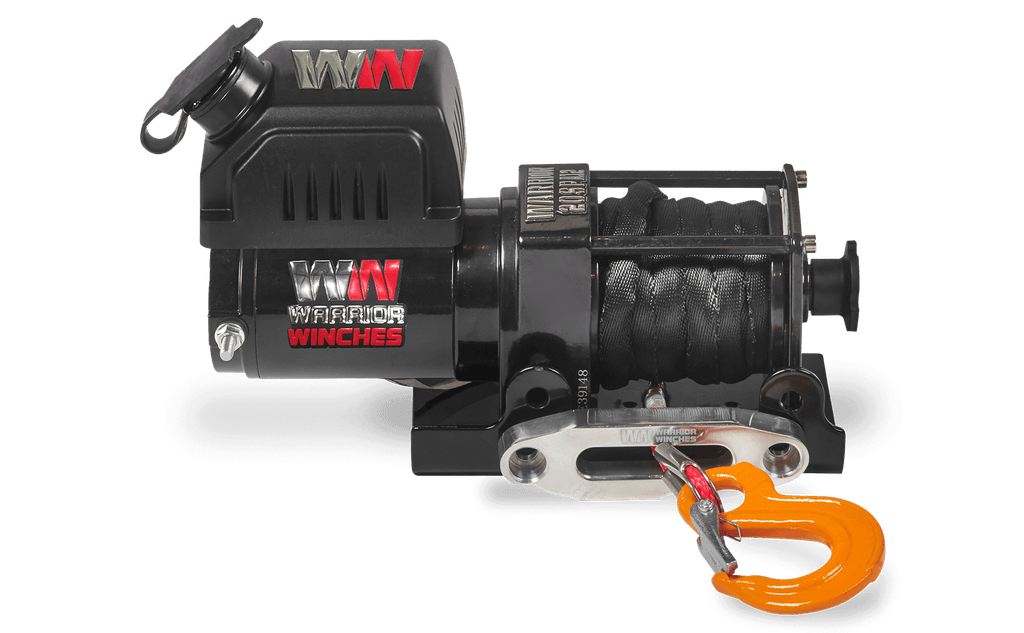

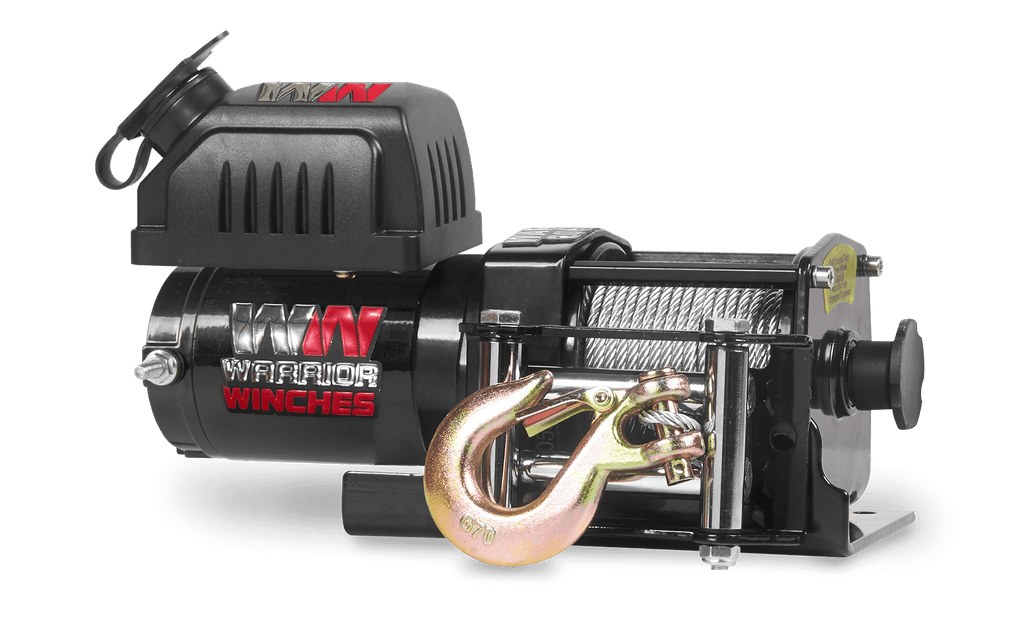

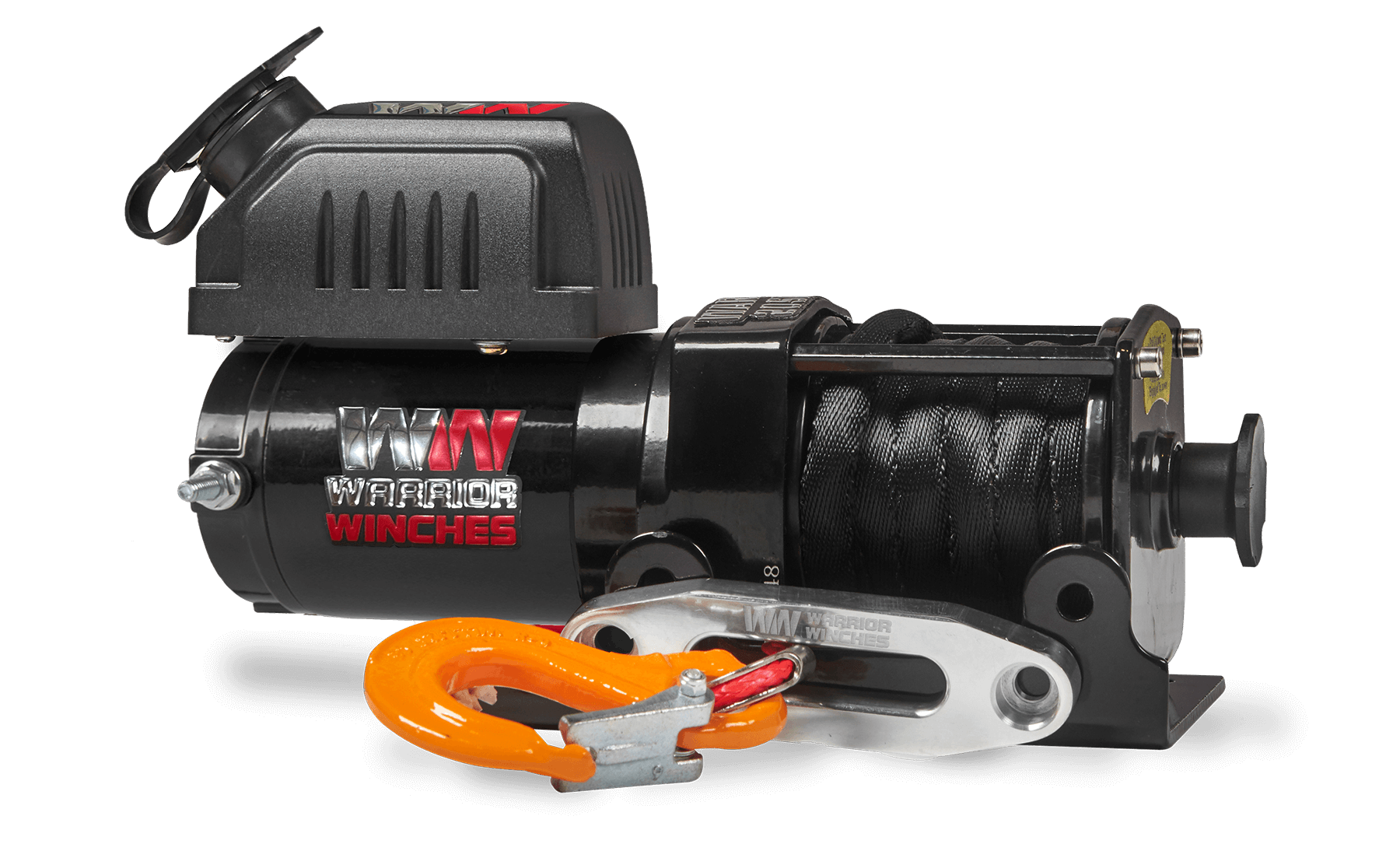

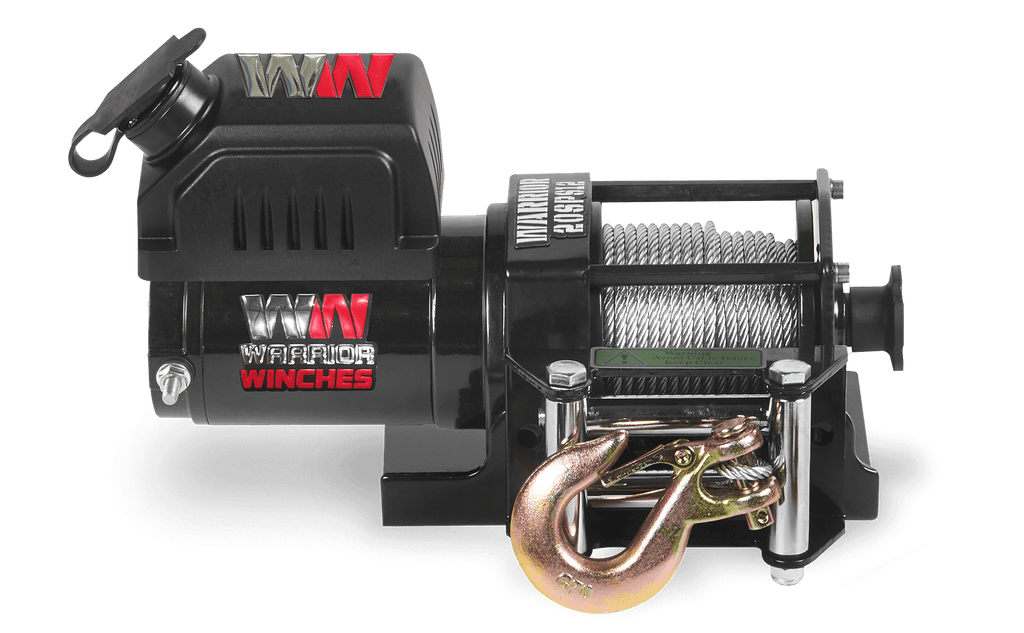

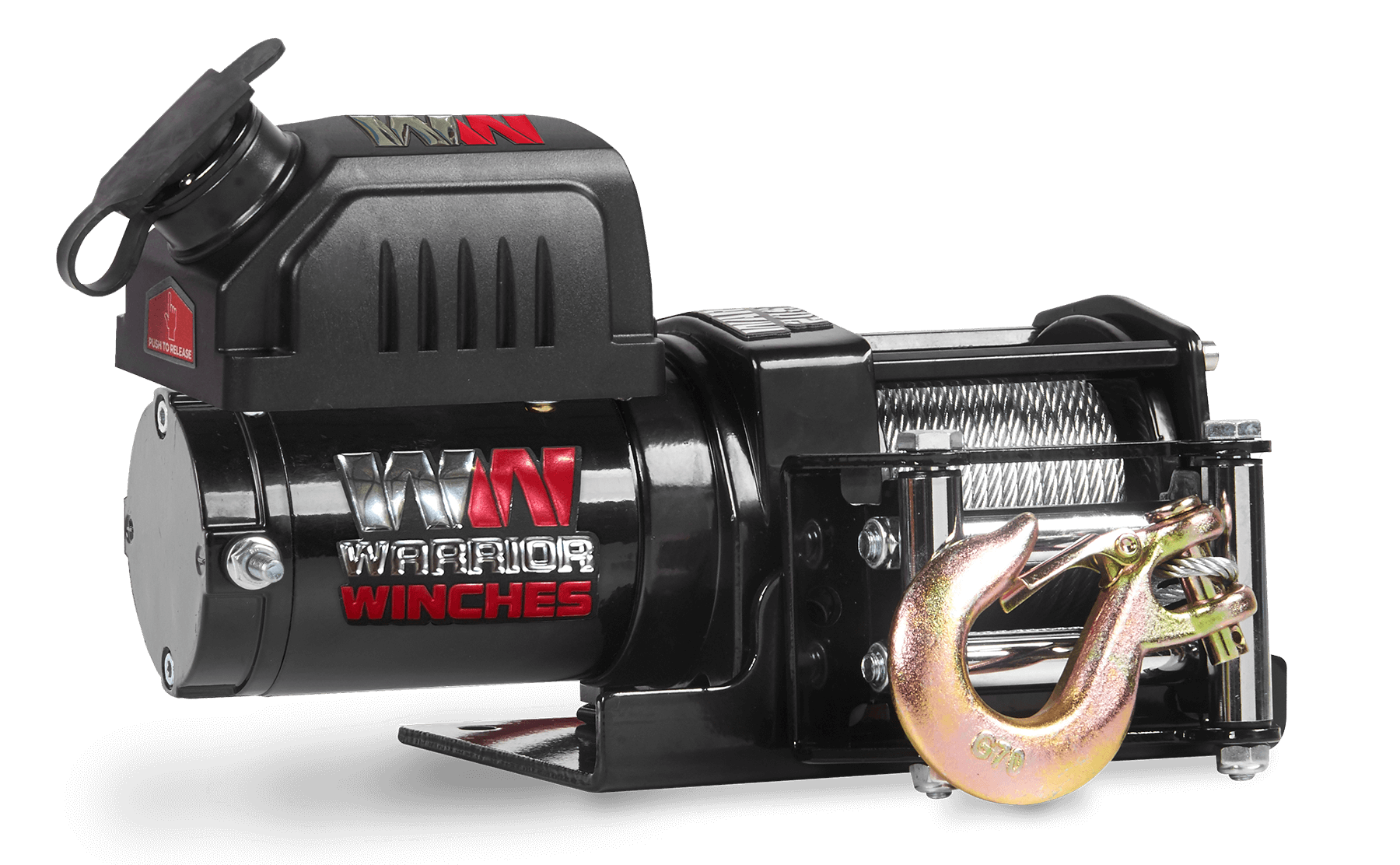

Ninja 2000 Electric Winch

SKU EAN
24v / Synthetic Rope 20SPA24 5060423980650
12v / Synthetic Rope 20SPA12 5060423980629
24v / Steel Rope 20SPS24 5060423980292
12v / Steel Rope 20SPS12 5060423980261

Voltage: 12v
Rope: Synthetic Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

Features

  • Sealed High Power Motor
  • Heavy Duty Watertight Contactors
  • Full Steel Planetary Gearing
  • Strengthened Steel Drum
  • Watertight Controller Socket

An outstanding utility winch. There is no comparable model on the market, the unique free spool system ensures it outperforms all challengers. Standard specification includes a powerful 1.0hp motor, full steel planetary gearing and heavy duty sealed contactors. ATV handle bar remote available in lieu of standard remote.

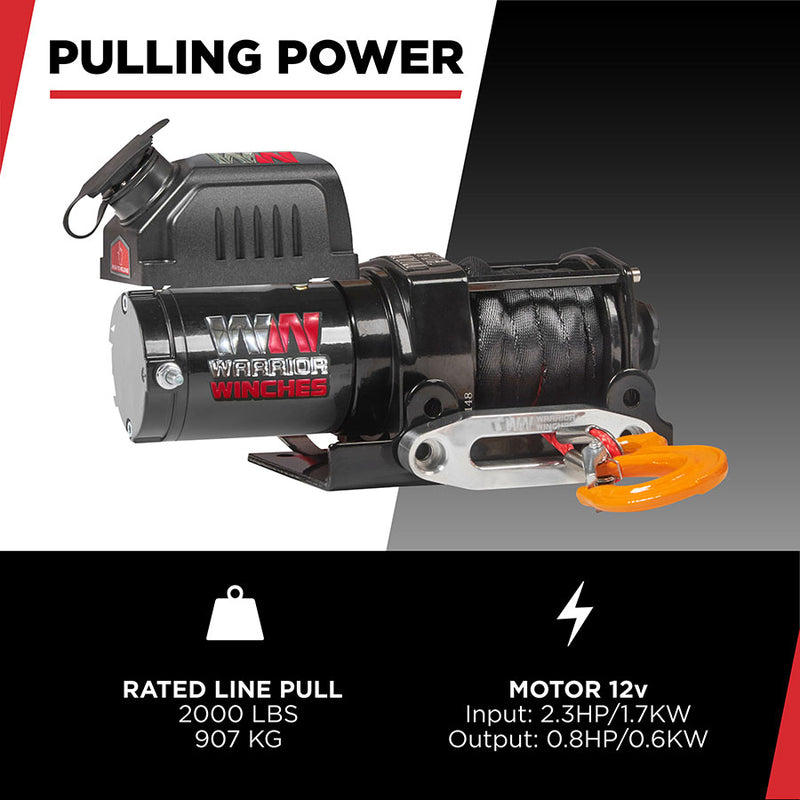

Rated Line Pull2000 lbs
Motor Type12V: Input: 2.3hp / 1.7kW; Output: 0.8hp / 0.6kW
24V: Input: 2.6hp / 1.9kW; Output: 0.9hp / 0.7kW
Gearing153:1
ClutchManual
Braking ActionDynamic

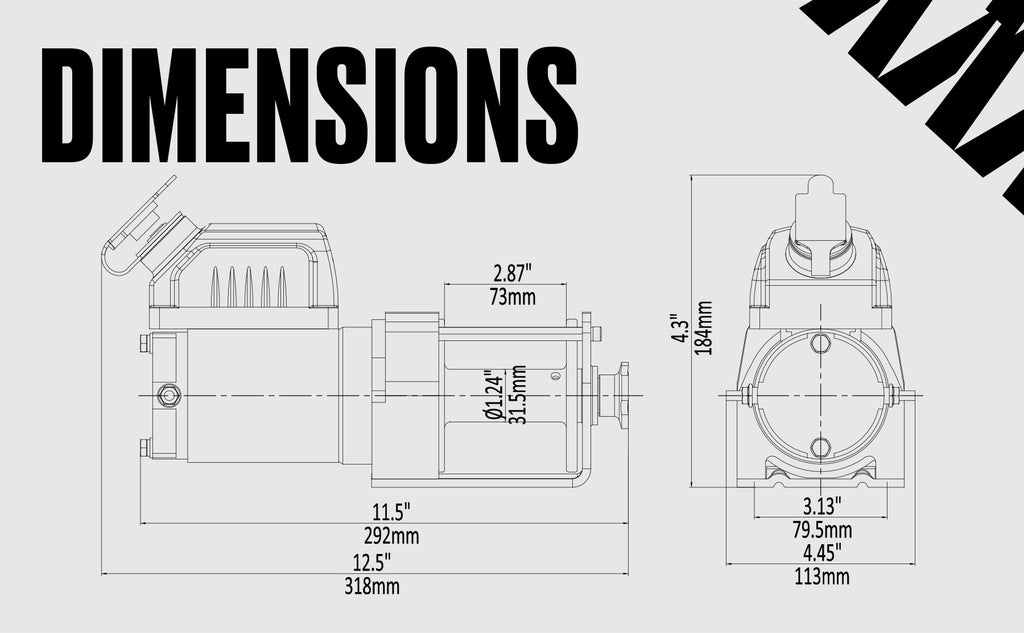

Drum Size (Dia x L)31.5 x 73 mm
Cable MaterialSteel or Synthetic
Cable – Dia x LSteel: 4mm x 15m
Synth: 5mm x 15m
Mounting Pattern79.5 mm : 2-M8 mm

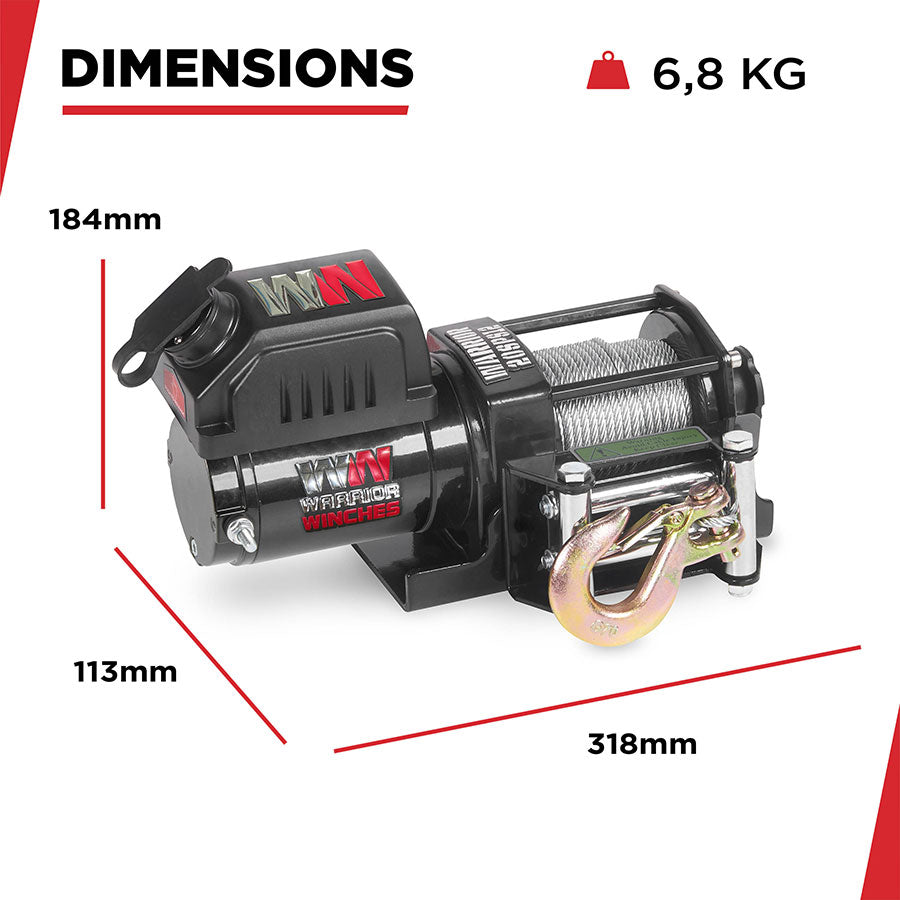

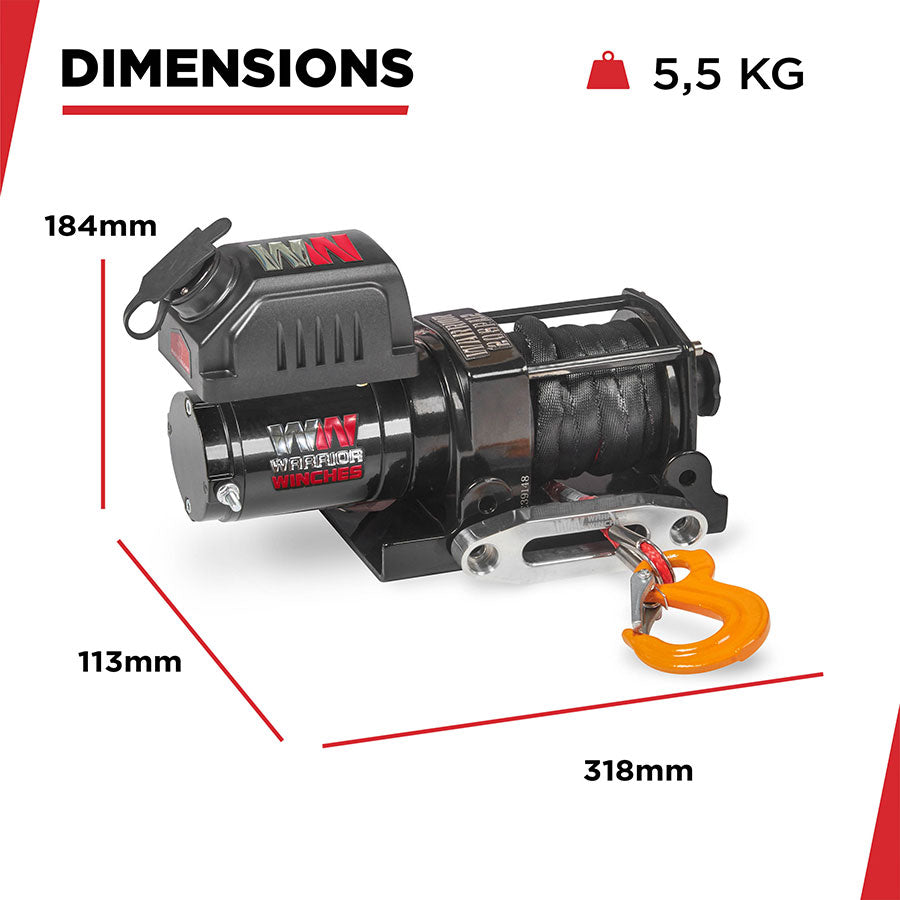

Dimensions318 x 113 x 184 mm
Weight6.8 kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 2000 (907)
2 1630 (739)
3 1380 (1190)
4 1190 (540)
5 1050 (476)
6 940 (426)
Line Pull
lbs (kgs)

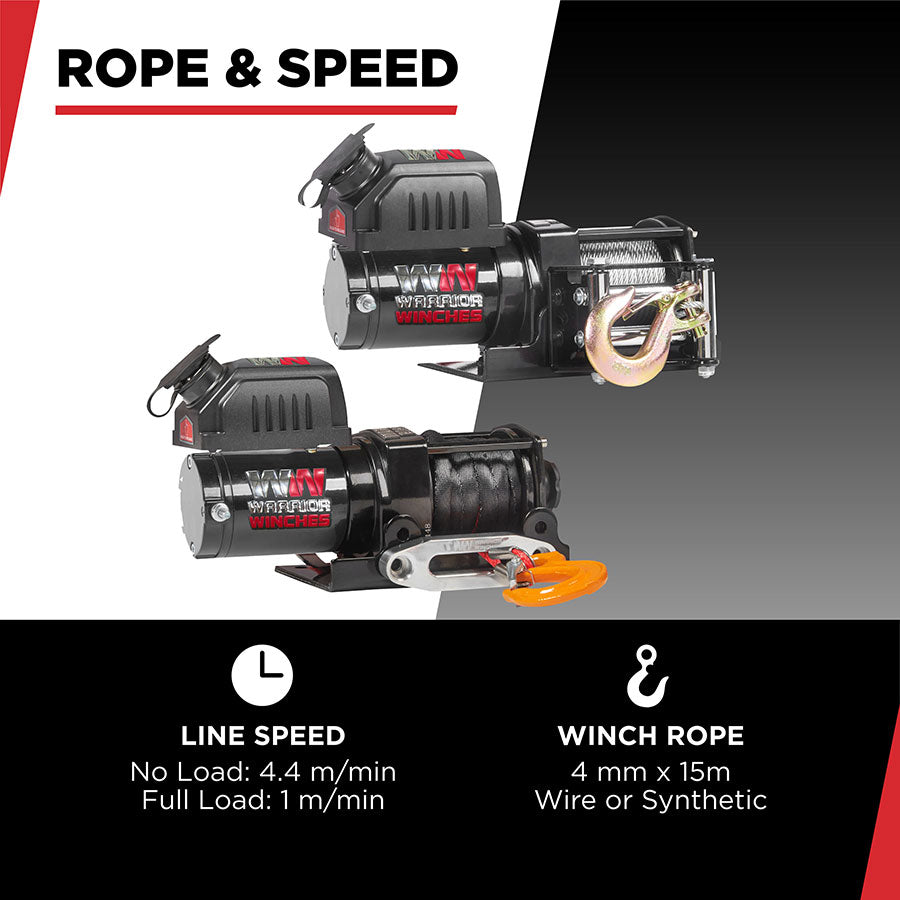

Line Speed 12v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 10.5 (3.2) 12 6
500 (227) 9.2 (2.8) 25 10
1000 (454) 7.5 (2.3) 40 15
1500 (680) 5.9 (1.8) 60 25
2000 (907) 3.3 (1.0) 90 55

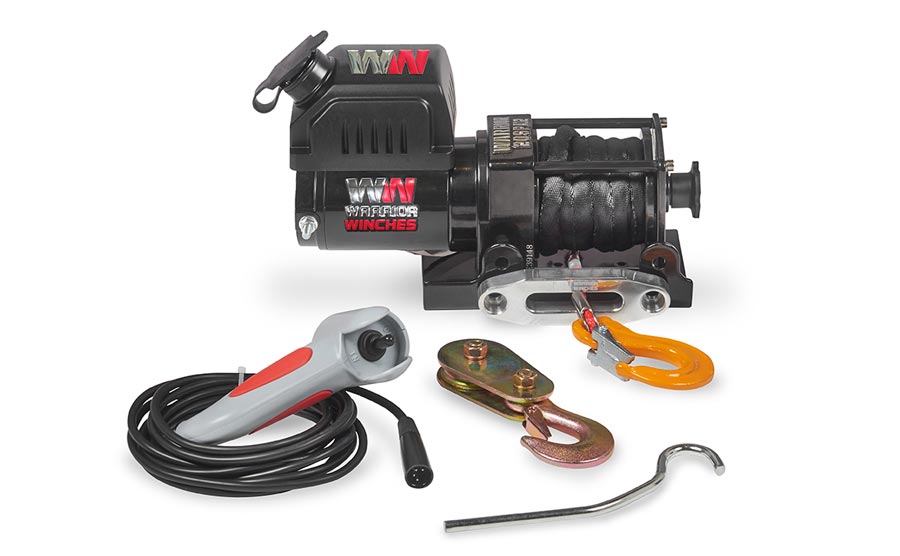

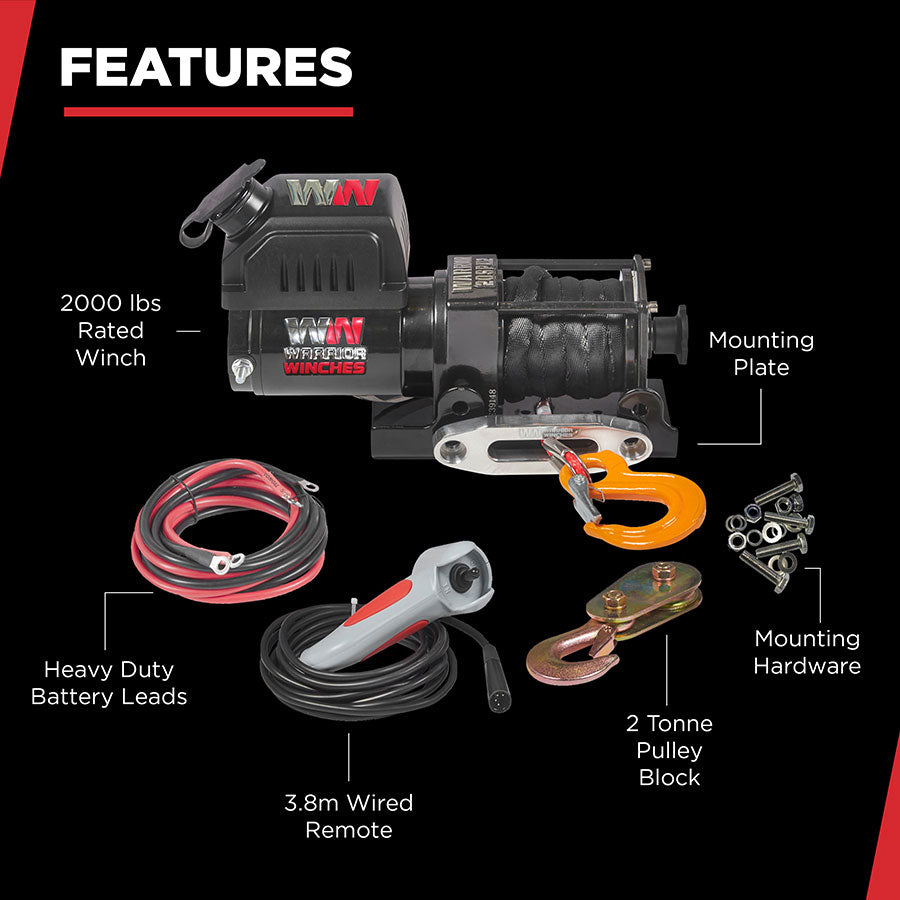

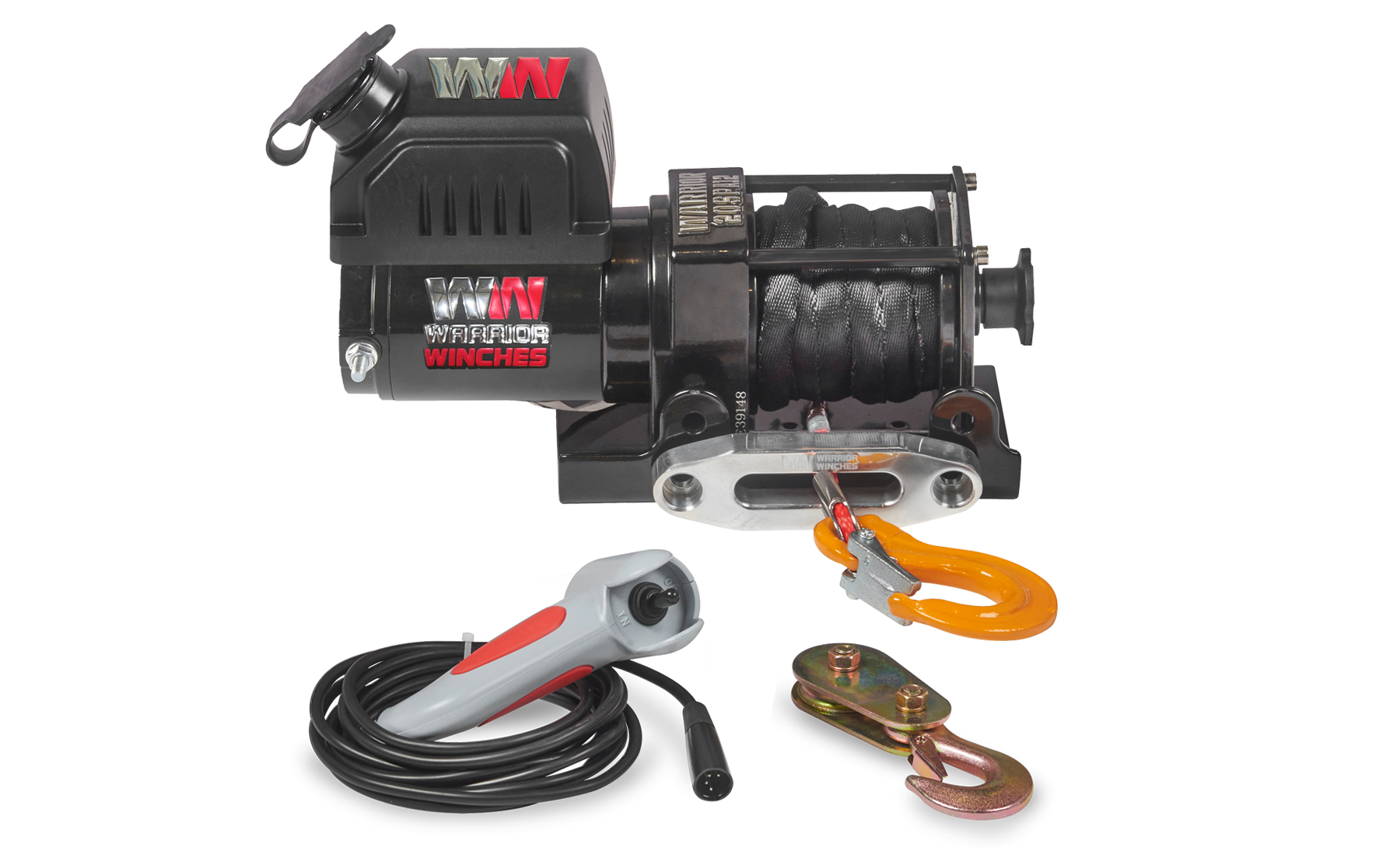

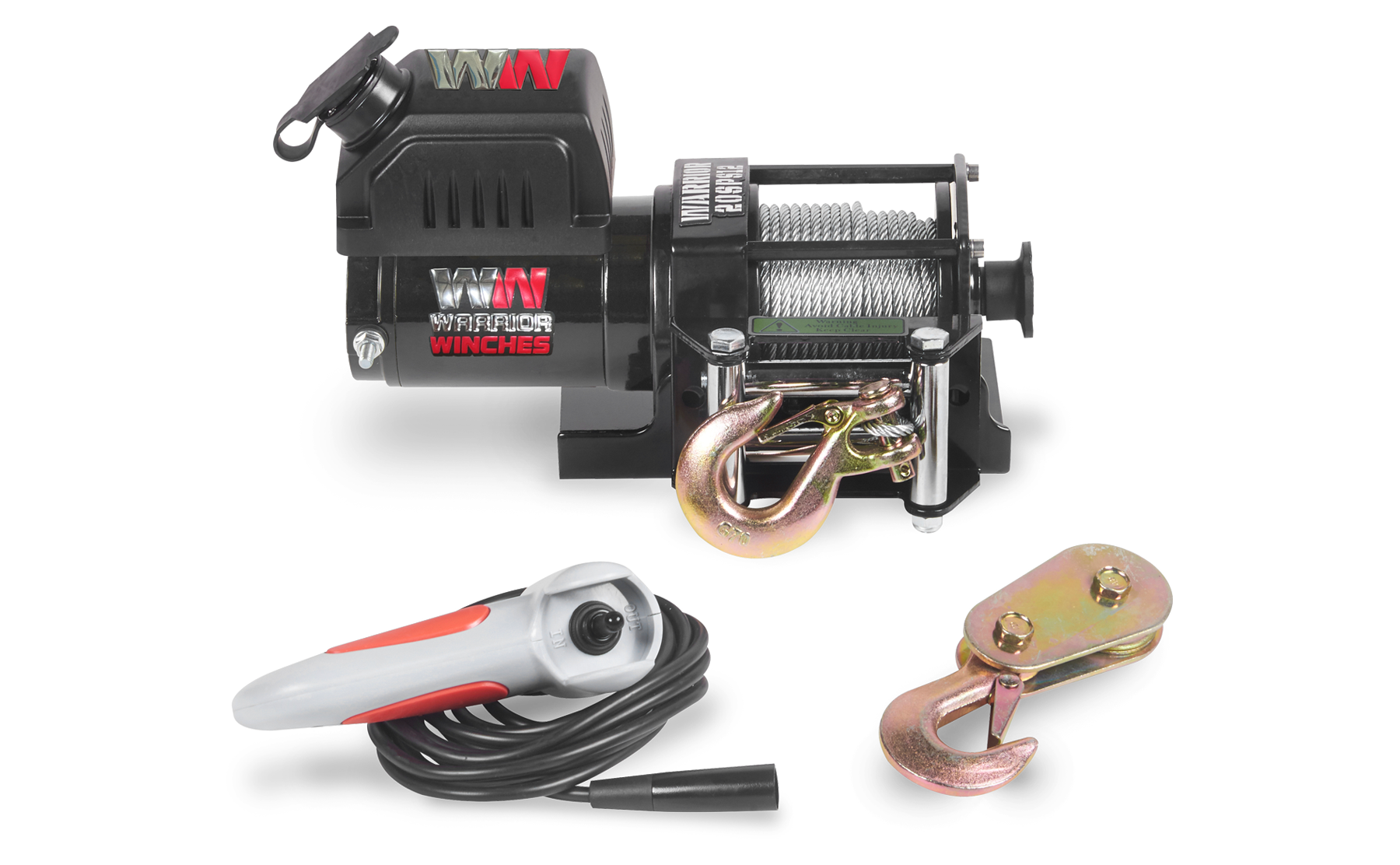

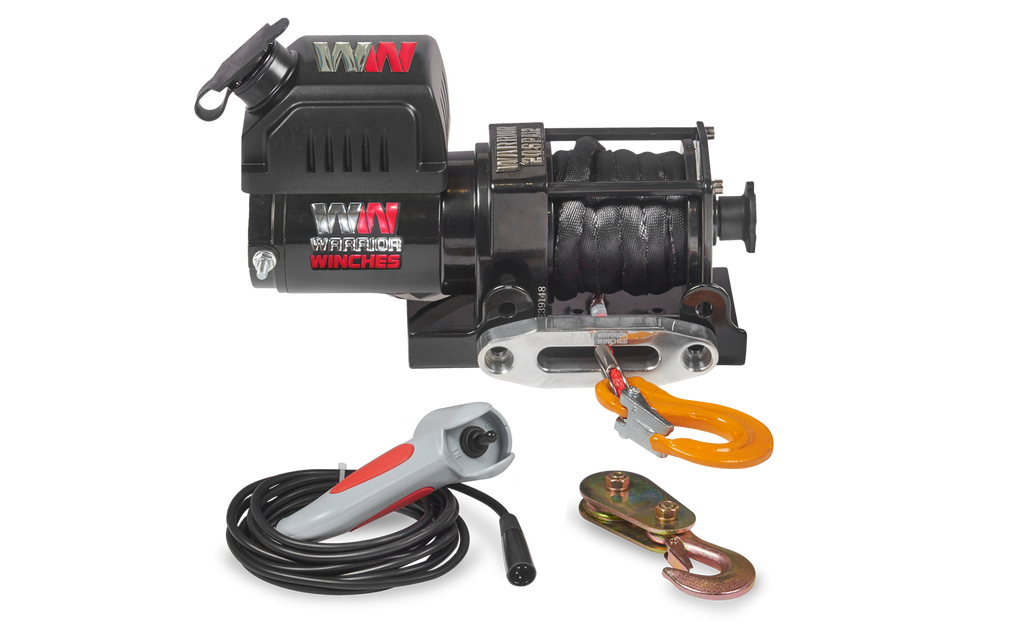

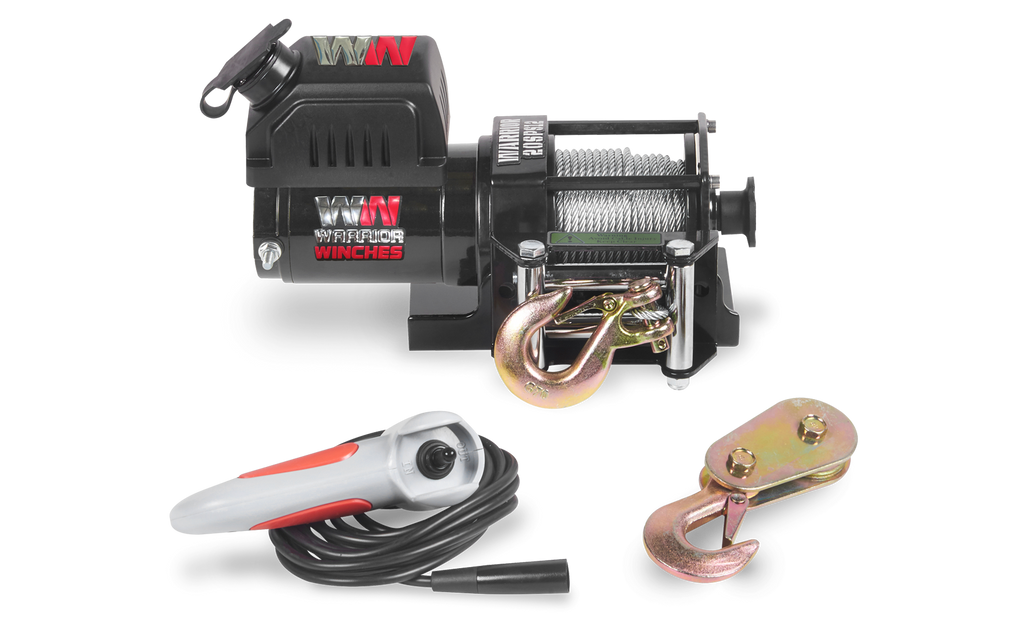

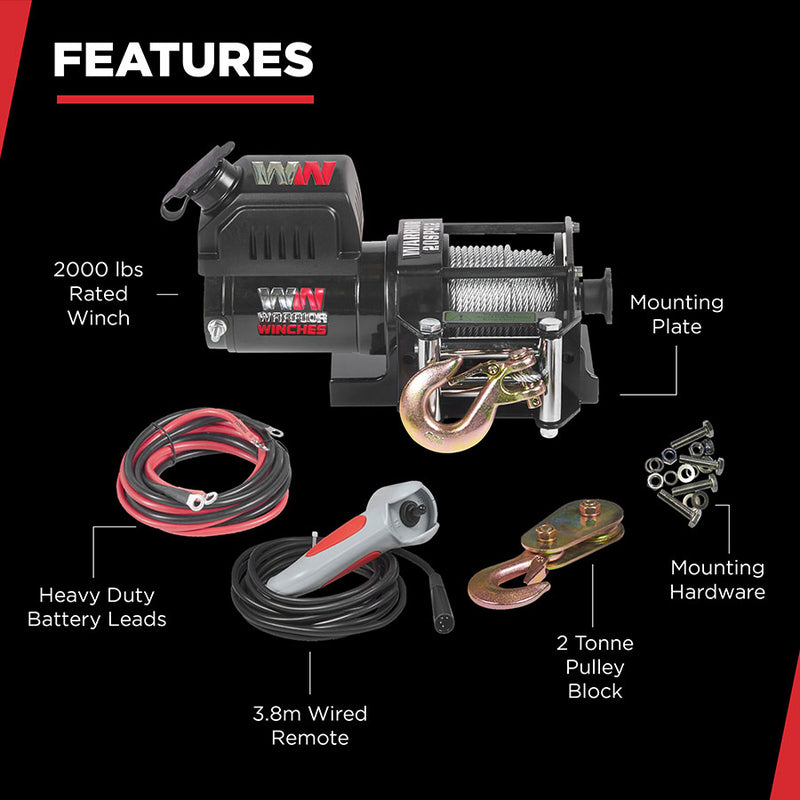

What's in the box:

  • Ninja Winch
  • Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • 1/4 Hook
  • 2 Tonne Pulley Block
  • Mounting Plate
  • Mounting Hardware
User Manual Download
Technical Drawing Download
Mounting Tray Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
