45EWHST24

Ninja 900 Winch Hoist

Sale price£288.99
Delivery in 2-7 days

Features

  • MORE LIFT – The popular Warrior Ninja 400 is now available as a 900lb hoist!
  • HIGH POWER – Features a powerful high torque 1.95hp motor.
  • WEATHER PROTECTED – Made with HD waterproof contactors and features full steel planetary gearing for long-lasting, rust-free running.
  • FULL LOAD BRAKE – Cool-down periods are done safely thanks to the full load holding brake.
  • MOUNTING PLATE – Features a mounting plate as standard for quick installation.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

Levelling up the extremely popular Warrior Ninja 400, meet the next-gen! Now available as a 900lb hoist, the variation of jobs you can get done just doubled. Featuring a high-power 3.2hp motor, you can get work done with ease.

Designed for a long-life, the HD waterproof contactors and full-steel planetary gearing ensure rust-free running. The high-quality gear system also ensures this is one of the quietest and smoothest hoists on the market!

Allowing for safe cool-down breaks, the full load brake can easily hold the full 900lb load for secure pauses. While the included mount plate makes getting up and running a breeze with simple installation.

The Winch Hoists are designed to supplement a lifting solution. For dedicated lifting solutions please view our electric or scaffold hoists.

Max Load 900 lbs (408kg)
Motor 12V:Input: 2.4 kW/ 3.2hp; Output: 1.0 kW/ 1.3hp
Gear Ratio 172:1
Drum Size - Dia x L 45mm × 93 mm
Lift Height 10m
Lift Speed 3.6 m/min

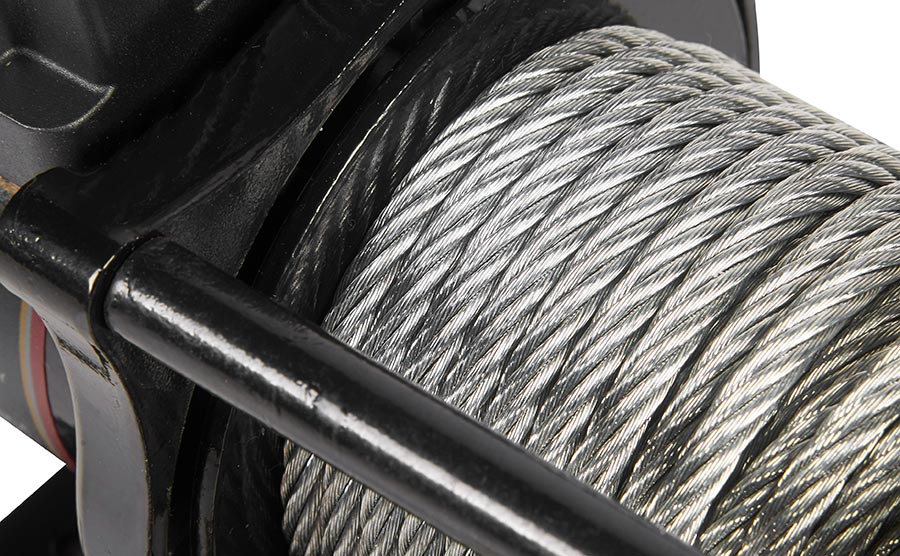

Cable Material Steel
Cable – Dia x L 6.4mm×10m

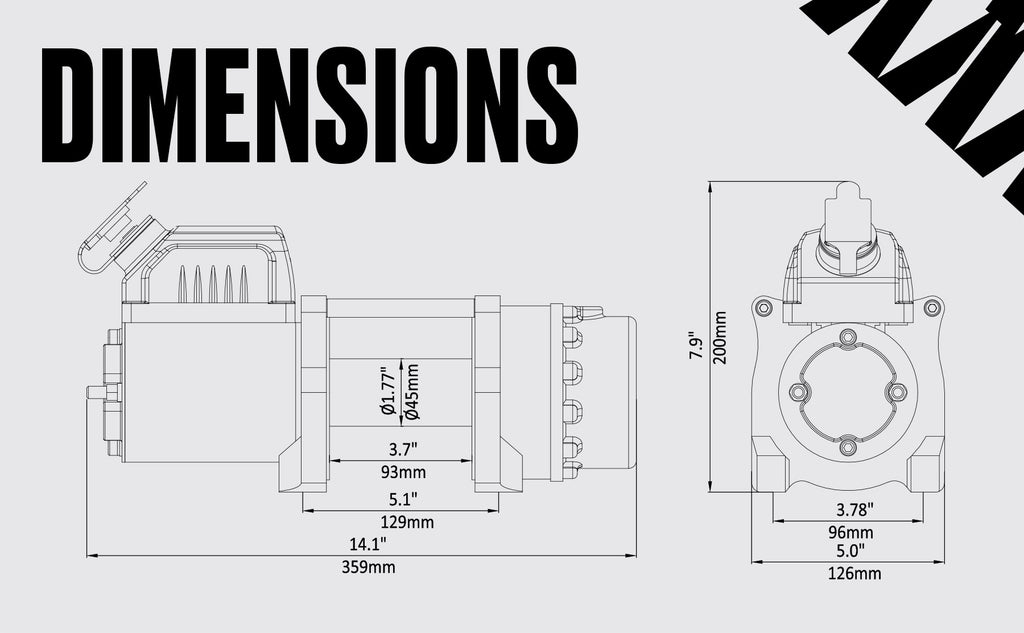

Dimensions 378 x 126 x 200 mm
Mounting bolt pattern 5.1 × 3.78” ( 129 × 96 mm) 4-M8
Warranty 1 Year
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 900 (408) 7.6 (2.3)
2 728 (330) 17.0 (5.2)
3 611 (277) 27.0 (8.3)
4 526 (238) 32.8 (10.0)
Line Pull Line Speed ft/min (m/min) Amp Draw
lbs (kgs) 12v 24v
12v
24v
0 11.8 (3.6) 12.5 (3.8) 20 15
300 (136) 10.5 (3.2) 11.8 (3.6) 25 18
600 (272) 10.1 (3.1) 11.5 (3.5) 35 22
900 (408) 9.8 (3.0) 11.1 (3.4) 45 28
  • Ninja Winch Hoist
  • Steel Winch Rope

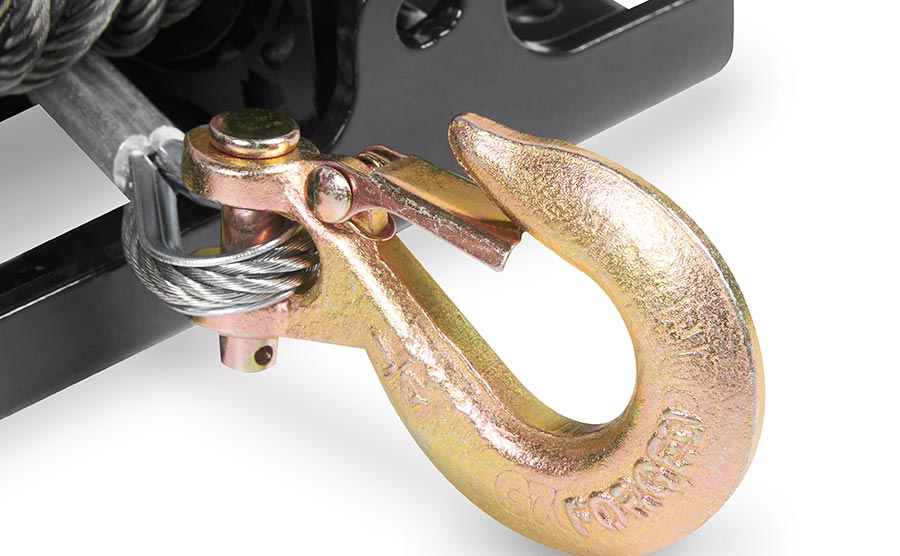

  • Heavy Duty Hook
  • Hand Remote Handset with Emergency Stop
  • Mounting Tray
  • Mounting Hardware (nuts/bolts)
User Manual Download

1 Year Warranty

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
