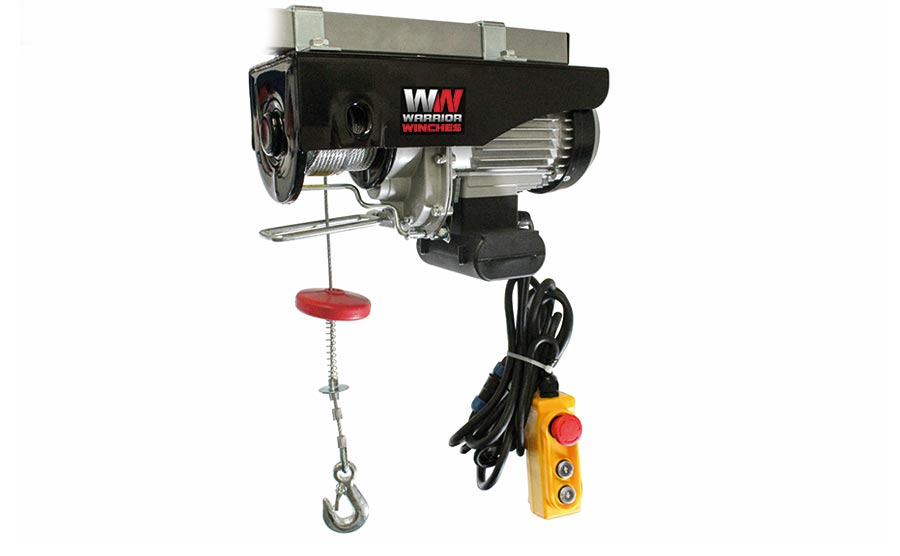

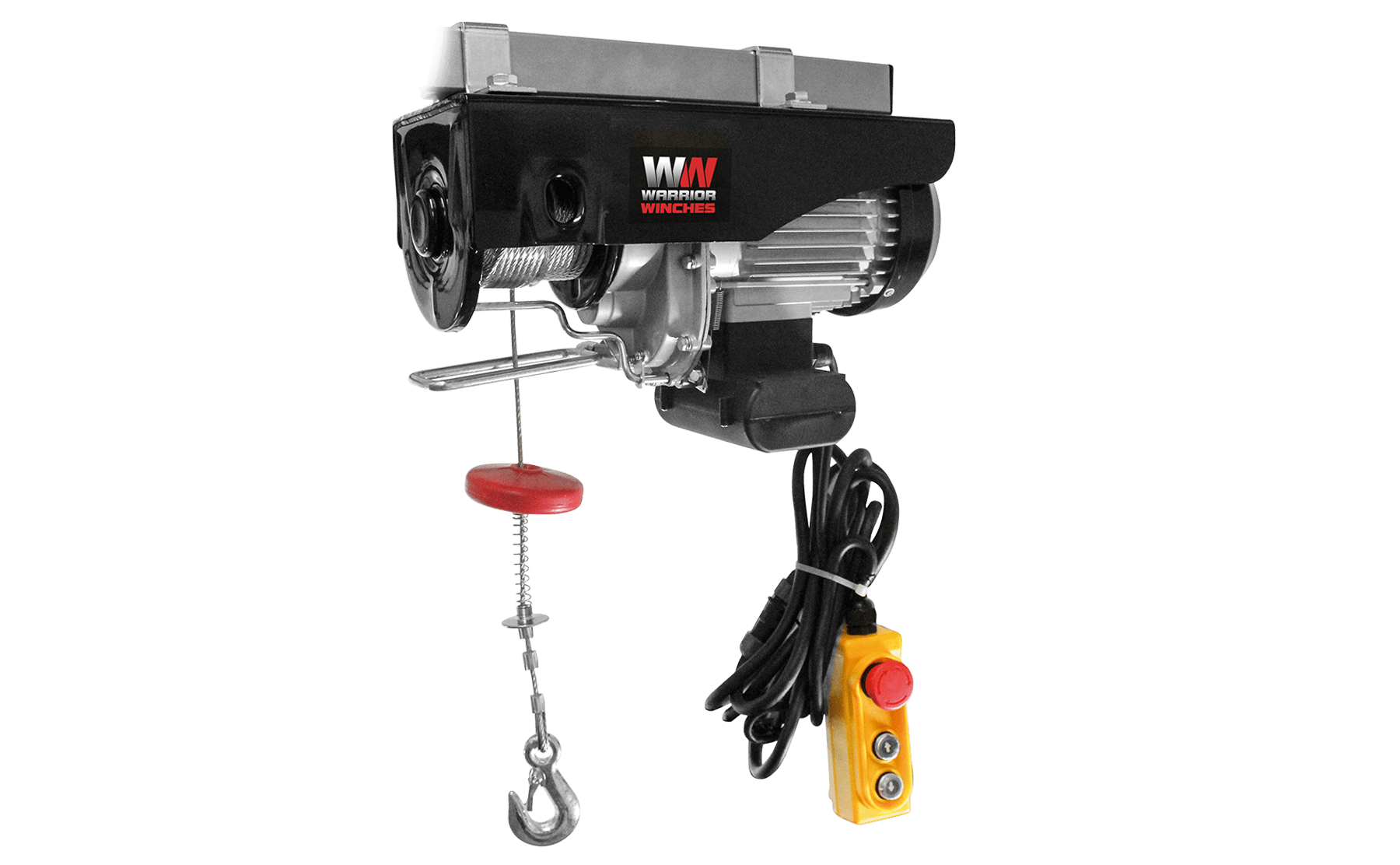

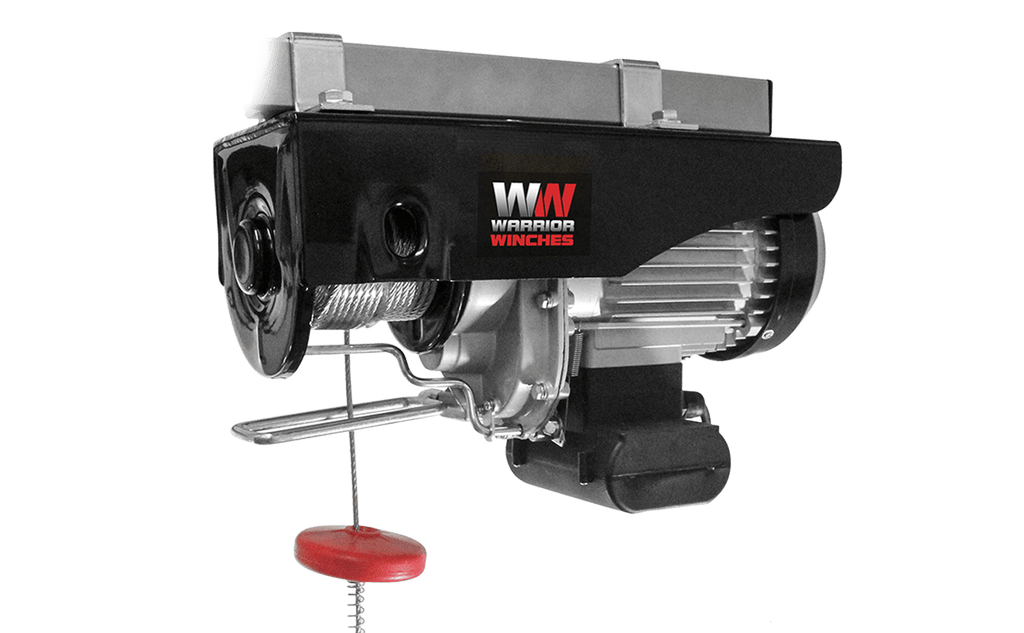

Warrior 500kg Electric Hoist - 240v
Warrior 500kg Electric Hoist - 240v
Warrior 500kg Electric Hoist - 240v
Warrior 500kg Electric Hoist - 240v
Warrior 500kg Electric Hoist - 240v
Warrior 500kg Electric Hoist - 240v

Warrior 500kg Electric Hoist - 240v

SKU EAN
240EHA500 5060423981138

Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior Stockists

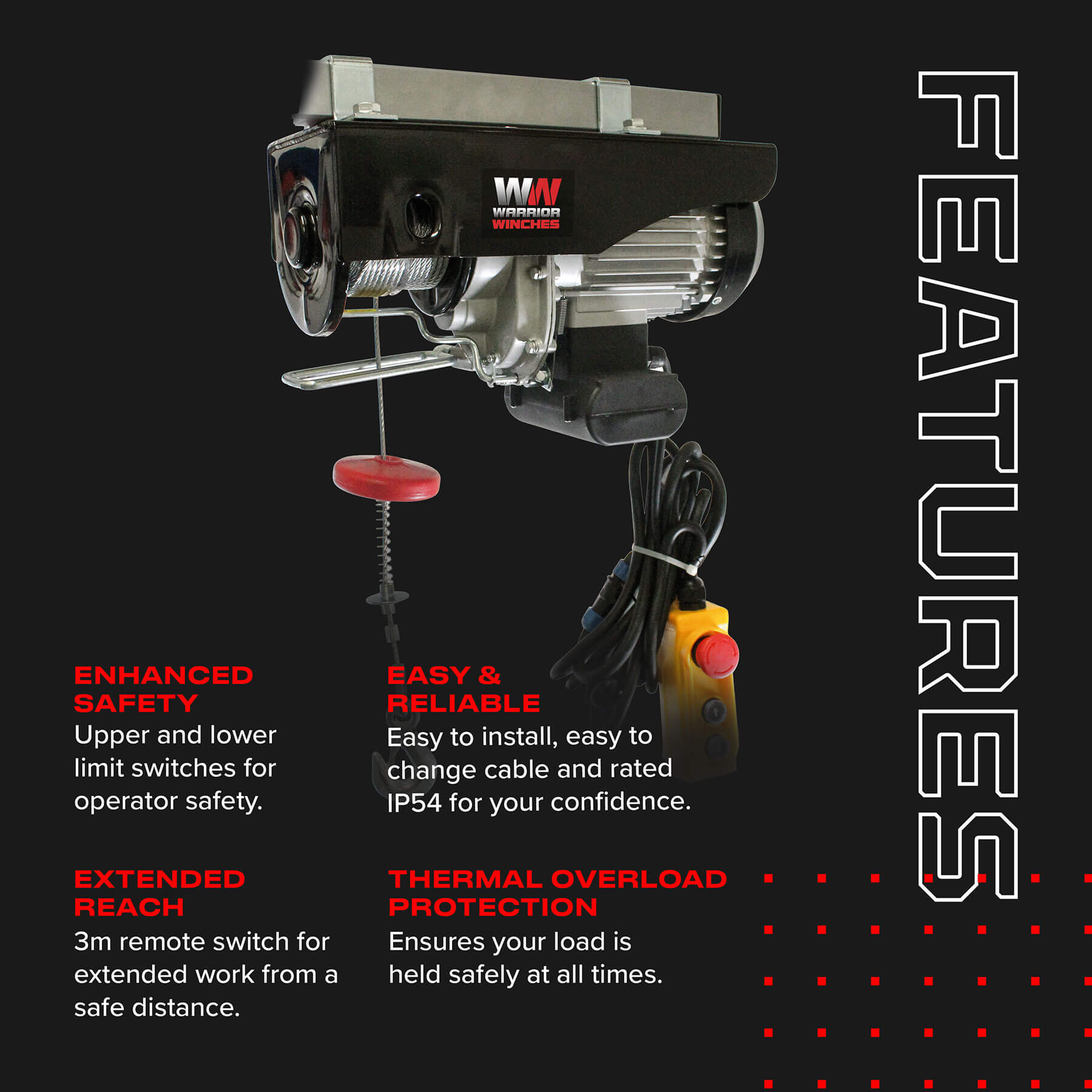

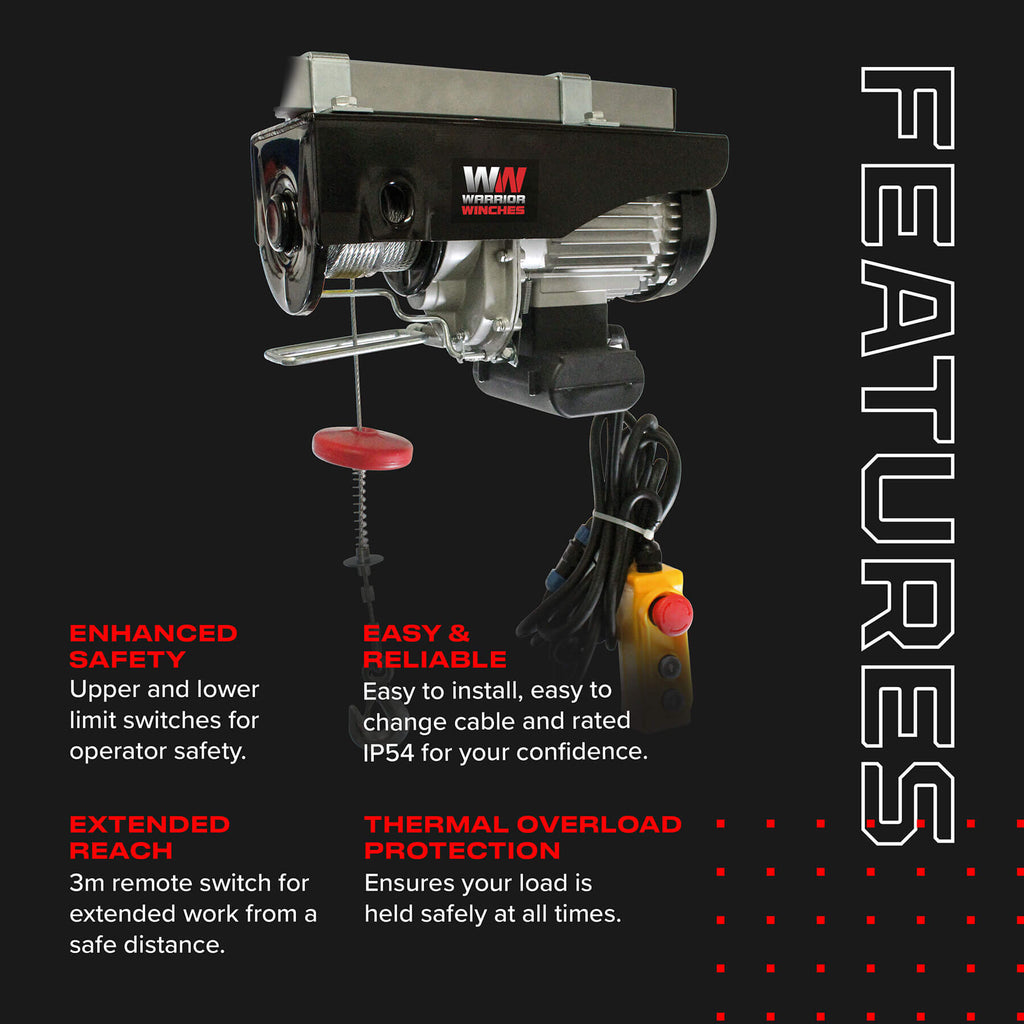

Features

  • Ideal for all manner of lifting applications.
  • Easy to install, with easy change cable design.
  • Remote switch with power in & power out facility.
  • Conforms to part of BS EN14492-1 and BS EN14492-2 standards.
  • Thermal Overload Protection
  • IP 54 rated.

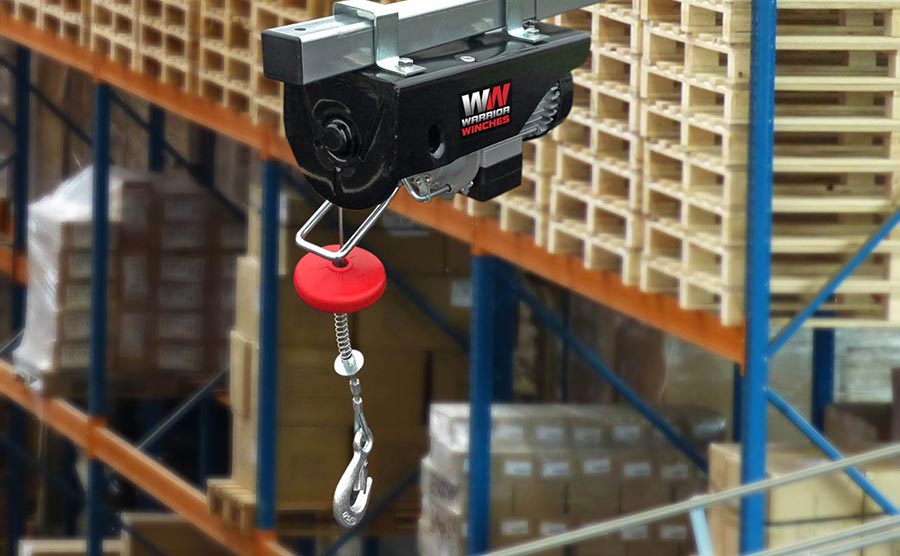

Compact and versatile, Warrior have created a hoist with almost limitless applications. This electric hoist is ideal for all manner of jobs and lifting applications.

Designed to be as easy to install as possible, the easy-change cable design makes set up a breeze. Mounted to a box section of up to 46mm x 46mm - you’ll be up and running in no time.

Giving you professional quality, the hoist conforms to part of BS EN14492-1 and BS EN14492-2 standards and is IP 54 rated for your confidence. Complete with a 2.75m long wired remote with power in and power out facility, you can get the job done safely and easily.

With a duty cycle of S3 – 20% on a 10-minute cycle; that basically means it can run continuously for 2 minutes and then requires an 8-minute cooldown. The load-holding break ensures your load is held safely during downtime, as Warrior is dedicated to safe and fuss-free usage.

This hoist also has the facility to add a wireless remote control as an optional extra.

Available in the following rated capacity:

  • 125kg single line / 250kg double line*
  • 250kg single line / 500kg double line*
  • 500kg single line / 1000kg double line*

*Using Included Pulley Block

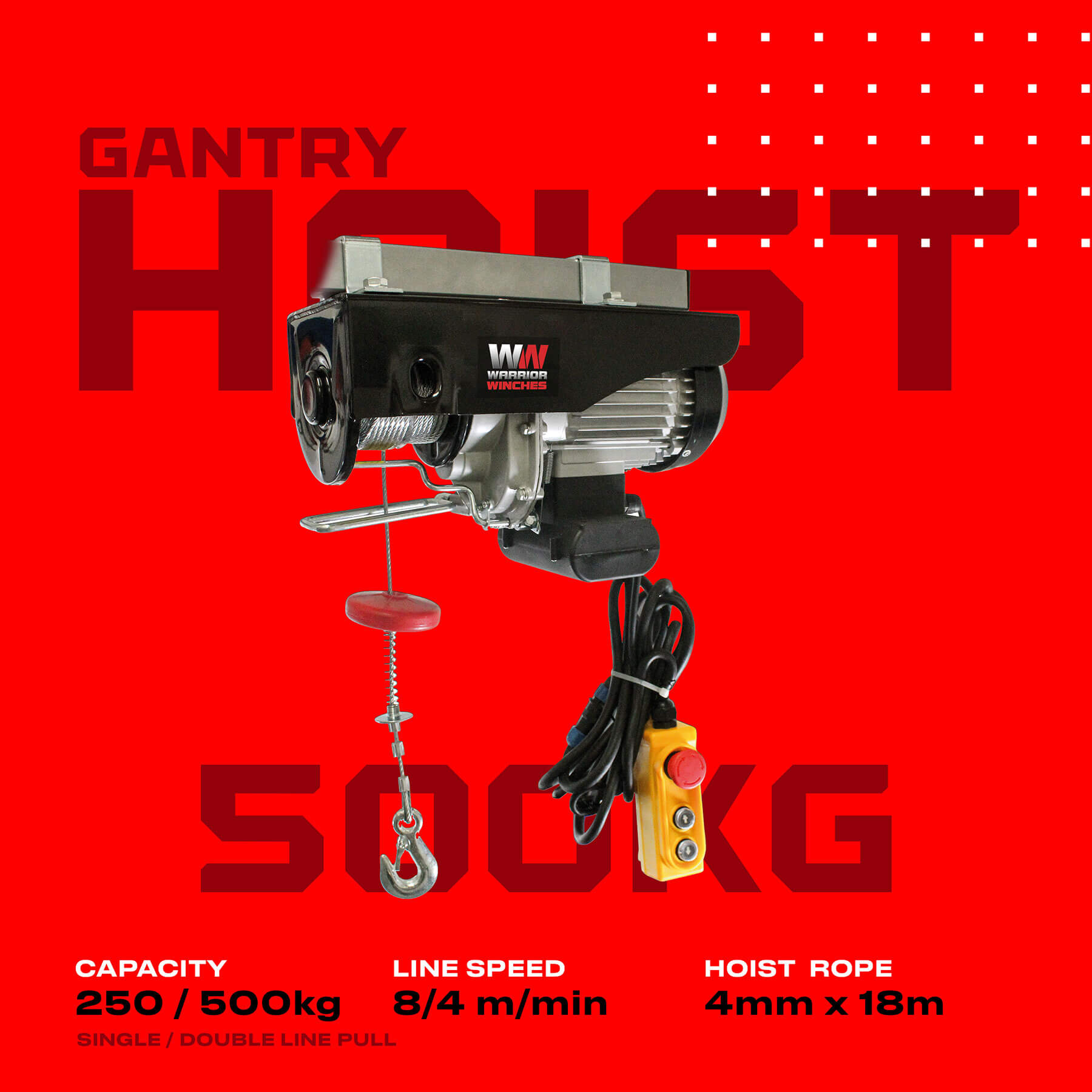

Rated Line Pull 1102 lbs lbs (500 kg)
Max Load Single cable: 250kg
Double Cable: 500kg
Lift Height Single cable: 12m
Double Cable: 6m
Lift Speed Single cable: 8m/min
Double Cable: 4m/min
Power 1000W
Voltage 240v
Current 4.35 A
Frequency 50 Hz
Socket UK 13 A
Cable Material Steel
Cable – Dia x L 4mm x 12m
Rating IP54
Limit Safety Switch Integrated
Work Rate ED 20%, 150s/h
Dimensions 385 x 148 x 280 mm
Sound Pressure Level 71 dBA
Weight 16.5 kg
Warranty 1 Year
Certification CE



What's in the box:

  • Electric Hoist
  • Steel Winch Rope with hook
  • 3m Hand Remote Handset
User Manual Download
Technical Drawing Download
Brochure Download

1 Year Warranty

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A

Ask a Question

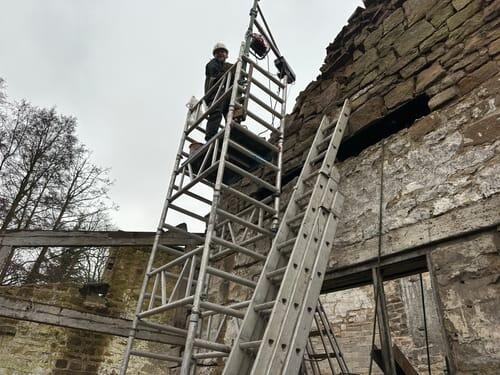

  • Hi there does it come with fittings to bolt to a scaffold

    Hello,

    Thanks so much for getting in touch!

    So the hoist itself is designed to be mounted to a box section of up to 46mm x 46m.

    However, we do offer a hoist frame which does directly attach to the scaffold pole.

    Hope this helps

    Thanks

    James.

  • Can it be used in the rain? What does IP54 mean

    Hello,

    Thanks for the question.


    IP54 - (Dust Proof, Splash Proof)
