240VSH800

Warrior 800kg Scaffold Hoist - 240v Pendant Remote

Warranty: 12 Months
£366.99
Buy now, pay later options available at checkout
American Express Apple Pay Diners Club Discover Google Pay Klarna Maestro Mastercard PayPal Shop Pay Union Pay Visa
British owned, Wigan based. UK dispatch and expert support when you need it.

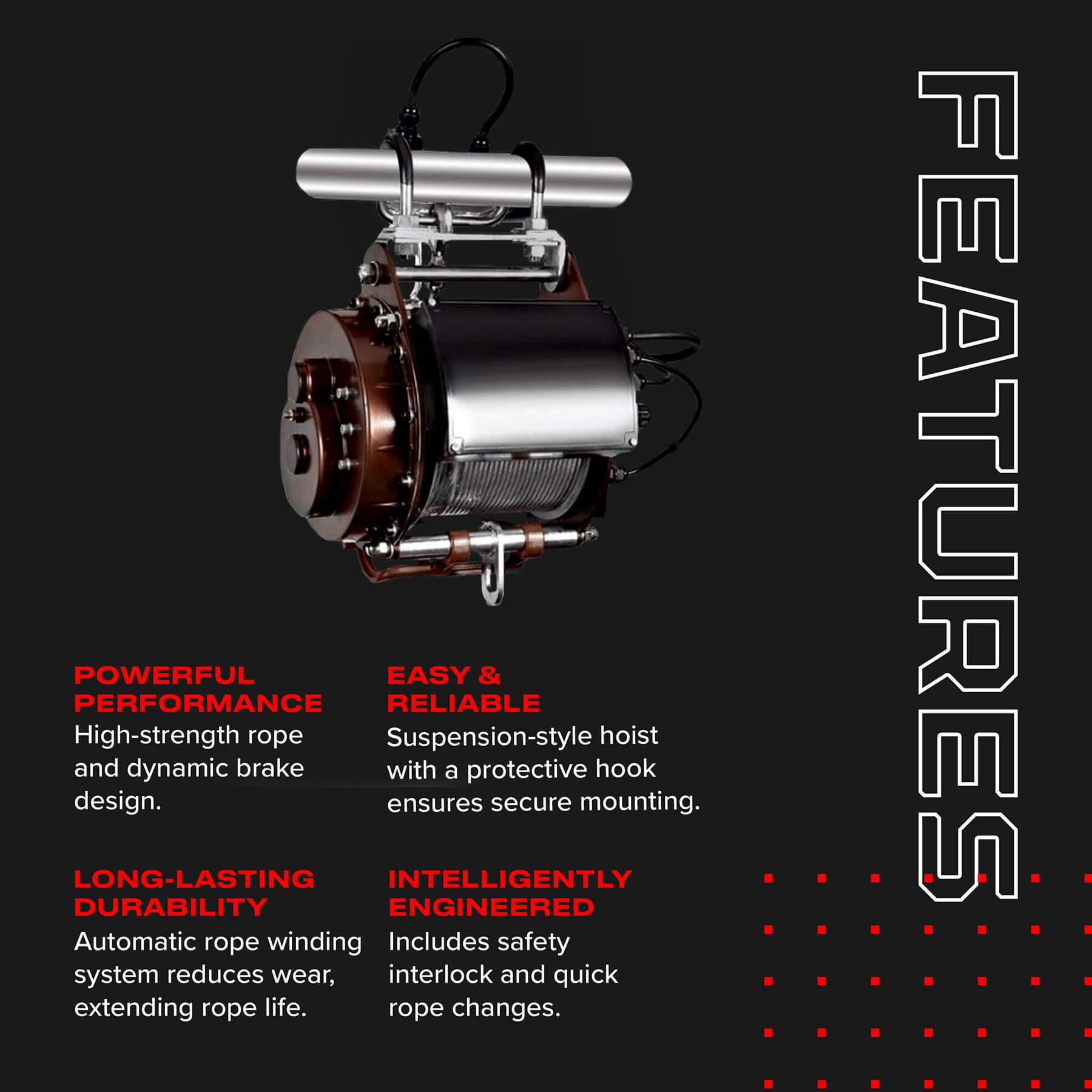

Features

  • Secure Support for Heavier Lifting Tasks - Suspension-style mounting with a secure protection hook helps establish a suitable installation for moving heavier materials.
  • Organised Rope Winding for Repeated Use - The automatic winding system helps keep the steel rope aligned as it returns to the drum, supporting easier handling between lifts.
  • Reduce Maintenance Disruption - The steel rope can be changed without disassembling the hoist, helping simplify servicing when replacement is necessary.
  • Help Protect the Drum Mechanism - Bearing-supported rotation helps the cable drum move smoothly, supporting reliable operation during lifting.
  • Built Around Recognised Safety Requirements - Designed to meet key elements of BS EN 14492-1 and BS EN 14492-2, with integrated safeguards to support controlled handling of loads.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior Next Generation Scaffold Hoist sets a new benchmark in hoisting technology for professionals demanding top-tier performance and safety. Designed with ease-of-use in mind, this hoist features a secure suspending style mount with a keyed interlock protection hook, enabling fast and safe setup on scaffold systems.

The Warrior 800kg 240V Scaffold Hoist is designed for lifting tasks where greater load capacity is a priority. Combining a powerful 1300W motor with a reinforced steel rope system, it provides the lifting strength needed to move heavier materials to elevated positions. Its wired pendant control keeps operation straightforward, while the automatic winding mechanism and integrated protection features help make repeated lifting tasks easier.

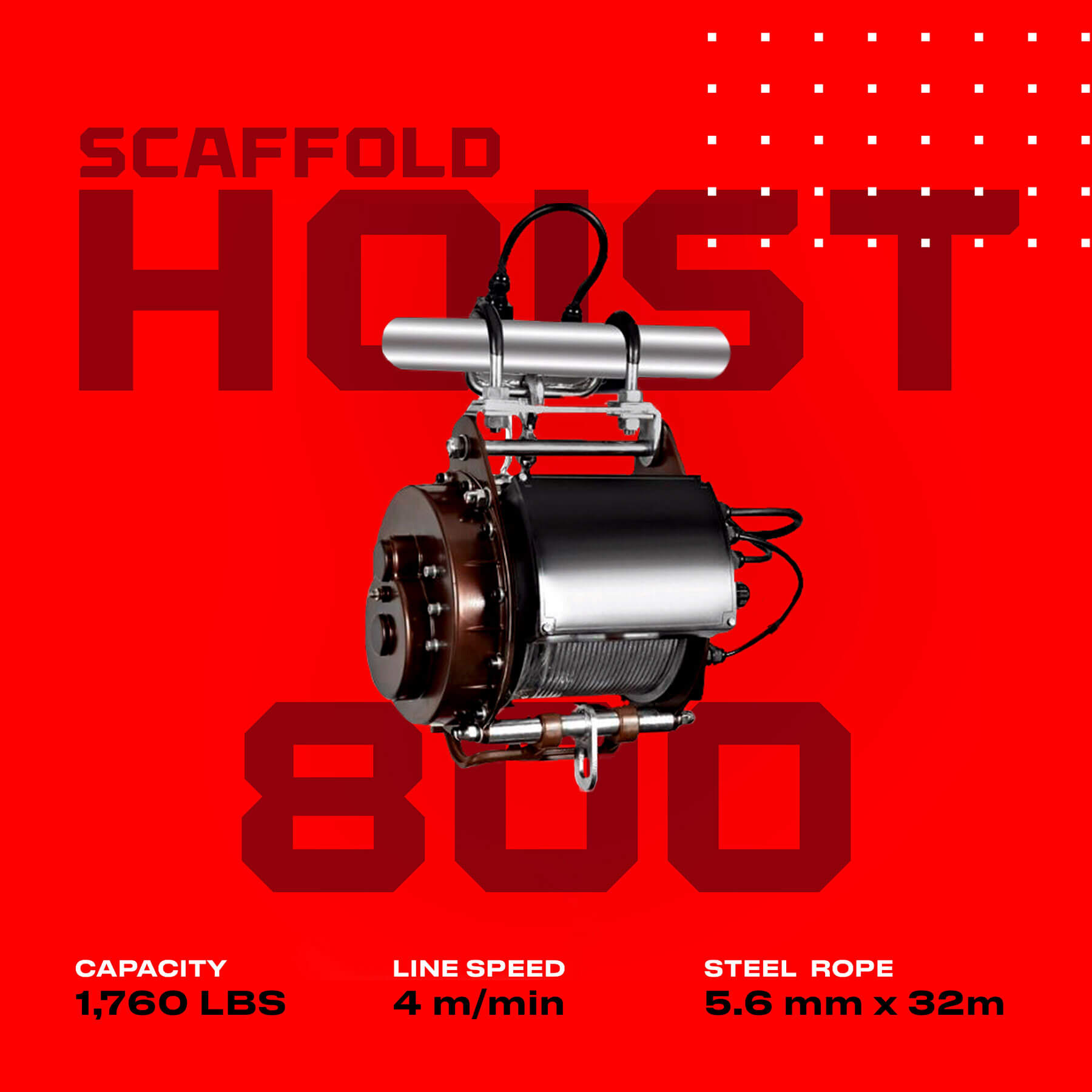

Lift Heavier Loads with an 800kg Capacity. With a maximum lifting capacity of 800kg, this model offers considerably more lifting capability than the 500kg version. The 1300W motor operates from a 240V supply, delivering speeds of up to 8 metres per minute with single-line lifting and 4 metres per minute when using the double-line configuration.

A Stronger Rope Setup for Demanding Lifts. Supplied with 32 metres of 5.6mm steel rope, the hoist provides the reach needed for a variety of elevated lifting arrangements. The substantial rope diameter complements its higher load capacity, giving you a robust cable setup for compatible lifting applications.

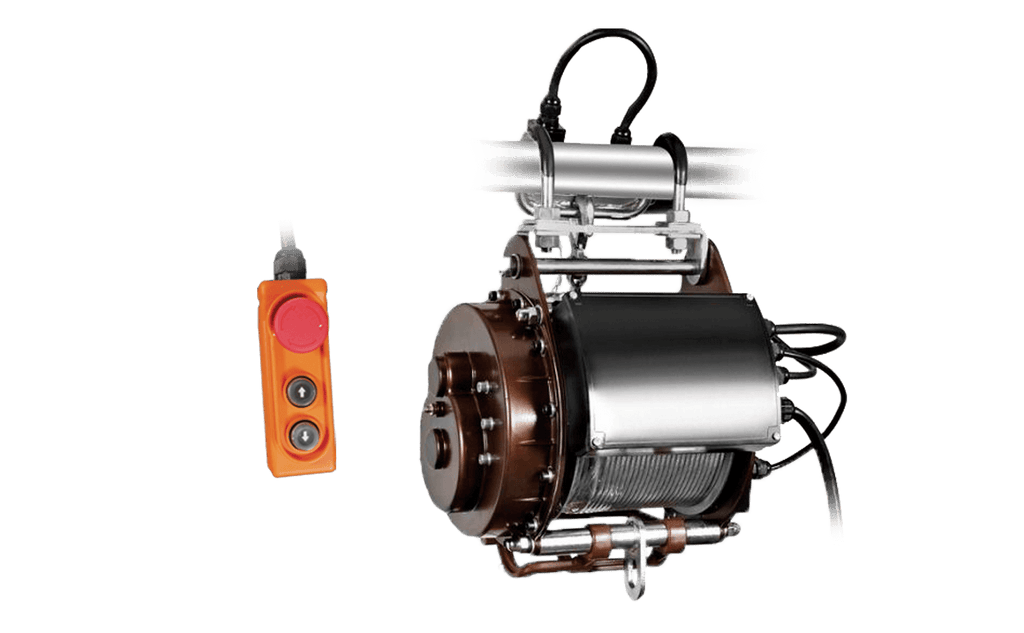

Keep Every Movement Under Your Control. The wired pendant handset provides direct raise-and-lower operation, allowing you to manage the movement of heavier loads from a convenient position. Its connected control arrangement offers a simple operating solution without the need to manage a separate wireless handset.

Secure the Hoist with a Purpose-Designed Suspension Mount. The suspension-style mounting system features a keyed interlock protection hook to help simplify attachment to a suitable scaffold support. Combined with a high-strength carbon steel body and durable powder-coated finish, the design provides a sturdy foundation for the lifting mechanism.

Maintain Neat Rope Alignment Automatically. As the drum turns, the automatic winding system helps guide the steel rope into position rather than allowing it to collect unevenly. This helps reduce tangling, encourages consistent rope storage and can limit unnecessary wear over time.

Make Replacement Rope Installation Less Complicated. The easy-change cable arrangement allows the steel rope to be replaced without dismantling the hoist. This is particularly useful when maintaining equipment over its working life, making an otherwise involved maintenance task more convenient.

Reduce Friction Around the Cable Drum. A specially developed bearing system supports the drum during rotation, helping it turn smoothly throughout the lifting cycle. By reducing friction around this moving component, the design helps minimise wear and supports long-term mechanical performance.

Integrated Controls to Help Manage the Lift. Upper and lower limit switches help restrict travel at the designated endpoints, while the dynamic braking system assists with controlled stopping. Thermal overload protection provides an additional safeguard for the motor by helping prevent excessive heat build-up during operation.

Protection Against Dust and Water. The IP65-rated housing helps prevent dust ingress and protects against water, while its powder-coated, high-strength carbon steel construction provides a durable outer structure. The suspension-style mounting arrangement includes a keyed interlock protection hook for secure attachment.

Fully equipped with thermal overload protection and compliant with essential aspects of BS EN14492-1 and BS EN14492-2, this hoist also features upper and lower limit switches and a dynamic brake design for enhanced control under both static and dynamic loads. Whether you're lifting materials or tools, the Warrior Scaffold Hoist delivers industry-leading reliability, safety, and value for any professional scaffolding setup.

Sku240VSH800
EAN5060423980186
Rated Line Pull1763 lbs
Rated Volt240
Max Load800
Lift Height 32.0 m
32.0 m (Double line)
Lift Speed 8.0 m/min
4.0 m/min (Double line)
Power1300
Cable MaterialSteel
Cable Size (Diameter x Length) 5.6 mm x 32.0 m
Limit Safety SwitchUpper & Lower
Work RateS3 20% 10mins

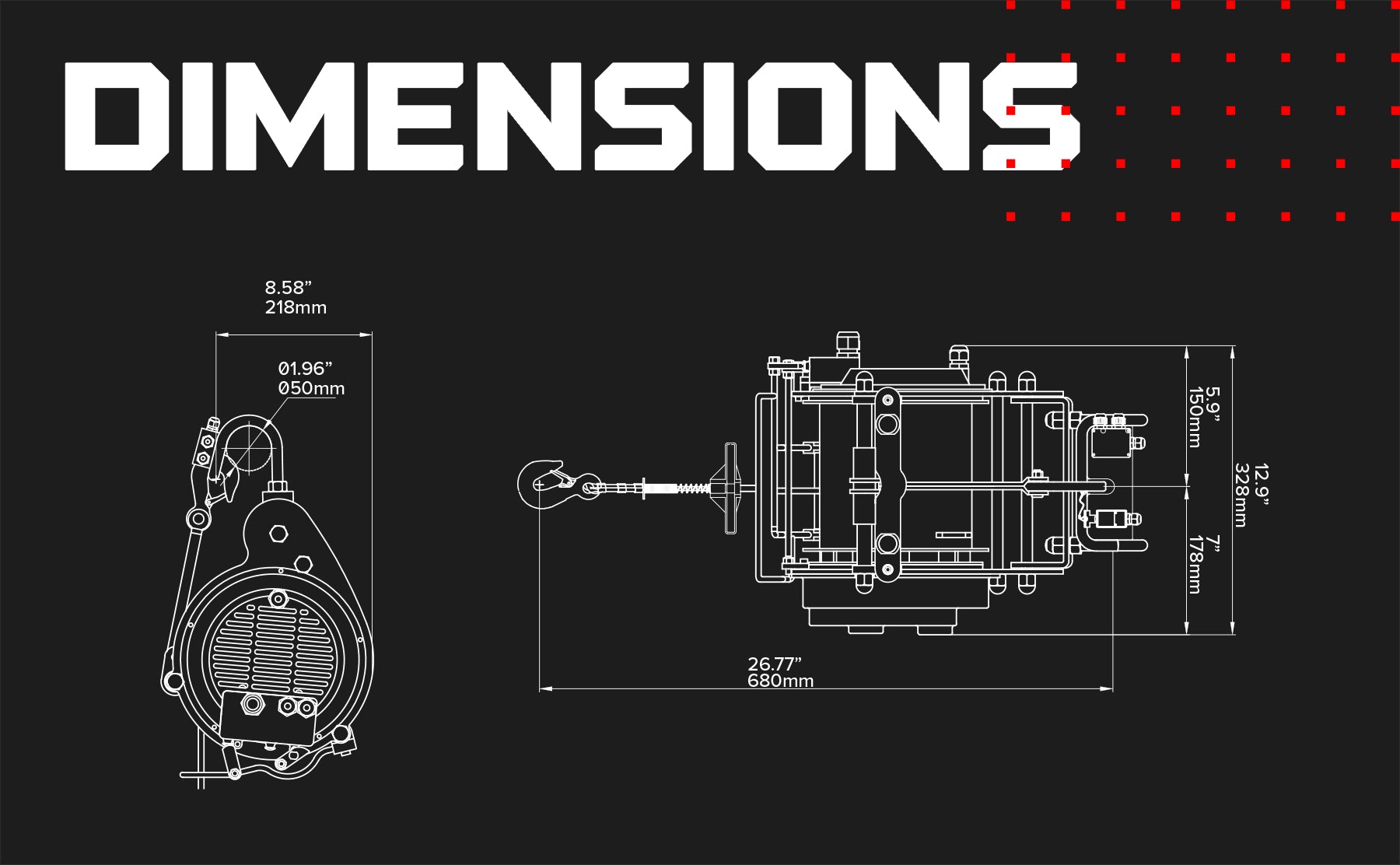

Dimensions340 x 500 x 400 mm
Weight37.0 kg
Warranty1 Year
Waterproof Rating (IP)IP65
CertificationCE



  • Scaffold Hoist
  • Steel Winch Rope with Hook
  • Pendant Remote
User Manual Download
Technical Drawing Download

1 Year Warranty

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
