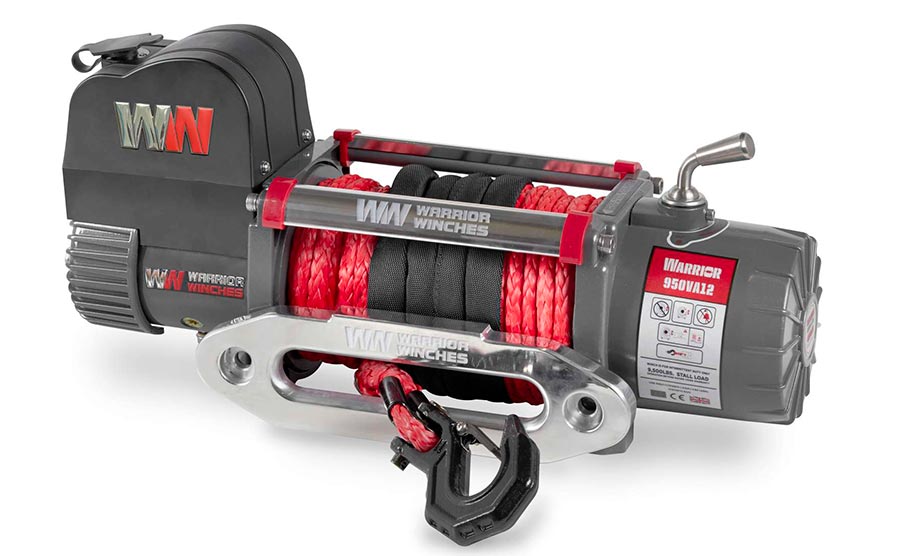

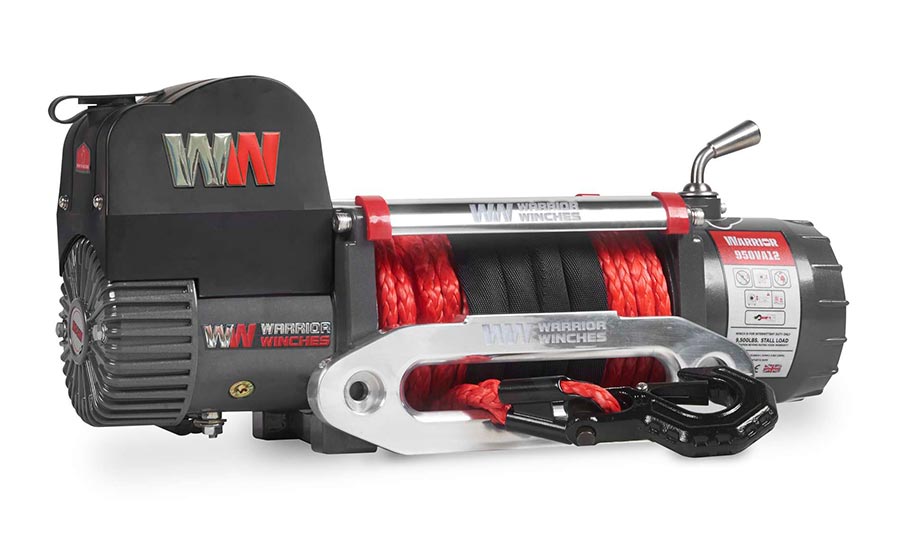

Samurai Next Gen 9500 High Speed Winch

12v / Synthetic Rope 9HSVA12 5060423985457

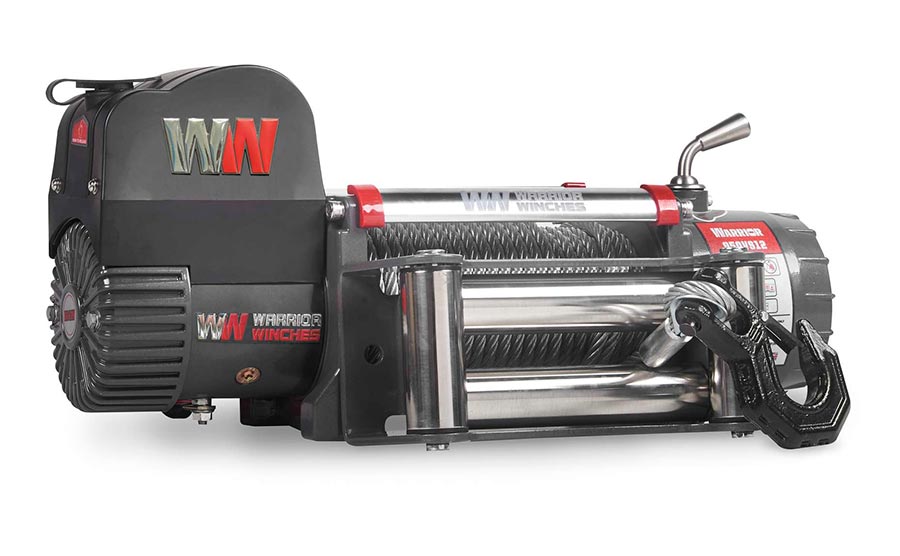

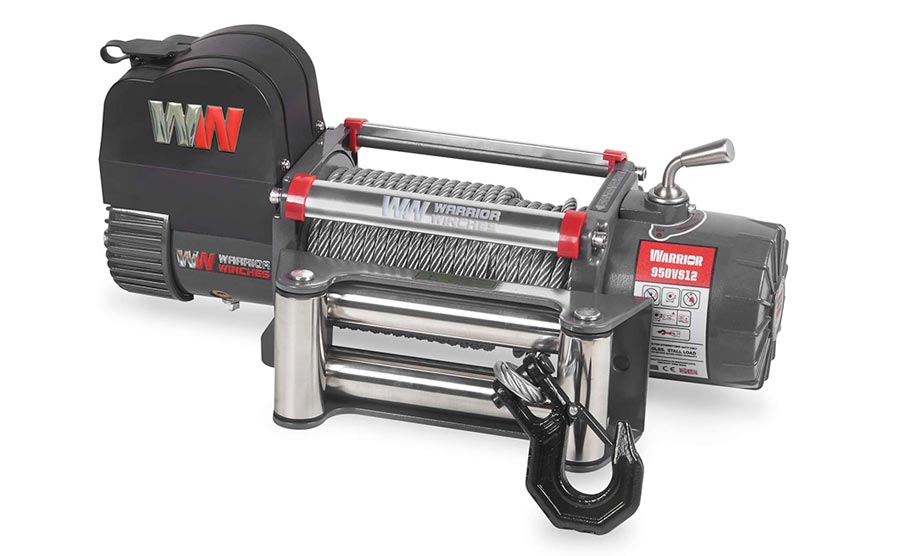

12v / Steel Rope 9HSVS12 5060423985440

Voltage: 12v
Rope: Synthetic Rope

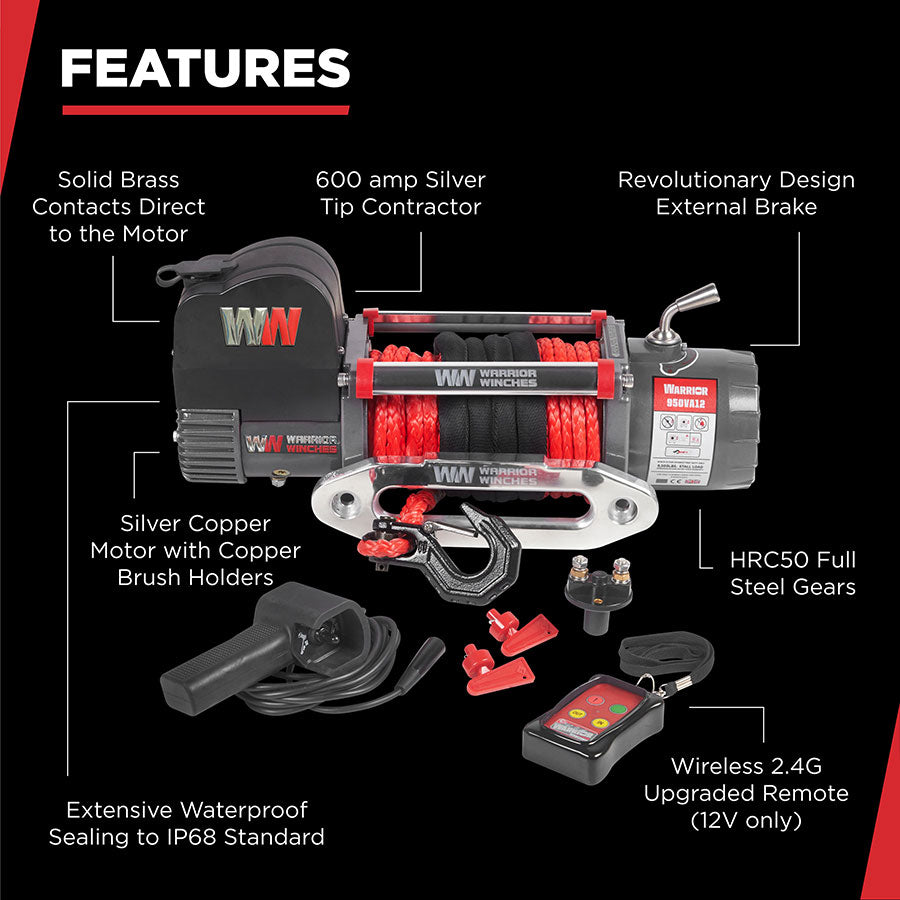

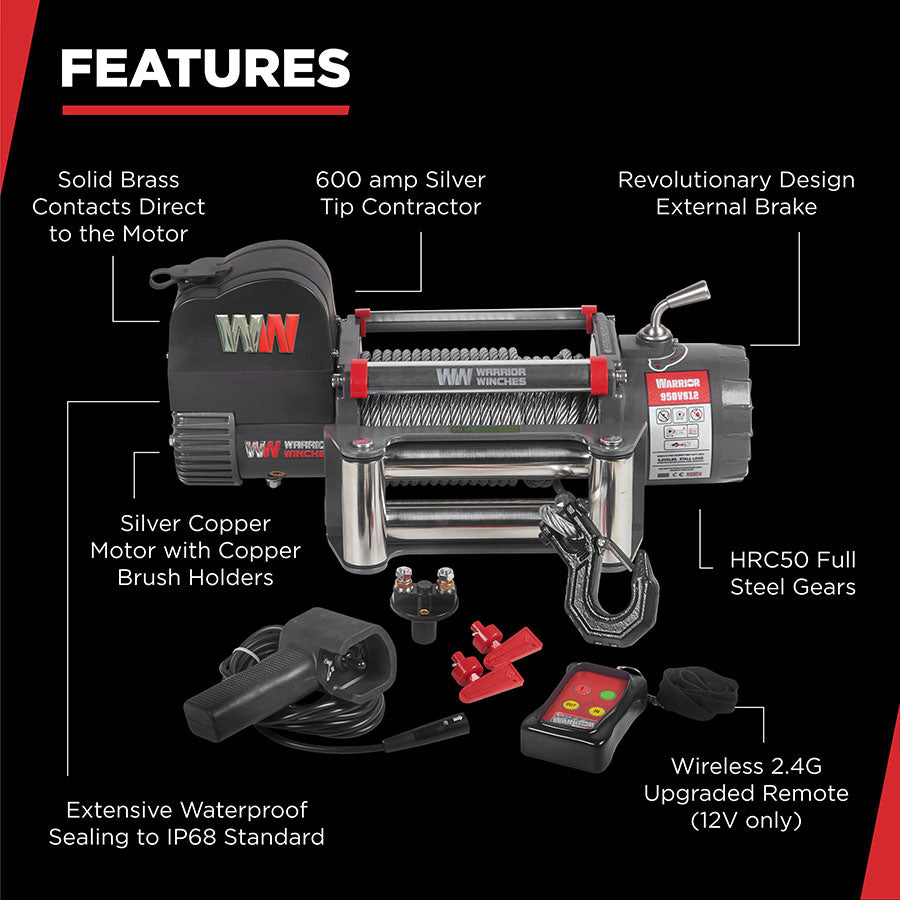

  • Unbeatable line speed of 21m/69 ft per min
  • Revolutionary Design External Brake
  • 607 amp Silver Tip Contactor
  • Silver Copper Motor with Copper Brush Holders
  • Extensive Waterproof Sealing to IP68 Standard

The Samurai HS (High Speed) is fully sealed and has been updated to bring you an unbeatable line speed of 69 ft/min!

Our top performance winches just got better!

Our premium 'Next Generation' Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum.

Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

Rated Line Pull9500 lbs
Motor Type8.6hp / 6.4kw
Braking ActionExternal Brake
Drum Size (Dia x L)63 x 224 mm
Cable MaterialSteel or Synthetic

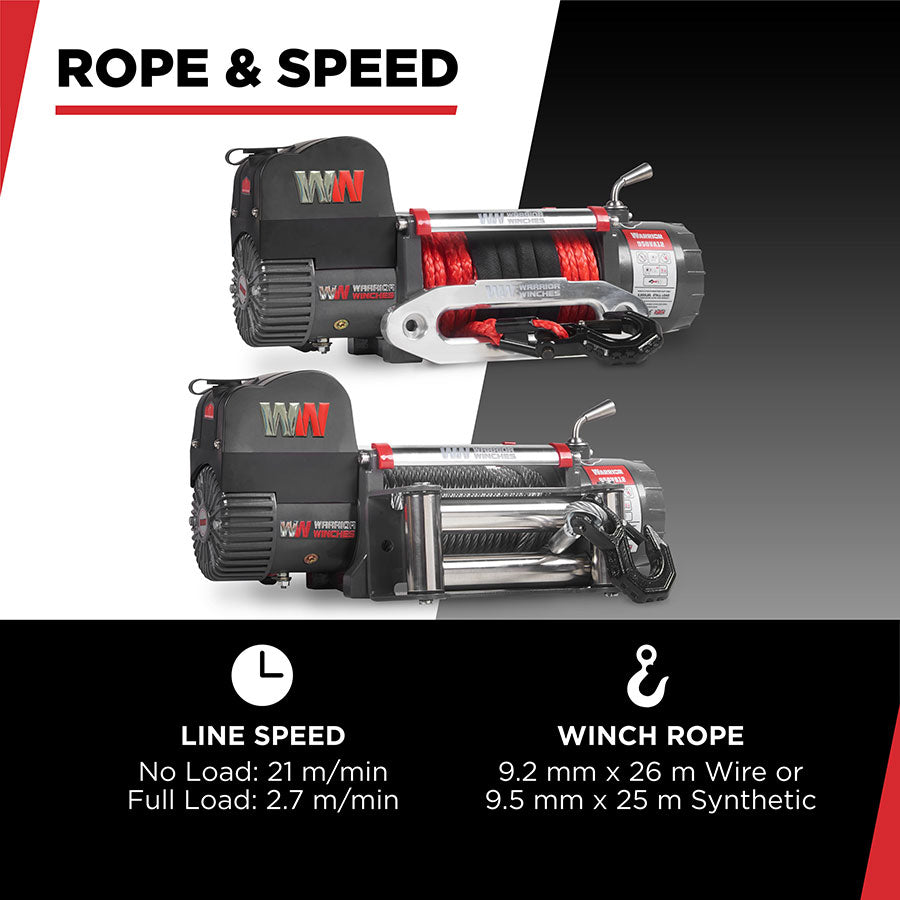

Cable – Dia x LSteel: 9.2mm x 26m
Synth: 9.5mm x 25m
Mounting Pattern254 x 114 mm
Dimensions593 x 160 x 248 mm
Weight38.0 kg
Warranty3 Years


Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 9500 (4309) 15.1 (4.6)
2 7600 (3447) 34.1 (10.4)
3 6200 (2812) 57.7 (17.6)
4 5400 (2400) 85.3 (26.0)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
Amp Draw
0 68.9 (21) 82 (25) 45 31
4000 (1818) 17.7 (5.4) 19.6 (6.0) 260 150
6000 (2722) 12.1 (3.7) 16 (4.9) 350 210
8000 (3628) 9.5 (2.9) 13.1 (4.0) 440 260
9500 (4309) 8.8 (2.7) 11.8 (3.6) 520 300

What's in the box:

  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead OR Aluminium Hawse Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • Wireless 2.4G Upgraded Remote (with 12V version only)
  • Removable Heavy Duty Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
