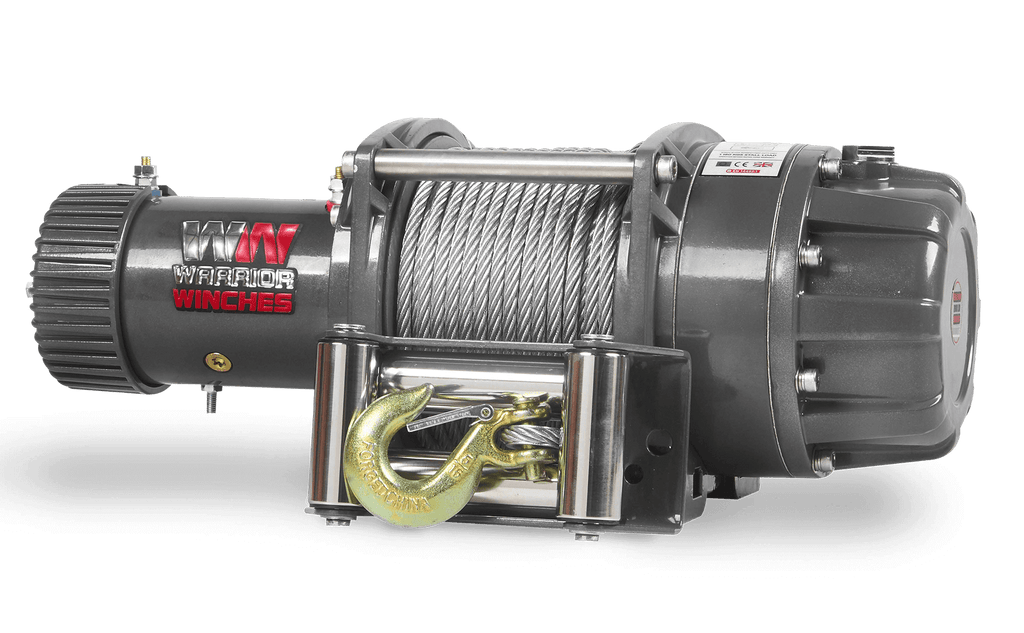

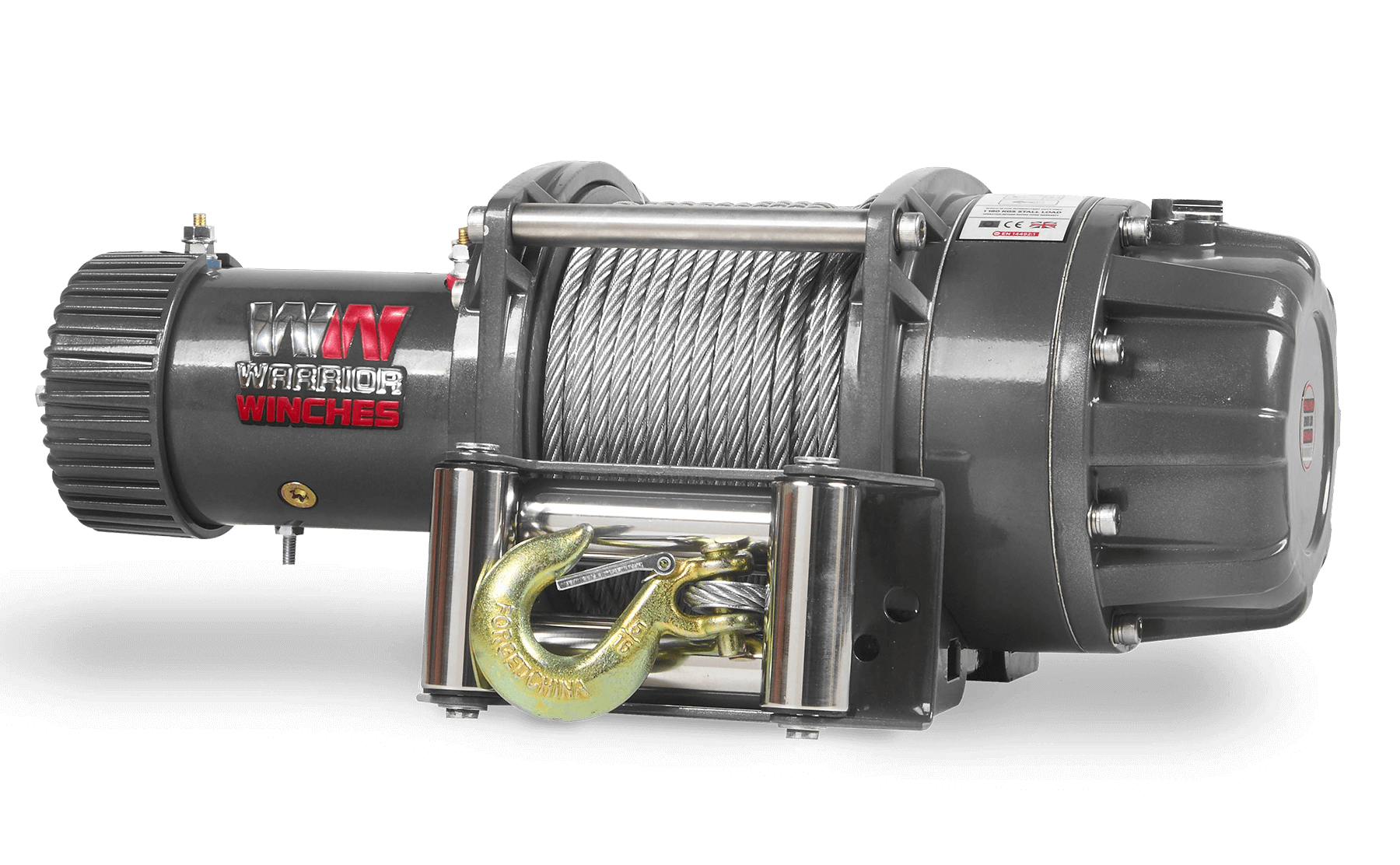

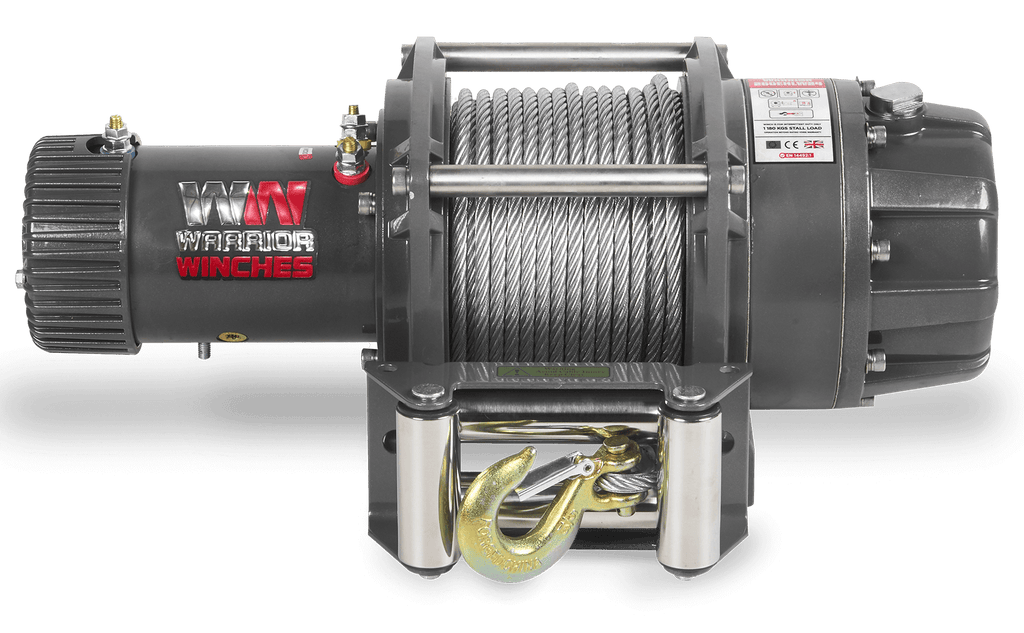

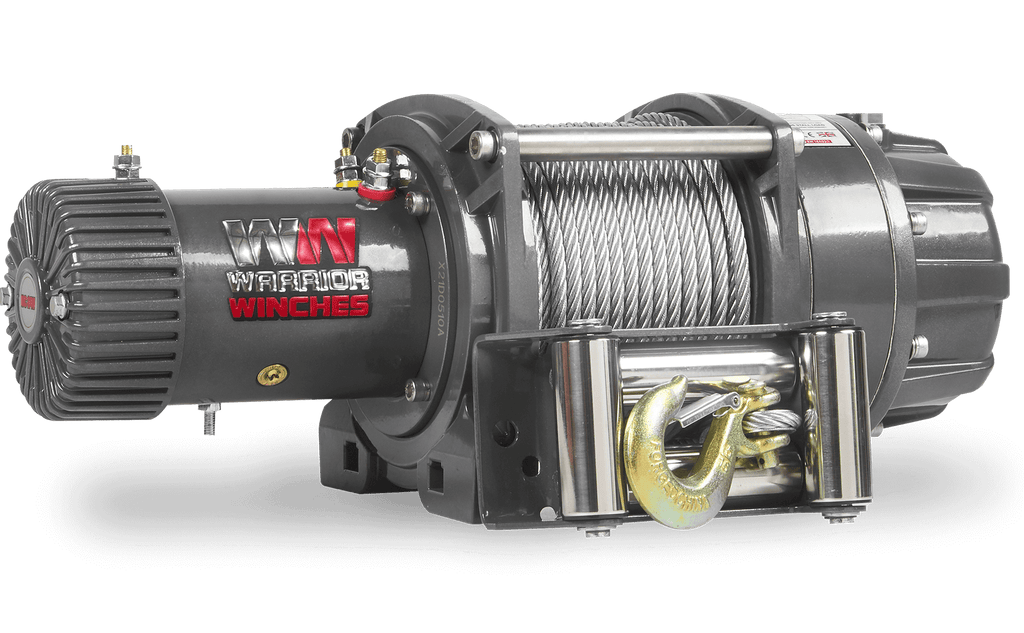

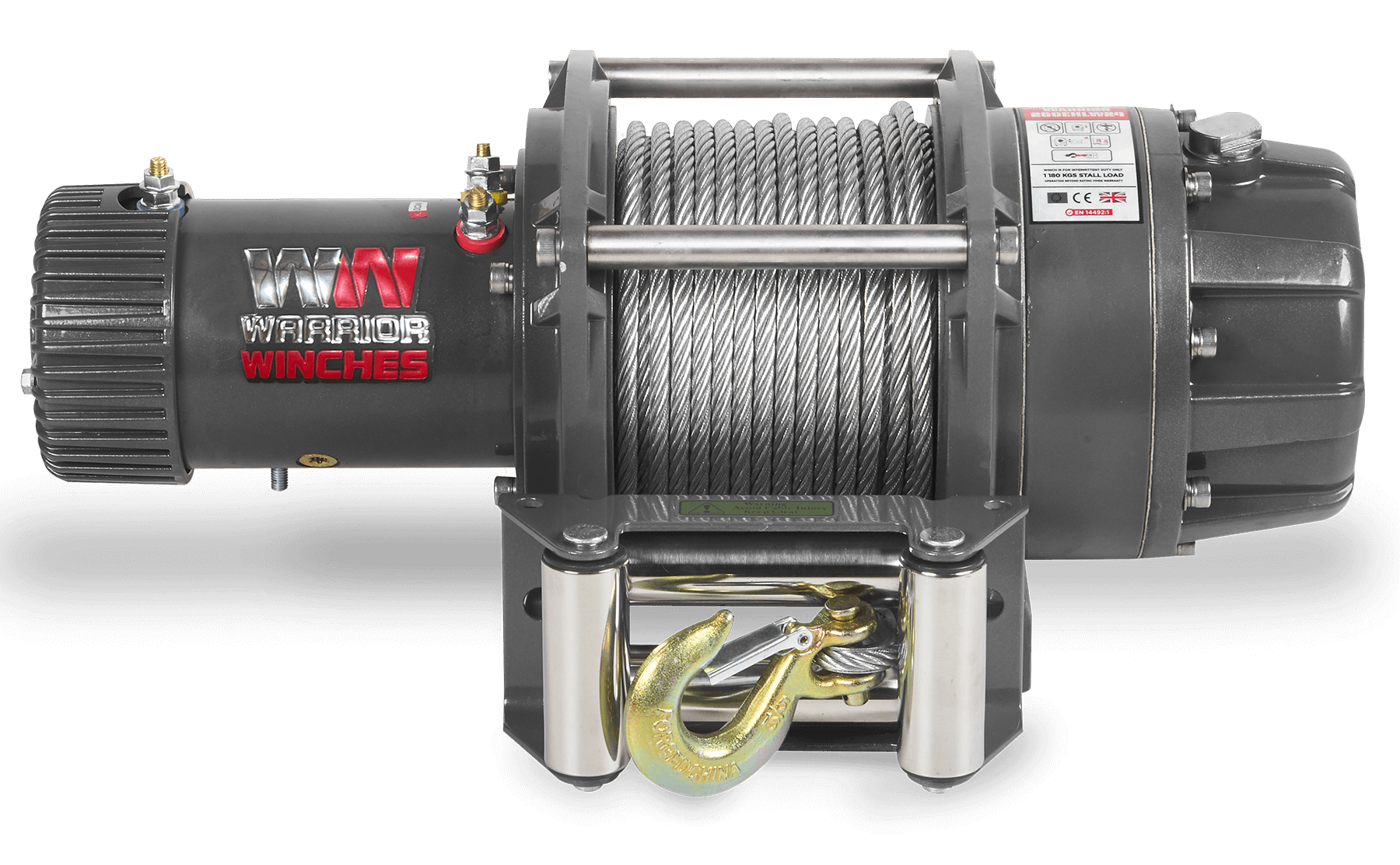

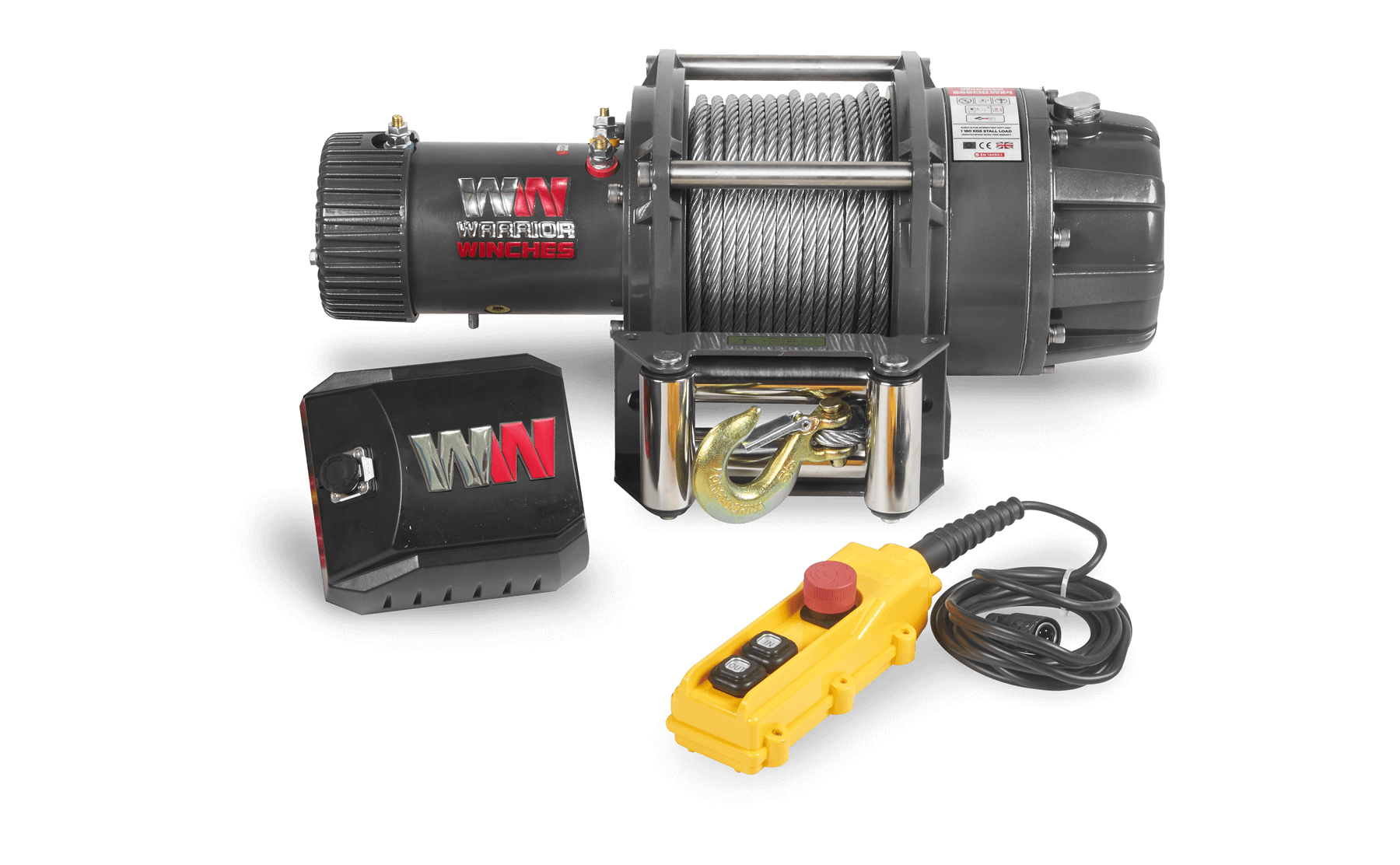

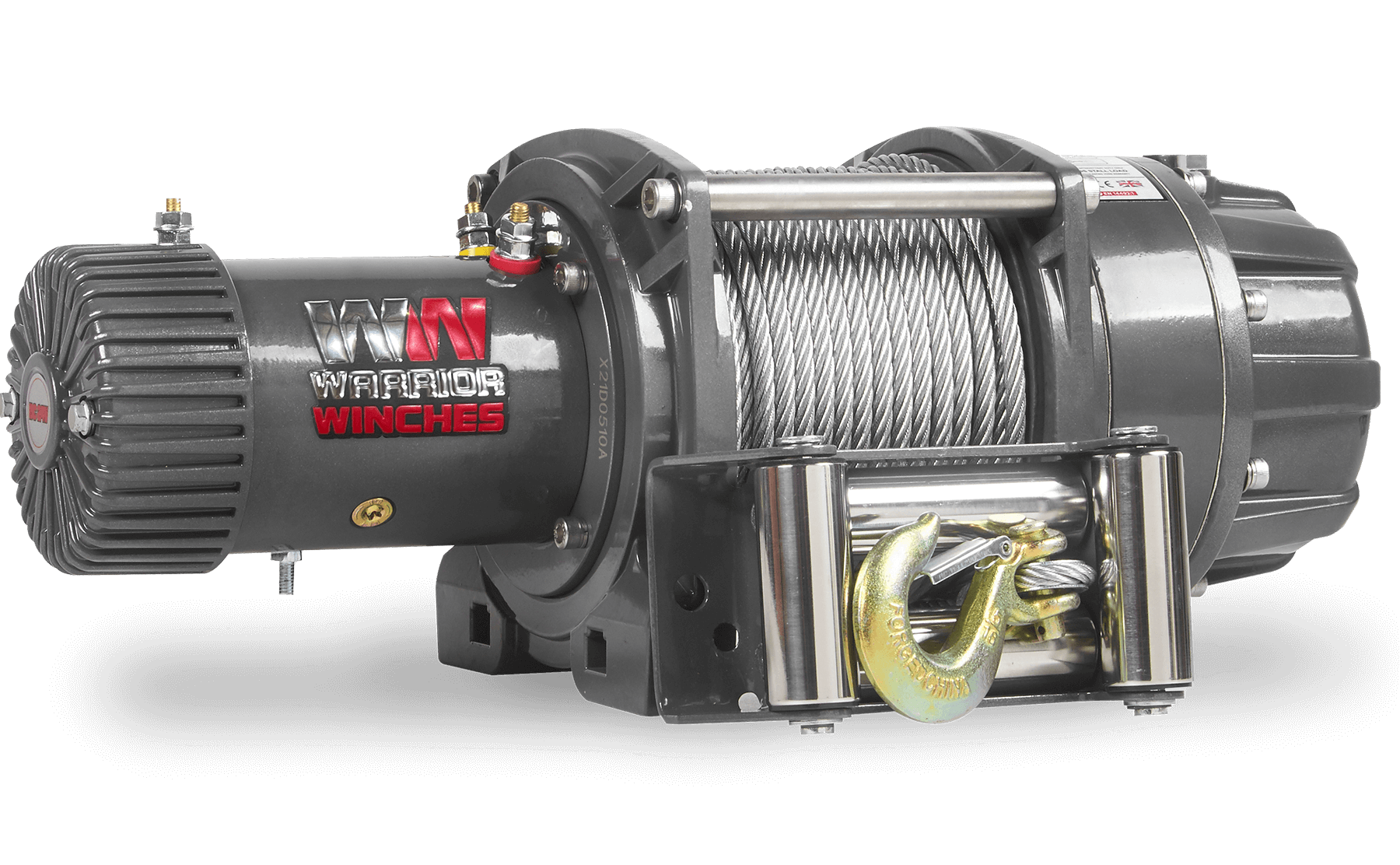

260EHLW24

2600 DC Winch Hoist - 24v

Sale price£1,097.99
Delivery in 2-7 days

Features

  • Powerful Series Wound DC Motor with robust sealing delivers strong, consistent lifting
  • Proven 3-Stage Planetary Gear Train
  • Automatic Cone Brake that holds full rated load
  • Clutchless operation
  • Built-in safety with auto brake and overload protection

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

  1. Choose Paypal at checkout to pay later with Pay in 3.
  2. Complete your purchase with the first payment today.
  3. Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Warrior 2600 DC Lifting Winch is designed to take the strain out of heavy lifting. Whether you're hoisting equipment on a construction site, in a workshop, or in a remote location, this winch gives you dependable power with the push of a button. The high-torque DC motor provides smooth and consistent performance, so you can lift confidently without hesitation or interruption.

Built for professionals who value reliability, the all-metal 3-stage gear train operates with permanent grease lubrication, meaning there's no need for constant maintenance. You’ll spend less time servicing and more time getting the job done. It’s built to withstand repeated use in tough environments, with a focus on performance that lasts.

Safety is at the core of the Warrior 2600’s design. An automatic mechanical brake holds the load securely - even during power loss - giving you full control in every lift. Coupled with integrated overload protection, this system guards against user error and motor damage, providing peace of mind for operators and site managers alike.

The winch is ready to perform in all weather conditions thanks to its fully sealed, IP68-rated control box. Whether you're working in rain, dust, or mud, the electronics remain fully protected, helping prevent costly delays or failures due to environmental exposure.

Its heavy-duty steel frame and robust cast steel drum not only ensure structural strength but also offer generous rope capacity. This means more flexibility on the job, allowing for higher lifts or longer reaches - ideal for more complex or variable lifting requirements.

Conforms to part of BS EN 14492-1.

Max Load 2600 lbs (1180kg)
Motor 24V: Input: 6.1kW / 8.2hp; Output: 3.1kW / 4.2hp
Gear Ratio 370:1
Lift Height 28m
Lift Speed 7.5 m/min
Cable Material Steel
Cable – Dia x L 8.1mm x 28m
Rating IP68

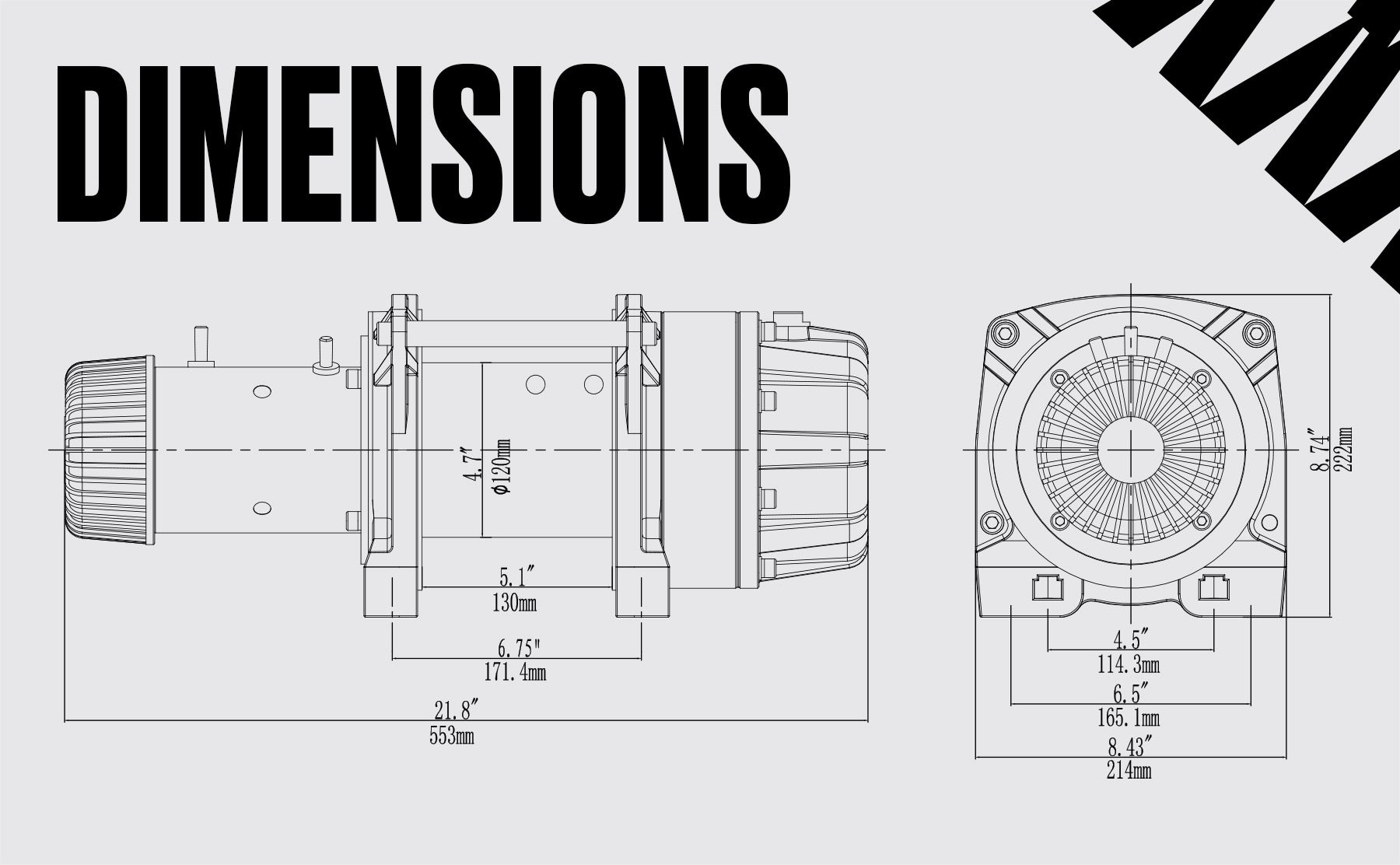

Dimensions 553 x 214 x 222 mm
Mounting bolt pattern 171.4 × 114.3 mm
171.4 × 165.1mm
Warranty 1 Year
Certification CE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 2600 (1180) 19.7 (6)
2 2253 (1022) 41 (12.5)
3 1988 (901) 65.6 (20)
4 1700 (770) 91.8 (28)
Line Pull Line Speed ft/min (m/min) Amp Draw
lbs (kgs) 12v 24v
12v
24v
0 24.6 (7.5) 27.5 (8.4) 60 35
1000 (453) 19.4 (5.9) 23.3 (7.1) 80 40
2000 (907) 14.8 (4.5) 18.7 (5.7) 110 55
2600 (1180) 12.5 (3.8) 15.7 (4.8) 125 65

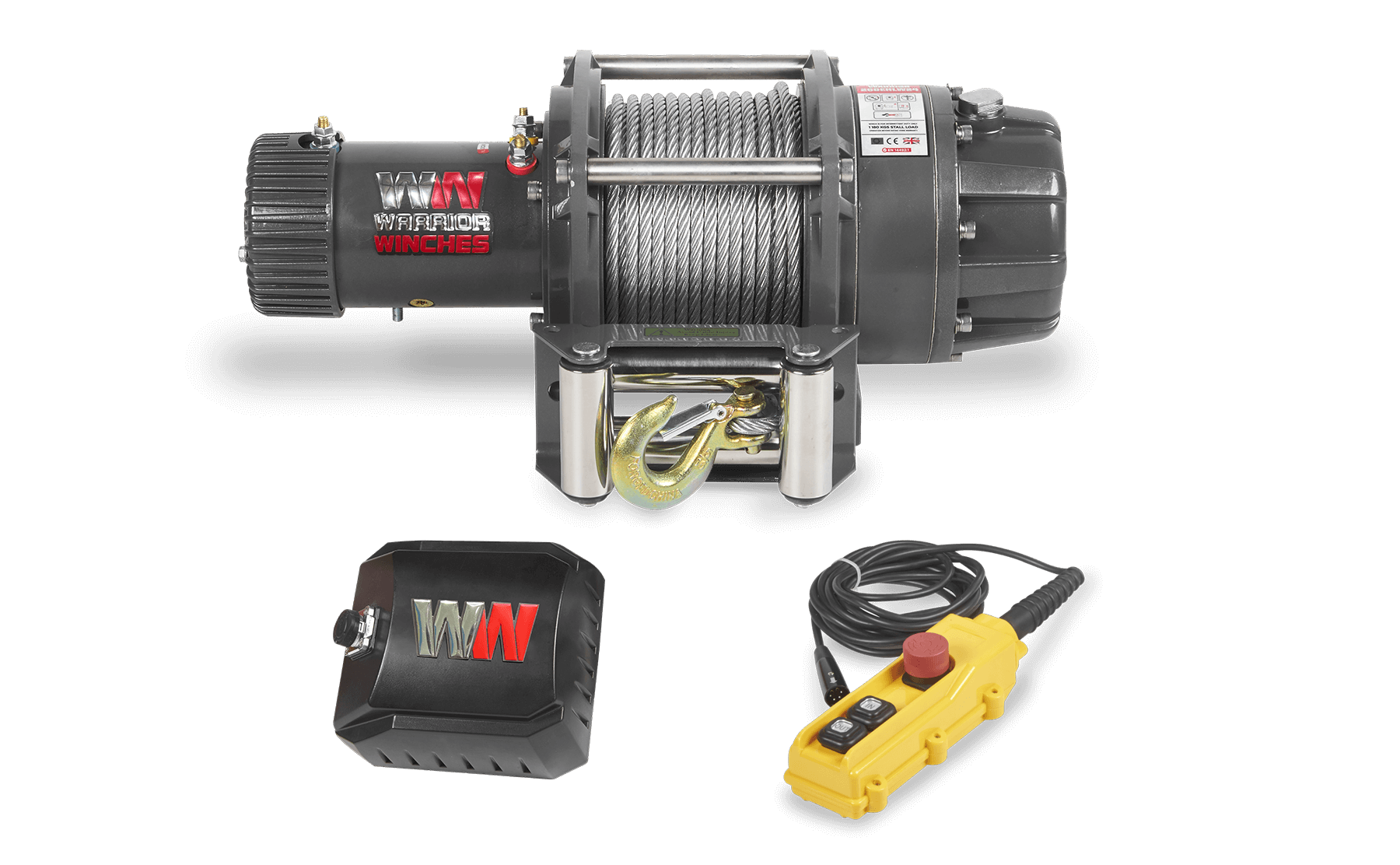

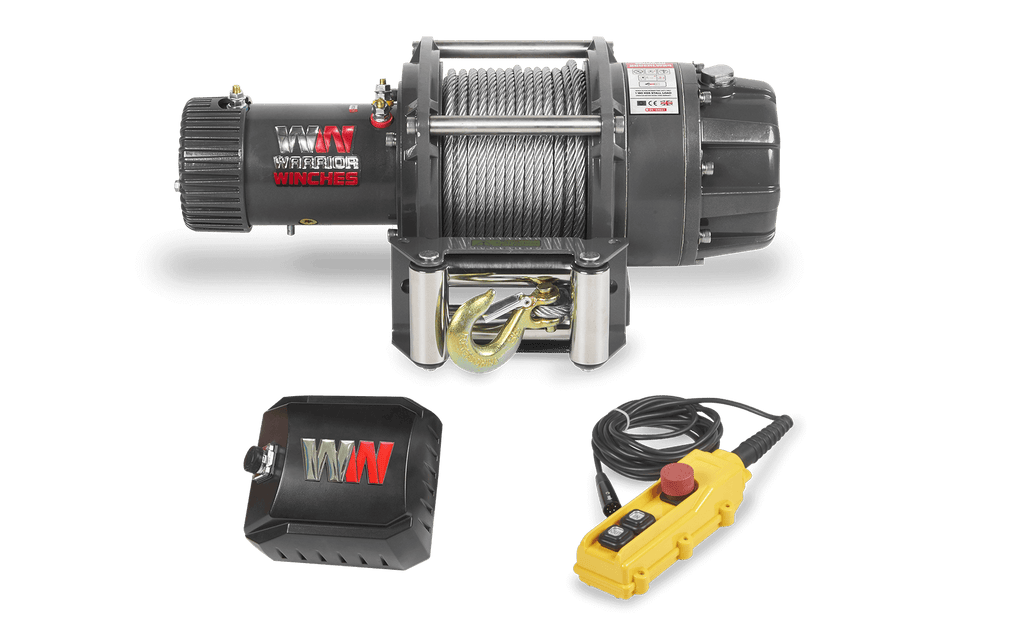

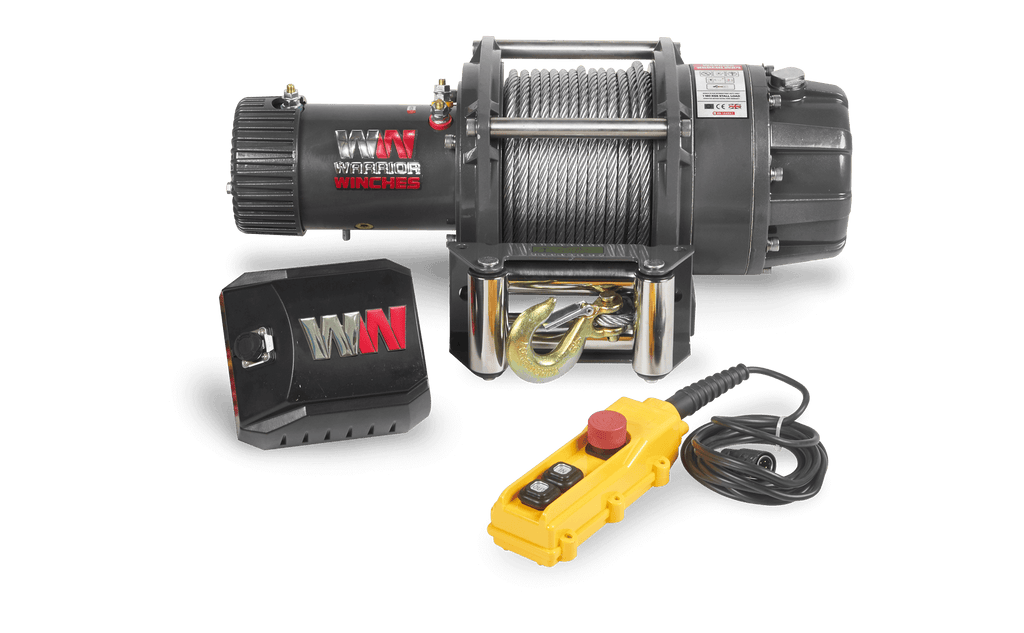

  • DC Winch Hoist
  • Steel Winch Rope
  • Heavy Duty Hook
  • Hand Remote Handset with Emergency Stop
  • Watertight Contactor
  • Mounting Hardware (nuts/bolts)
User Manual Download

1 Year Warranty

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for 1 year of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (1) one years (12 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
