Trojan 4000 Portable Utility Winch

SKU EAN
Synthetic Rope 40PUA12 5060423985358
Steel Rope 40PUS12 5060423985365

Rope: Synthetic Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

Features

  • A complete winching solution in a box
  • Built in 1/4 inch hardened steel plate

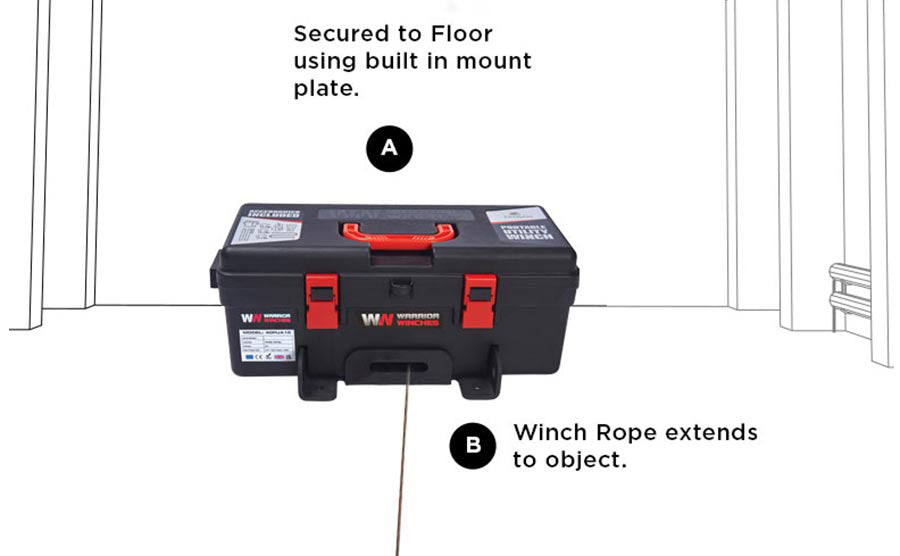

  • Can be permanently mounted

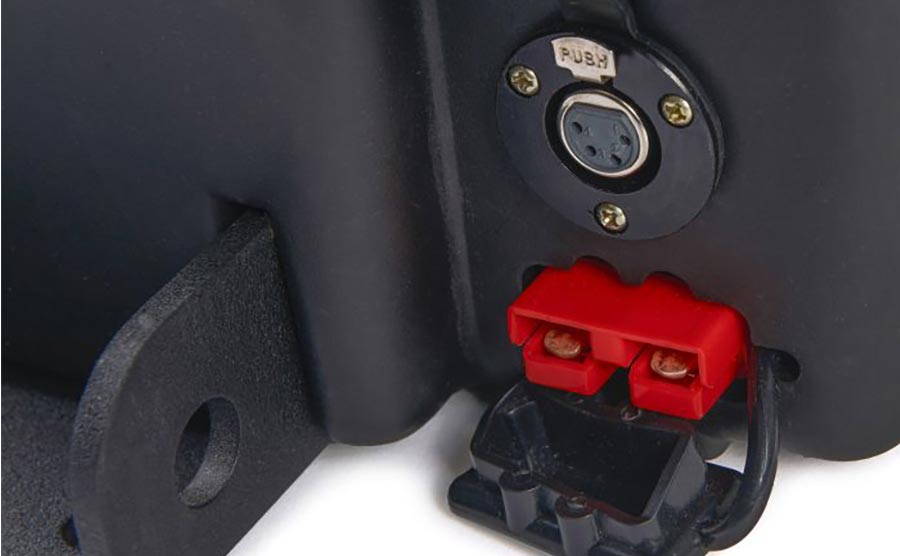

  • Quick plug and play functionality
  • 4000 lb Pulling Power

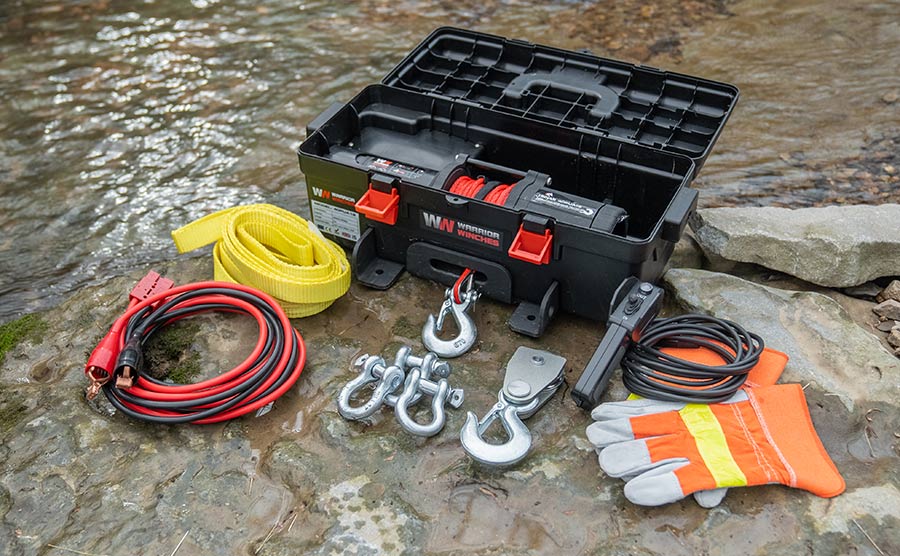

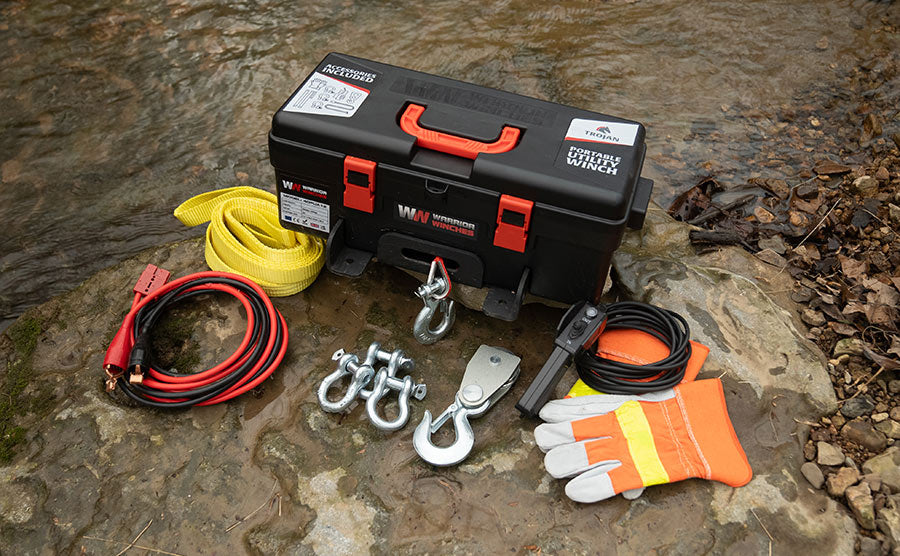

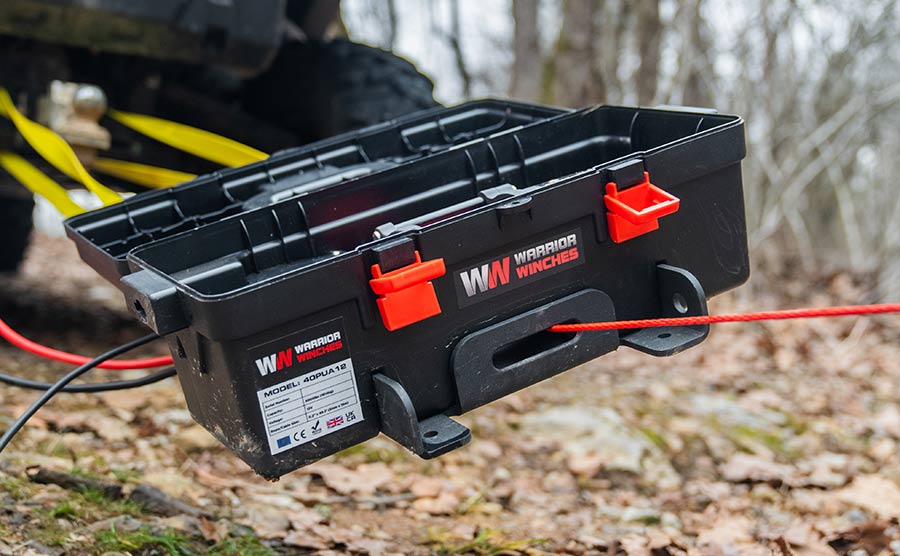

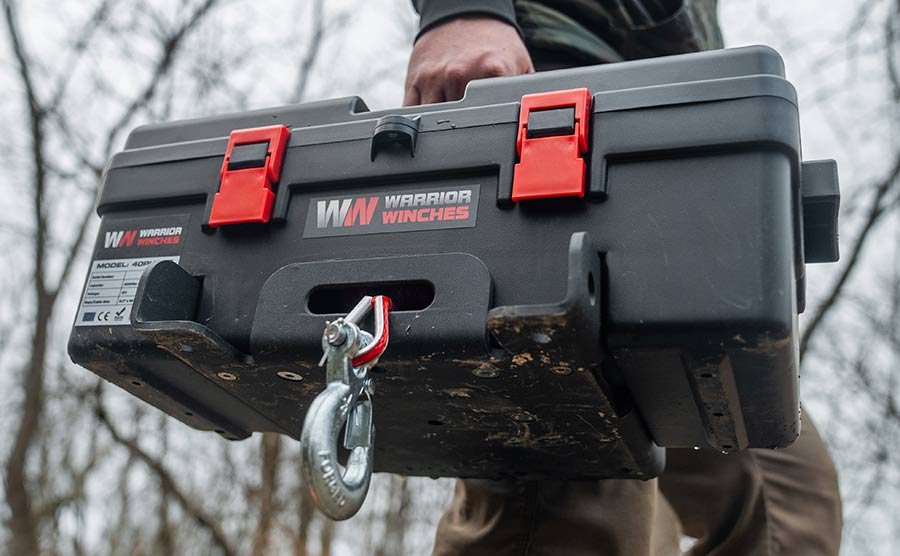

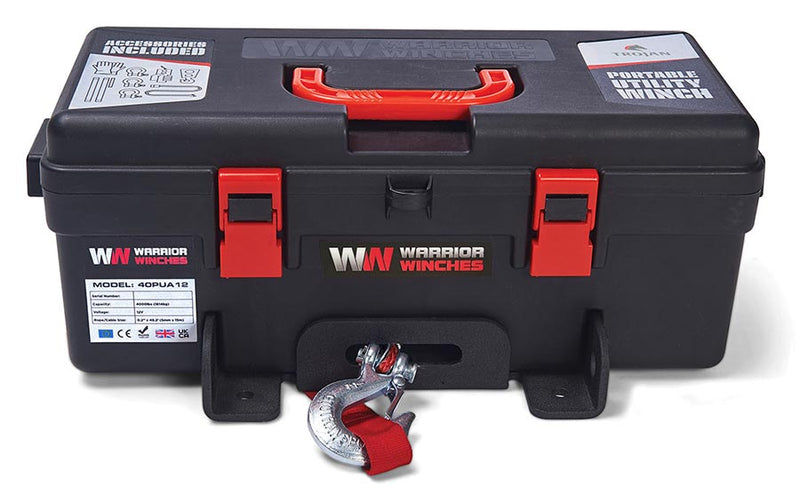

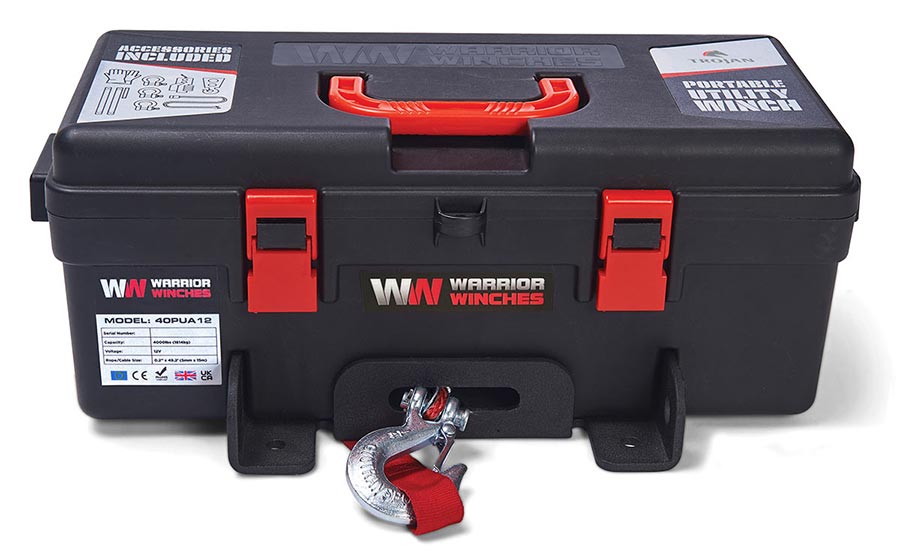

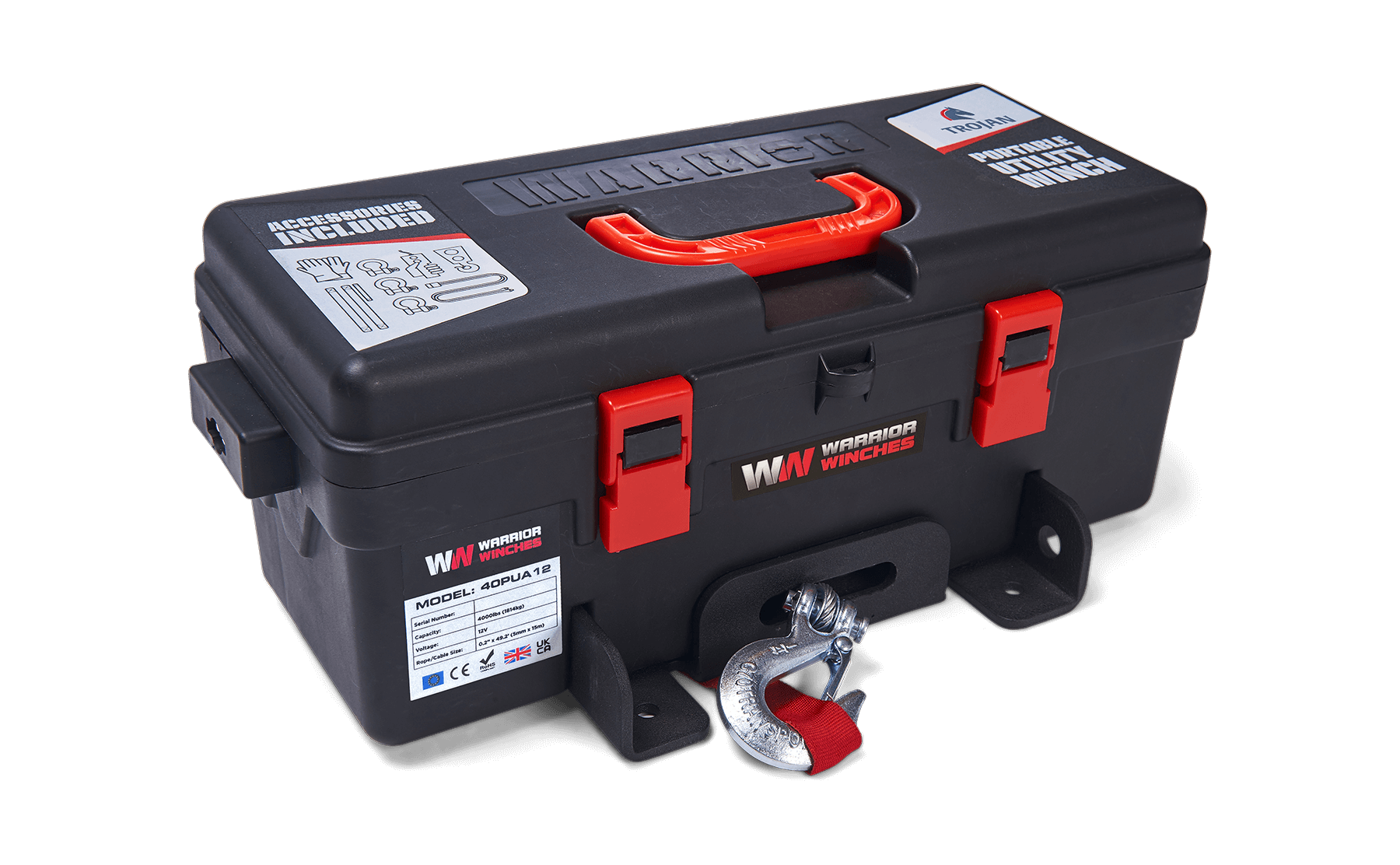

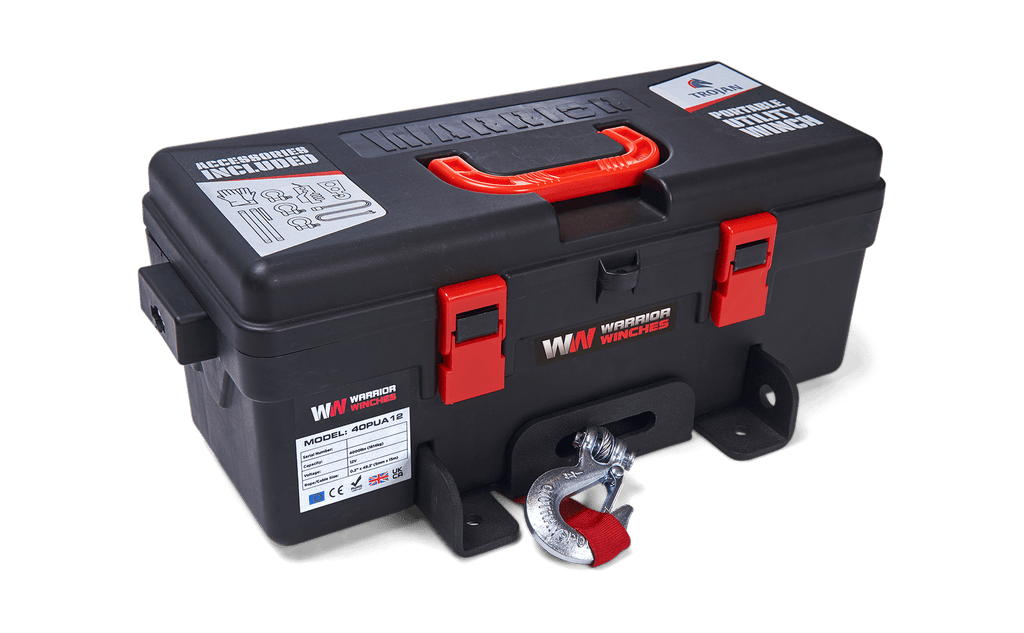

The Trojan Portable Utility Winch is a complete winching solution in a convenient kit that features a 4,000 lb rated line pull winch on a unique powder coated winch platform, all in a compact, easy to carry composite tool box. The kit is easy to store, use, and repack.

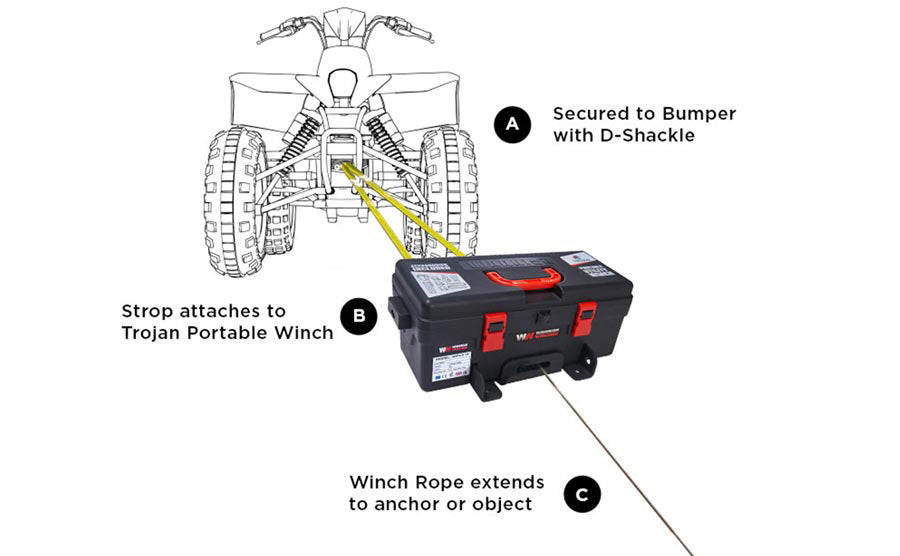

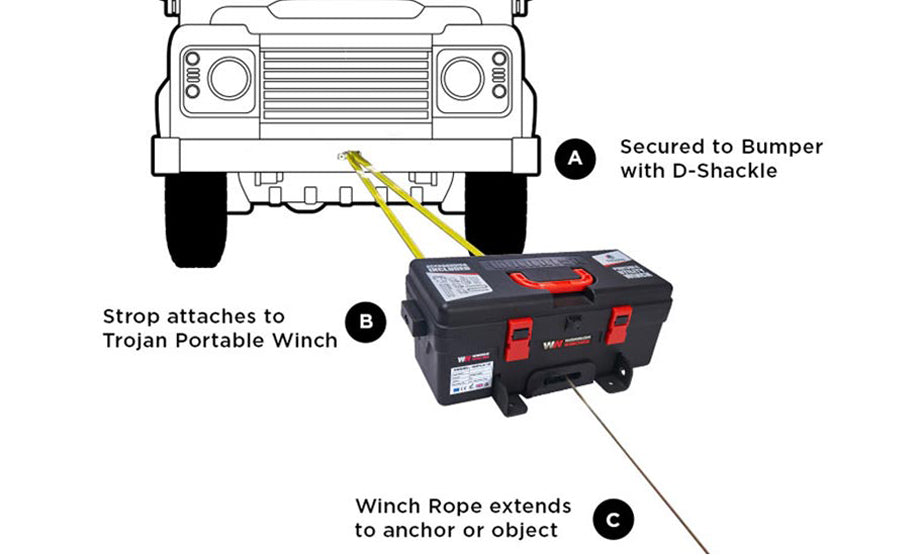

Completely portable, the Trojan requires no installation and does not require a winch mount; however, it can be permanently mounted on a trailer and be used as a utility winch if desired.

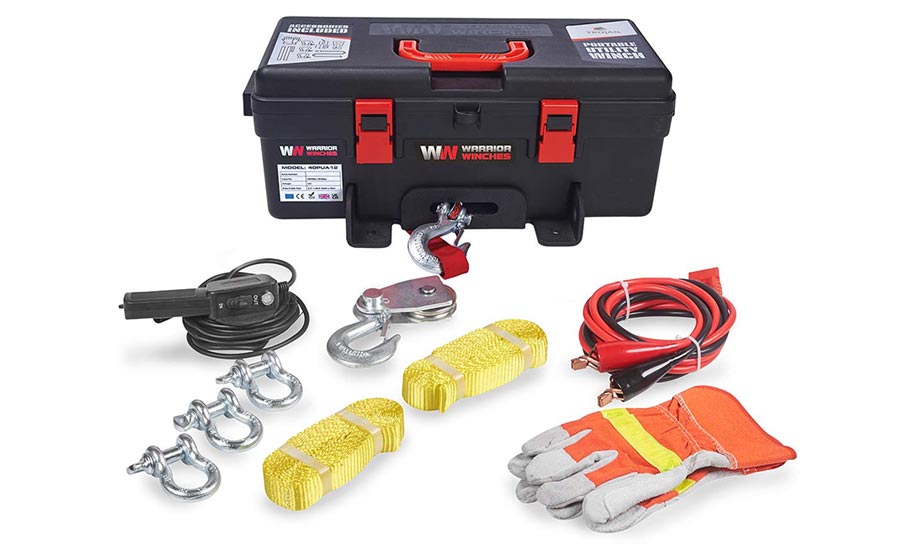

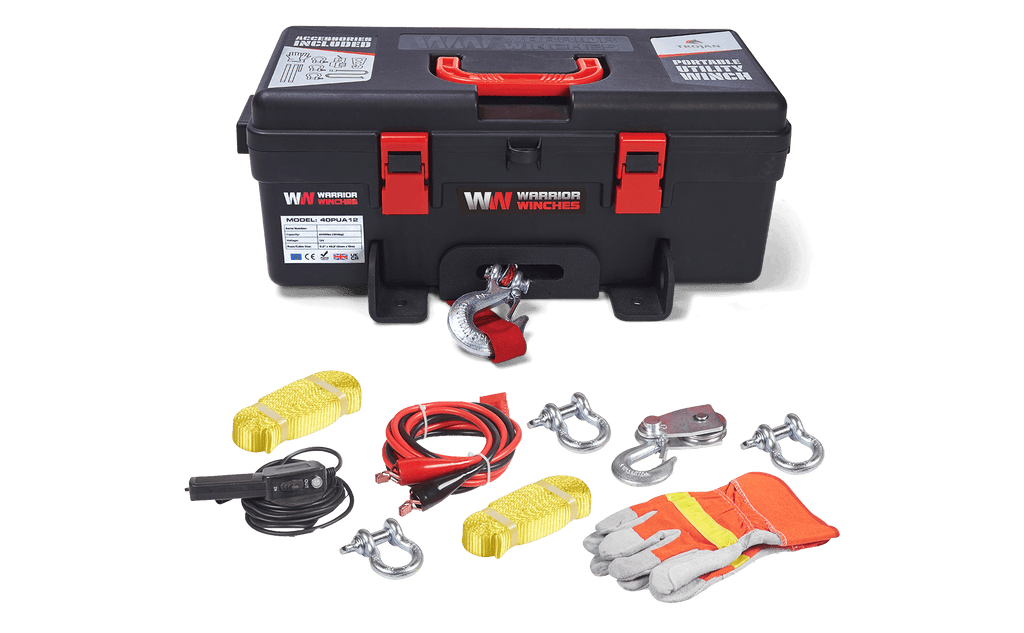

Included with the Trojan

  • 4000lb Warrior Winch
  • Wire or Synthetic Winch Rope with hook
  • Quick Connect Cord With Alligator Clips
  • Heavy Duty Leather Palmed Winch Gloves
  • 6 000lb Pulley Block

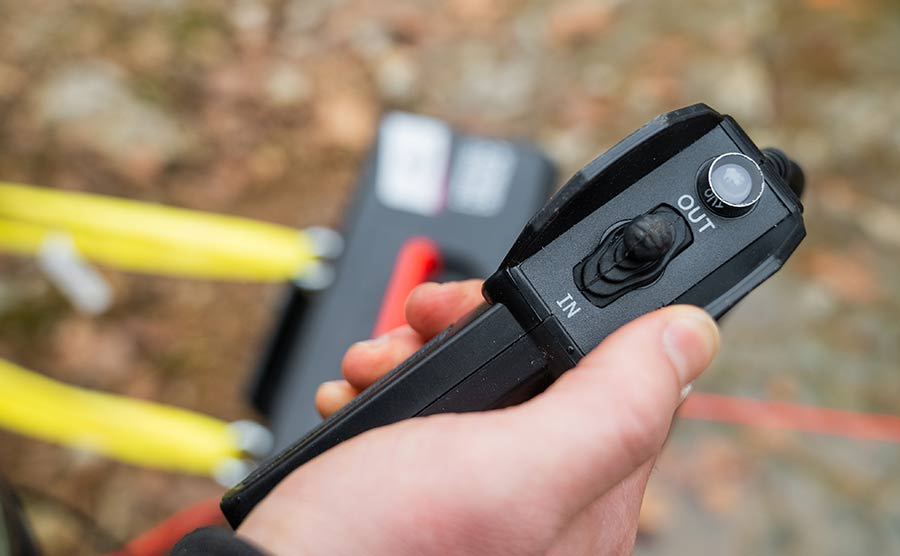

  • 3.6m (12ft) Hand Remote
  • Three 20 000lb D-shackles
  • Two 8ft Heavy Duty Straps Rated 8 000lbs

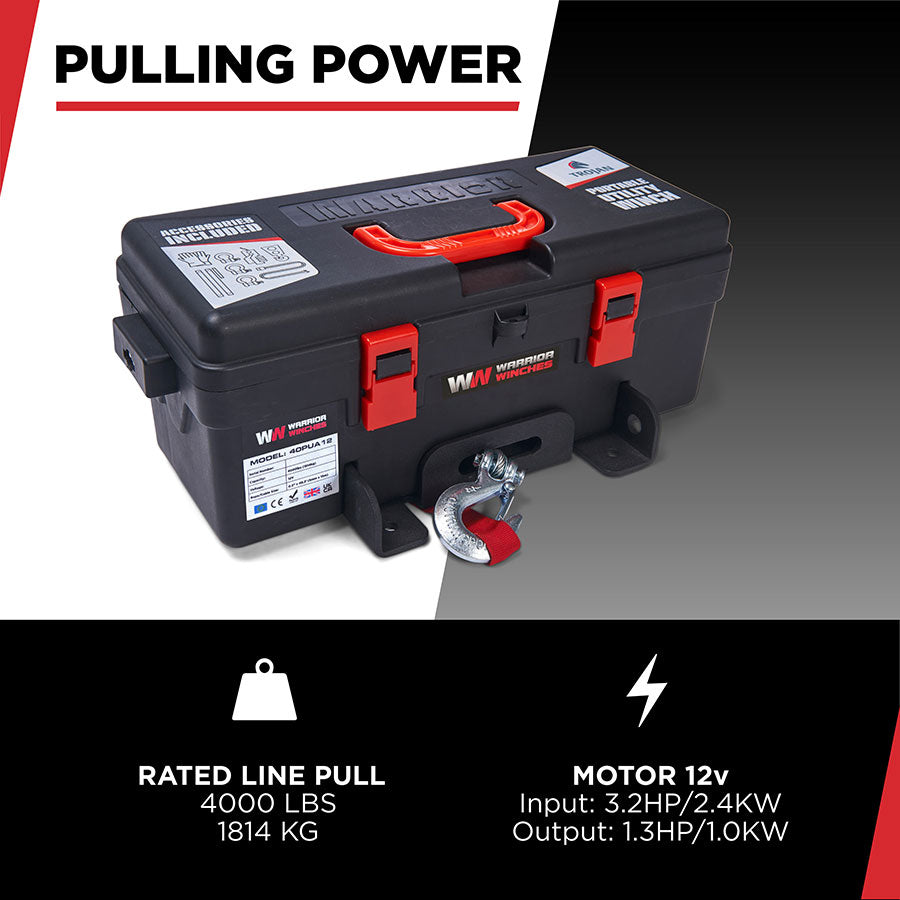

    Rated Line Pull4000 lbs
    Motor Type12V: Input: 3.2hp / 2.4 kW; Output: 1.3hp / 1.0 kW
    Rated Volt12
    Gearing166:1
    ClutchManual
    Braking ActionAuto in the drum
    Drum Size (Dia x L)50.4 x 82 mm
    Cable MaterialSteel or Synthetic
    Cable – Dia x LSteel: 5.4mm x 12.8m
    Synthetic: 5mm x 15m

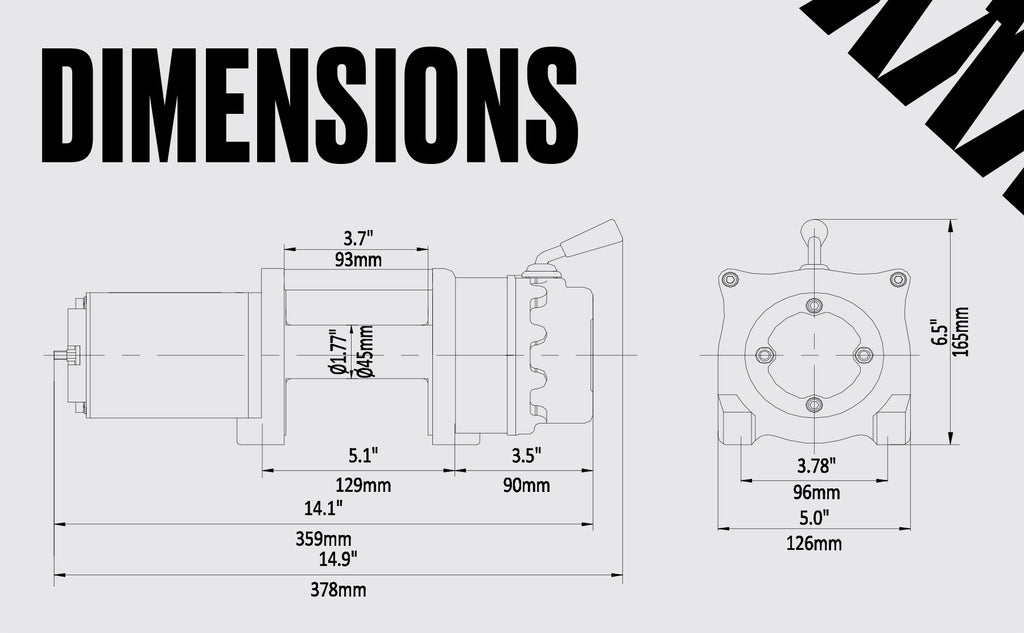

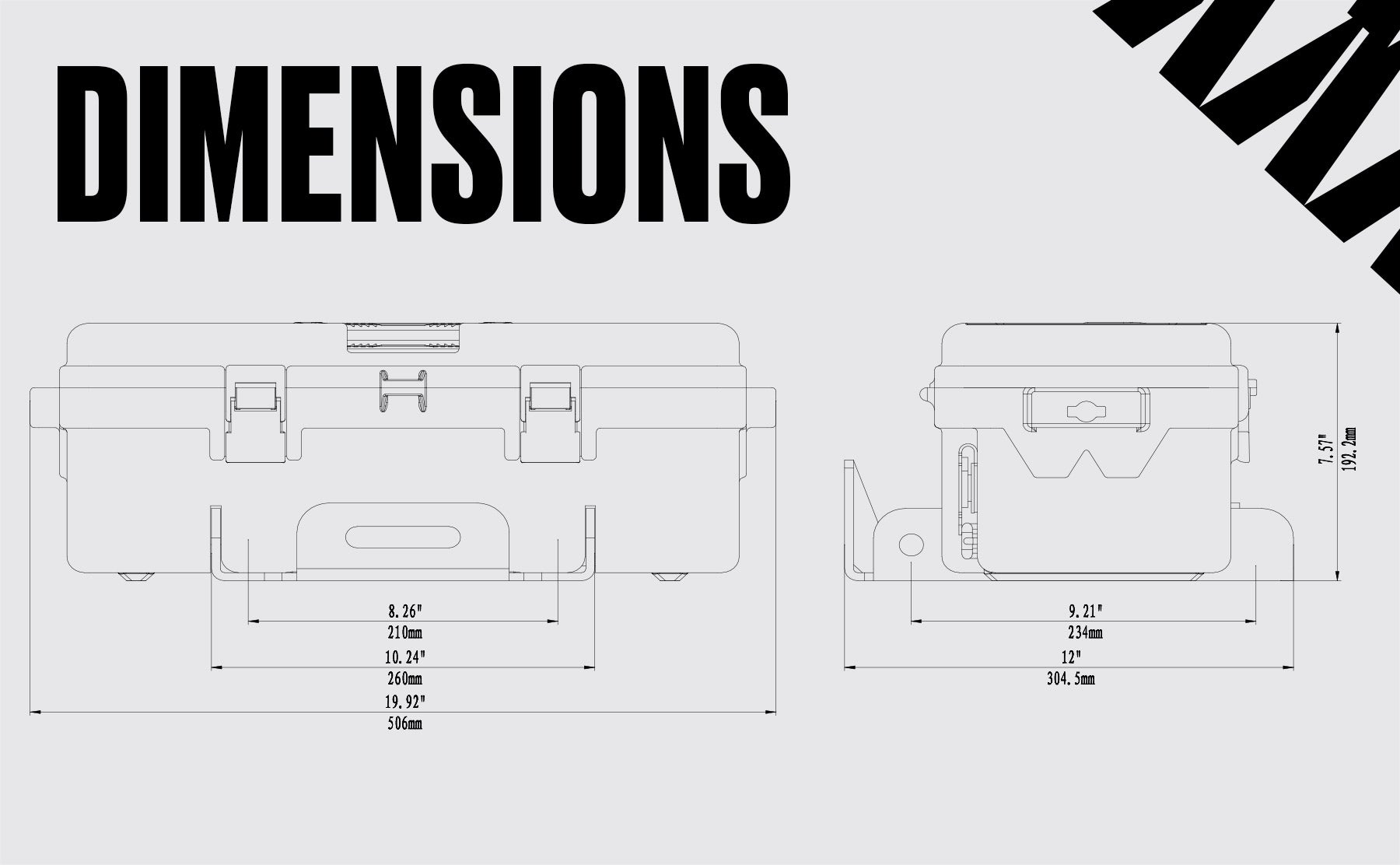

    Mounting Pattern210mm × 234 mm mm

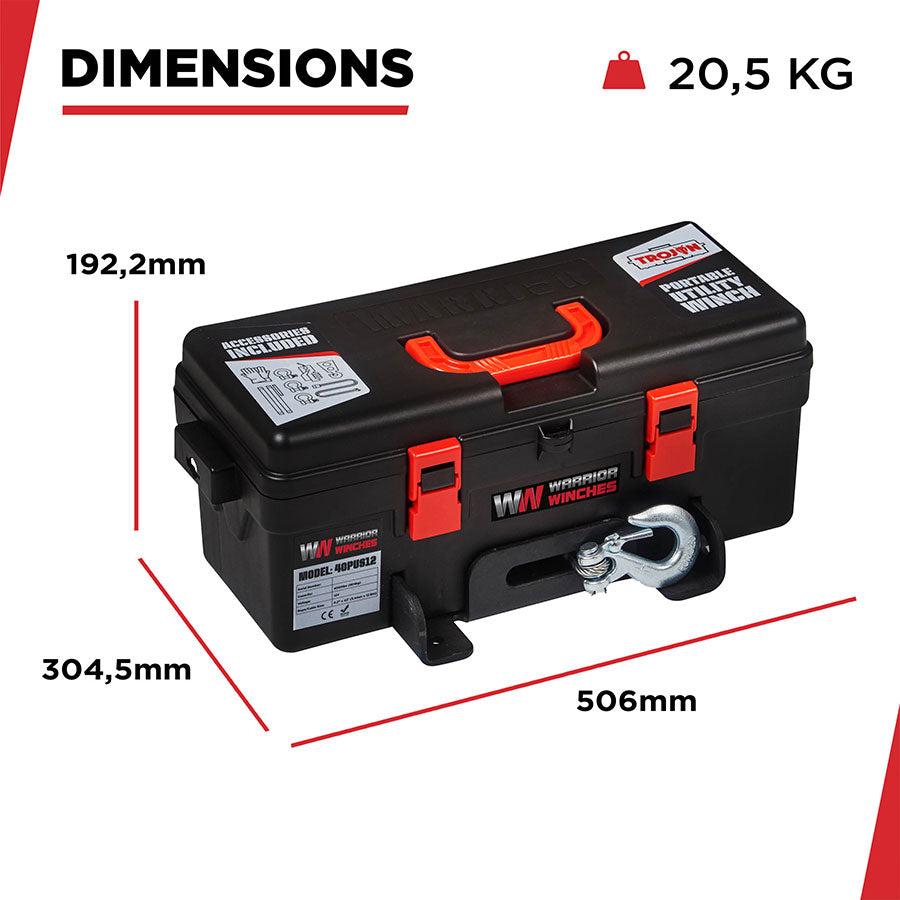

    Dimensions506 x 192 x 304 mm
    Weight20.5 kg
    Warranty3 Years
    CertificationCE



    Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
    1 4000 (1814) 8.5 (2.6)
    2 3351 (1520) 18.7 (5.7)
    3 2883 (1307) 29.8 (9.1)
    4 2530 (1147) 42.0 (12.8)
    Line Pull
    lbs (kgs)
    Line Speed 12v
    ft/min (m/min)
    Amp Draw
    12v
    0 14.4 (4.4) 28
    1000 (454) 9.8 (3.0) 80
    2500 (1135) 7.2 (2.2) 150
    4000 (1814) 4.9 (1.5) 190

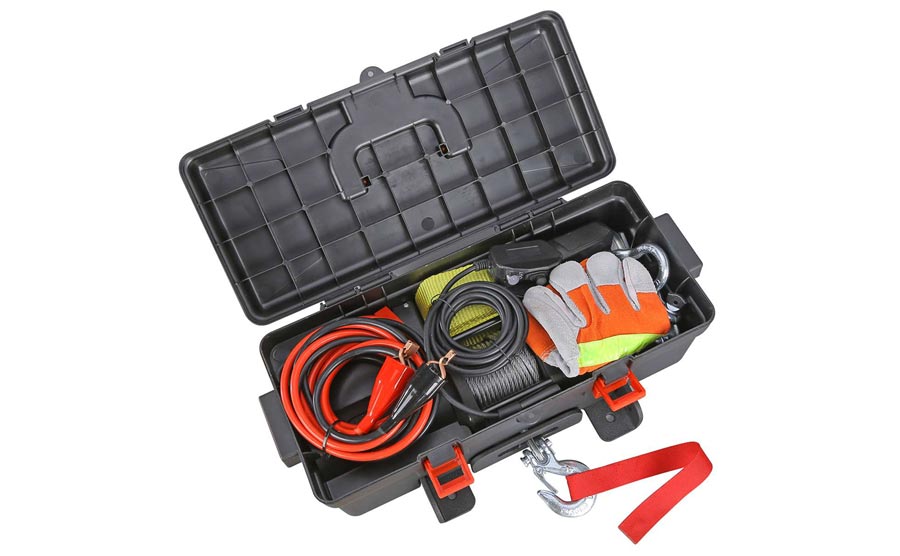

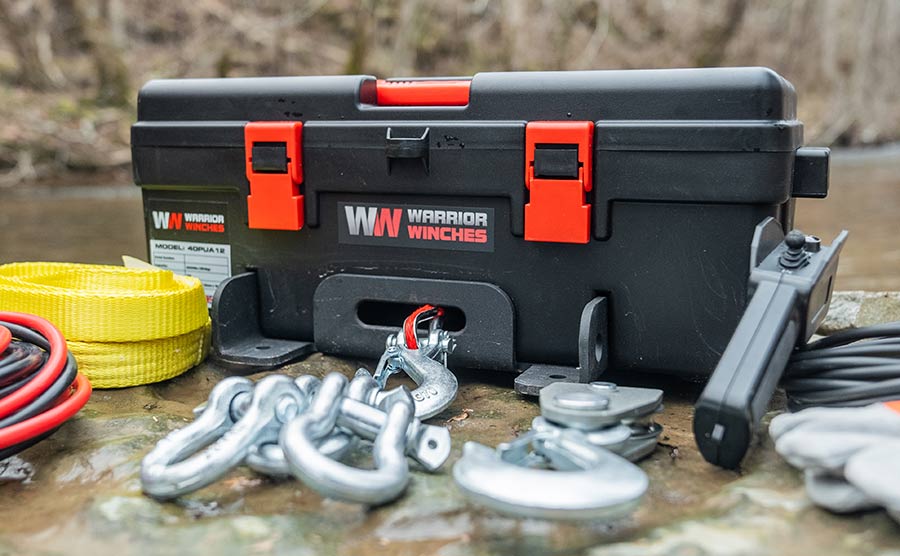

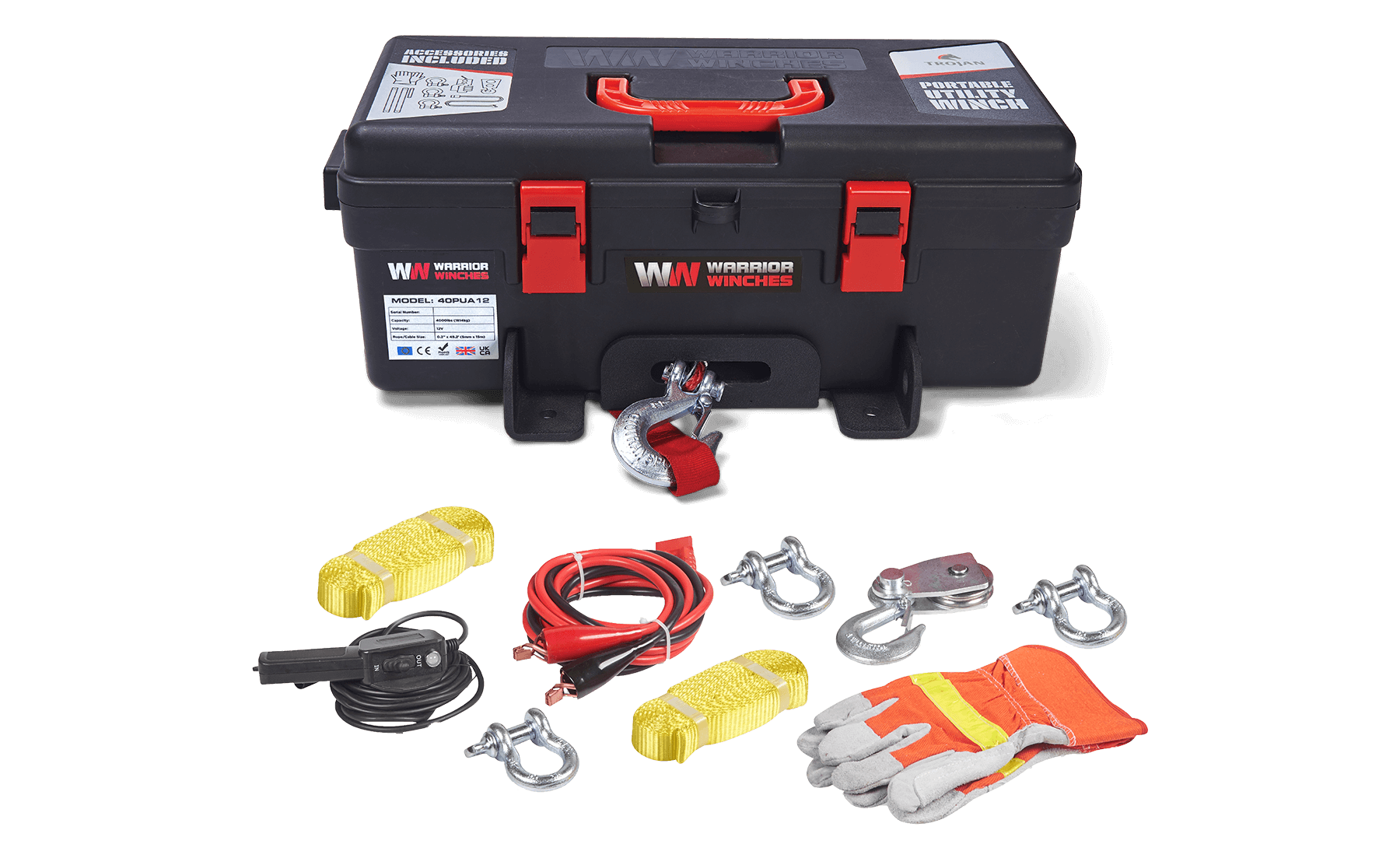

    What's in the box:

    • Warrior 4000 lb Winch with either Synthetic or Wire Rope
    • Quick Connect Cord With Alligator Clips
    • Heavy Duty Leather Palmed Winch Gloves
    • 6 000lb Pulley Block
    • 3.8m (12.5ft) Hand Remote
    • Three 14 000lb D-shackles
    • Two 8ft Heavy Duty Straps Rated 8 000lbs
      User Manual Download
      Technical Drawing Download
      Brochure Download
      Parts List Download

      Limited lifetime with 3 year on electrical

      Winch Solutions are the sole distributors of WARRIOR WINCHES.

      Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

      The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

      Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

      All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

      To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

      The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

      This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

      This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

      Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

      Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
