Predator 10000 Dual Performance Winch

Discontinued
SKU EAN
Excluding Rope 10EWS12 5060423981756
Synthetic Rope 10EWA12 5060423982760

Rope: Excluding Rope

Features

  • Designed for hardcore competition
  • Two powerful 7.2HP sealed motors
  • 10,000LB (4,546KG) Pulling Power
  • External drum prevents heat transferring to rope
  • Off-load line speeds from 20m per minute

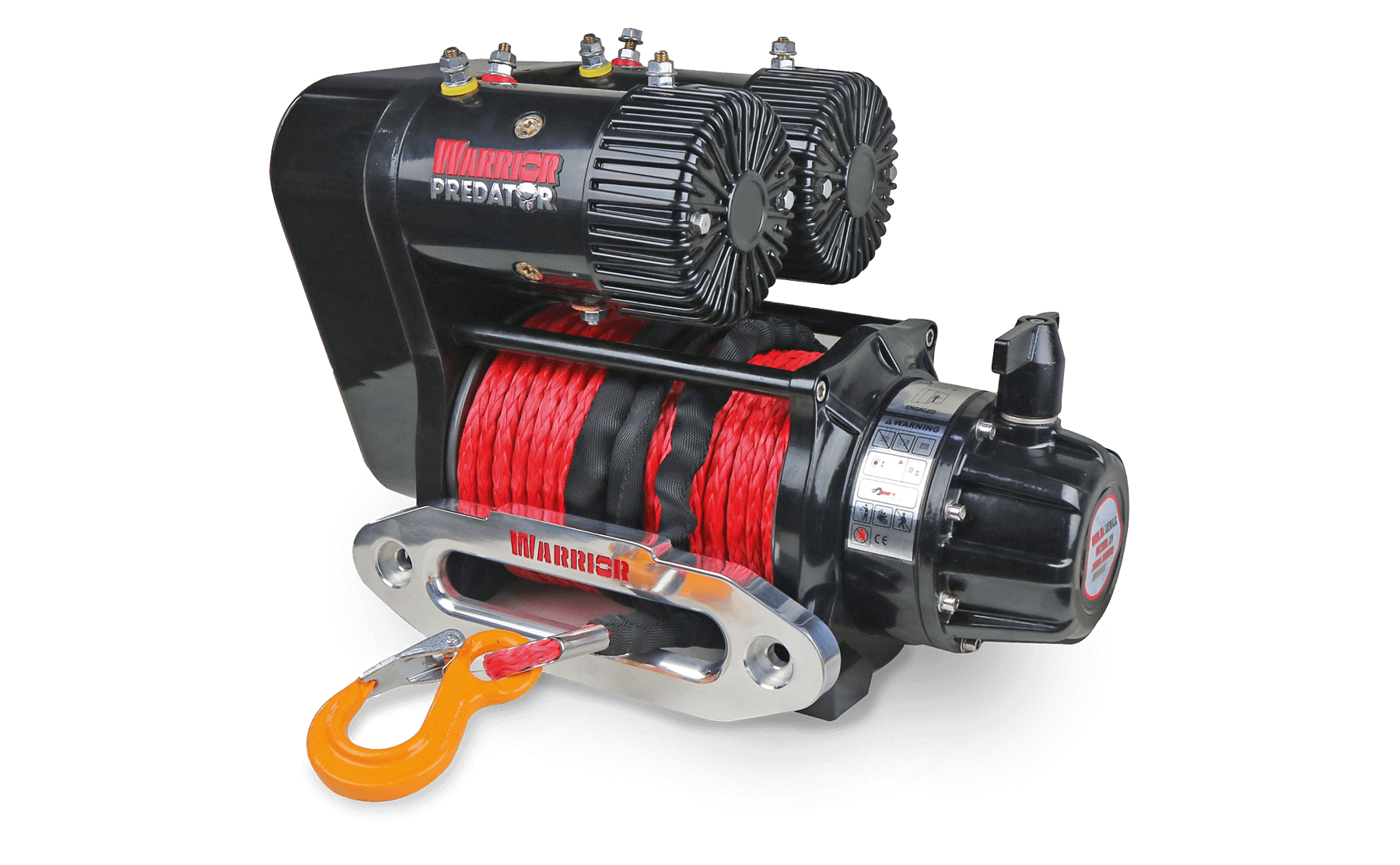

The Predator 10,000LB (4,546KG) Dual Motor Electric Winch is designed for hard-core competition. Two powerful 7.2HP sealed motors provide a performance that is truly out of this World, coupling this with a 108:1 ratio 3 stage planetary gearbox enables this performance winch to handle even the most extreme off-road punishment.

With a surprisingly low draw of only 140 amps (at no load), the Predator also contains an innovative 'multi stop' 10% ratchet brake design, which provides zero drag when returning the 'cable in', and is situated away from the drum to prevent any damaging heat transferring to your Armortek or Synthetic rope.

The steel drum flanges are precision machined to 10mm on either side to resist the unique loading characteristics of synthetic rope, while the Alloy Carbon gears are heat treated and tempered to 62HRc rating for extra strength. This Warrior from another dimension will mercilessly prey on its weaker rivals, hunting the opposition down. At 10kg lighter than any of its nearest competitors, with off-load line speeds from 20m per minute & available with or without synthetic rope, there's a Predator out there, ready & waiting, for everyone!

Rated Line Pull10000 lbs
Motor Type7.2hp / 5.4kw
Gearing80:1
ClutchManual
Braking ActionAuto in the drum
Drum Size (Dia x L)72 x 214 mm
Cable MaterialSynthetic
Cable – Dia x L9mm x 38m
Mounting Pattern254 x 114.3 mm
Dimensions479 x 262 x 355 mm
Weight45.0 kg
Warranty3 Years
CertificationCE



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 10000 (4536) 18.4 (5.6)
2 8153 (3698) 41.0 (12.5)
3 6881 (3131) 68.9 (21)
4 5953 (2700) 101 (30.8)
5 5245 (2379) 131.2 (40)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 66 (20) 150
4000 (1816) 22.6 (6.8) 420
6000 (2722) 18.7(5.7) 580
8000 (3629) 15.7(4.8) 700
10000 (4536) 12.8(3.9) 860

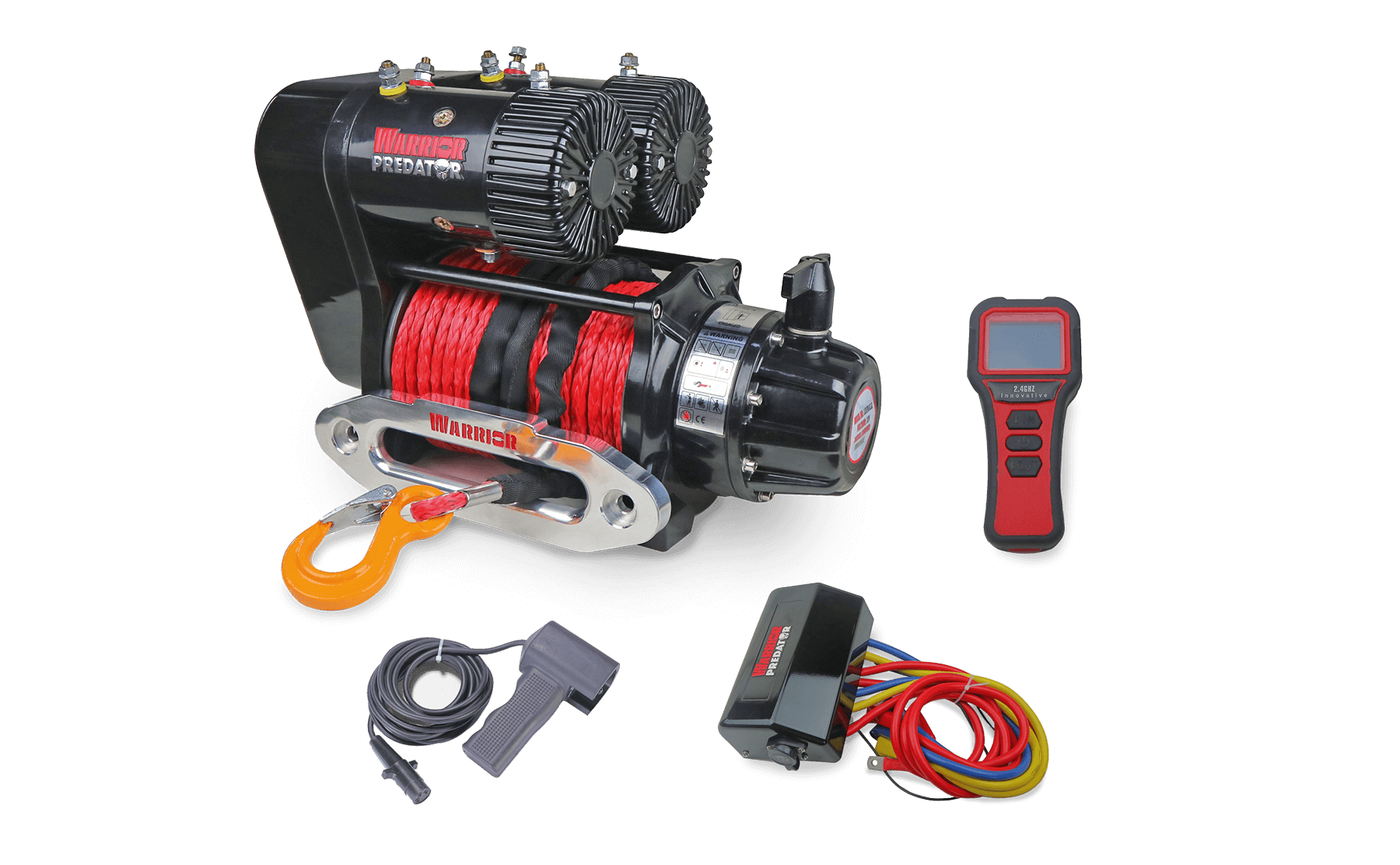

What's in the box:

  • Predator Winch Winch
  • Aluminium Hawse Fairlead
  • Synthetic Rope OR Available without rope
  • Heavy Duty Battery Leads
  • Heavy Duty Wired Remote handset
  • Wireless Remote with LCD Display
  • 12 ton Competition Hook

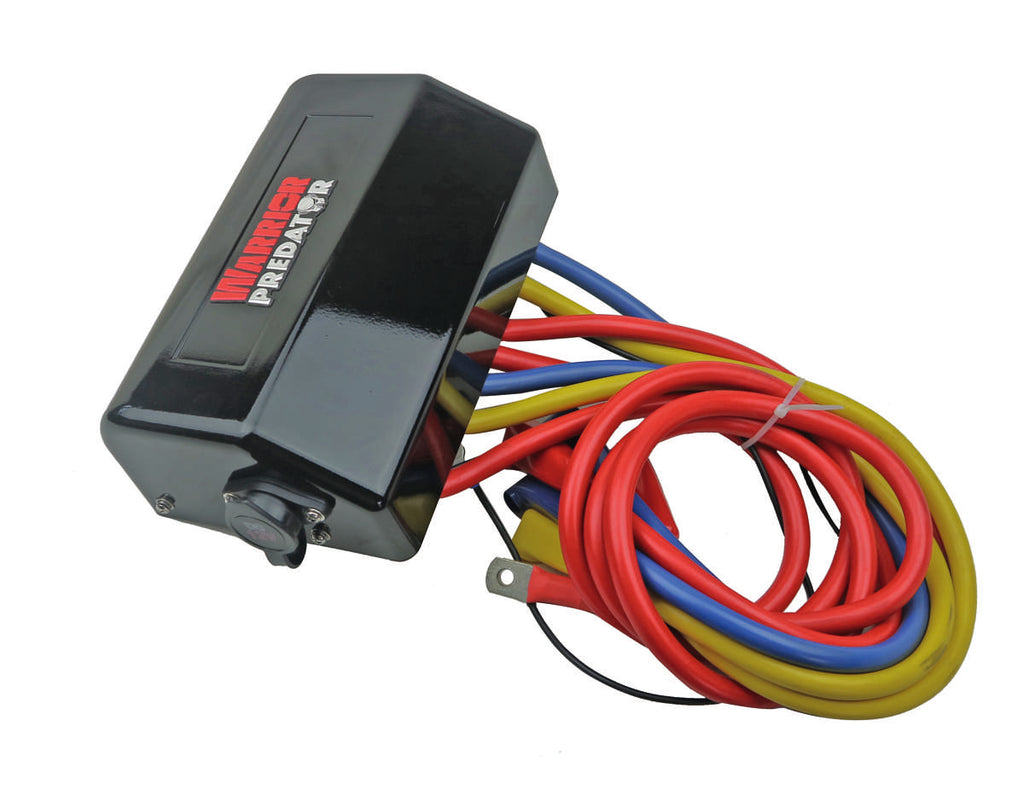

  • Predator Contactor Pack
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
