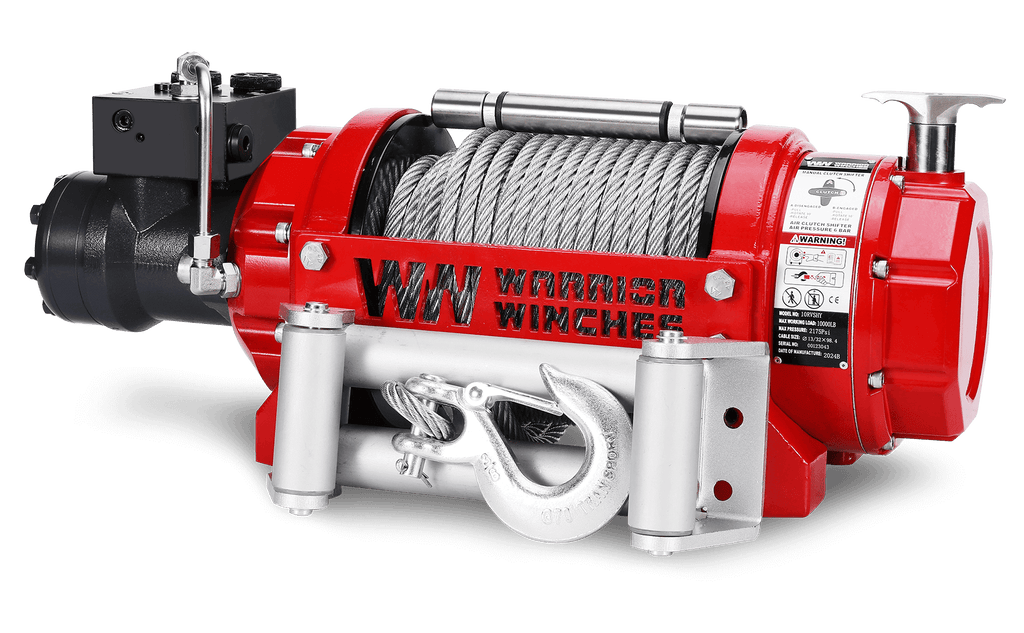

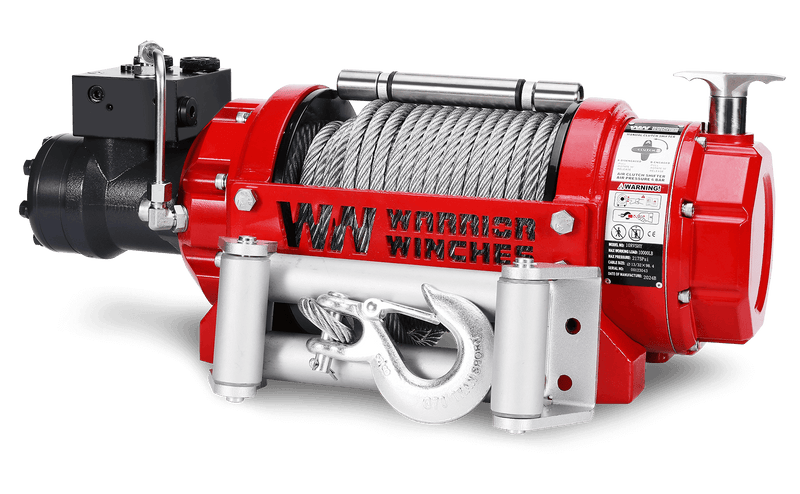

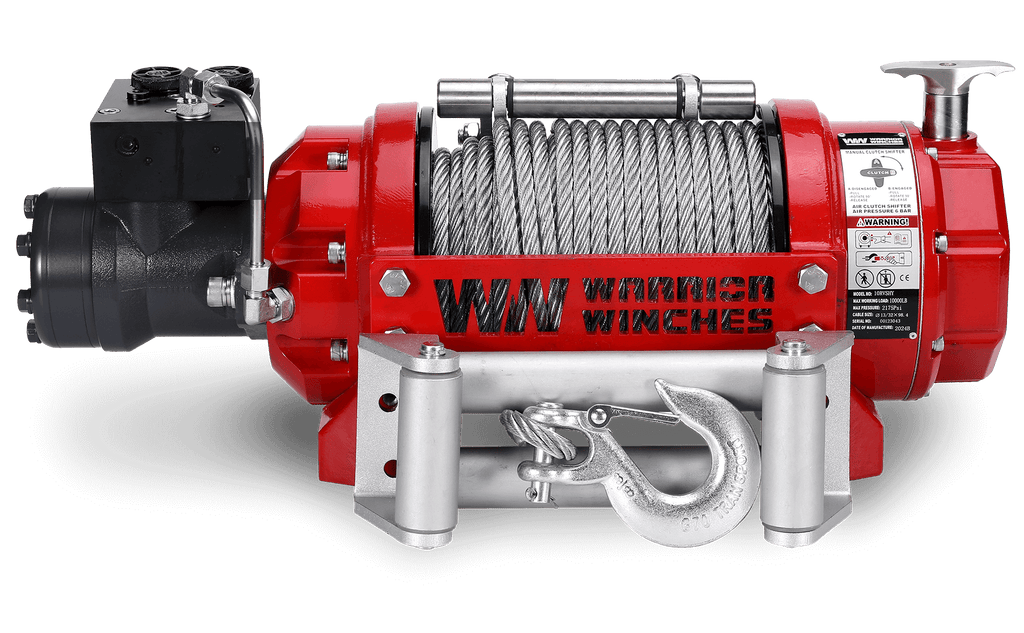

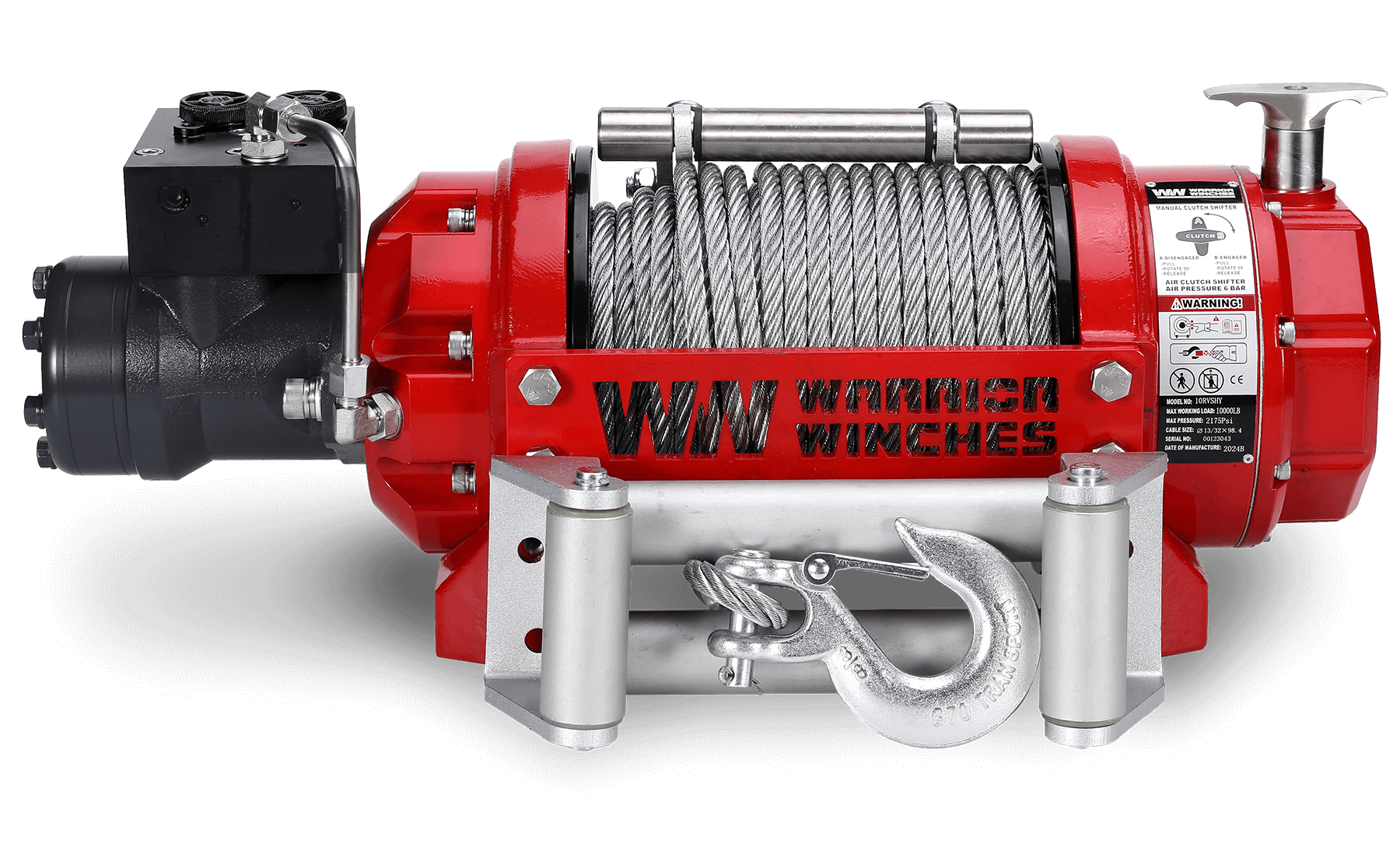

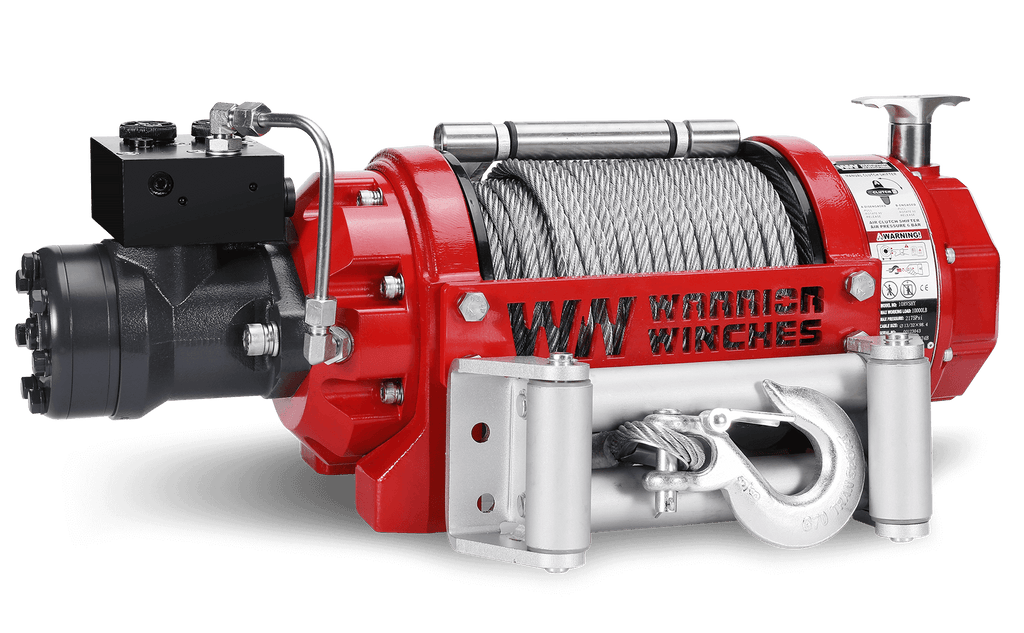

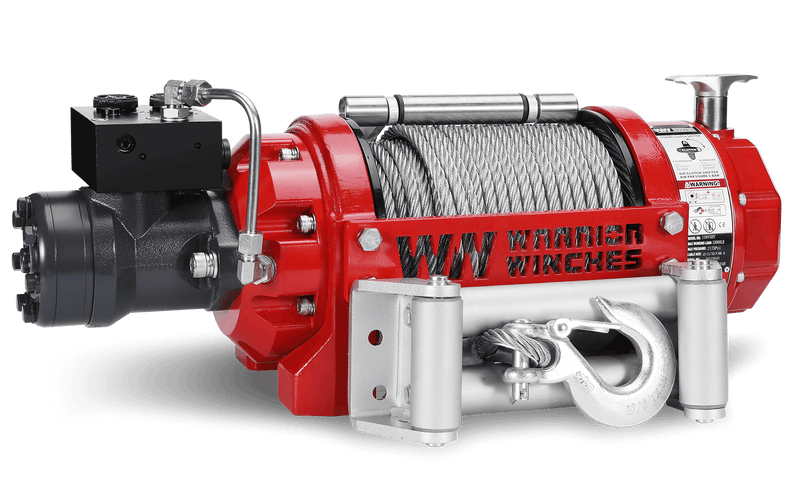

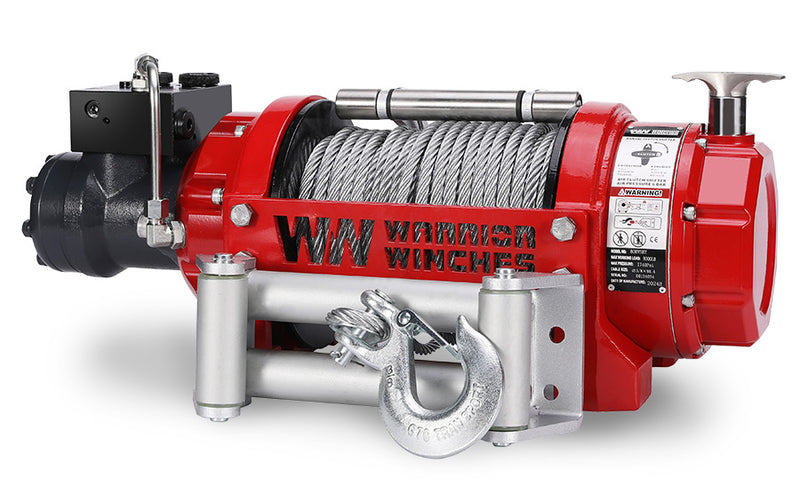

RV 8000 Hydraulic Winch

SKU EAN
80RVSHY 5060423982944

Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

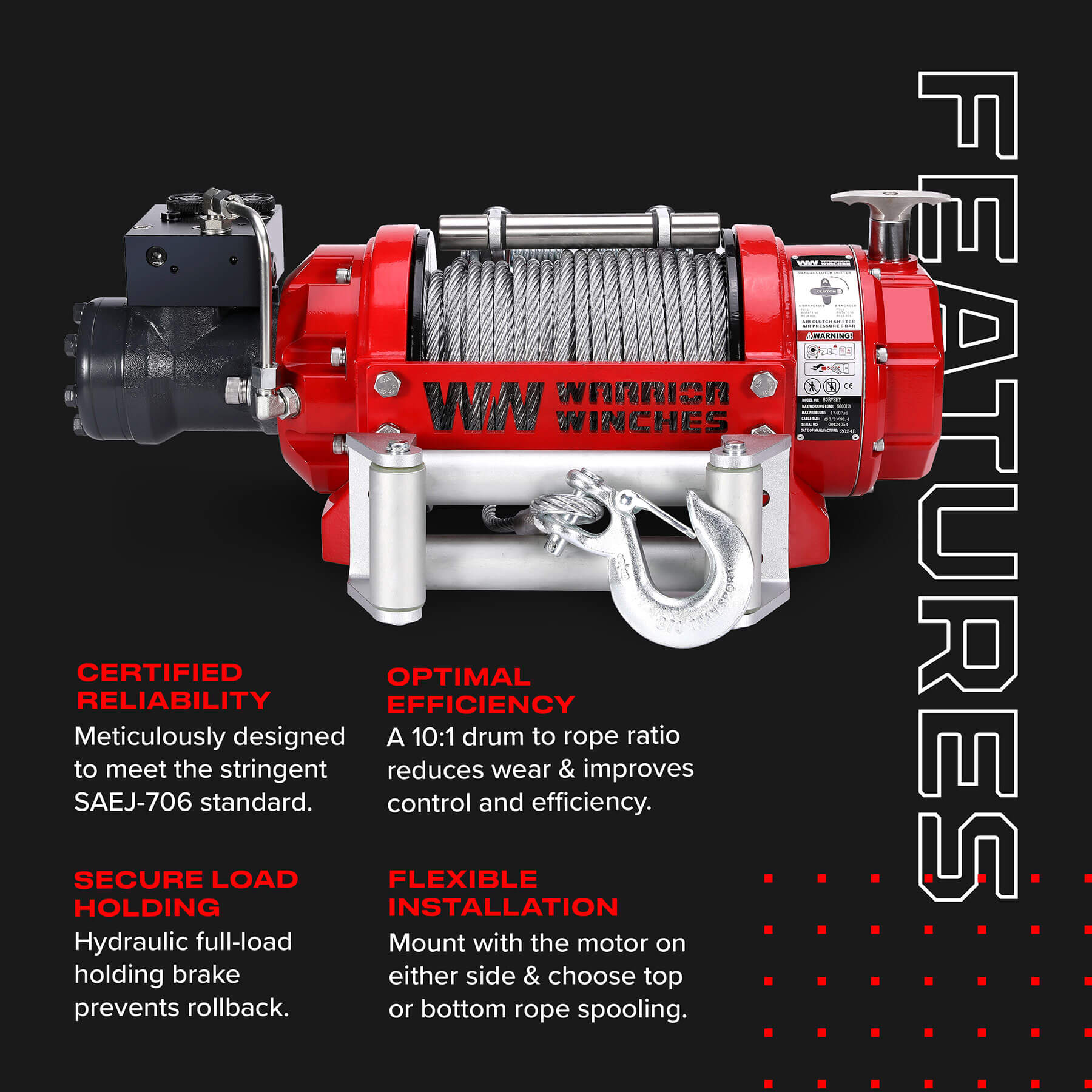

Features

  • EN14492-1 / Machinery Directive 2006/42/EC
  • Drum to rope Ratio 10 : 1
  • Wire Rope 2 : 1 Safety Factor
  • Hydraulic Full Load Holding Brake
  • Rope fixing 2.5 Times rated Load
  • Reversable Orientation: These winches can be mounted with the motor on the left or right with the rope spooling from top or bottom.

The RV Series of hydraulic winches meet EN 14992 & SAEJ-706 standards. They are designed for tough, commercial and industrial applications and are available from 8000lbs to 18000lbs (including an 8000lb Short drum version).

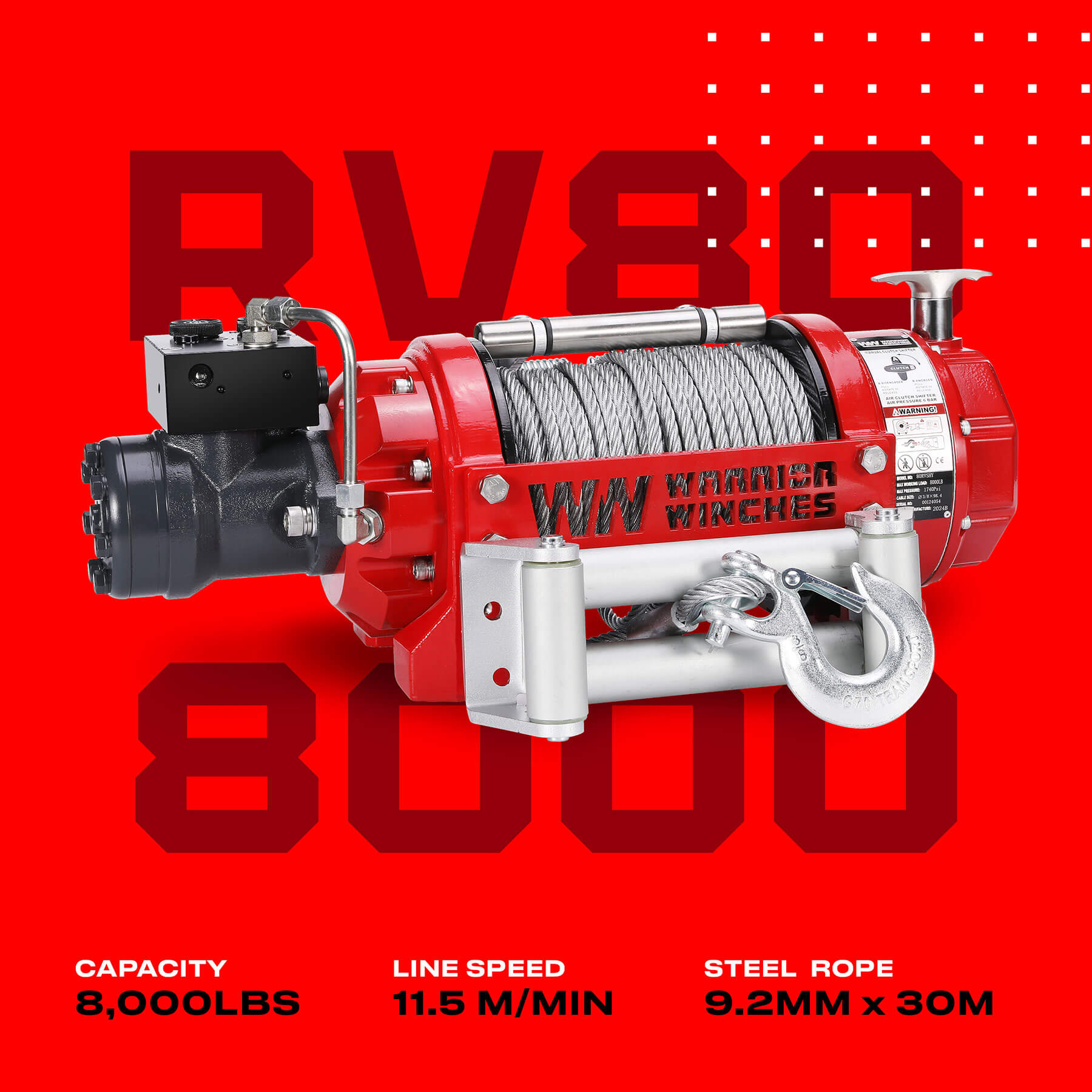

Rated Line Pull8000 lbs
Motor TypeHydraulic Dis 80 ml/r
Gearing17.6:1
ClutchManual
Braking ActionHydraulic
Drum Size (Dia x L)102 x 201 mm
Cable MaterialSteel
Cable – Dia x L9.2mm x 30.0m
Mounting Pattern254 mm x 114.3 mm / 254 mm x 165.1 mm mm

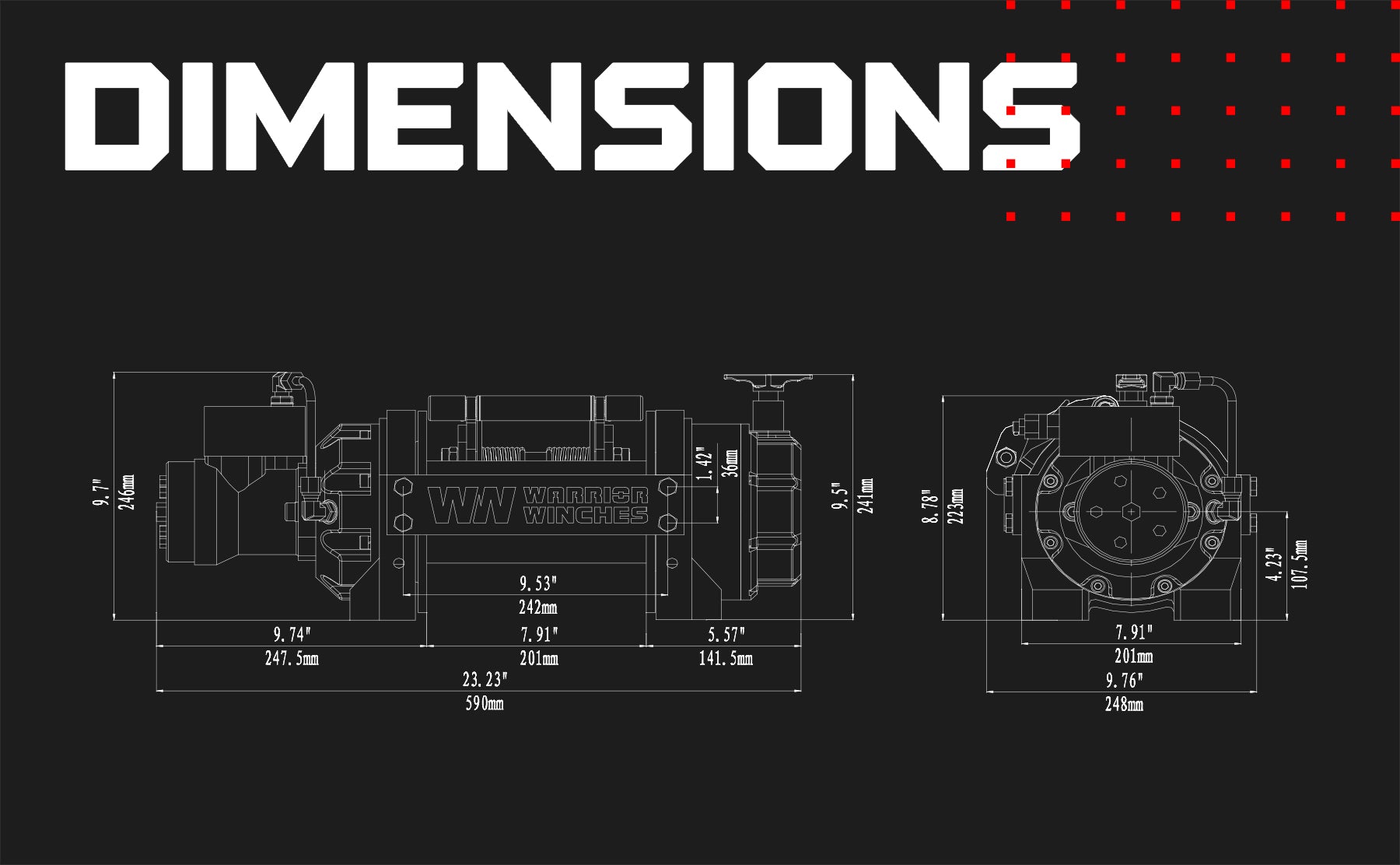

Dimensions590 x 237 x 241 mm
Weight49.0 kg
Max Flow L/Min60 L/Min
Max Pressure MPA12.0 Bar
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 8000(3629) 21.3(6.5)
2 6864(3113) 49.2(15.0)
3 6010(2726) 80.4(24.5)
4 5345(2424) 98.4(30.0)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Flow
L/min (G/min)
Pressure
Mpa
0 37.7(11.5) 5 (1.3) 2.0(290.1)
4000(1814) 23.9(7.3) 20 (5.3) 5.0(725.2)
6000(2722) 10.8(3.3) 40 (10.5) 8.0(1160.3)
8000(3629) 3.2(1.0) 60 (15.8) 12.0(1740.4)

What's in the box:

  • RV Hydraulic Winch
  • Heavy Duty Roller Fairlead
  • Steel Rope
  • Heavy Duty Hook
  • Tensioner
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
