Name: Installation Plate - Up to 15 000 lbs Winch
Brand: Warrior Winches
SKU: IST600
Price: 45.99 GBP
Availability: InStock

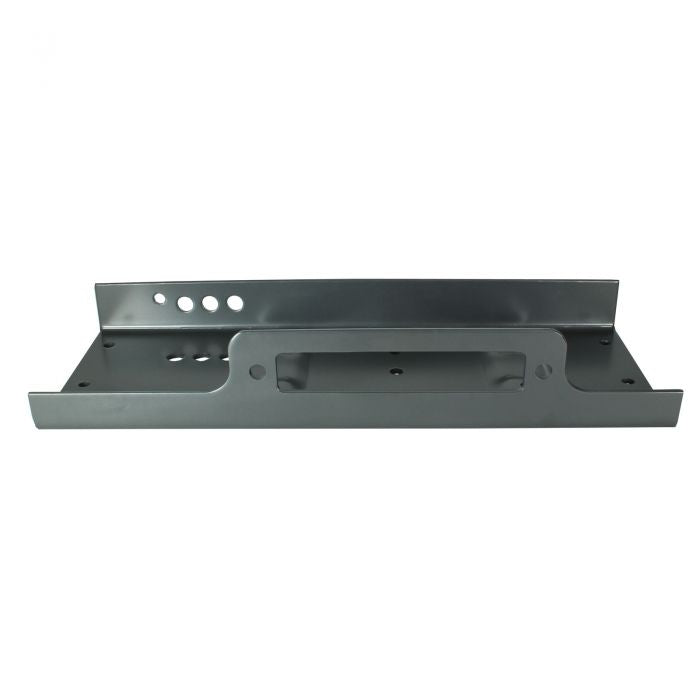

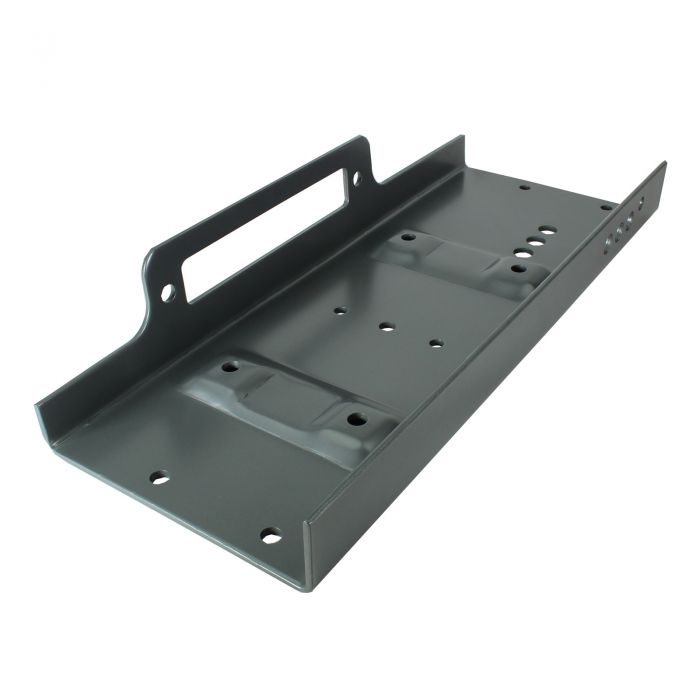

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck overview

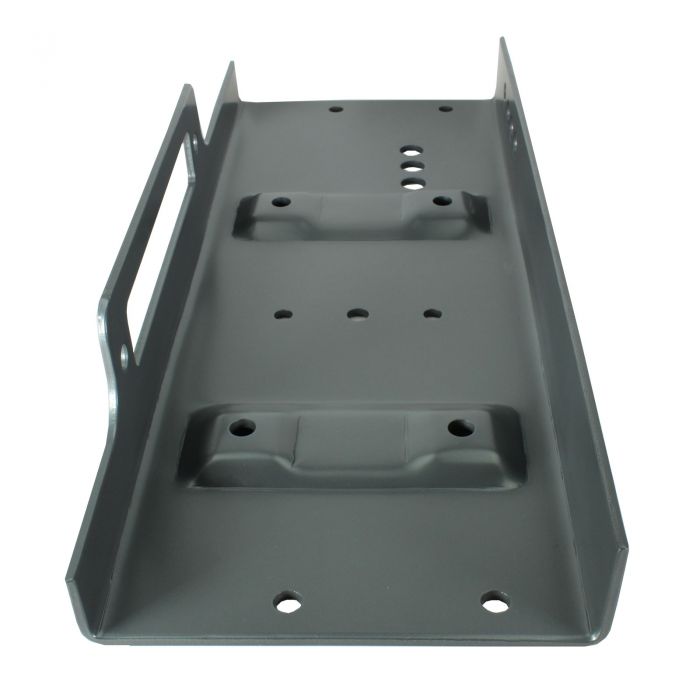

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck angled view

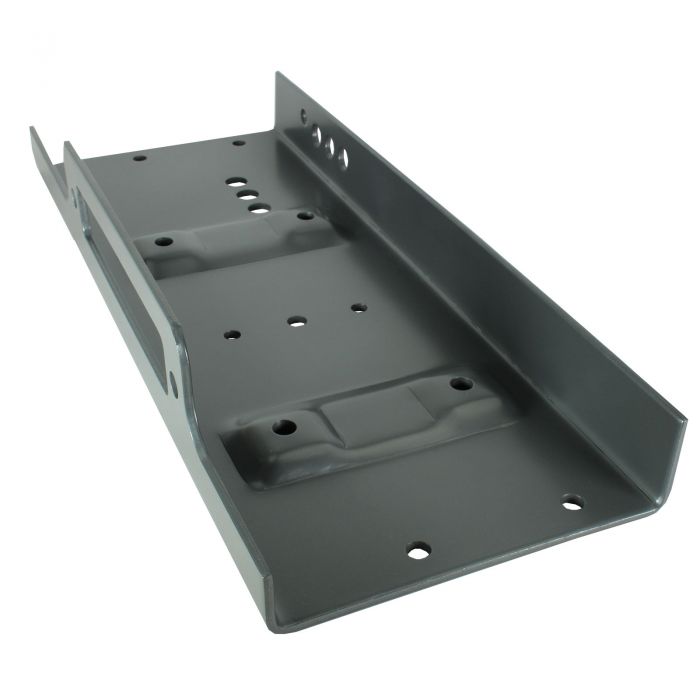

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck side view

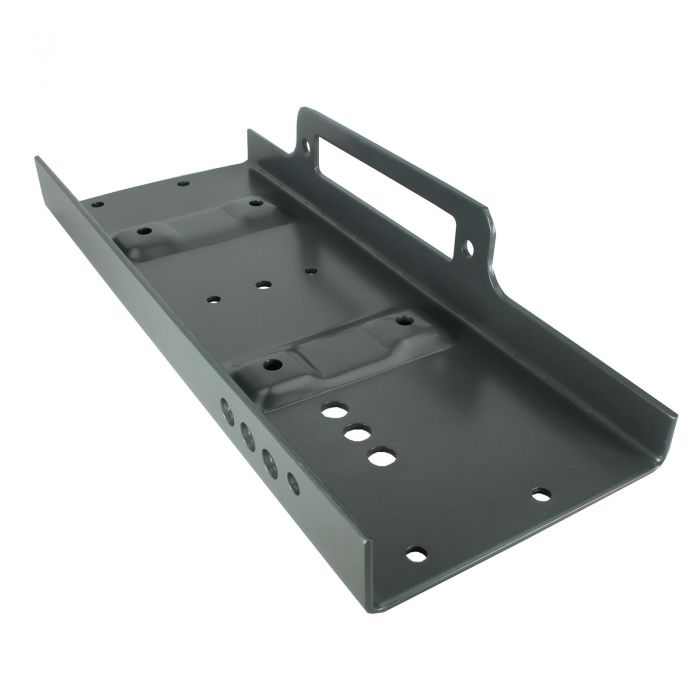

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck rear angled view

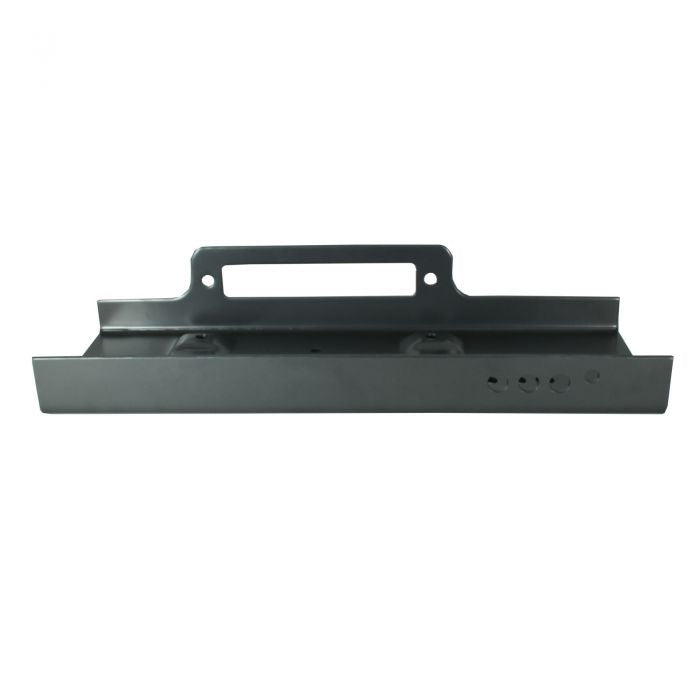

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck rear view shot

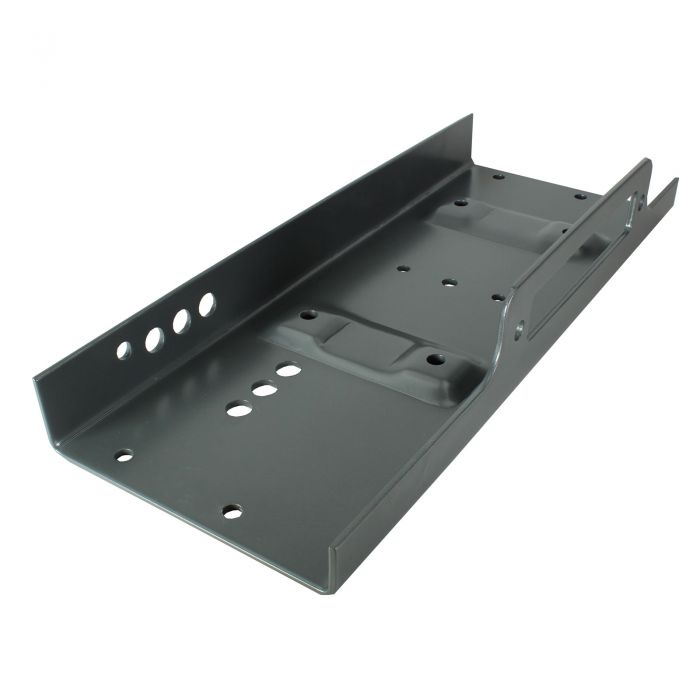

Winch Mounting Plate up to 15000 lb Winches Winch Tray for Recovery Truck raised close up

Features

Official Warrior Winches part/accessory.

Pay in 3 interest-free payments

Paypal Logo
Split your purchase into 3 payments, over 3 months with no sign-up fees or late fees.

Choose Paypal at checkout to pay later with Pay in 3.
Complete your purchase with the first payment today.
Remaining payments are taking automtically.

Available for purchases of £30 to £2,000. Pay in 3 eligibility is subject to status and approval. 18+ UK residents only. Pay in 3 is a form of credit, may not be suitable for everyone. Use may affect your credit score or make credit less accessible or more expensive for you. Consider if affordable for you. Terms and conditions apply. PayPal Pay in 3 is a trading name of PayPal (Europe) S.à r.l. et Cie, S.C.A. 22-24 Boulevard Royal L-2449, Luxembourg.

Learn about Pay in 3.

The Universal winch mount plate is ideal for fitting to recovery vehicles and 4x4. It is easily adaptable to suit all your needs and can be used in conjunction with 95% of winches available on the market today including Warrior, Superwinch and Warn. The plate has an all steel construction and is finished in durable dark grey powder coat. The mounting holes for the winch (hole centres 254mm x 114mm) are on pressed, raised sections of the plate so that the winch mounting bolt heads are flush with the underside of the plate so it can easily be bolted or welded down to a flat surface.

There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead to along with pre-drilled holes in the plate to feed battery or solenoid cables through. This is designed to suit a fairlead with 255mm hole centres.

Dimensions:

♦ Overall Size: 600mm x 210mm x 80mm
♦ Material Thickness: 5mm
♦ Fairlead Hole Centres: 255mm
♦ Winch Mounting Holes: 254mm x 114mm

Please cross reference the mounting pattern of your winch with the above dimensions

Have a Question?

Be the first to ask a question.

Ask a Question

The Winch is not mounted yet but everything looks great.

Thank you for your review. It is so important to have the correct mounting plate compatible for your winching application.
We have a range of supporting accessories for all our winches to give you the best winching experience possible!

Great product!

Thank you for your review. It is so important to have the correct mounting plate compatible for your winching application.
We have a range of supporting accessories for all our winches!

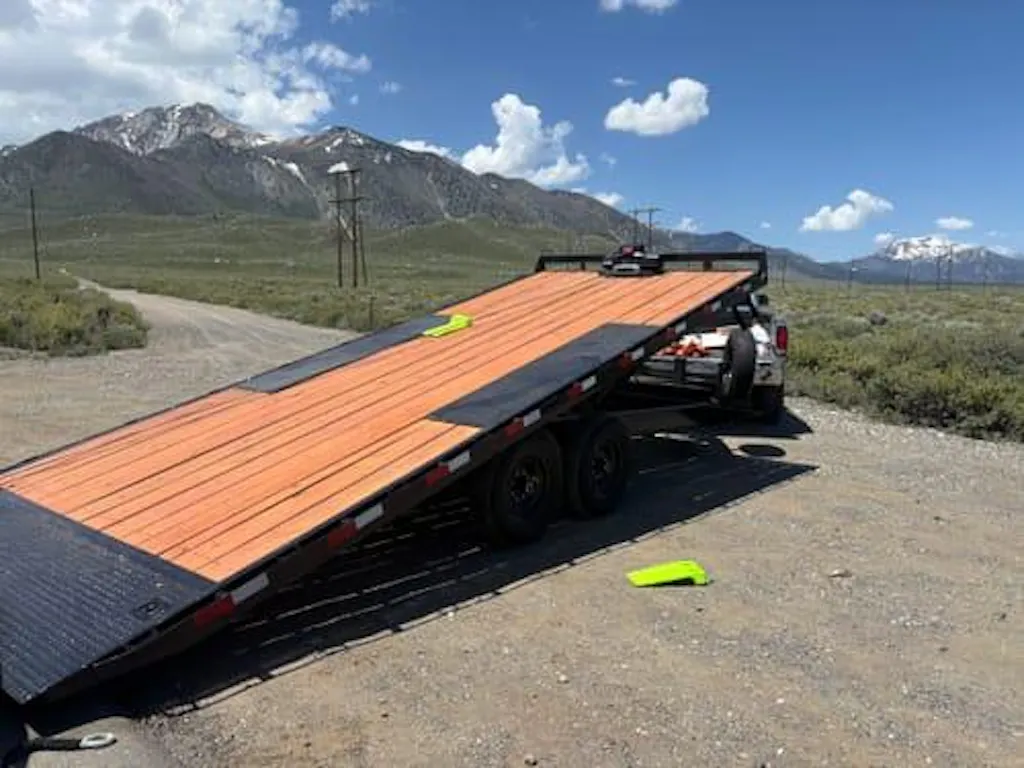

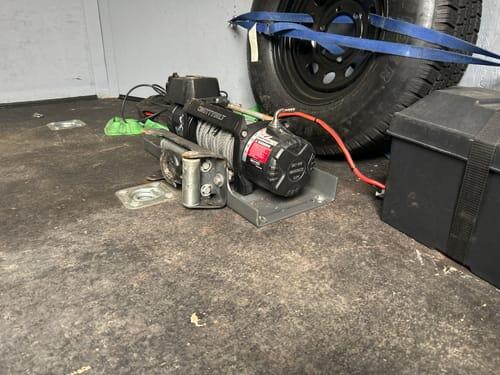

Works great holds my winch like it should great product

THanks for your review, it is so important to use the correct accesories to support your winching experience! It looks very sunny there but have you thought about a winch cover top protect your winch from the elements when not in use? They work well in dusty, windy and rainy conditions!

Great winch plate actually using it on a warn winch. Much better price than warn's plate and with bumped up mounting holes the plate can lay completley flat on any surface

Thanks for your review. It is so important to use the correct mounting plate for your winch, whatever winch it is, you can be sure our mounting plate will serve you well!

It is a quality product however It isn't installed on my Featherlite trailer yet. I'm waiting for a custom backing plate. One suggestion, upgrade the bolts to grade 10.9. The grade 8.8 bolts are on the lighter side for a 10k winch.
I purchase 10.9 bolts and stronger/larger nuts that reduces the gap inside the insert area.

Thanks for your review although all our products are designed and built to the necessary specs we are always willing to take customers feedback on board! We will pass this on to the Product Development Team!
