Installation Plate - Up to 20 000 lbs Winch

SKU EAN
IST640 5060423984061

Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior Stockists

Features

  • UK Service Centre

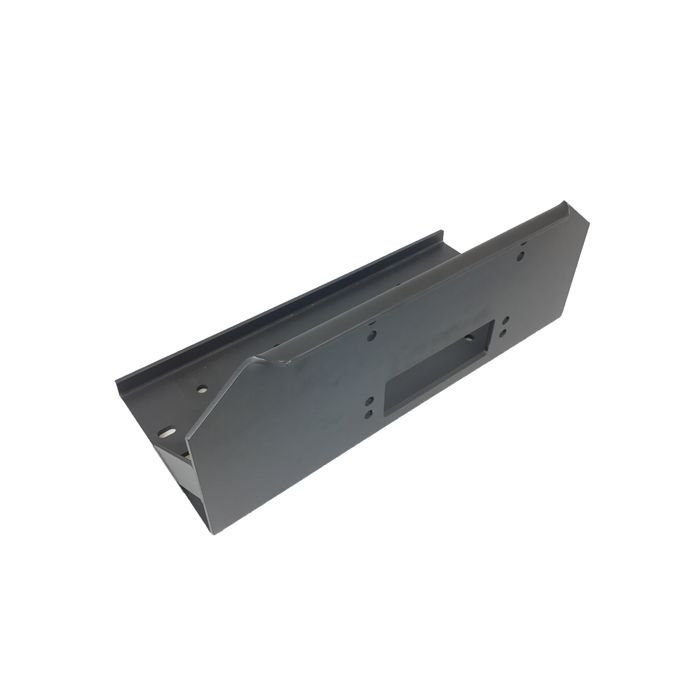

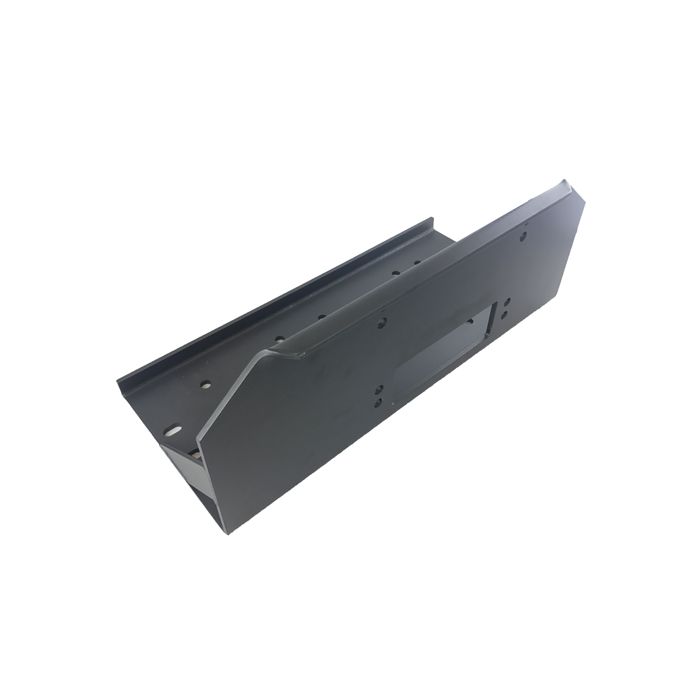

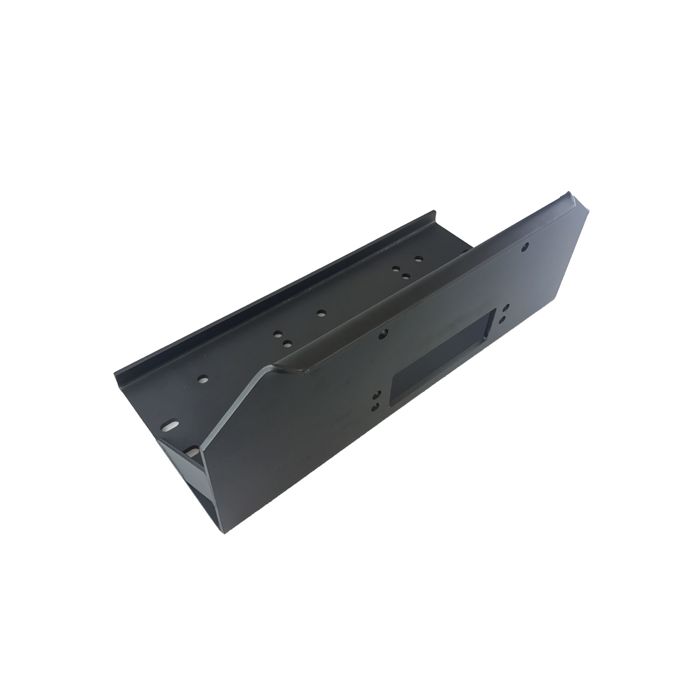

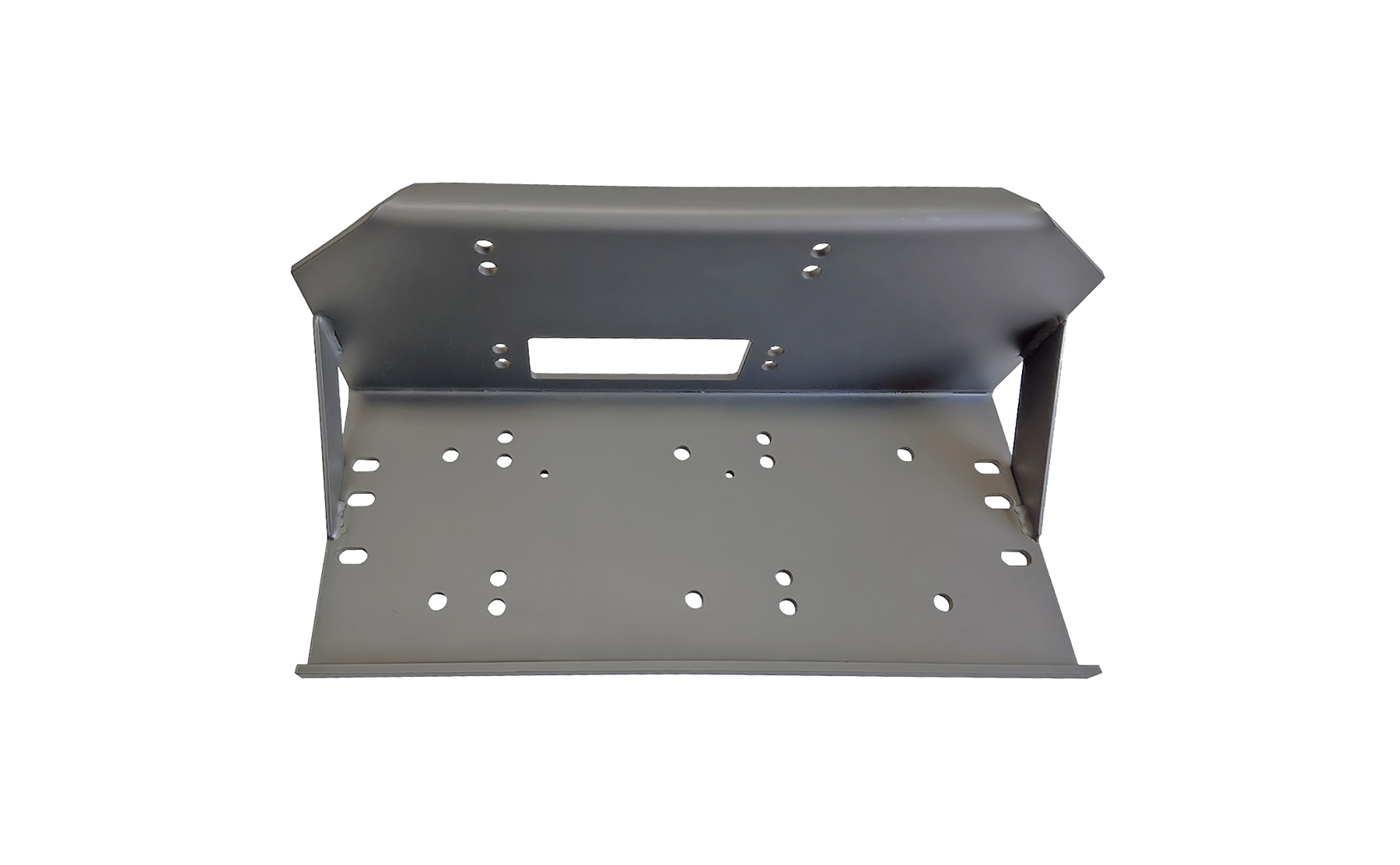

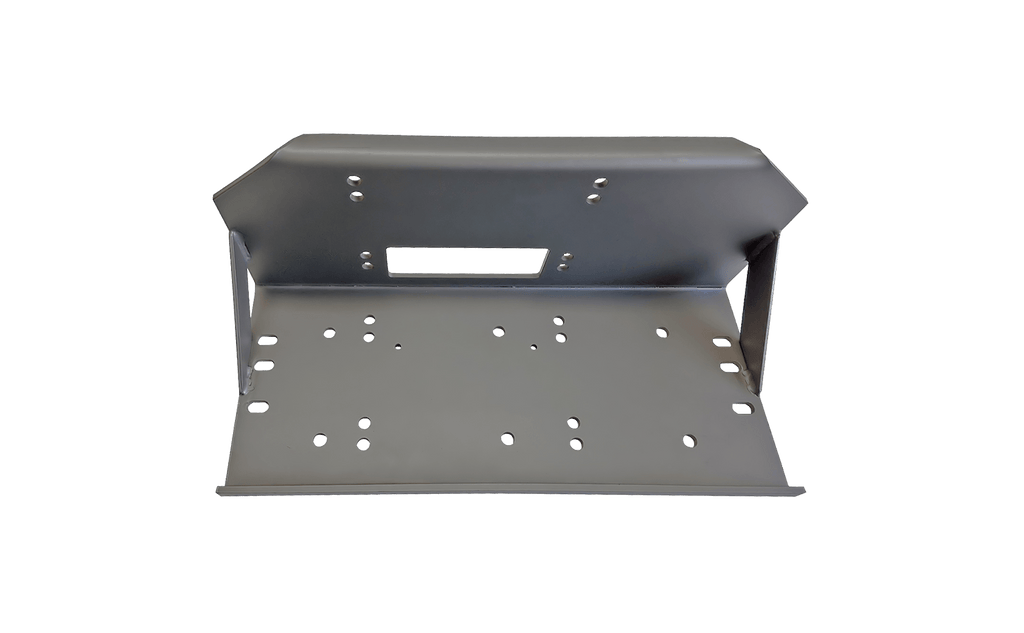

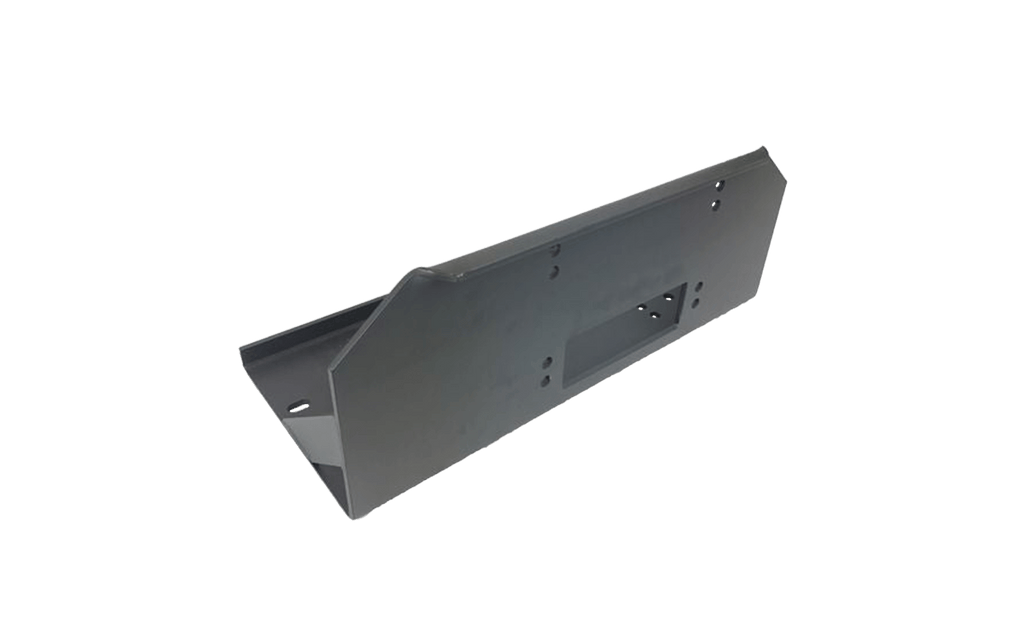

This heavy duty winch mounting plate is perfect for use with the Warrior Samurai S20000 electric winch, but is also designed to be used with other winches of up to 20,000lb(9000kg). Finished in a durable black powdercoat, it is predrilled for most standard winches and can be modified to suit your own requirements when installing.

Designed to suit Warrior Samurai S20000 and S17500 winches fitted in a Foot Down or Foot Forward configuration.

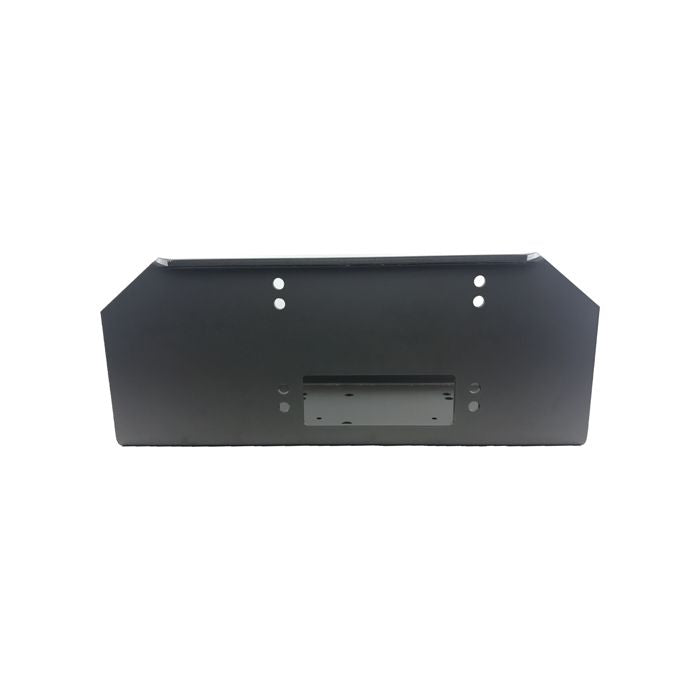

There is a return fold on the front leading edge of the plate which is drilled and slotted to mount the fairlead too along with holes for front mounted winches.

Dimensions:

Base Mounting Pattern = 254mm x 114mm & 254mm x 161.5mm
Front Mounting Pattern = 254mm x 114mm & 254mm x 161.5mm
Overall = 640mm x 285mm x 260mm
Material Thickness = 7mm
Fairlead hole Centres = 255mm

This plate is designed for use with:

  • Samurai 17 500 Warrior Winches (175SS12, 175SS24, 175SA12, 175SA24)
  • Samurai 20 000 Warrior Winches (200SS12, 200SS24, 200SA12, 200SA24)
  • Samurai 4 000 EN Winches (40ENS12, 40ENS24).
  • Samurai 5 250 EN Winches (52ENS12, 52ENS24).
  • Samurai 6 000 EN Winches (60ENS12, 60ENS24).
