The Warrior Winches Samurai Range is our performance-focused range of electric winches, engineered for drivers who demand serious recovery capability without compromising on speed, efficiency or control. Built for challenging off-road conditions, Samurai winches combine high-output motors, heavy-duty internal components and advanced braking technology to deliver confident performance when the trail gets tough.

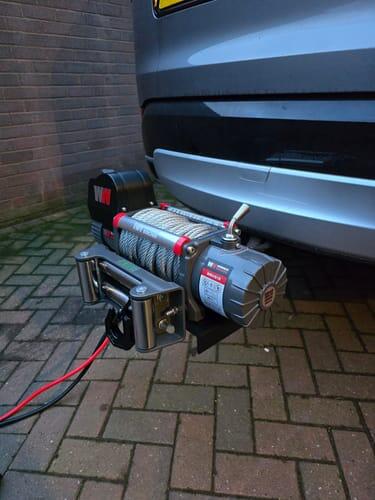

The Samurai 9,500lb 12V electric winch with steel rope takes the range to the next level, delivering up to 9,500lb (4,309kg) of rated line pull for demanding 4x4 recovery. Its high-output 6.1hp motor, 196:1 planetary gearing and revolutionary external braking system combine to deliver serious pulling power, controlled operation and the performance needed when a recovery becomes a real challenge.

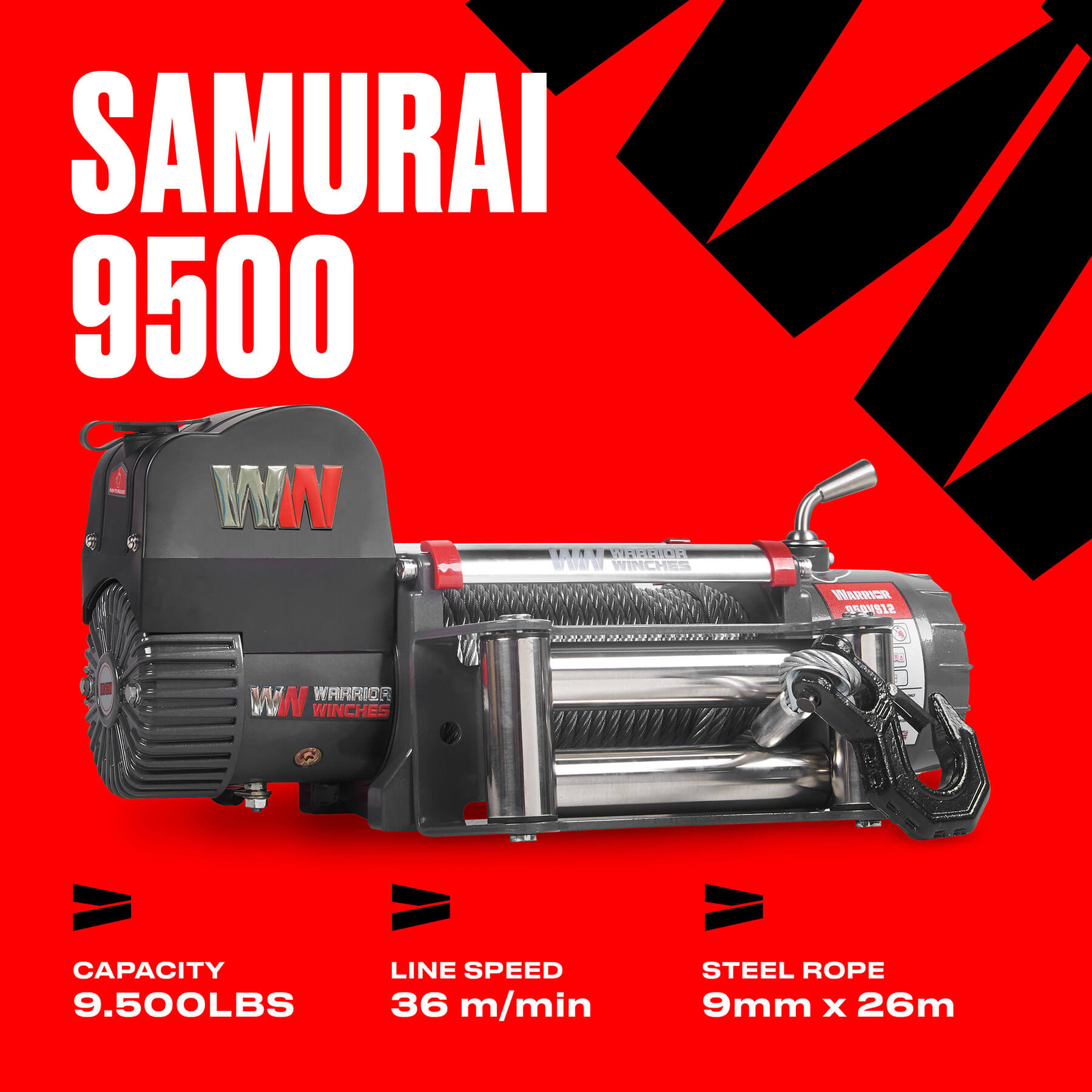

9,500lb of Serious Recovery Muscle. The 6.1hp (4.6kW) 12V motor delivers up to 9,500lb of rated line pull, giving you the additional pulling capacity needed when vehicle weight, difficult terrain or a severe recovery pushes beyond the capabilities of a smaller winch. With a no-load line speed of up to 10.2m/min, the Samurai 9,500lb is also built to get the recovery line moving quickly when time matters.
More Pulling Power Without Losing Control. The 196:1 planetary gear system provides the mechanical advantage needed to turn the motor's output into substantial pulling force. Combined with the full HRC50 steel gearing, it provides a durable internal foundation designed to handle repeated recovery loads and demanding off-road use.
External Braking for Cooler, Controlled Recoveries. The revolutionary external brake system moves braking action away from the drum, helping eliminate the heat build-up associated with traditional in-drum braking. This provides controlled load holding while helping reduce heat-related stress during demanding pulls, giving you greater confidence when recovering on steep or difficult terrain.

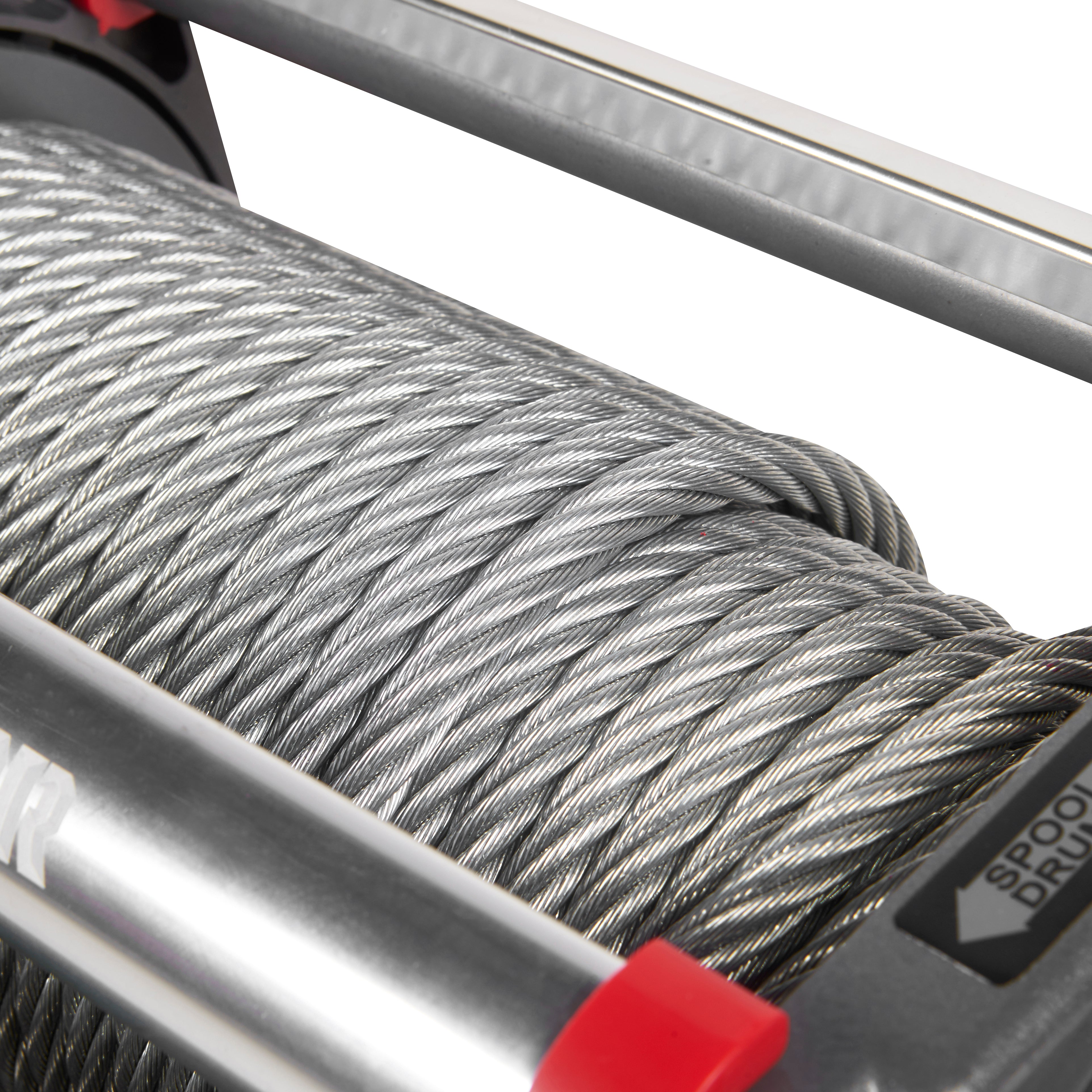

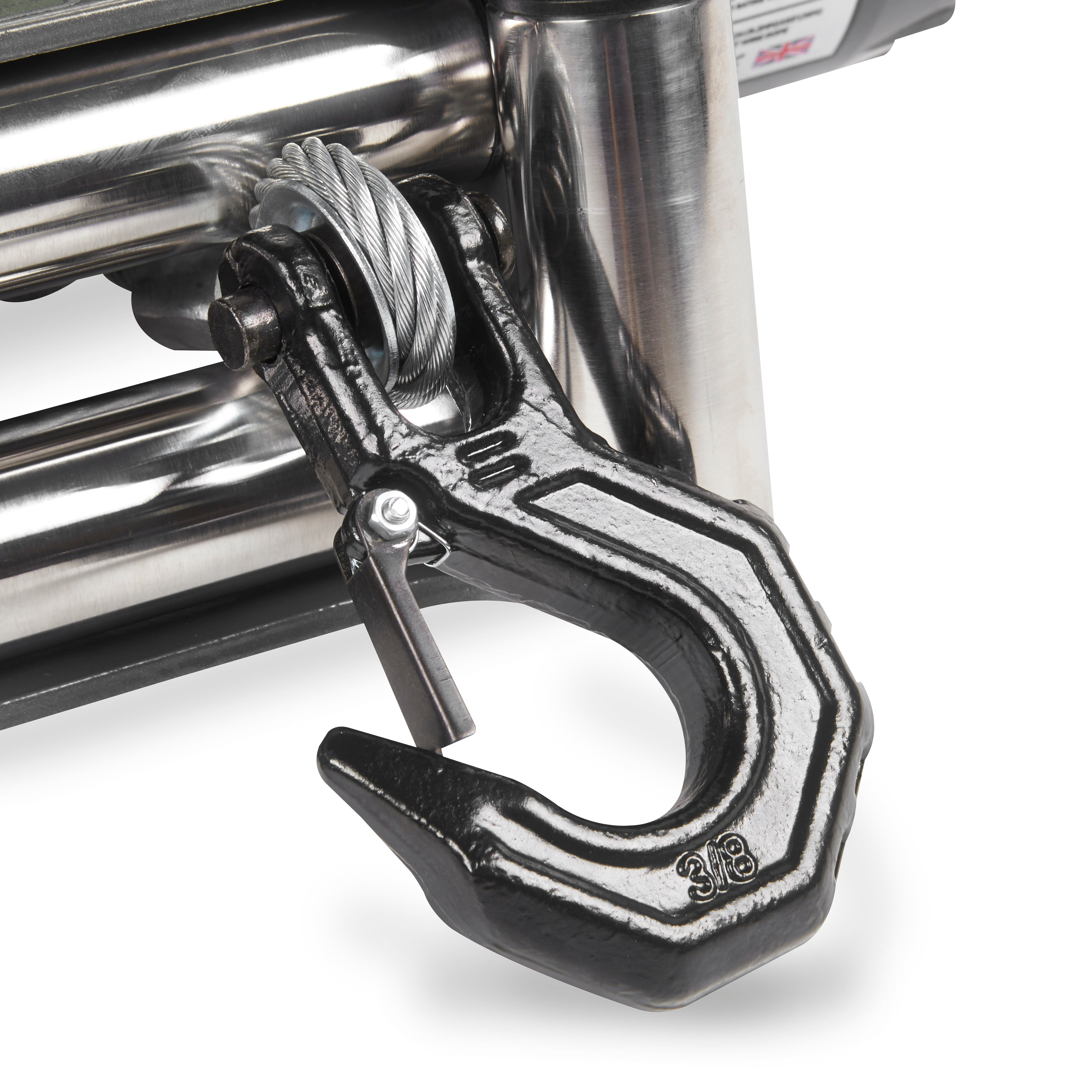

26 Metres of Heavy-Duty Steel Rope. The 9.2mm x 26m steel rope provides substantial line capacity for serious 4x4 recovery, giving you plenty of reach when positioning your vehicle around challenging recovery points. The heavy-duty stainless steel roller fairlead helps guide the rope smoothly onto the drum, while the removable heavy-duty hook provides a secure connection.

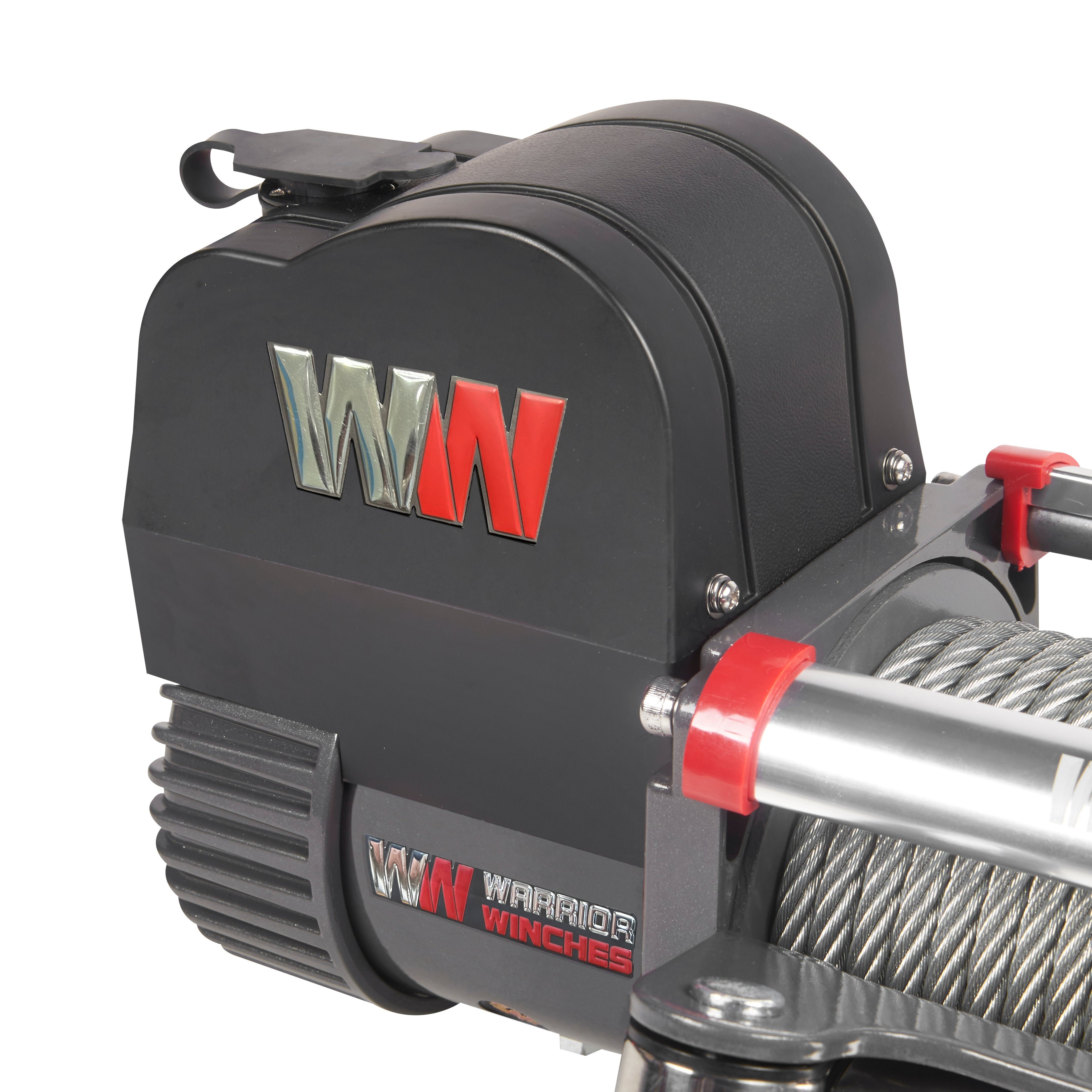

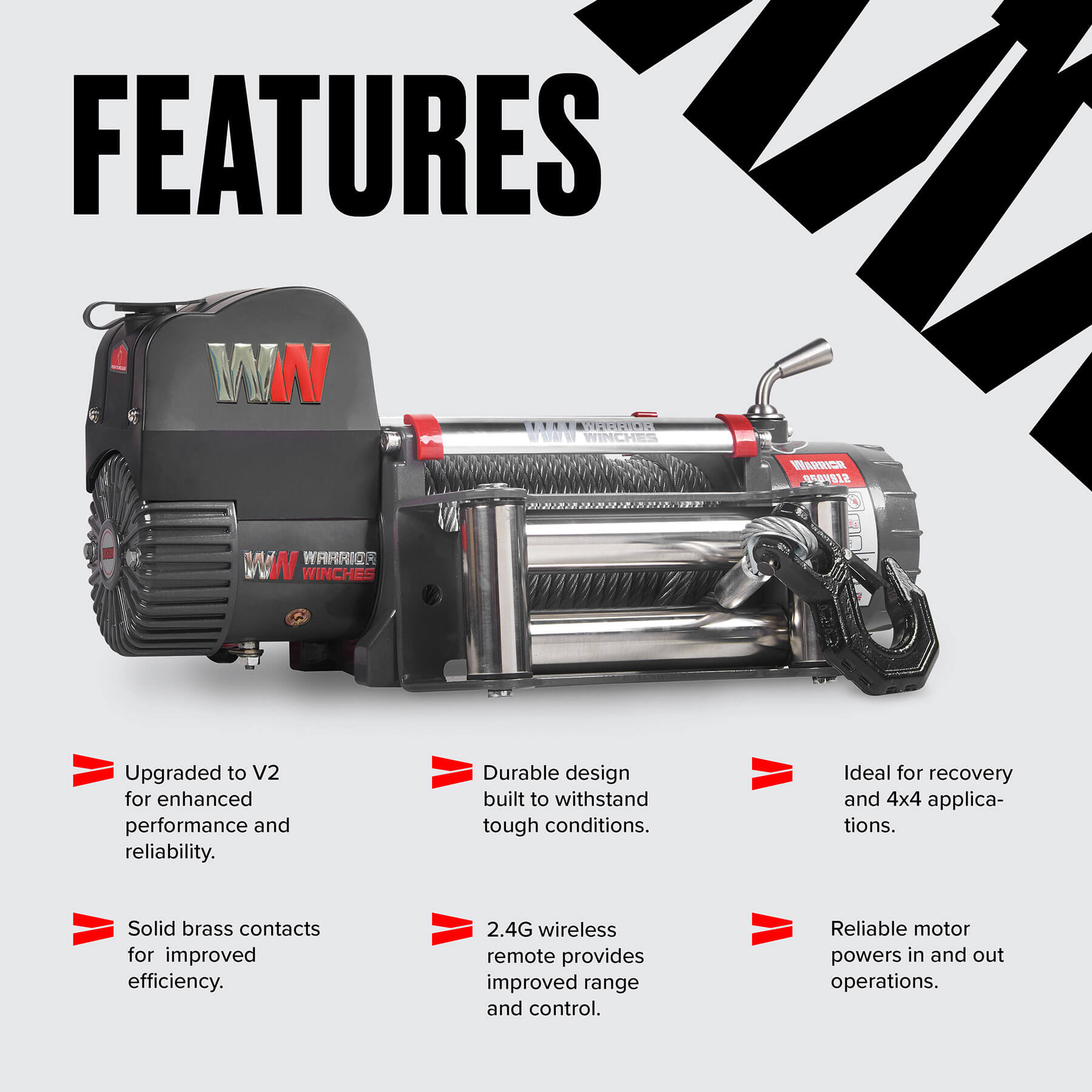

Built for the Realities of Off-Road Recovery. The Samurai 9,500lb combines a double-sealed high-performance motor, heavy-duty waterproof contactors and IP67 protection to help defend the winch against dust and water. Full-steel planetary gearing and a double-sealed drum with maintenance-free bearings add further durability for demanding off-road environments.
Efficient Power Where It Counts. The 600A Silver Tip Contactor is designed to provide efficient electrical performance, while the silver-copper motor and copper brush holders support durability and efficient power delivery. The result is a winch designed to make effective use of its 12V electrical supply while delivering substantial pulling force.
Take Control from the Best Position. The Samurai 9,500lb comes with both a 3.8m wired remote and upgraded 2.4G wireless remote, giving you the flexibility to operate the winch from the vehicle or from a position where you have a clear view of the recovery. This makes it easier to monitor the vehicle, rope and recovery point while the winch is working.

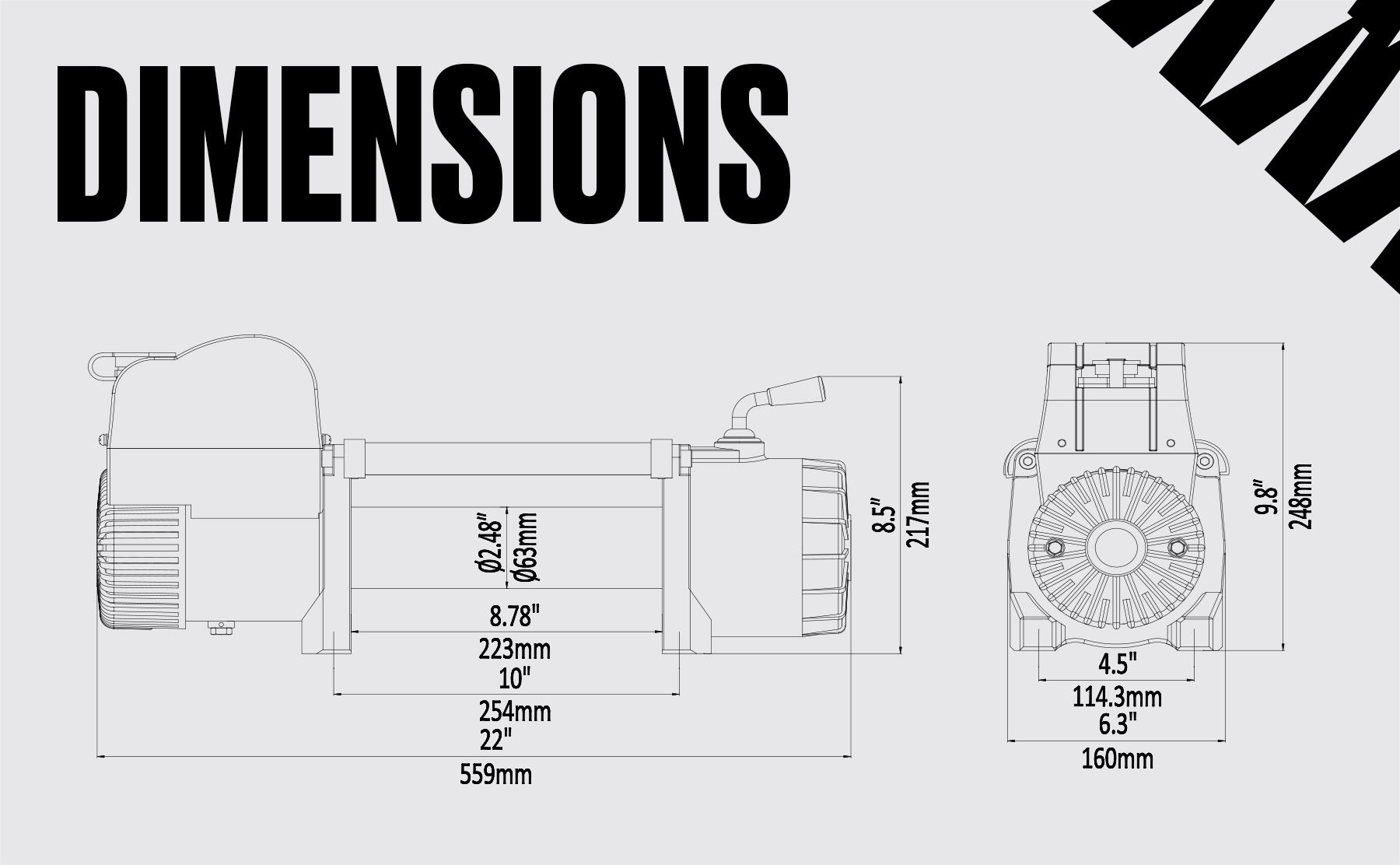

Built for Serious 4x4 Applications. With dimensions of 559 x 160 x 248mm and a 40kg weight, the Samurai 9,500lb is built as a substantial recovery winch for applications where pulling capacity and robust construction take priority. Its 9,500lb rating makes it suited to demanding 4x4 recovery where additional pulling capability can make the difference.
Ready to Put to Work. The Samurai 9,500lb is supplied with 26m of steel rope, heavy-duty stainless steel roller fairlead, heavy-duty battery leads, 3.8m wired remote, 2.4G wireless remote, removable heavy-duty hook, isolation switch and stainless steel mounting hardware. This provides the key components needed to install the winch and get it ready for serious recovery work.
With its 9,500lb rated line pull, high-output 12V motor, external braking system, full-steel planetary gearing and comprehensive protection, the Warrior Winches Samurai 9,500lb is built for drivers who need more from their 4x4 recovery equipment. Backed by a 5-year warranty, it delivers the pulling power, speed and control needed when the terrain gets serious.
