The Warrior Winches Samurai Range is our performance-focused range of electric winches, engineered for drivers who demand serious recovery capability without compromising on speed, efficiency or control. Built for challenging off-road conditions, Samurai winches combine high-output motors, heavy-duty internal components and advanced braking technology to deliver confident performance when the trail gets tough.

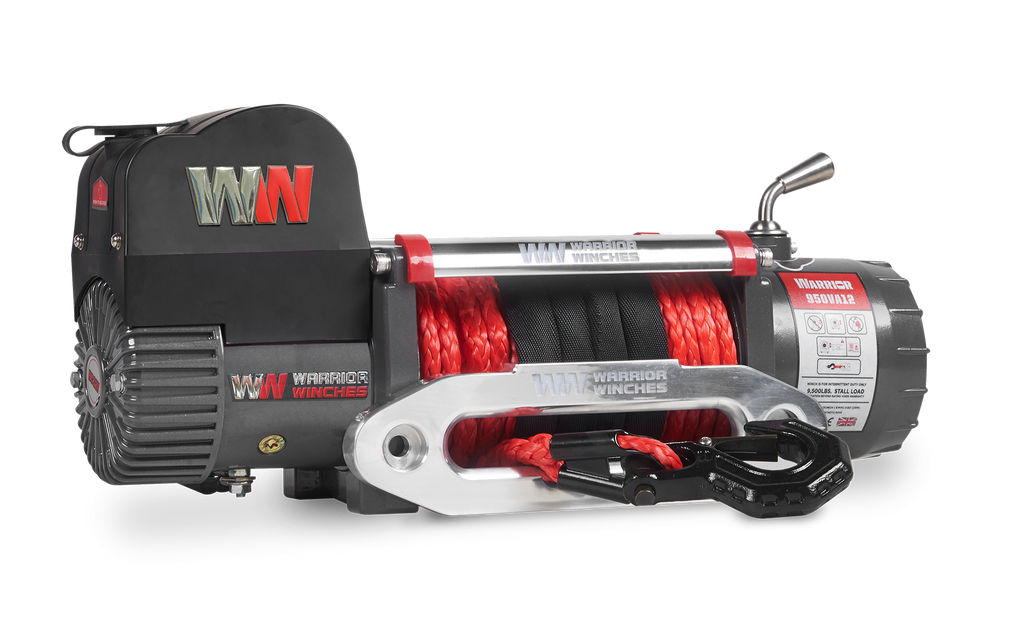

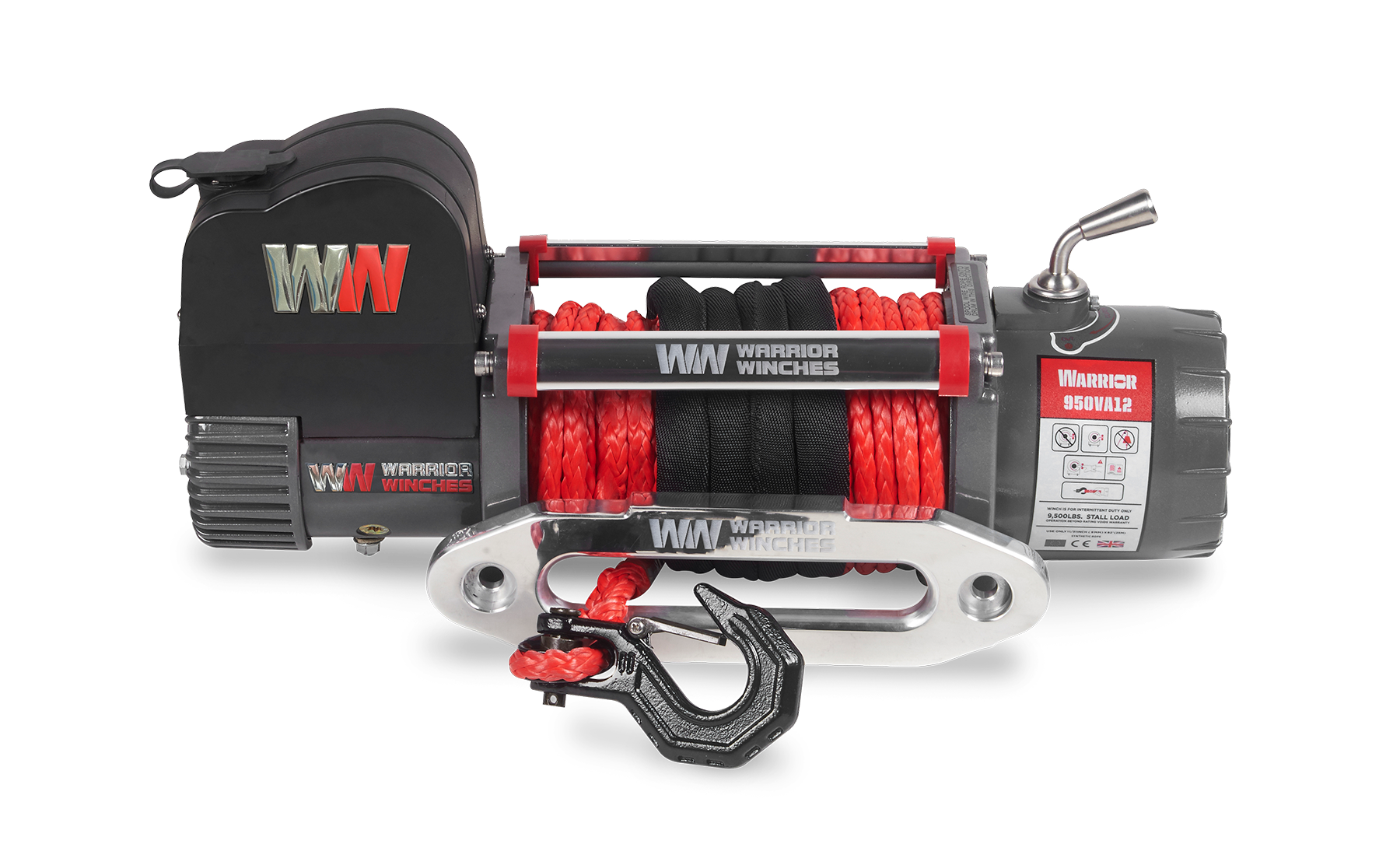

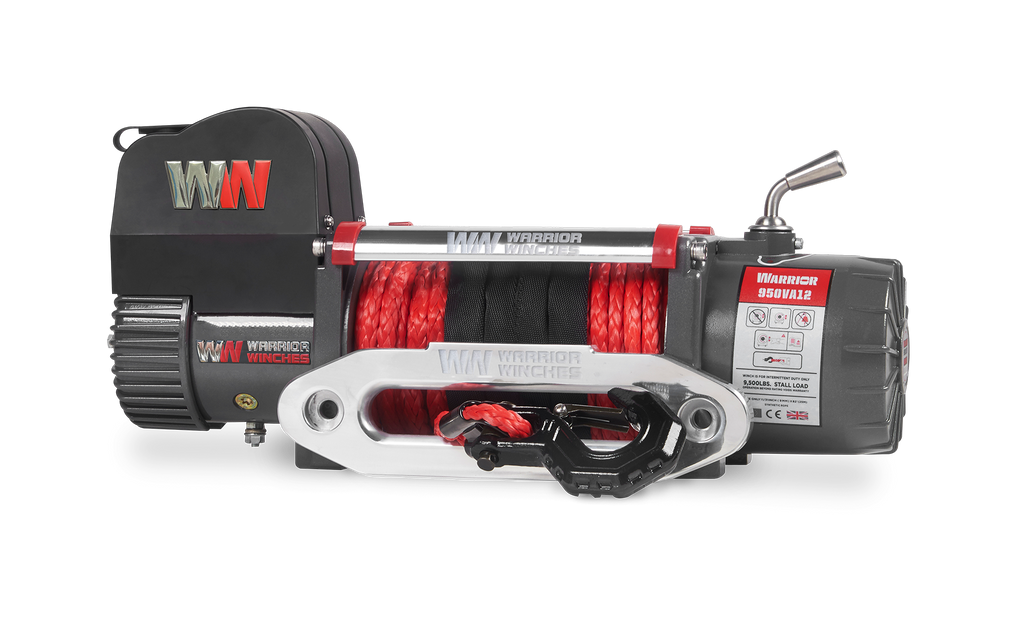

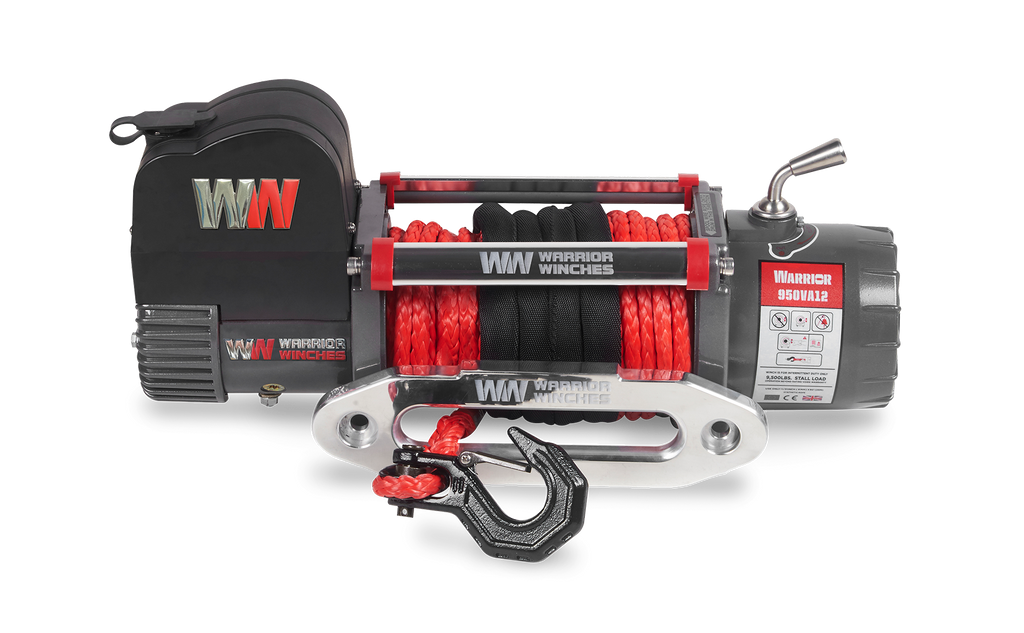

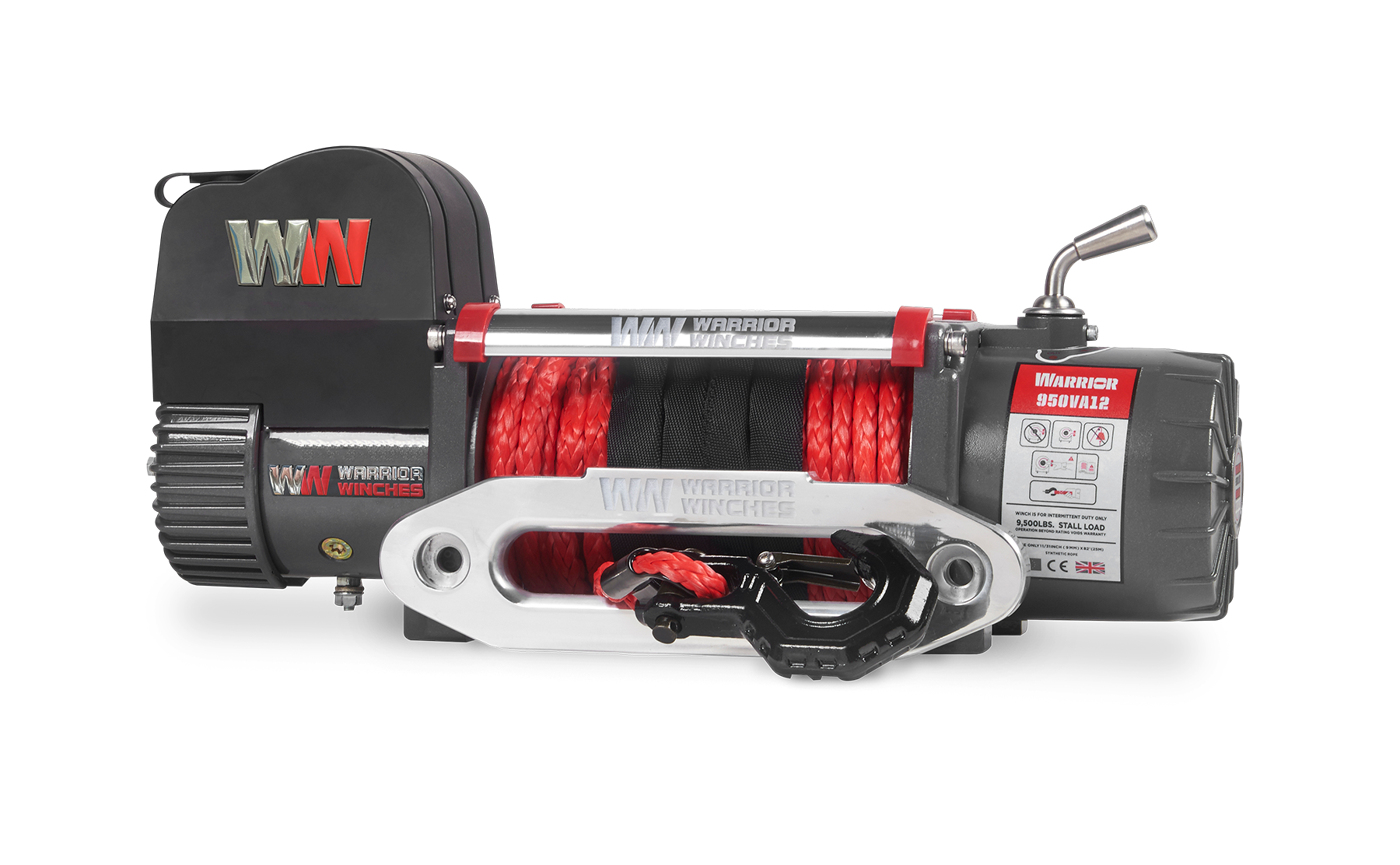

The Samurai 9,500lb 12V electric winch with synthetic rope takes serious 4x4 recovery capability to the next level, delivering up to 9,500lb (4,309kg) of rated line pull in a performance-focused package. Its high-output 6.1hp motor, 196:1 planetary gearing and revolutionary external braking system provide the strength and control needed for demanding recoveries, while the 25m synthetic rope delivers easier handling and a lighter overall setup.
9,500lb of Serious Recovery Muscle. The 6.1hp (4.6kW) 12V motor delivers up to 9,500lb of rated line pull, giving you the pulling capacity needed when heavy vehicles, steep terrain and severe recovery situations push beyond the capabilities of smaller winches. With a no-load line speed of up to 10.2m/min, the Samurai is also built to get the line moving quickly when every second counts.

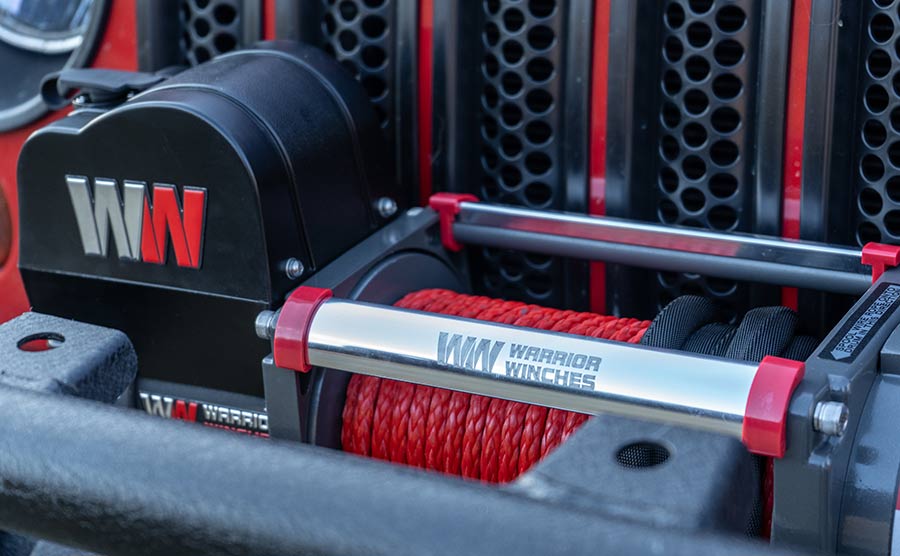

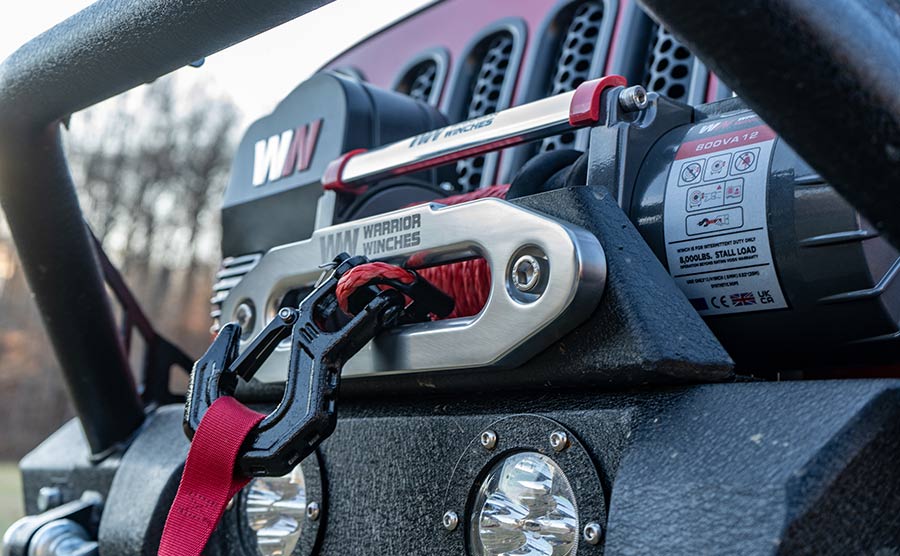

Synthetic Rope for Faster, Easier Handling. The 9.5mm x 25m synthetic rope gives you substantial recovery reach without the added weight and handling characteristics of steel cable. It's easier to deploy and manage by hand, while the aluminium hawse fairlead provides a smooth path for the rope during recovery.
External Braking That Takes the Heat Away. The revolutionary external brake system moves braking action away from the drum, helping eliminate the heat build-up associated with traditional in-drum braking. This helps provide controlled load holding during demanding pulls while reducing heat-related stress on the winch drum and synthetic rope.
Full-Steel Gearing for Heavy Recovery Loads. The 196:1 planetary gear system uses high-strength HRC50 full-steel gears to provide the mechanical strength needed for serious pulling operations. The robust gearing is designed to transfer the motor's power efficiently while handling the repeated loads associated with demanding 4x4 recovery.

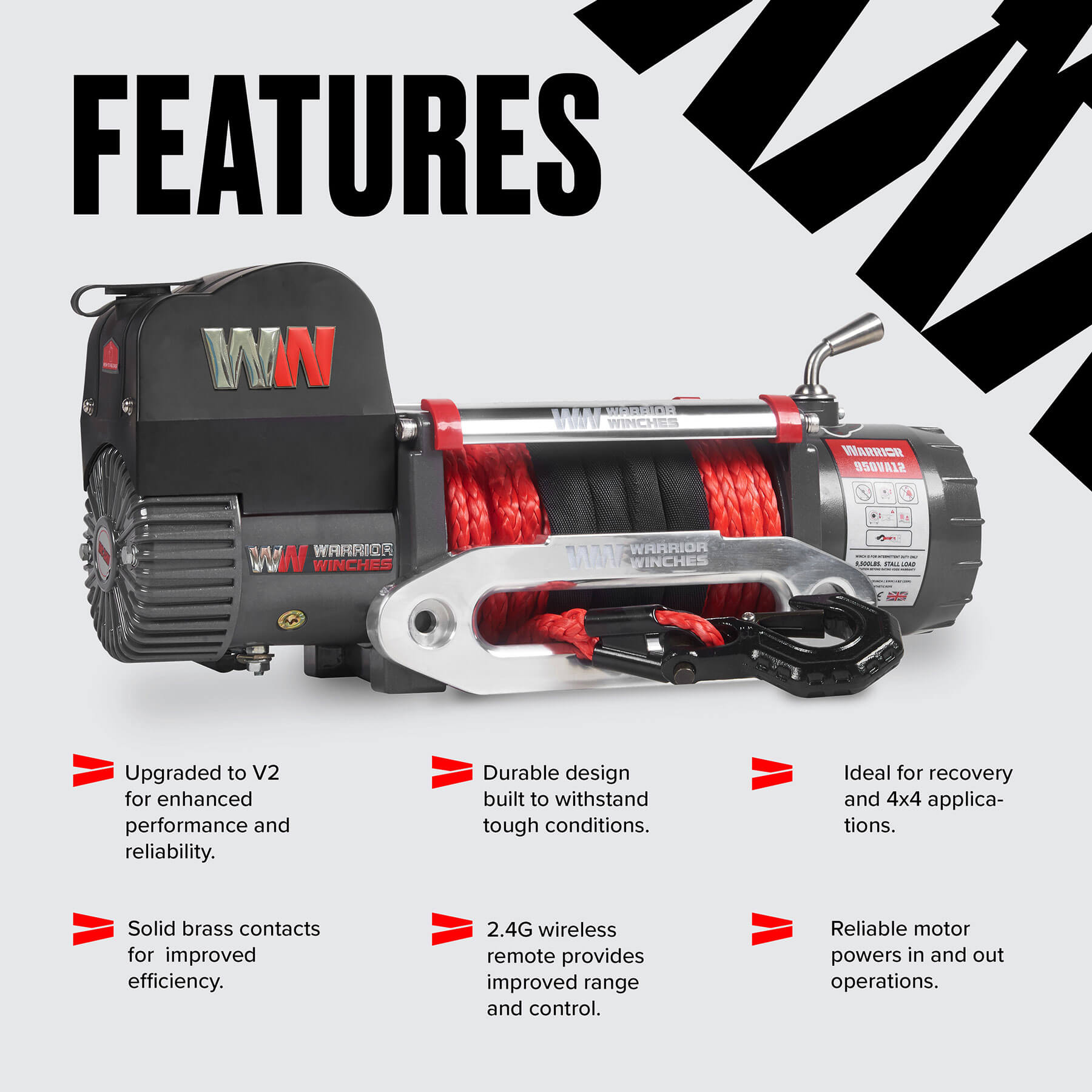

High-Output Power When Traction Runs Out. The Samurai's high-performance series-wound motor uses solid brass contacts and copper brush holders to support efficient, durable operation. Combined with the 600A Silver Tip Contactor, the electrical system is engineered to deliver substantial pulling performance from a 12V supply.
Protection Built for the Trail. A double-sealed motor, heavy-duty waterproof contactors and IP67 sealing help protect the Samurai against dust and water. The double-sealed drum and maintenance-free bearings further support reliable operation when the winch is exposed to mud, rain and demanding off-road conditions.

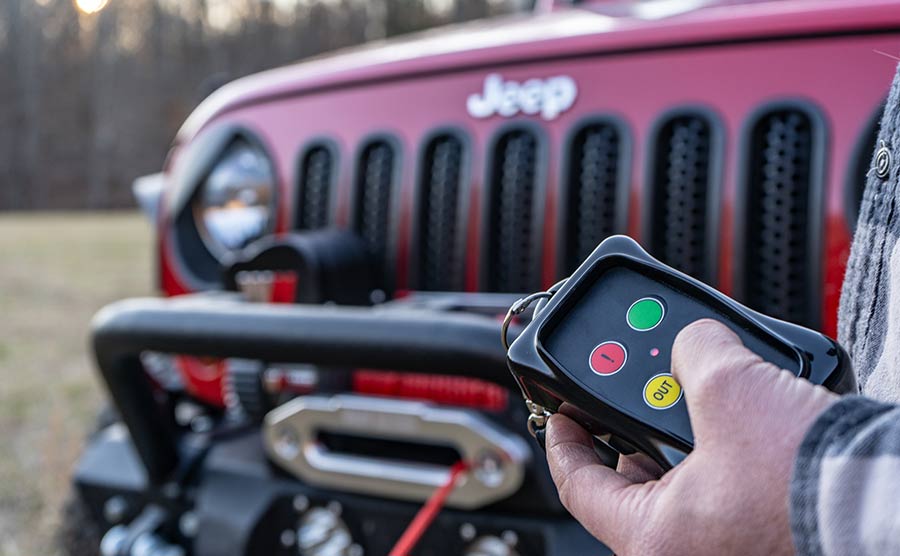

Control the Recovery from Where You Need to Be. The Samurai 9,500lb comes with both a 3.8m wired remote and an upgraded 2.4G wireless remote, giving you the flexibility to operate the winch from inside the vehicle or from a position where you have the clearest view of the recovery.
25 Metres of Lightweight Recovery Line. With 25m of synthetic rope available, the Samurai 9,500lb gives you plenty of line for positioning your recovery point around challenging terrain. The manual clutch allows the drum to be disengaged for quick rope deployment, helping you get the line exactly where you need it before starting the pull.

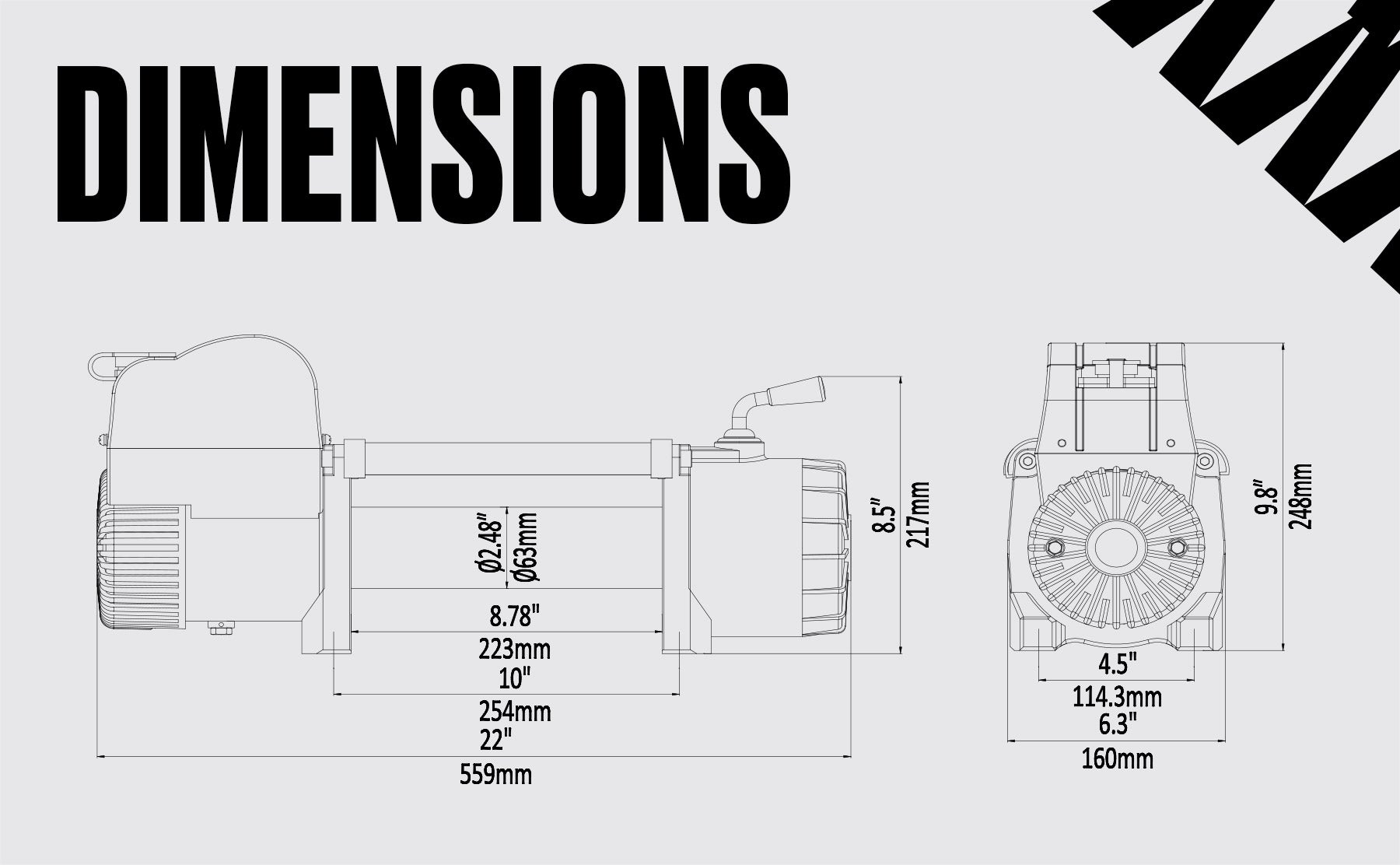

Serious Capability Without Unnecessary Weight. At 30kg, the synthetic-rope Samurai 9,500lb is lighter than its steel-rope counterpart while retaining the same 9,500lb rated line pull. Measuring 559 x 160 x 248mm, it provides substantial recovery capability without adding more weight than necessary to your 4x4 setup.

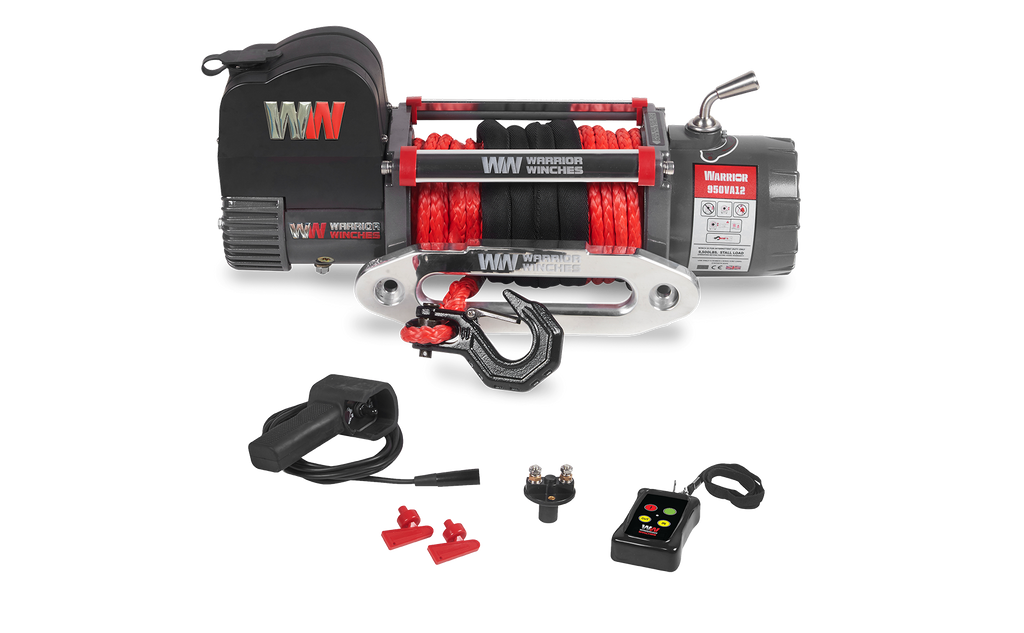

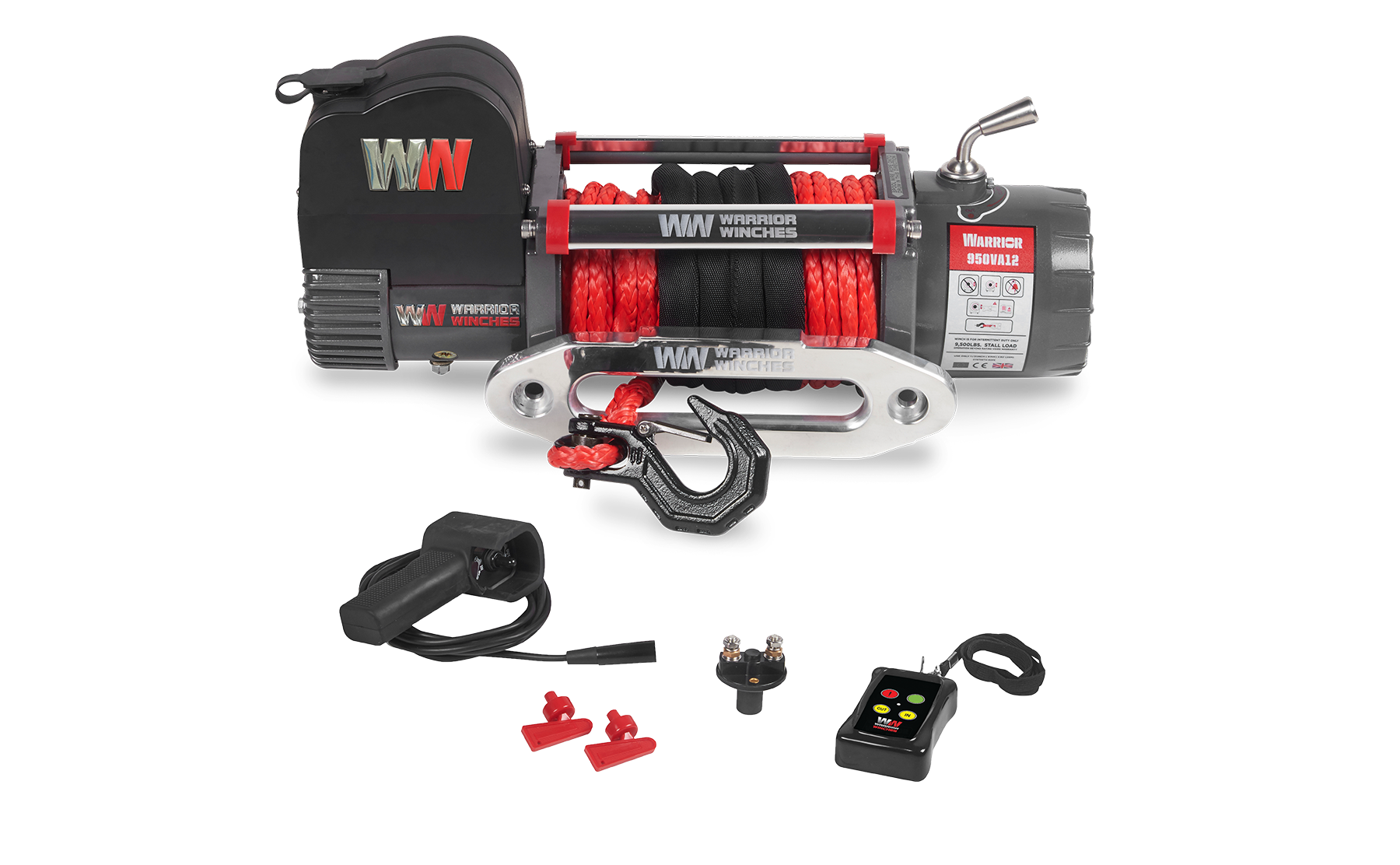

Ready for Demanding 4x4 Recovery. The Samurai 9,500lb is supplied with the synthetic rope, aluminium hawse fairlead, heavy-duty battery leads, 3.8m wired remote, 2.4G wireless remote, removable heavy-duty hook, isolation switch and stainless steel mounting hardware. The result is a complete, performance-focused winching setup ready for serious off-road recovery.
With its 9,500lb rated line pull, high-output 12V motor, external braking system, full-steel planetary gearing and lightweight synthetic rope, the Warrior Winches Samurai 9,500lb is built for drivers who demand serious performance from their 4x4 recovery equipment. Backed by a 5-year warranty, it combines substantial pulling power with speed, control and easier rope handling when the terrain gets serious.
