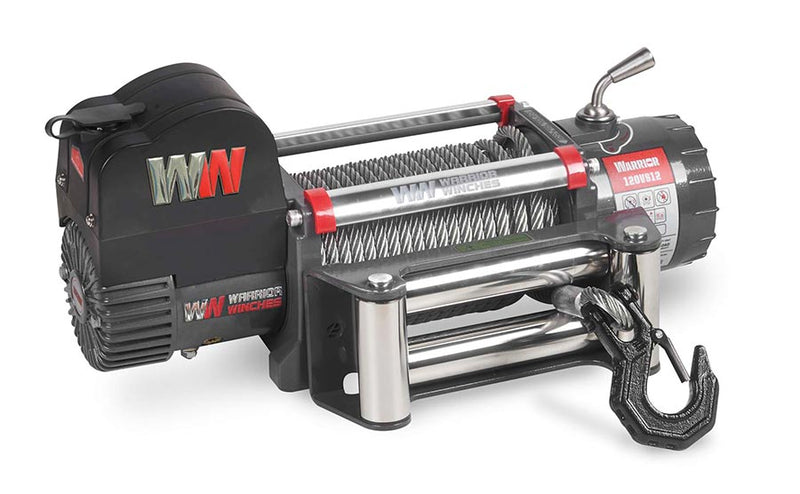

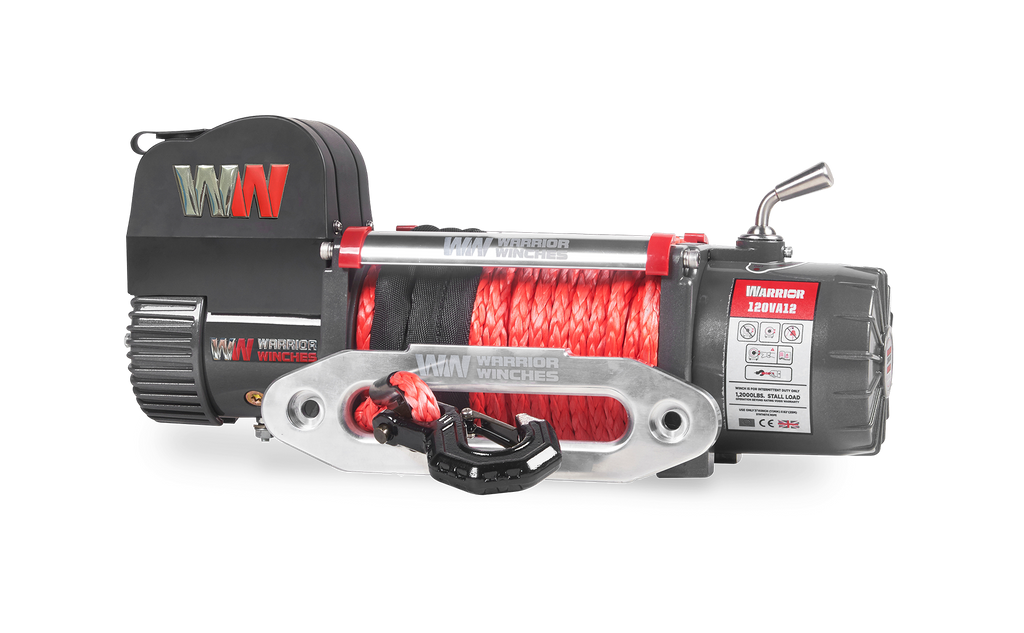

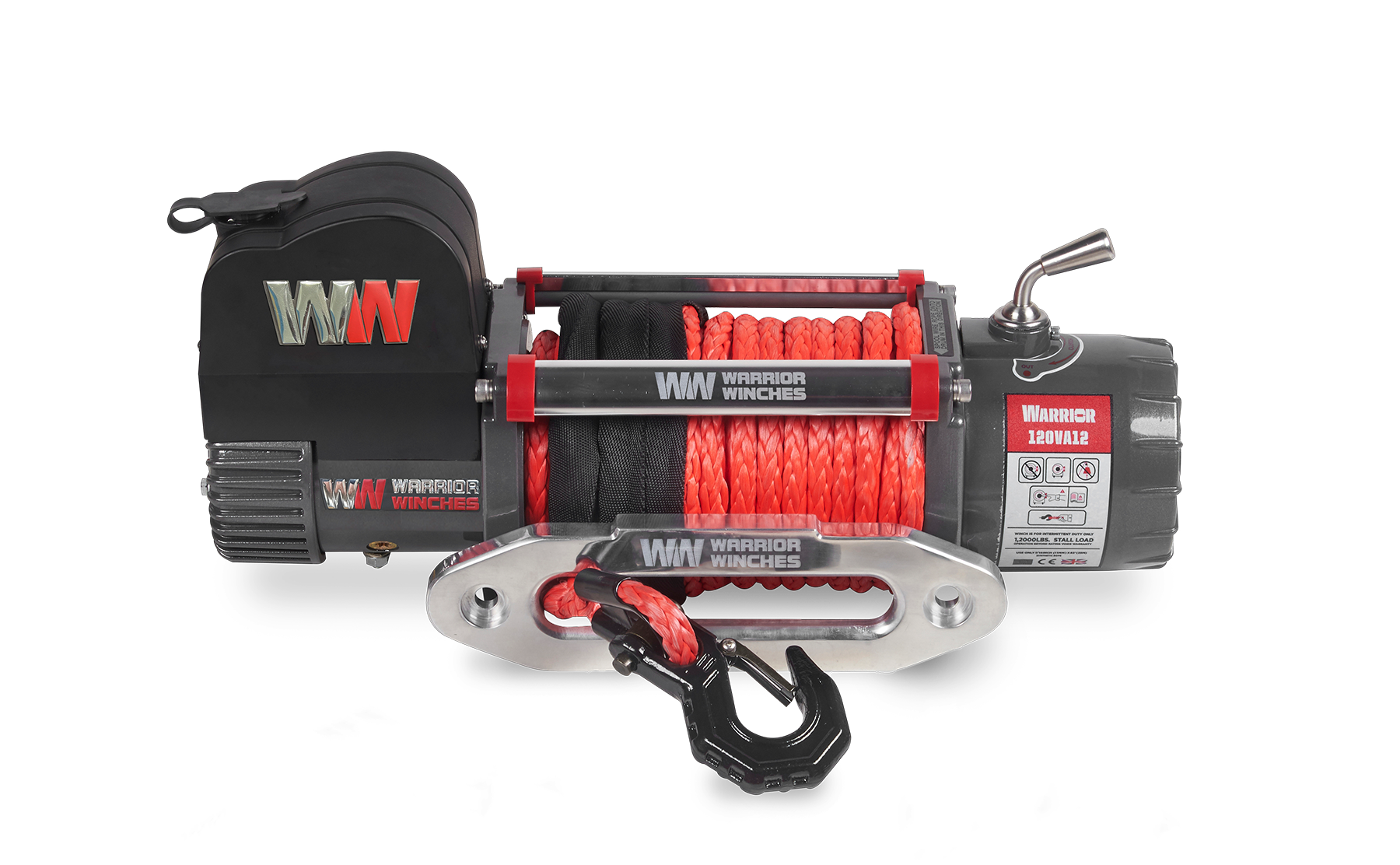

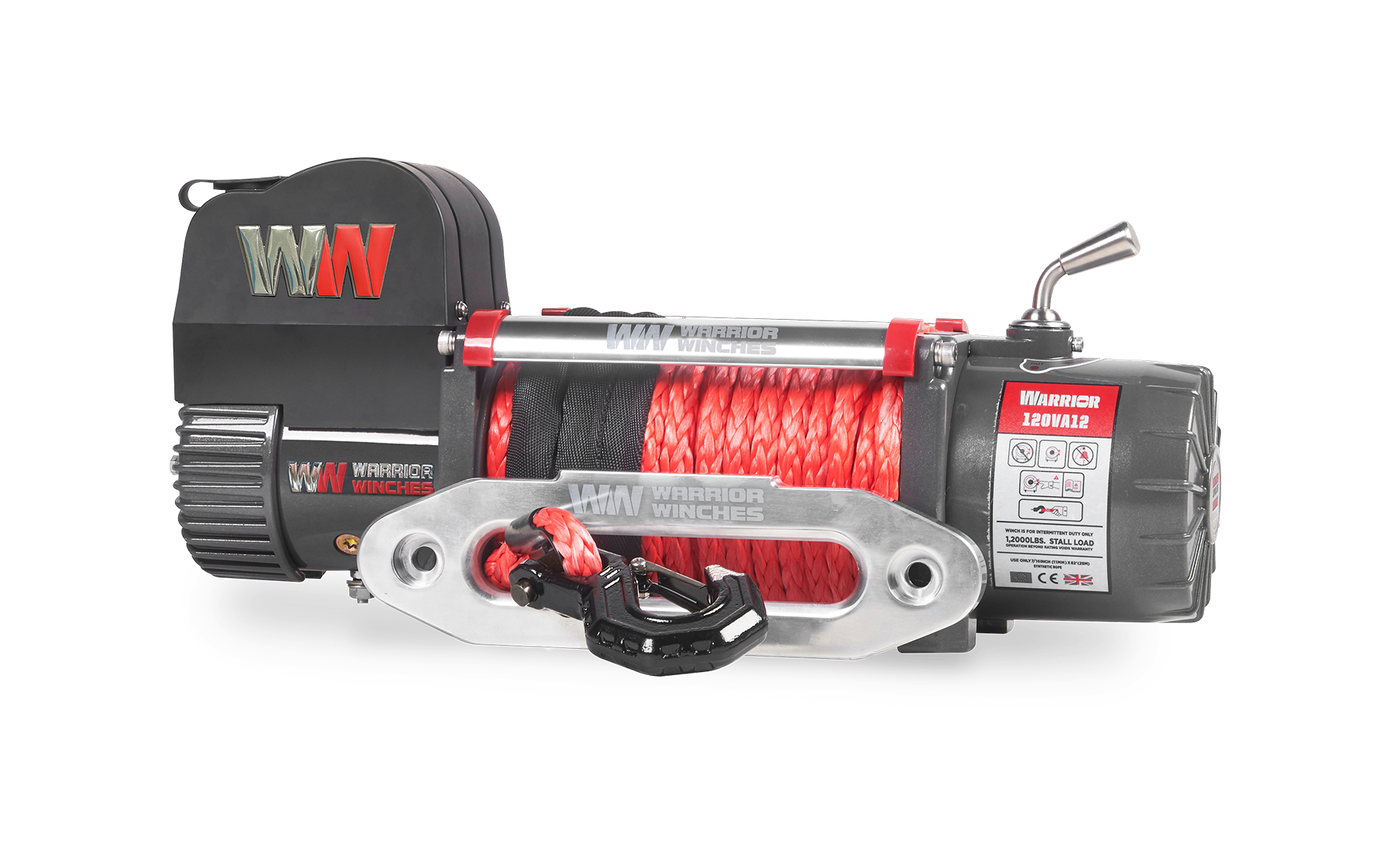

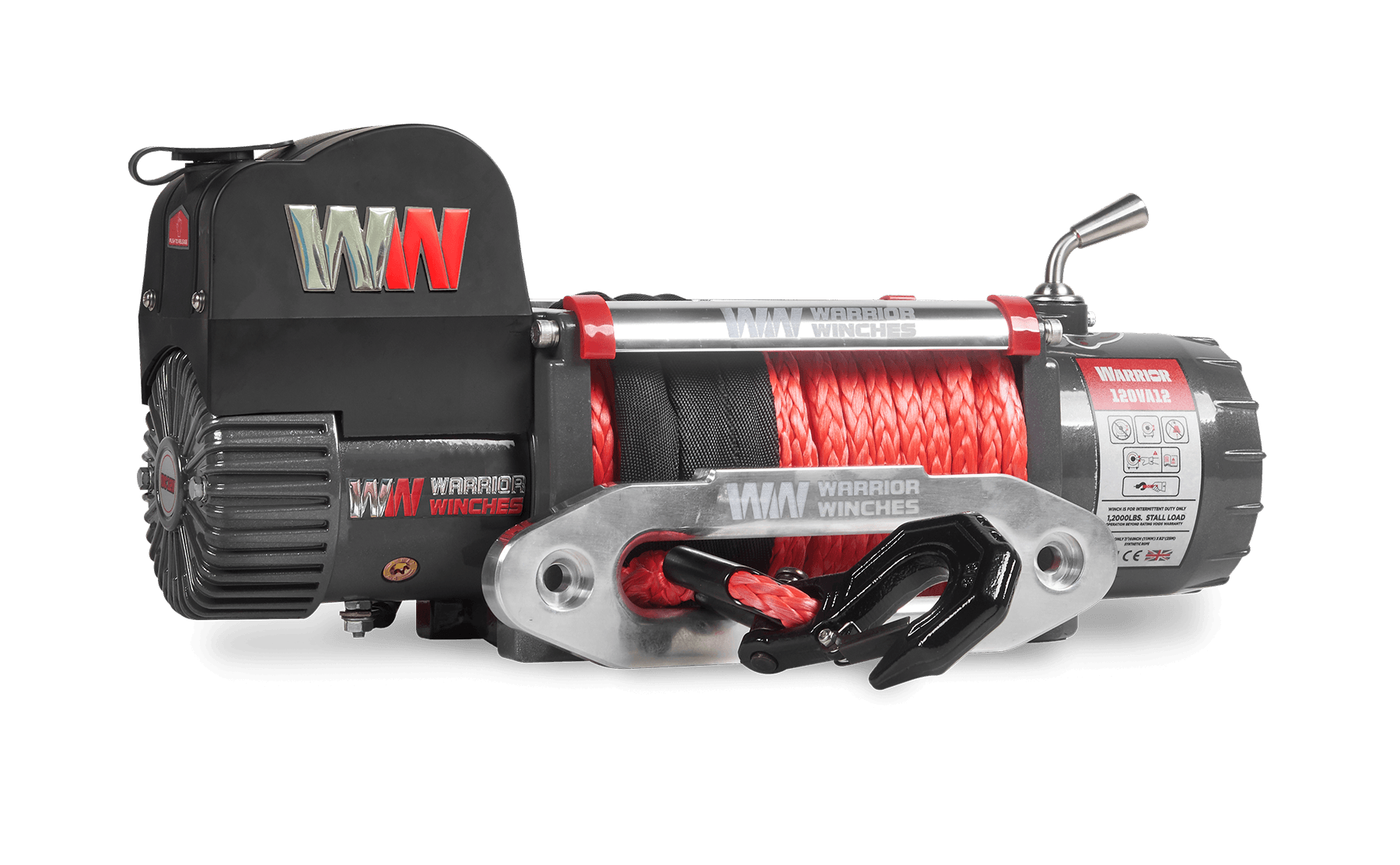

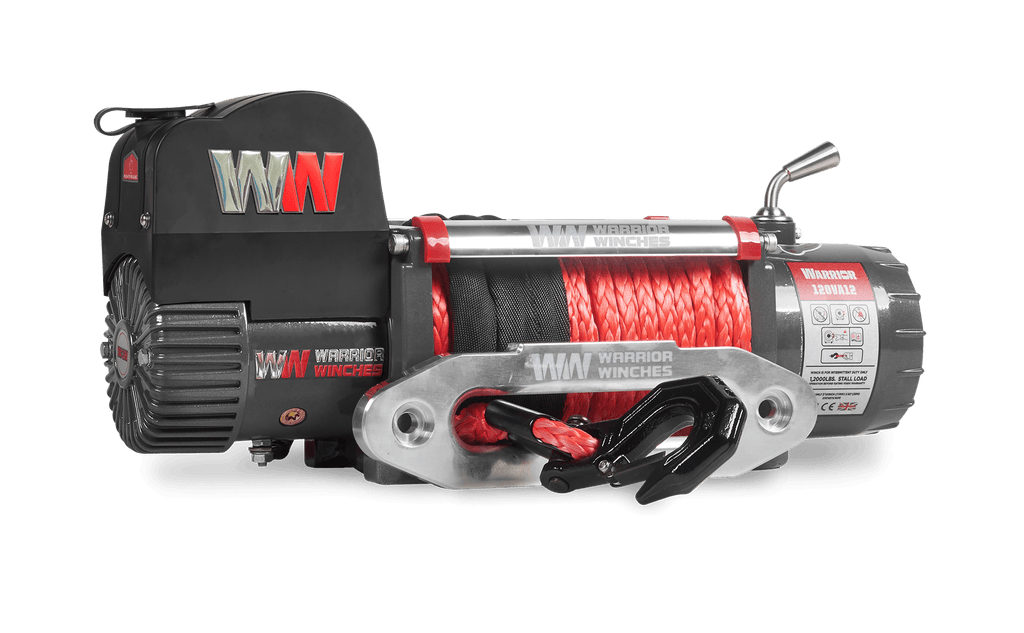

Samurai Next Gen 12000 Electric Winch

SKU EAN
12v / Steel Rope 120VS12 5060423985273
24v / Steel Rope 120VS24 5060423985426
12v / Synthetic Rope 120VA12 5060423985433
24v / Synthetic Rope 120VA24 5060423985594

Voltage: 12v
Rope: Steel Rope
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

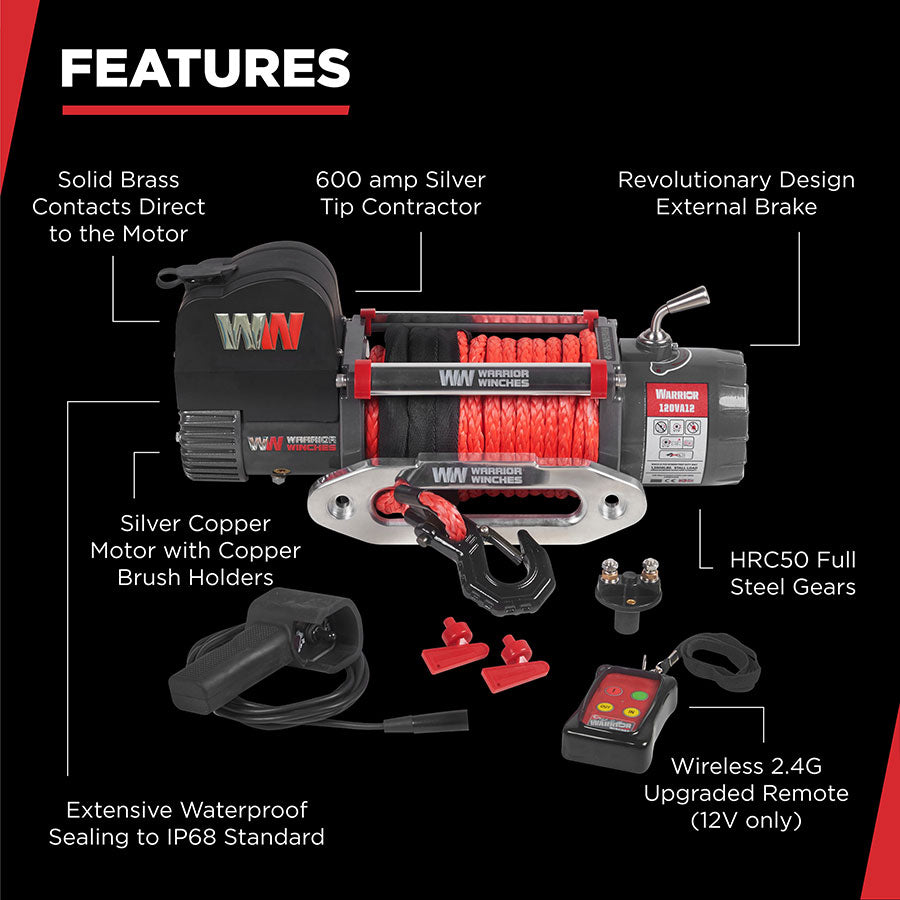

Features

  • Revolutionary Design External Brake
  • 600 amp Silver Tip Contactor
  • Silver Copper Motor with Copper Brush Holders
  • Extensive Waterproof Sealing to IP68 Standard
  • HRC50 Full Steel Gears

Our top performance winches just got better!

Our premium 'Next Generation' Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum.

Ideal for recovery and 4x4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

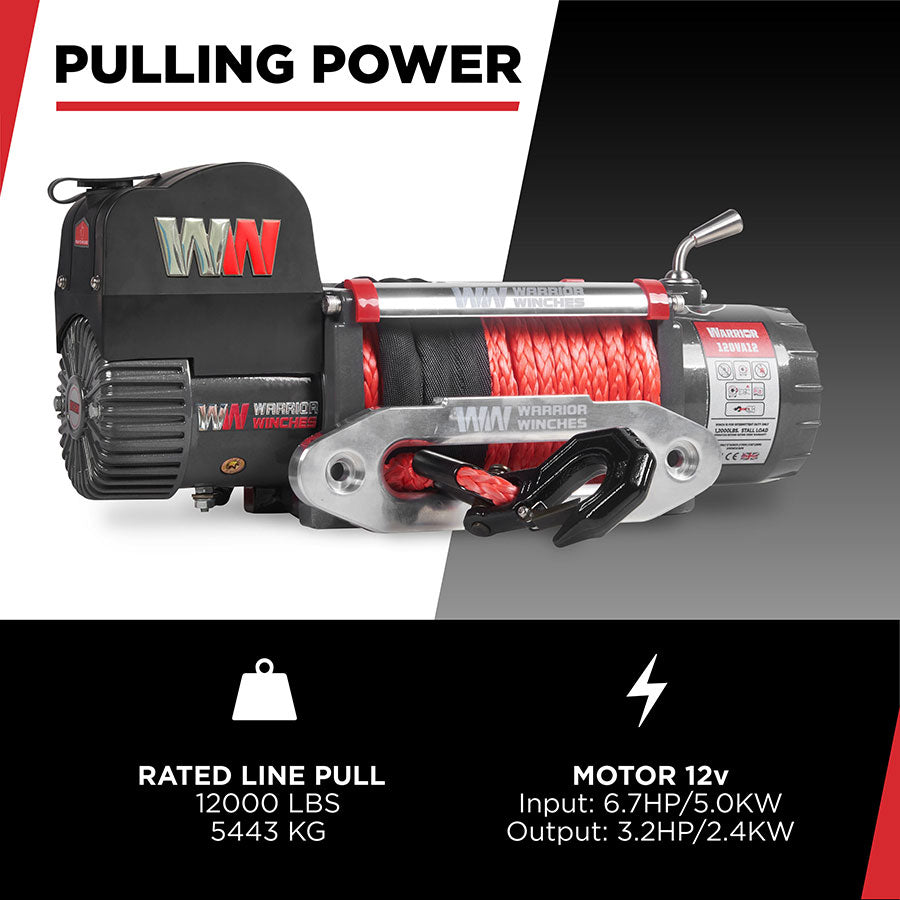

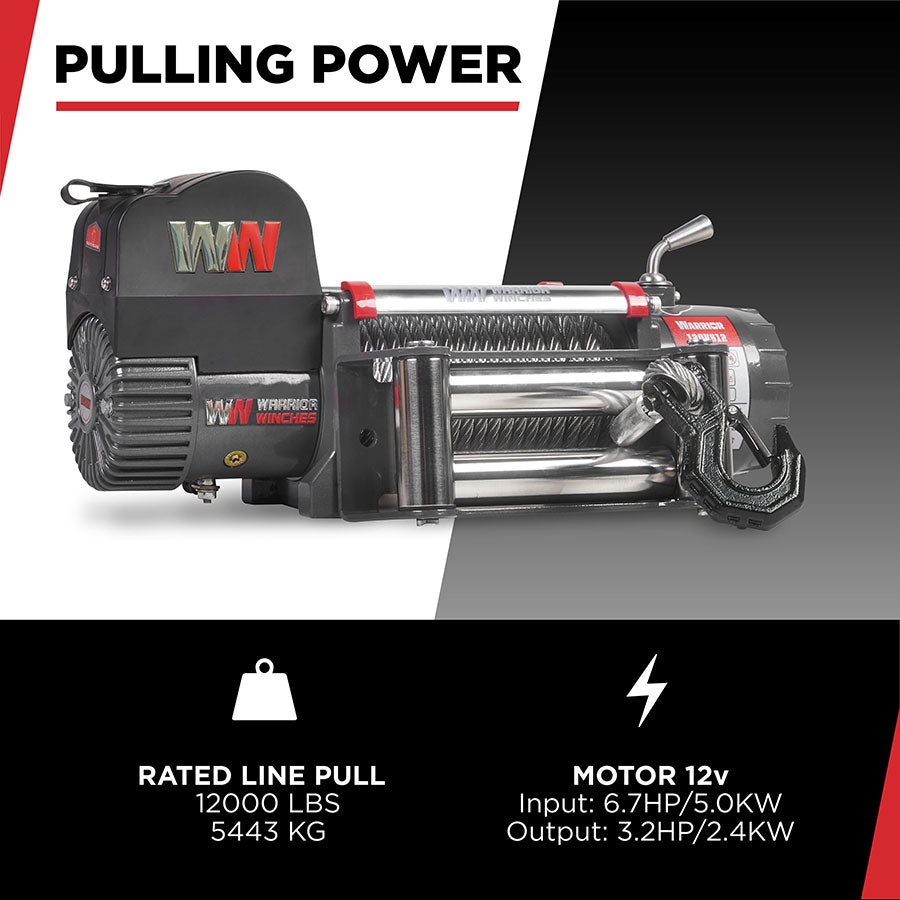

Rated Line Pull12000 lbs
Motor Type12V: Input: 6.7hp/5.0Kw Output: 3.2hp/2.4kW
24v: Input: 8.0hp/6.0Kw Output: 4.2hp/3.1kW
Gearing253:1
ClutchManual
Braking ActionExternal Brake

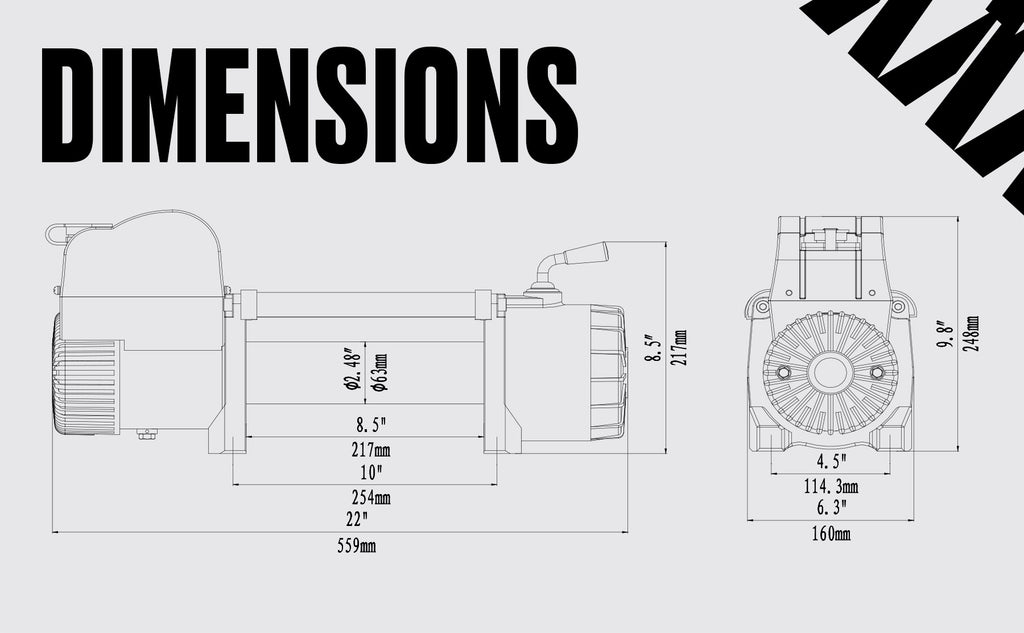

Drum Size (Dia x L)63 x 223 mm
Cable MaterialSteel or Synthetic

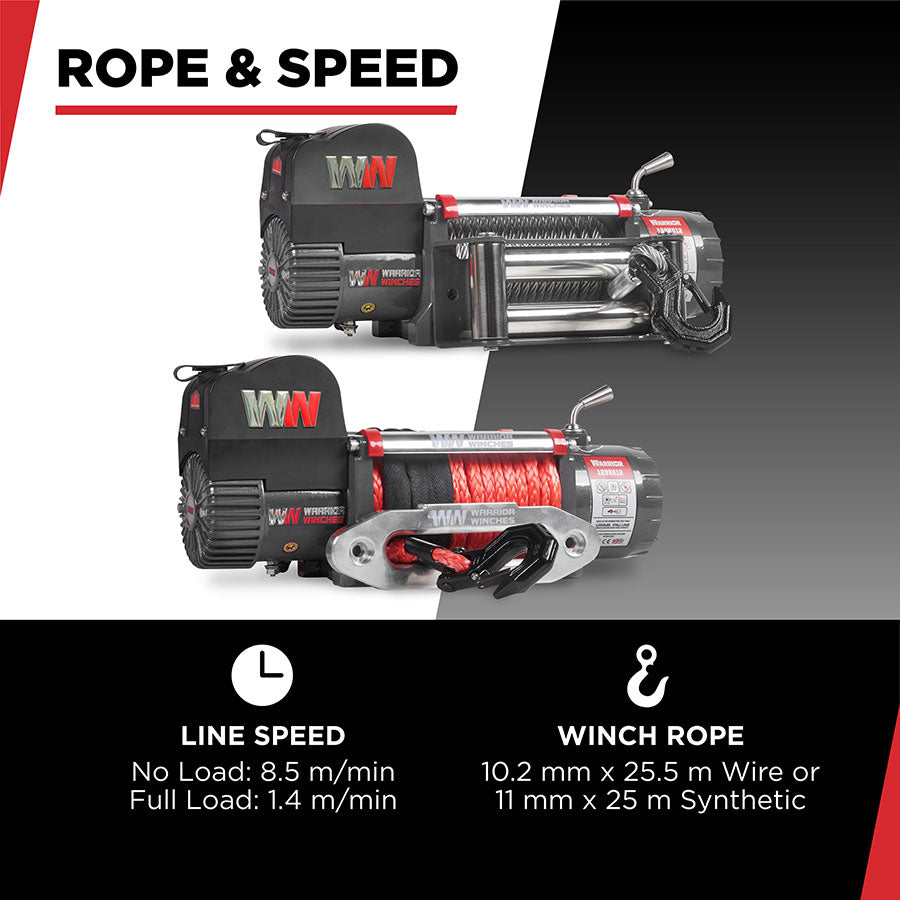

Cable – Dia x LSteel: 10.2mm x 26m
Synth: 11mm x 25m

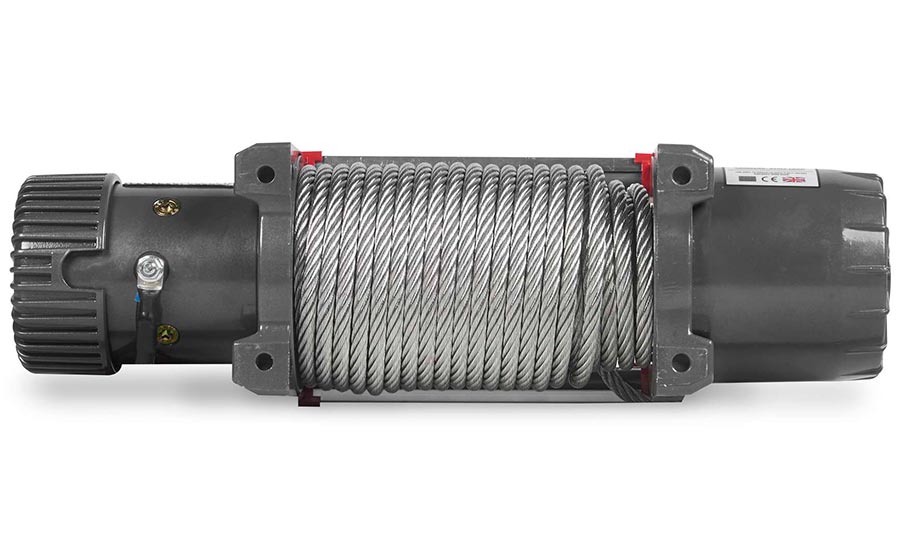

Mounting Pattern254 x 114.3mm mm
Dimensions559 x 160 x 248 mm
Weight44.0 kg
Warranty3 Years
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs) Rope on drum ft(m)
1 12000 (5443) 15.1 (4.6)
2 9563 (4338) 34.1 (10.4)
3 7907 (3586) 57.7 (17.6)
4 6755 (3064) 83.7 (25.5)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 29.5 (9.0) 37.7 (11.5) 50 45
6000 (2721) 10.5 (3.2) 12.1 (3.7) 240 140
8000 (3629) 8.2 (2.5) 9.8 (3.0) 280 180
10000 (4535) 5.9 (1.8) 7.2 (2.2) 320 220
12000 (5443) 4.6 (1.4) 5.2 (1.6) 380 250

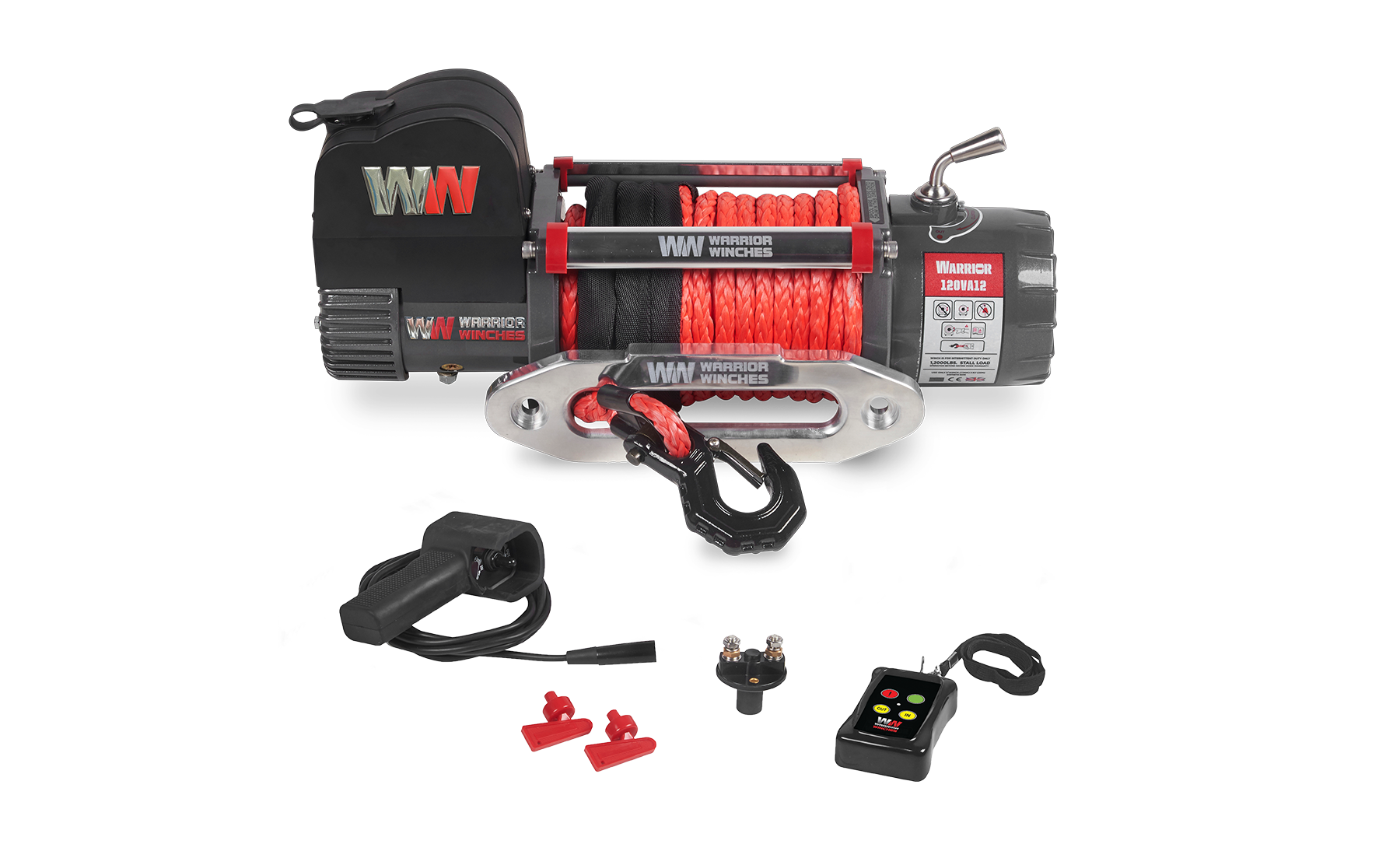

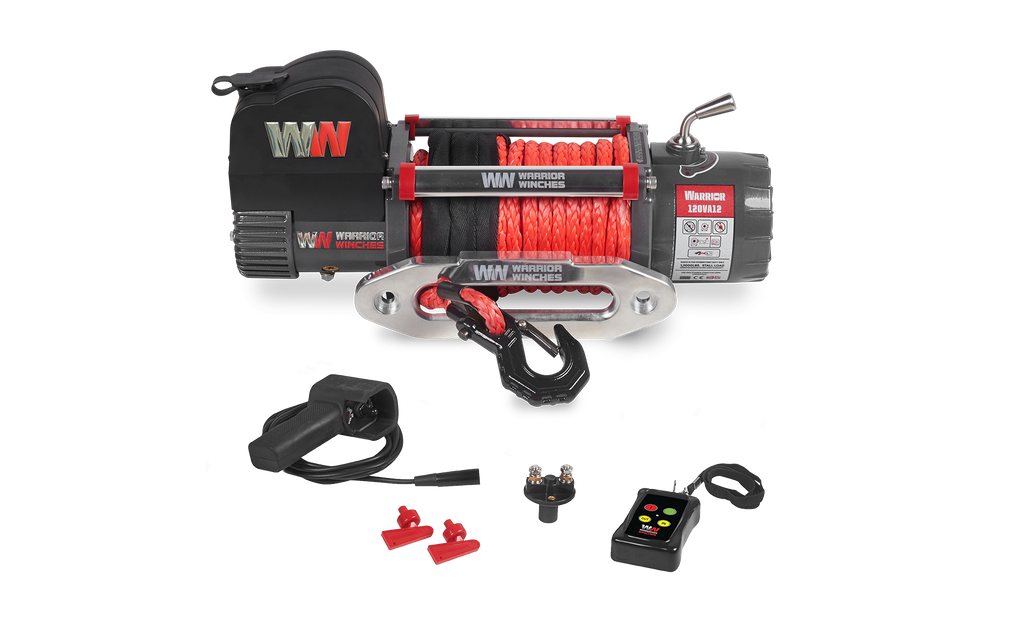

What's in the box:

  • Samurai Winch
  • Heavy Duty Stainless Steel Fairlead OR Aluminium Hawse Fairlead
  • Steel Rope OR Synthetic Rope
  • Heavy Duty Battery Leads
  • 3.8m Wired Remote handset
  • Wireless 2.4G Upgraded Remote (with 12V version only)
  • Removable Heavy Duty Hook
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.

Reviews and Q&A

  • How long are the battery cables please?

    Hello,

    This model comes with 1.5 metres of 35mm2 battery cables

    Thanks

    James.

  • What is the price on Samurai 12000lb, can you send to Norway ?

    Hello,

    Thanks for getting in touch!

    Here is a link to our dealer locater.

    https://www.warriorwinches.co.uk/pages/warrior-winches-stockists

    Thanks

    James.
