6000EN Electric Winch

SKU EAN
24v 60ENS24 5060423980865

Voltage: 24v
Find a store near you
Or buy online from our approved partners:
Bimson Power Approved Warrior StockistsUk Winches Approved Warrior Stockists

Features

  • Wire rope to drum ratio 10:10
  • 2160N/mm2 Rope grade with 2:1 rating
  • Full load holding brake
  • Emergency stop remote handset
  • Free spool clutch lever

The EN Series winches have been developed for the professional operator. The winches have been designed to ensure that as part of an installation solution they can meet the requirements of EN 14492:1. Additional features include 10: 1 drum/rope ratio, 2:1 rope ratio, double rope fixing. As well as these special features the winches come complete with all the standard Warrior features such as high quality motors, full sealing and stainless steel fairleads and fittings.

PLEASE NOTE: This winch can only be front mounted using the appropriateIST640 mounting plate.

Rated Line Pull13200 lbs
Motor Type12V: Input: 7.0HP/4.9kW ; Output: 3.9HP/2.9kW
24V: Input: 7.9HP/6.0kW ; Output: 4.1HP/3.1kW
Gearing430:1
ClutchManual
Braking ActionAuto in the drum

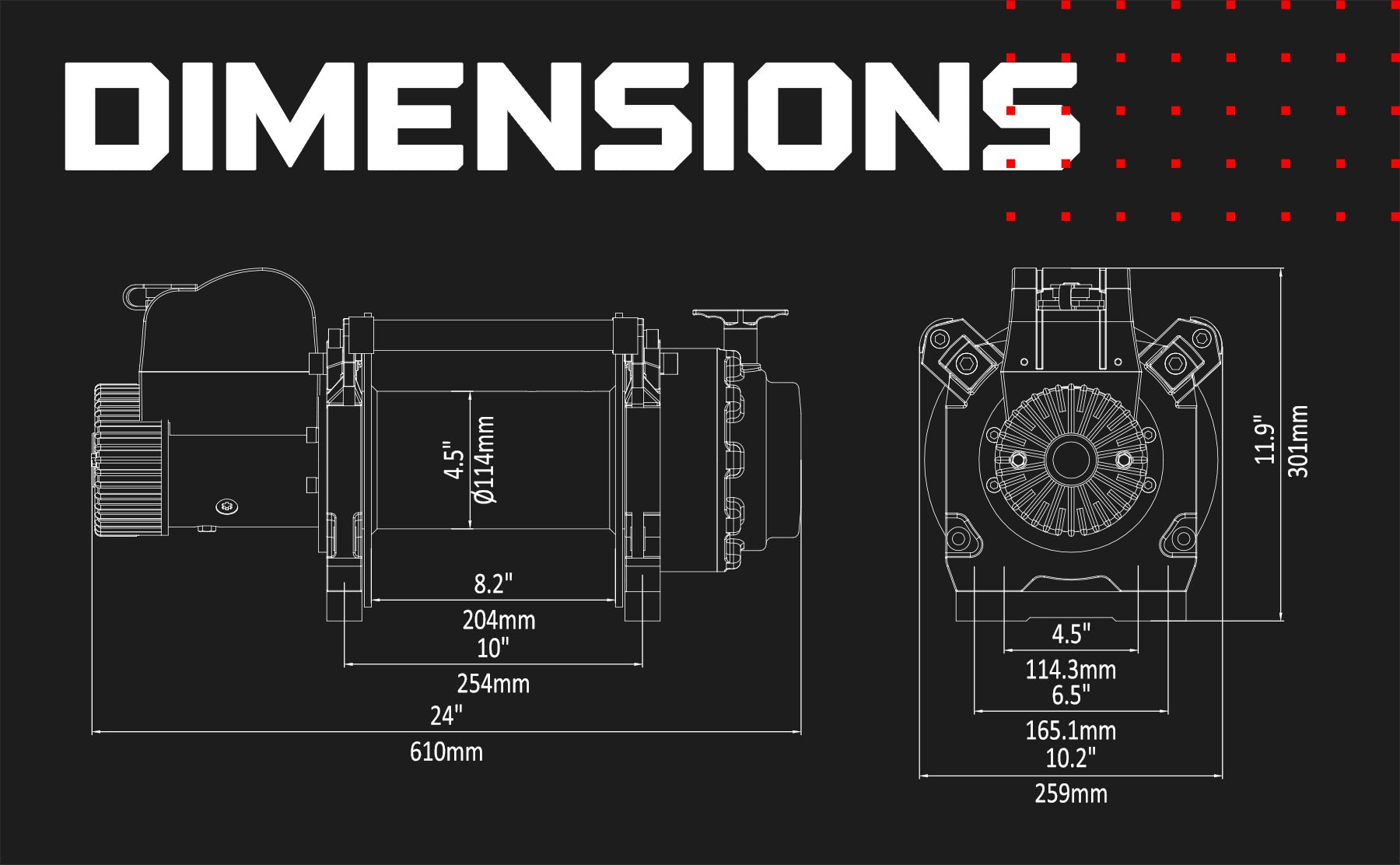

Drum Size (Dia x L)114 x 204 mm
Cable MaterialSteel
Cable – Dia x L12mm x 26.5m
Mounting Pattern254 x 114.3 mm;254 x 165.1 mm mm
Dimensions610 x 259 x 301 mm
Weight73.5 kg
CertificationCE, UKCA



Layer of Rope/Cable Line Pull: lbs(kgs)
1 13228 (6000)
2 11111 (5040)
3 9579 (4345)
4 8417 (3818)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Line Speed 24v
ft/min (m/min)
Amp Draw
12v
Amp Draw
24v
0 18.0 (5.5) 19.4 (5.9) 90 40
4409 (2000) 8.9 (2.7) 9.2 (2.8) 200 90
8818 (4000) 6.2 (1.9) 6.9 (2.1) 295 150
13228 (6000) 4.6 (1.4) 5.2 (1.6) 400 210

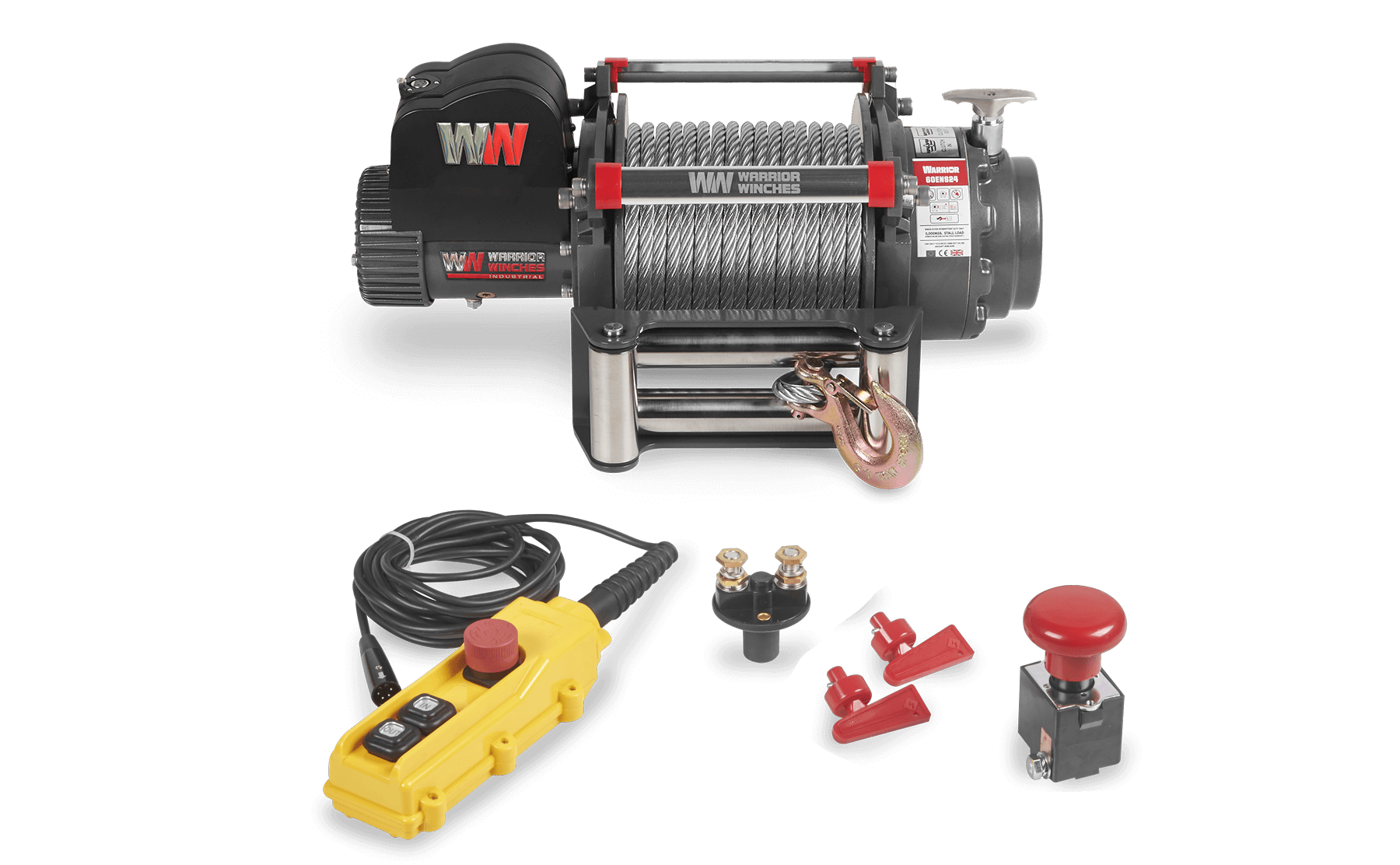

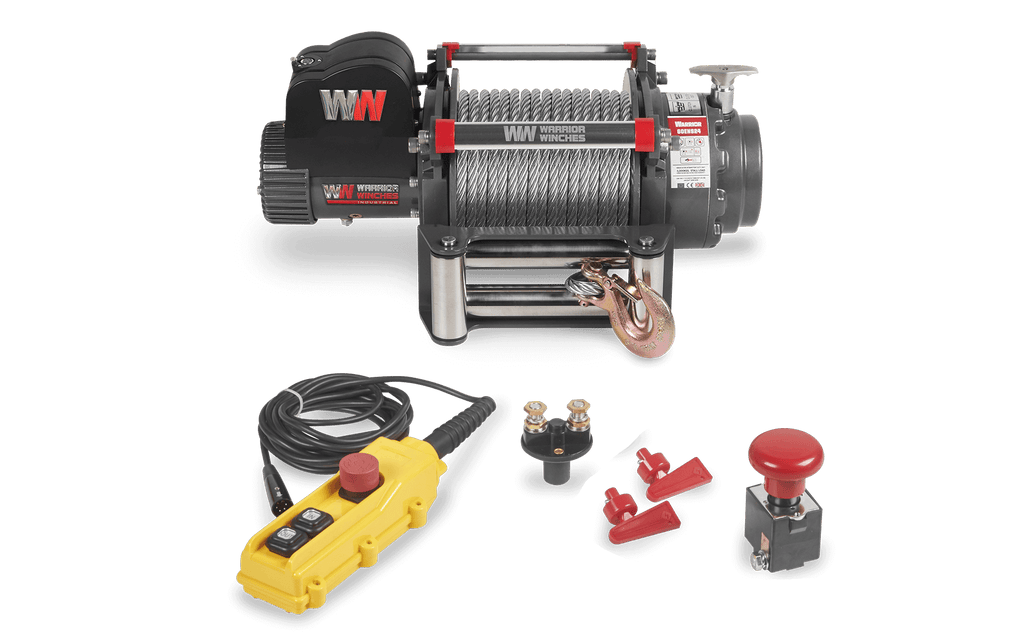

What's in the box:

  • Samurai EN Winch
  • Steel Winch Rope
  • Heavy Duty Hook
  • Heavy Duty Stainless Steel Roller Fairlead
  • Heavy Duty Battery Leads
  • Emergency Stop Button
  • 3.8m Remote Handset
  • Stainless Steel Mounting hardware (nuts/bolts)
User Manual Download
Technical Drawing Download
Brochure Download
Parts List Download

Limited lifetime with 3 year on electrical

Winch Solutions are the sole distributors of WARRIOR WINCHES.

Winch Solutions (“seller” or winch solutions) warrants to the original retail buyer only (“Buyer”) that any mechanical component of a genuine WARRIOR WINCH (“product”) is free of defects in material and workmanship for the lifetime of the winch.

The electrical components (including the motor, contactor, and switches) will be free of defects in material and workmanship for a period of (3) three years (36 Months) from the original purchase provable date of purchase.

Any product Winch Solutions determines to be defective will be repaired or replaced at Winch Solutions sole discretion without charge to the Buyer upon Buyer’s compliance with this procedure. Seller or its Authorized Agent may make reasonable charges for parts and for labour for repairs not covered by this Lifetime Limited Warranty. The warranties set forth herein are exclusive and in lieu of all other warranties, whether oral or written, express or implied.

All purchases must be registered. Any product that has not been registered will be covered by the standard 1 year warranty.

To obtain service under this warranty, the Buyer shall mail, ship or otherwise deliver to the address noted below, at the Buyers expense; (1) the Product, (2) a written description of the problem, (3) Buyers name, address and contact number, (4) copy of the original purchase receipt.

The Warranty does not cover the cost of labour or transportation/shipping charges for the replacement or installation of defective parts.

This warranty does not apply to defects of the Product caused by; (1) normal wear and tear, (2) failure to comply with any installation or maintenance instructions provided by the Seller, including but not limited to subjecting the product to loads in excess of the loads listed in any instructions, Owners Manual or as detailed upon the Sellers website, (3) commercial or industrial use, (4) alteration or modification by any parties other than the Seller, (5) misuse, abuse, neglect, accidents, Acts of God, terrorism or (6) other causes beyond the control of the Seller after delivery of the Product to the Sellers Authorized Agent.

This Warranty does not cover cables, synthetic ropes, fairleads or exterior finishes

Winch Solutions shall not be responsible or liable for any indirect or consequential damages. These consequential damages may include, but are not limited to, lost profits or loss of use and down time.

Winch Solution reserves the right to change the Product design without notice. Winch Solutions reserves the right to replace any part or whole unit with a newer design of the same function.
